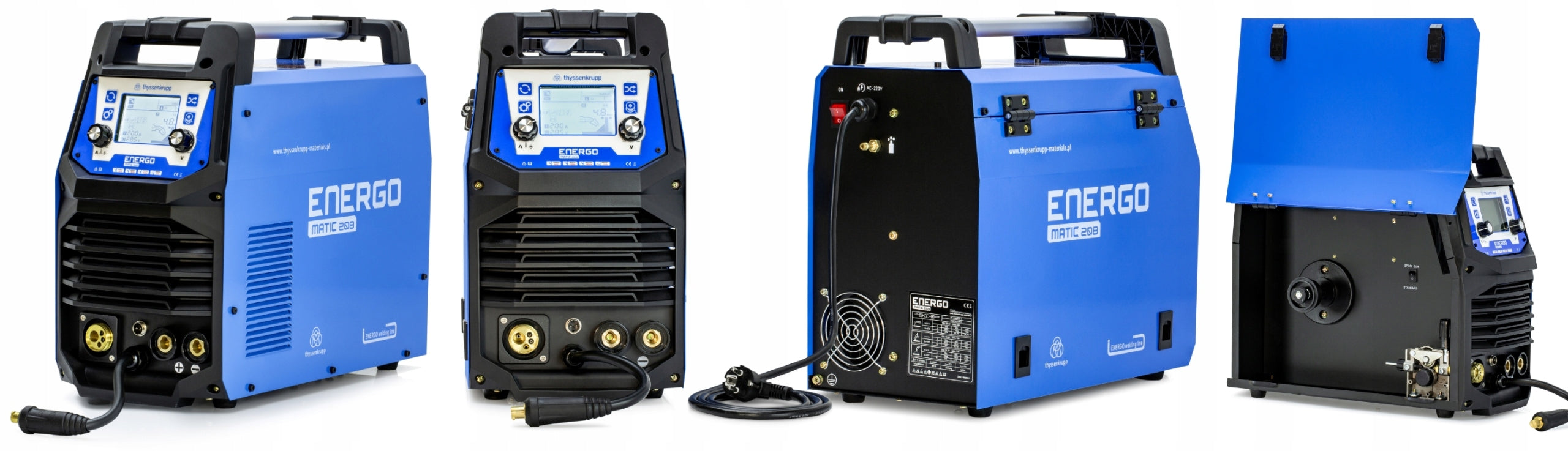

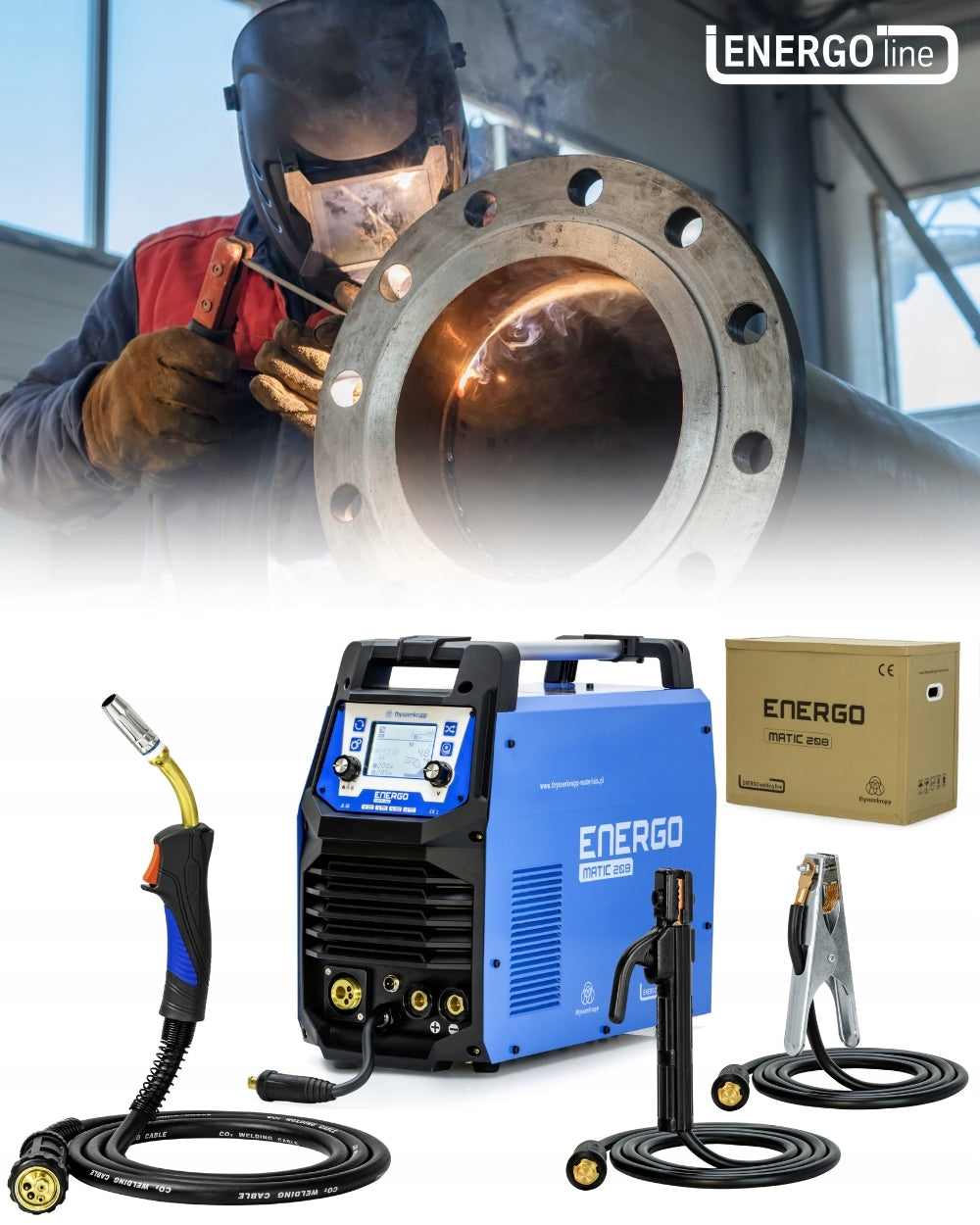

Suvirinimo invertorius ENERGOmatic208 4in1, 200A

Trumpai apie prekę

Prekė: Suvirinimo invertorius ENERGOmatic208 4in1, 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: ThyssenKrupp
• Modelis: ENERGO MATIC 208

Manufacturer: thyssenkrupp Materials Poland ║ Brand: ENERGOline ║ Model: Energomatic 208 ║ Welding methods: MIG/MAG, TIG Lift, MMA ║ Power supply: 230V ║ Welding current: 200A ║

➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖

We are pleased to present our semi-automatic, multifunctional 4in1 welding machine – ENERGOmatic 208. This versatile microprocessor controlled equipment offers a variety of welding methods.

Whether you need MIG/MAG, TIG, wrapped electrode or spot welding, ENERGOmatic 208 is ready for any task.

It is the perfect tool for ambitious welders looking for versatility and efficiency in one device.

Modern IGBT technology will give you control over welding parameters, allow you to weld various materials and increase work efficiency. Equally important - the intuitive control panel will allow you to work quickly and efficiently.

With this welding machine you can weld low and medium alloy steels (stainless and acid resistant steel), aluminum and copper and its alloys.

✔ Ease of welding thin materials - cold welding

✔ Reducing deformation of materials

✔ Fast and accurate spot welding

✔ Stable arc even with low welding current

✔ Manual and synergistic parameter setting

✔ Ease of transport

✔ Safety

➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖

ⓘ Perform your tasks with as little physical effort as possible and reduce the time it takes to set welding parameters with the latest ENERGOmatic 208 welding machine.

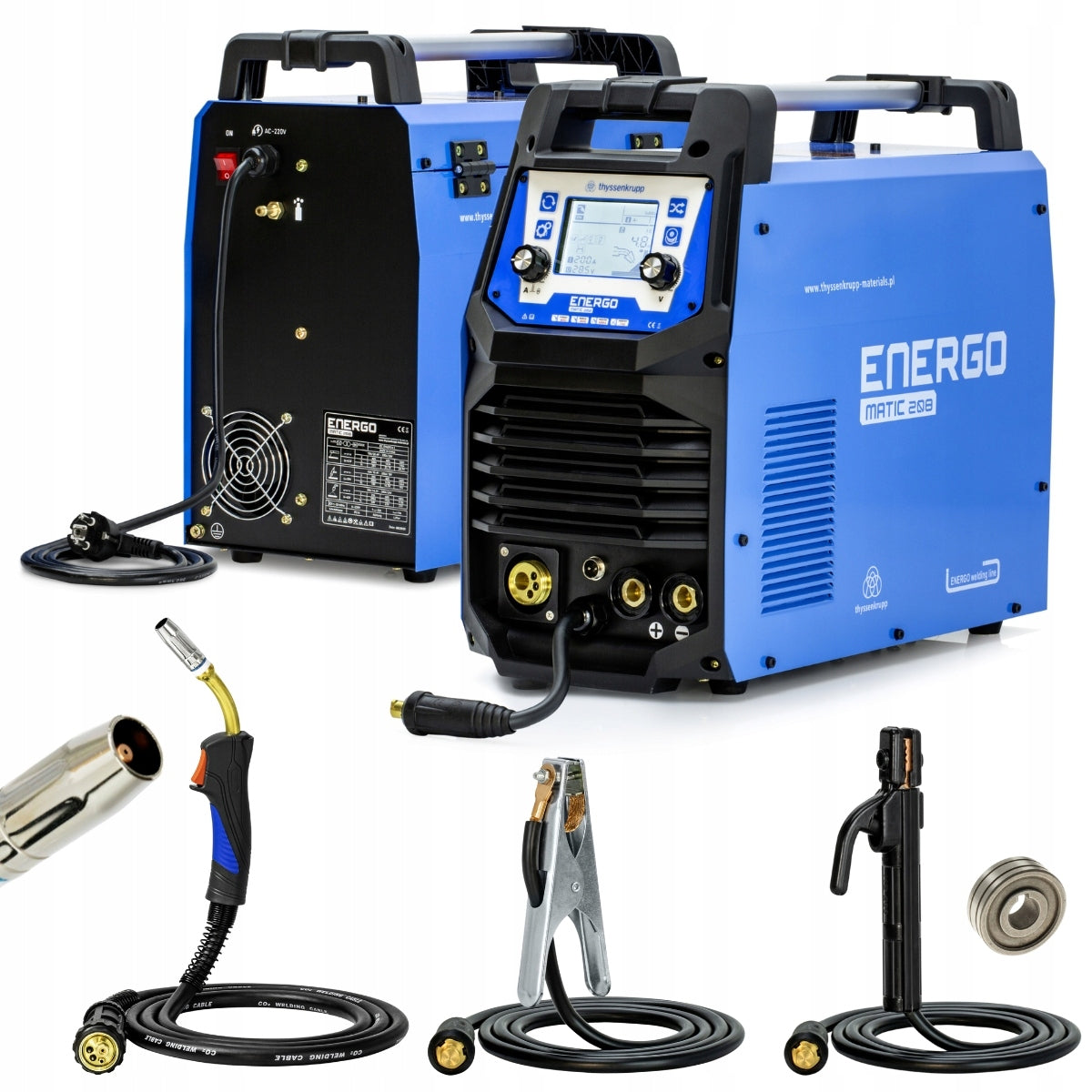

1) ENERGOmatic 208 inverter semi-automatic welding machine - 1 pc.

2) Mass cable with tick clamp - 1 pc.

3) MMA electrode welding cable - 1 pc.

4) MIG/MAG welding torch - 1 pc.

5) Safety instructions - 1 pc.

6) Roll (double-sided) supporting wire: 0,8 mm and 1,0 mm; type V –1 pc.

• Power supply: 1-phase, 230V ± 15%, 50/60 Hz
• Rated power: 7,5 Kw
• Idle voltage: 60V
• Isolation class: F
• Housing protection class: IP21S
• Security: 20A
• Welding current: 20-200A
• MMA acceptable load: 40% duty cycle 200A; 60% duty cycle 142A; 100% duty cycle 118A
• MIG permissible load:35 % duty cycle 200A; 60 % duty cycle 152A; 100 % duty cycle 118A
• T TIG LIFT permissible load: 35 % duty cycle 200A; 60% duty cycle 163A; 100% duty cycle 126A
• Wire feed speed: 2,0-15 m/min
• Wire diameter: Fe 0,6-1,0; Ss 0,8-1,0; Flux 0,8-1,0; AlMg/AlSi 1,0-1,2; CuSi/CuAl1,0
• Device dimensions: 570 x280 x450 mm
• Weight of the device: 14kg
• Weight with packaging: 18kg
• Package dimensions: 620 x320 x450 mm

With our 4in1 ENERGOmatic series multifunction inverter welding machine, you'll save time, space, and money.

With a single welding machine, you can use a variety of welding techniques to suit your needs and material type.

Here are the popular welding methods that can be operated by our welding machine:

1. WELDING MIG (CO2/Ar/CO2+Ar GAS)
2. LUTOSPELING (Galvanized sheets)
3. SPOT WELDING MIG (Sheet metal repairs)
4. MMA, ARC WELDING (Electrode)
5. WELDING MIG WITHOUT GAS (powder wires)
6. WELDING MIG Alu/Ss/Cu (As required)
7. SPAWANIGE MIG 2T/4T (Sheet metal repair)
8. WELDING TIG Lift (Black and stainless steel)

Gain control over your welding processes with advanced adjustment features!

One of the most important advantages of our welding machine is its ease of use.

Intuitive control panel ensures the correct configuration of the machine and selection of appropriate welding parameters. This technology will allow you to reduce the time needed for setting and extend the welding time.

Easy-to-read welding parameter indicators make even novice welders feel confident and able to adjust the settings to their needs.

Whatever your level of experience, our welding machine will help you achieve professional results.

MIG/MAG SYNERGY mode - In MIG/MAG synergistic mode, the wire feed speed is automatically adjusted to the welding voltage. Supports welding of carbon steel, stainless steel, aluminum sheet and even copper sheet

MANUAL MIG/MAG mode - Manual mode adjusts the welding state by adjusting the wire feed speed. This mode has the same adjustment subfunctions as the SYNERGY mode.

MMA mode - The maximum current is 200A, and you can weld with various electrodes with a diameter of 1,6~5mm, such as cellulose electrodes (E6010), primary electrodes (E7018) and rutile electrodes (E6013). Additionally, you can use VRD, Hot Start, Arc Force, and Anti Stick for easy welding.

TIG mode - The TIG welding torch is connected to the negative output of the welding inverter, and the return wire to the positive output.

Another feature that distinguishes our welding machine is active synergy. It provides optimal control of welding parameters.

The system controls and monitors welding parameters, preventing overheating, burnout, or other potential problems. Thanks to this you get safe working conditions and minimize the risk of damage or accidents.

This feature brings several benefits to the welder:

• Easier and more stable welding
• Higher efficiency thanks to optimized welding parameters
• Simplifies the welding process - the welder does not have to choose welding parameters himself
• Minimize welding errors such as porosity, excessive splashes or uneven welding
• Achieving good welding results, even for those without much experience.

• thermostatic protection
• Protection against accidental short circuits caused by burner contact with the mass
• Protection against unstable voltage (too high or too low supply voltage)
• Anti-Adhesive (MMA)

The welder has a powerful, two-roll wire feeder with a power of 45W. It provides high efficiency and stable wire feed speed, up to 15m/min. The wire spools are easy to replace, allowing you to quickly change the type of wire or size.

Use freely both thin welding wire, which is ideal for precision welding, and thicker wire, which provides greater efficiency when welding thick elements.

This allows the welding machine to be adapted to different applications and materials, which contributes to improved welding quality and work efficiency.

Our equipment is also a solid and durable construction. It is made of high-quality materials, and the carefully folded elements testify to the reliability of the device.

Device enables the installation of two types of spools:

• 1kg (D100)
• 5kg (D200)

It is an advanced technology that monitors the temperature of the welding machine and automatically adjusts the operating parameters to prevent overheating and protect the device.

Benefits of SMART THERMAL CONTROL in our welding machine:

✔ Protection of welding machine

This feature ensures a long lifespan and reliability of the welding machine by minimizing the risk of overheating and thermal overload.

✔ User safety

Overheating of the welding machine can lead to risks to operator safety and the environment. SMART THERMAL CONTROL helps prevent such situations by ensuring safe working conditions.

✔ Welding quality

Temperature control also has a positive effect on welding quality, ensuring stable and controlled operating parameters, even under various thermal conditions.

In the welding process itself, the function allows you to:

• Easy welding of thin materials
• Reduced deformation of the material
• Stable ARC at low currents
• Fast and accurate spot welding
• Easier connection of spaced sheets

VRD (Voltage Reduction Device) - voltage reduction system, whose task is to turn off the power supply within a few milliseconds from the end of welding. The use of the VRD system is a way to provide the welder with a higher level of safety during operation, especially in an environment where there is a very high probability of electric shock (for example, in a hot and damp place).

AntiStick - function allows you to easily disconnect the welding electrode if it starts to stick to the workplace. When the device senses that the electrode is sticking, it will reduce the welding current so that the electrode can no longer blend into the object, allowing it to be easily released.

HotStart - function, which for a short time increases the current during arcing. The higher current makes it easier to light the arc without sticking the electrode to the base metal. so-called The "hot start" also helps to quickly heat the base metal for deep penetration at the stitch starting point.

ARCFORCE - is a function that detects a drop in arc voltage caused by shortening the arc length. The arc force compensates for the voltage drop by increasing the current. The increased intensity ensures that the heat remains the same and the electrode does not stick to the base metal.

Our shop makes every effort to ensure the safe shipping of goods to our customers. We take care of proper protection of goods against possible damage during transport.

We use high quality protective materials, such as protective polystyrene, thick cartons with handles for easy carrying or professional fillers. In this way, we provide adequate protection against shocks, impacts or displacement during transport.

Additionally, our packages are carefully labeled to ensure identification and avoid unnecessary delivery problems.

─────────────────────────────────

➕ After placing an order in the download attachment, we provide information for users about the correct rules for handling waste electrical and electronic equipment and the institution of welding machine operation.

Please check out our video presentation. Check how easy it is to become a master of welding in your backyard garage with the ENERGO welding line series.

https://www.youtube.com/watch?v=iaAZiGZLSOY

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	ThyssenKrupp
Parametry	Power consumption	7.5 kVA
Parametry	Duty cycle time	40%
Parametry	Maximum electrode diameter	5 mm
Parametry	Device weight	14 kg
Parametry	Welding range	20–200 A
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	200 cm
Parametry	Product weight with unit packaging	18 kg
Parametry	Manufacturer code	ENERGOMATIC208
Parametry	EAN (GTIN)	5904647453739
Parametry	Packaging status	original
Parametry	Model	ENERGO MATIC 208
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO holders,LCD display
