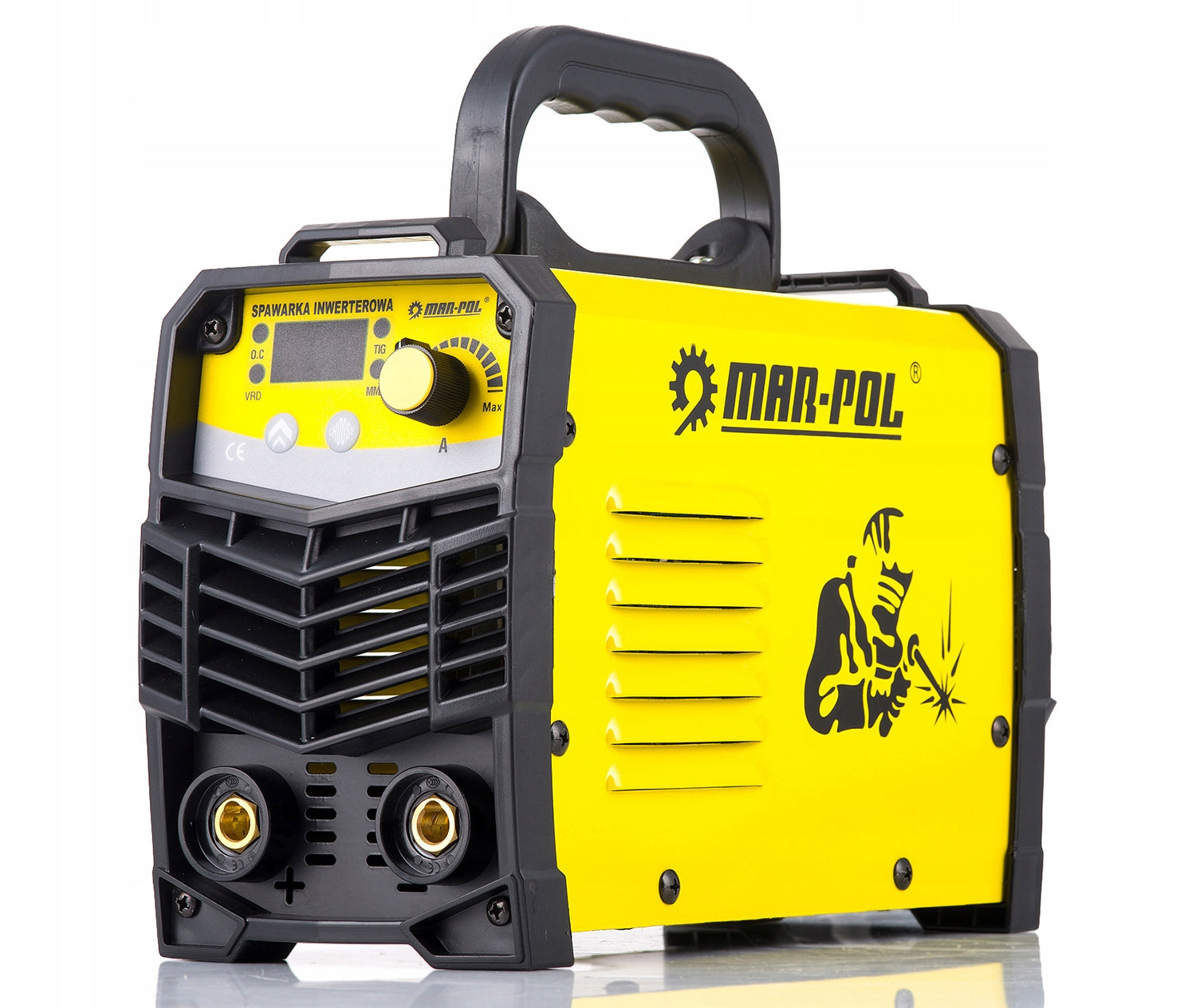

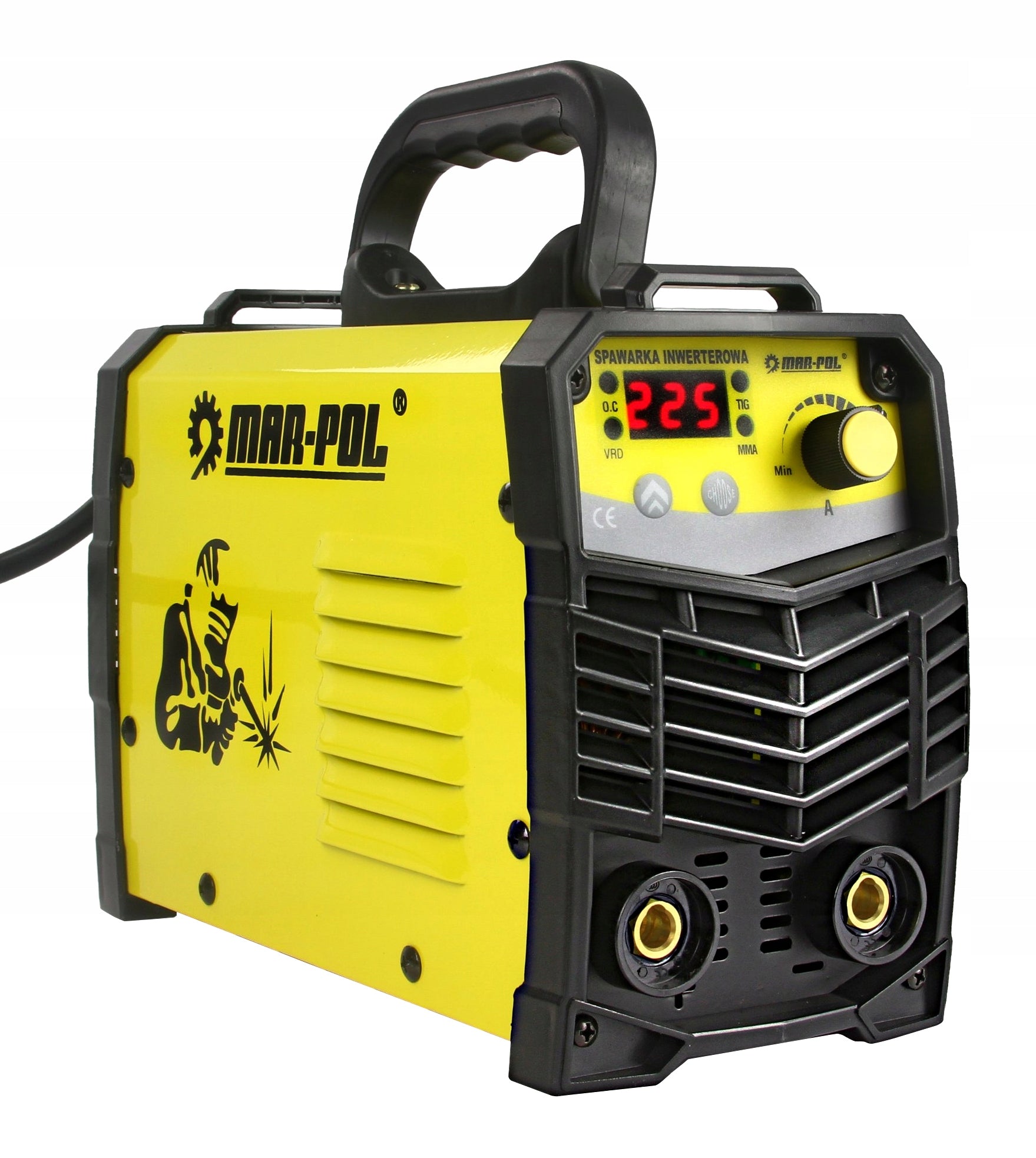

Suvirinimo invertorius Mar-Pol 20-330A 230V 9,4 kVA

Trumpai apie prekę

Prekė: Suvirinimo invertorius Mar-Pol 20-330A 230V 9,4 kVA. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Mar-Pol
• Modelis: mma 250 300 315 330A igbt TIG M79363

INVERTER WELDING MACHINE IGBT-330 IQ 2IN1 MMA/TIG from MAR-POL

Efficient welding machine in which a new technology is used, which is designed to help produce powerful energy for welding while maintaining small losses of electricity, additionally equipped with active cooling, IP 21 protection class.

Catalog number: M79363

• TIG welding function with additional accessory
• Constant current allows you to get a stable arc without dimming!
• Active cooling - duty cycle up to 60% under load
• Efficiency up to: 85%, low heat emission!
• Lowering the resting voltage, protection against paralysis!
• Long cables included - the sum of the lengths of all cables is over 600 cm / 6 M!
• The welding machine comes with a special badge informing about the tested high-quality device
• The power supply of the welding machine is 230V - low power consumption.
• The inverter operates on the principle of a converter, which allows for a significant reduction in the dimensions of the welding machine, achieving very good parameters.
• Current adjustment is carried out in a simple way using a potentiometer.
• On the display you can see the set current in amperes. It is very convenient and faster than cranking, as in cheap welding machines.
• Each welding machine is tested for quality

PARAMETERS:

• Power supply: 220 - 240 V
• Frequency: 50 Hz
• Phase: 1
• Working cycle: 60% / 330 A | 100% / 256 A
• Max. voltage without load: 60 V DC
• Max. Output intensity: 330 A
• Output voltage: 20.08 / 33.2 V
• Weight: 8 Kg

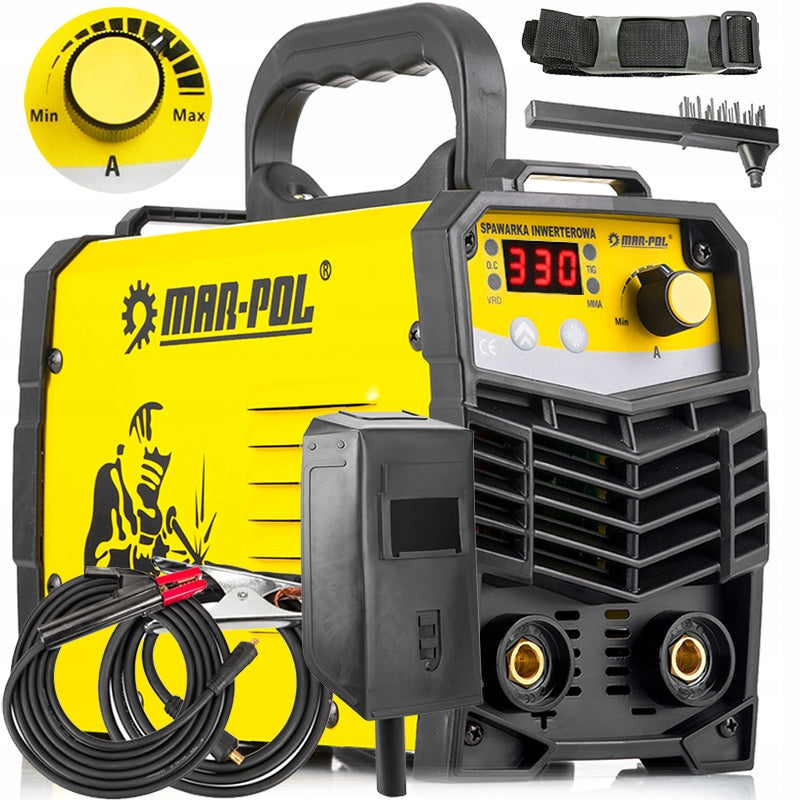

INCLUDED:

• welding machine MAR-POL
• full wiring
• Welding mask
• Brush
• Handle
• Strap

FUNCTIONS:

• Control Indicator (A)
• Welding current regulation
• Resting voltage reduction function
• Choice of MMA / TIG mode of operation

ADDITIONAL:

BUILT-IN FAN - ENSURES PROPER HEAT DISSIPATION FROM THE DEVICE.

Wiring length: Power cable 2m, cable ( - ) 2,10m, cable (+) 2,10m

The welding machine is CE certified and meets many standards confirming its qualitym.in:

PN-EN 60974-1:2013-04

PN-EN 62233:2008

PN-EN 60974-10:2014-12

PN-EN 55011:2016-05

PN-EN 61000-3-11:2004

PN-EN 61000-3-12:2012

CERTIFICATE CE

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Mar-Pol
Parametry	Power consumption	9.4 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	7 kg
Parametry	Welding range	20–330 A
Parametry	Length of ground cable	2.1 cm
Parametry	Welding cable length	2.1 cm
Parametry	Product weight with unit packaging	8 kg
Parametry	Manufacturer code	mma 250 300 315 330A igbt TIG M79363
Parametry	EAN (GTIN)	5901969112689
Parametry	Customs tariff code	85153918
Parametry	Welding methods	MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle,LCD display
