Suvirinimo invertorius STRONG IGBT MMA, 315A, Hot Start, Anti Stick

Trumpai apie prekę

Prekė: Suvirinimo invertorius STRONG IGBT MMA, 315A, Hot Start, Anti Stick. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Wuber
• Modelis: W18001

► IGBT Welder ► 60% Duty Cycle ► MMA ► 20-315A ► VRD ► Hot Start, Arc Force, Anti-Stick ► 3.7 kVA ► LCD Display ► Thick & Long 2m Cables ► Door To Door ►

⚙ TECHNICAL DATA:

Producer: Wuber

Supply Voltage: 230-240V / 50Hz

MMA Output Current Range: 20-315A

Operating cycle < 25°C : 60%

Operating cycle 26-35°C< : 30%

Idle Voltage: 60V

Rated Power Consumption: 3,7kVa

Rated current consumption: 17A

Possibility of welding with electrodes with diameter: 1.6-5 mm

Protection class: F

Degree of protection: IP21S

Length of mass cable: 2 m

Length of electrode cable: 2 m

Dimensions (DSW) : 25cm x 12cm x 17cm

LIGHTWEIGHT AND EFFICIENT

✅ Working cycle ► welding machine offers working cycle 60% which means that it can work for 5 minutes at full load, after which it requires 5 minutes break

✅ Welding current range ► from 20A to 315A enables precise adjustment of parameters to the thickness of the material and the type of weld

✅ Maximum electrode diameter ► the device supports electrodes with a maximum diameter of 5 mm, which allows for welding thicker elements requiring higher power

✅ MMA welding ► will allow for efficient welding of materials with electrodes

WELDING MACHINE FOR EVERYONE

✅ IGBT ► transistor ensures high energy efficiency and stability of welding current

✅ VRD ► is a key safety function that reduces the open circuit voltage to the appropriate level

✅ Advanced cooling system ► effectively dissipates heat, which allows for longer operation without the risk of overheating the device

✅ Hot Start, Arc Force, Anti-Stick ► these functions will allow you to work comfortably, even among laymen. Forget about the electrodes sticking to the welded material!

✅ Wires 2 m ► our wires are very long, so you can weld comfortably in all conditions

► WE GUARANTEE 100% SATISFACTION WITH YOUR PURCHASE OR YOUR MONEY BACK!

⭐ Why should you choose our equipment?

✔ Our welding machines are made of the highest quality materials and using proven technological solutions,

This makes them the most advantageous in their price range

► High quality

► Attention to the smallest details technical and visual

► Brand equipment with established market position

► Full access to spare parts and fast service

► Door to door guarantee - we will do everything for you!

⭐ Power and precision

► The welder operates in the current range from 20A to 315A offering exceptional universality in the selection of the electrode and its adaptation to the type of metal being welded, ensuring regular welds

► This allows the welding machine to efficiently work with both thin and thick components, which makes it suitable for a wide range of jobs, from minor repairs to heavier structures

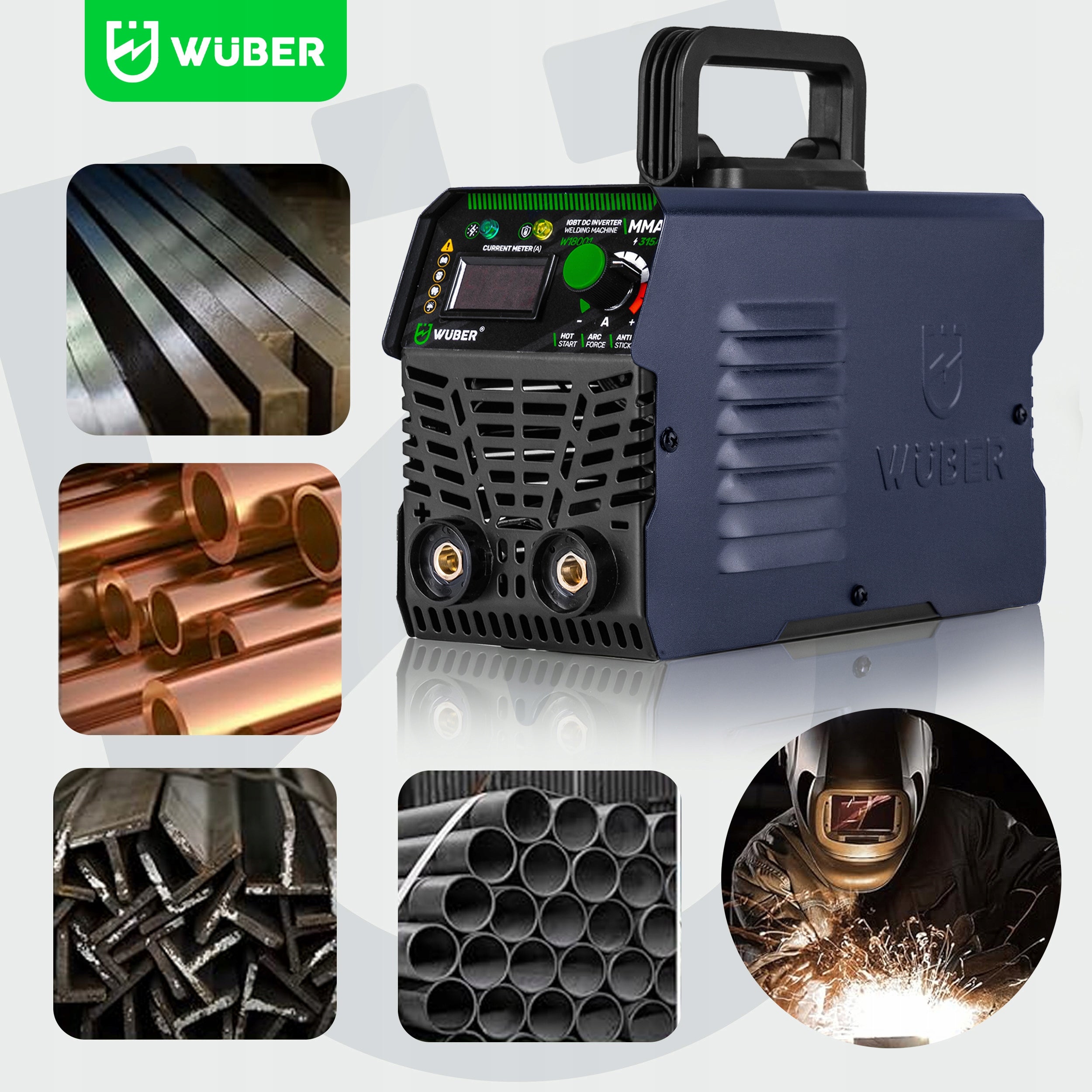

► The ability to adjust the current in such a wide range also ensures appropriate weld properties, regardless of the type of material, like carbon steel, stainless steel or cast iron

► High capacity electrolytic capacitors, stabilize the voltage and release it in a controlled manner ensuring a stable welding arc every time

► Door to door guarantee, and 100% availability of spare parts

⭐ Hot Start, Arc Force, Anti-Stick

✔ Hot Start

Hot Start function automatically increases the welding current at the beginning of operation, which facilitates fast and stable arc glow, especially when welding difficult materials

This provides a more secure start to the weld, which is beneficial for less experienced welders

✔ Arc Force

Arc Force stabilizes the welding arc by dynamically adjusting the current when the arc becomes too short

This makes welding more smooth and stable, which is especially useful in difficult welding positions or changing operating conditions

✔ Anti-Stick

Anti-Stick prevents the electrode from sticking to the material, automatically reducing current when the electrode gets too close

This minimizes the risk of electrode adhesion and makes it easier to detach, which increases comfort and smoothness of work, especially for beginners

⚡ High quality + attractive price

You don't have to be a welding expert to achieve deep penetration with this welder.

✔ Features that are usually only available in the most expensive IGBT devices can also be found in WUBER welding machines

Making a nice, superficial weld is easy, but the real art is achieving deep penetration , which ensures a clean, complete and extremely durable weld.

✔ Our welding machine has parameters that will allow even laymen to achieve such results!

⚡ Rated Power and Current Consumption

With a power consumption of 3,7 kVA and a rated current consumption of 17A, the welding machine is not only energy efficient, but also power supply network friendly, which minimizes the risk of overloading the electrical system

­

⭐ Easy to read LCD panel

All values and selected mode type of welding will be shown on the screen, so you will always see the current level of amps and operating mode

► For added convenience, the welding machine can be worn on the included shoulder strap!

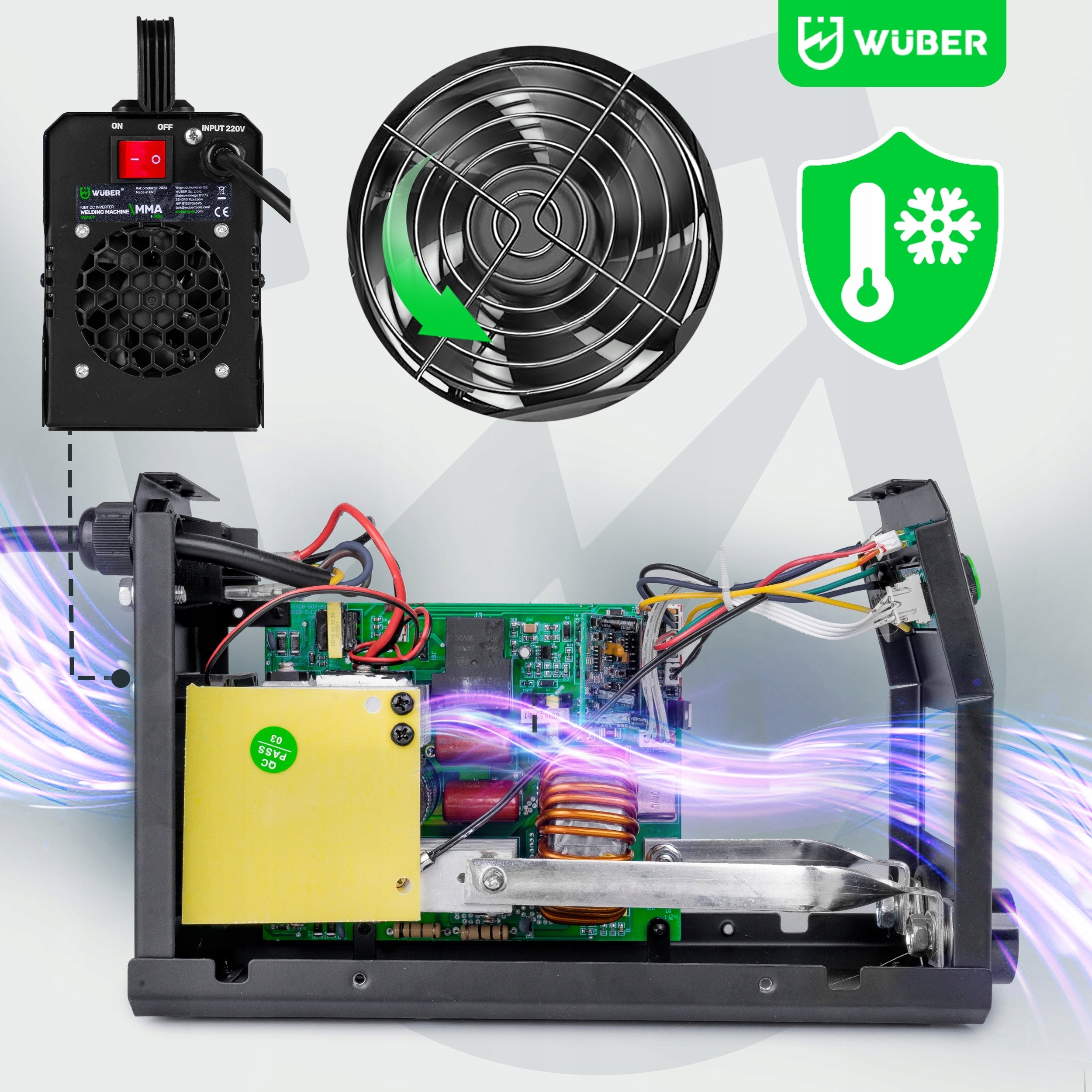

❄ Advanced Cooling System

Thanks to the advanced cooling system, the Wuber welding machine is able to maintain stable operating parameters even in difficult conditions, minimizing the risk of overheating

This system is particularly effective under heavy use, which increases the life of the device

► Powerful fan and three reliable heat sinks efficiently dissipate excess heat and maintain the optimal operating temperature of the device

✅ IGBT Technology – Perfect for Beginner Welders

This welder uses IGBT (Insulated Gate Bipolar Transistor) technology, making it an excellent choice for those just starting out with welding.

► IGBT technology offers high energy efficiency and stable welding current, which is crucial for high-quality welds, even with minimal experience.

IGBT technology offers many benefits for beginner welders:

► Most importantly, IGBT-based devices are more forgiving of welding errors, such as uneven torch movement or suboptimal parameter settings.

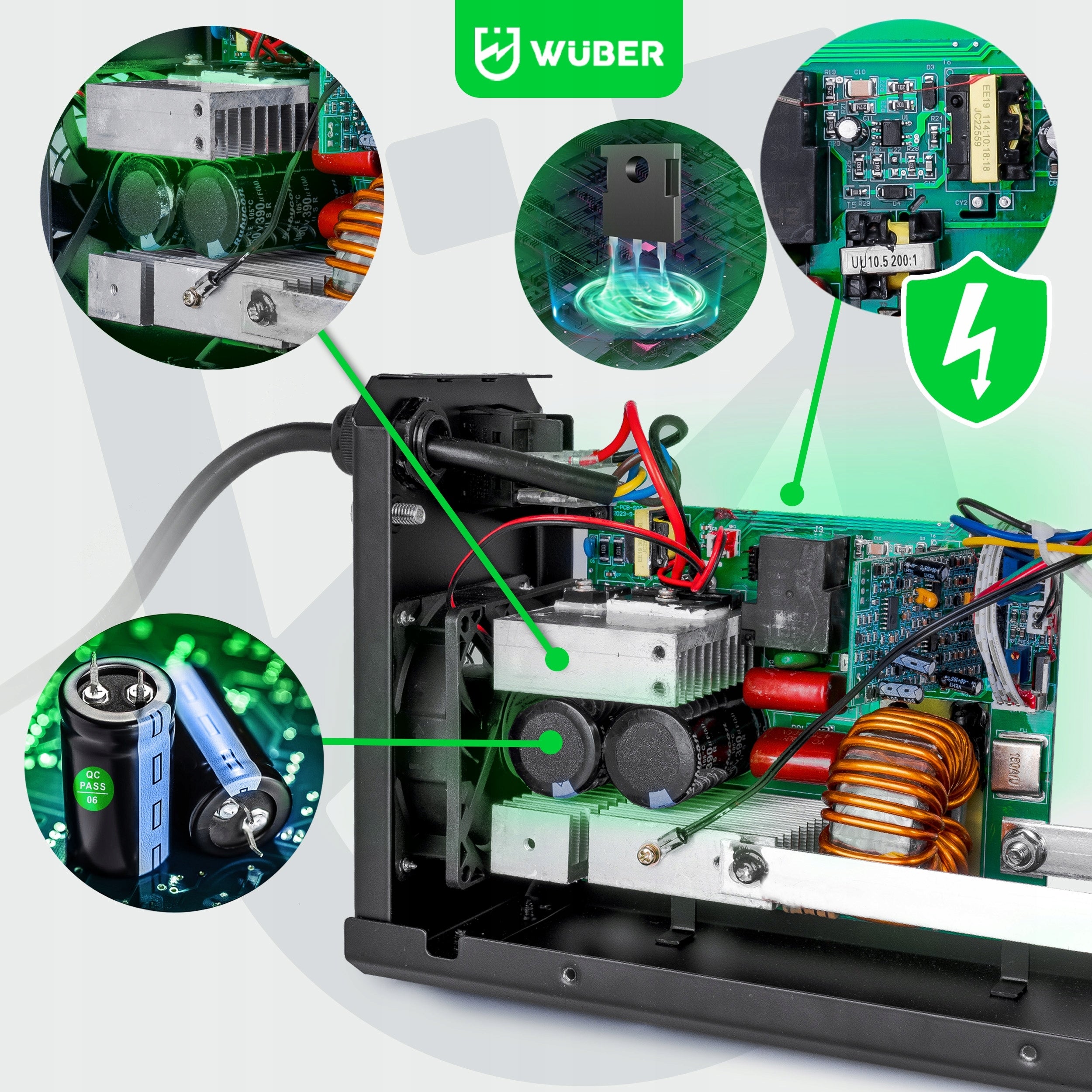

✅ Heart of the welding machine - Reliable control board

Control board, i.e. advanced electronic module, which integrates all necessary functions, such as current, voltage regulation, etc.

► 2x Powerful capacitors

Provide constant and stable powering electronic components

Their performance has a direct impact on the welding machine's ability to deal with voltage fluctuations

► 3x Efficient Heatsinks

They provide adequate cooling and prevent overheating of key electronics components

They are responsible for efficient heat dissipation from the components generating the most heat, such as the processor and IGBT transistors.

⭐ Thick and long cables

The device is characterized by compact dimensions and light weight, which makes it an ideal solution for people who need mobile equipment

• Mass cable 200 cm

• Electrode cable 200 cm

► Wires have a thick copper winding, which increases their strength

Such cables allow for safer and more comfortable work in various conditions, allowing free access to the welded material

­

✅ Diameter of Electrodes

The welding machine allows you to work with welding electrodes with a diameter of 1,6 mm to 5 mm, which allows you to weld a variety of materials of different thicknesses

► Check out the rest of our welding machines at our other auctions!

⭐ Cycle of Work

✔ The welder offers a working cycle of 60%, which means that it can work continuously for 5 minutes at full power, after which it requires a break of similar length

✔ Such a work cycle means that during the welding process you will not have to take a break at all. Weld long items without worrying about the device overheating!

­

⭐ VRD

This system is responsible for reduction of voltage on the wrapped electrode, as well as for switching off the power supply within a few milliseconds after welding

This makes welding with our welding machine convenient, efficient and pleasant even for beginners

SET OF XXL

✅ + Mass cable 2 M

✅ + Electrode cable 2 M

✅ + Protective shield with fast

✅ + Wire brush with hammer for upholstering and cleaning the sheath

✅ + Welding machine carrying strap

✅ Advanced WeldControl

⚡ The welder is equipped with Advanced WeldControl System which integrates all electronic components, providing exceptional performance and reliability

► At the head of this system is a powerful processor that guarantees stable power delivery

­

⚡ Advanced cooling system, thermostat and reliable heat sinks are responsible for protection of key components against overheating, and optimizes air flow, which extends the duty cycle and increases the durability of the device

⚡ Protection Class and Degree of Protection

The device has a protection class F, which means that all its components are protected from overheating and other hazards resulting from long-term use

IP21S rating provides dust and moisture resistance, which is especially important when working in harsh environmental conditions, such as outdoor work or in workshops exposed to high humidity

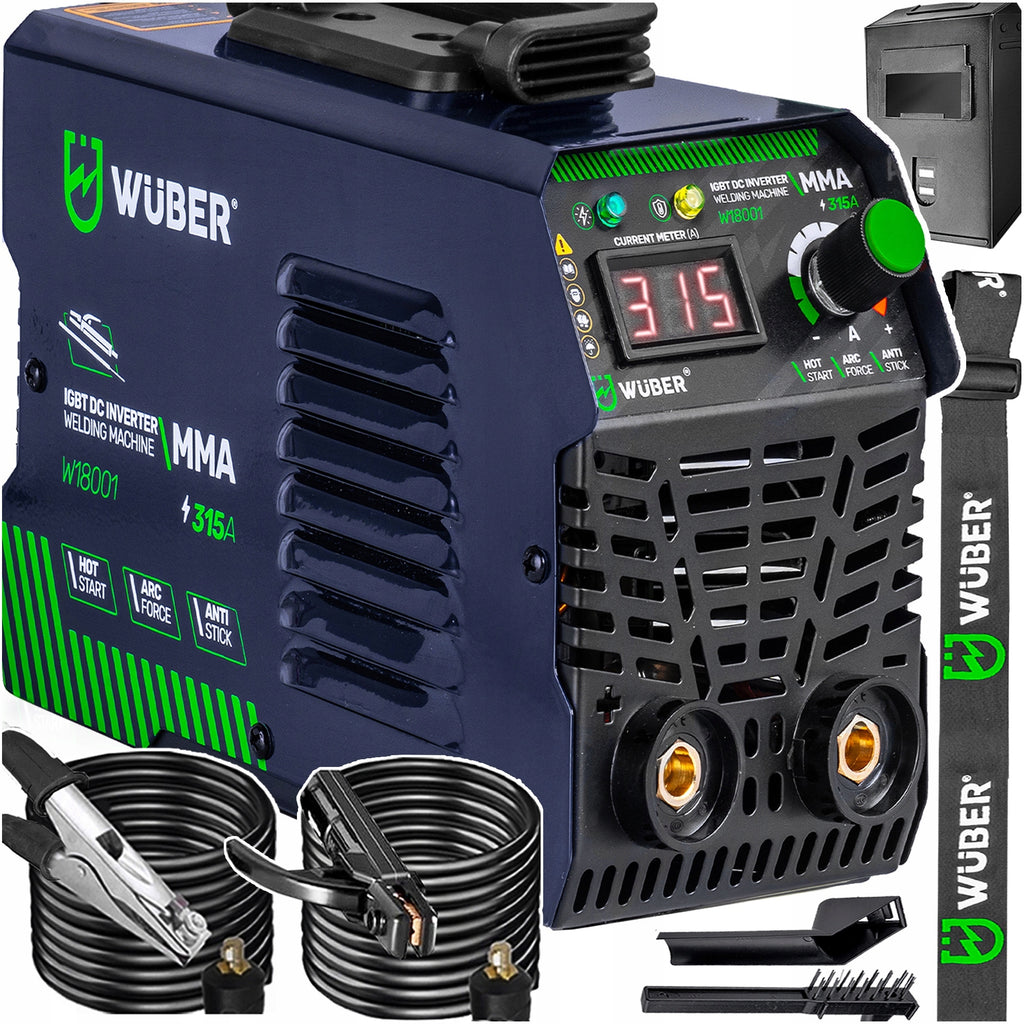

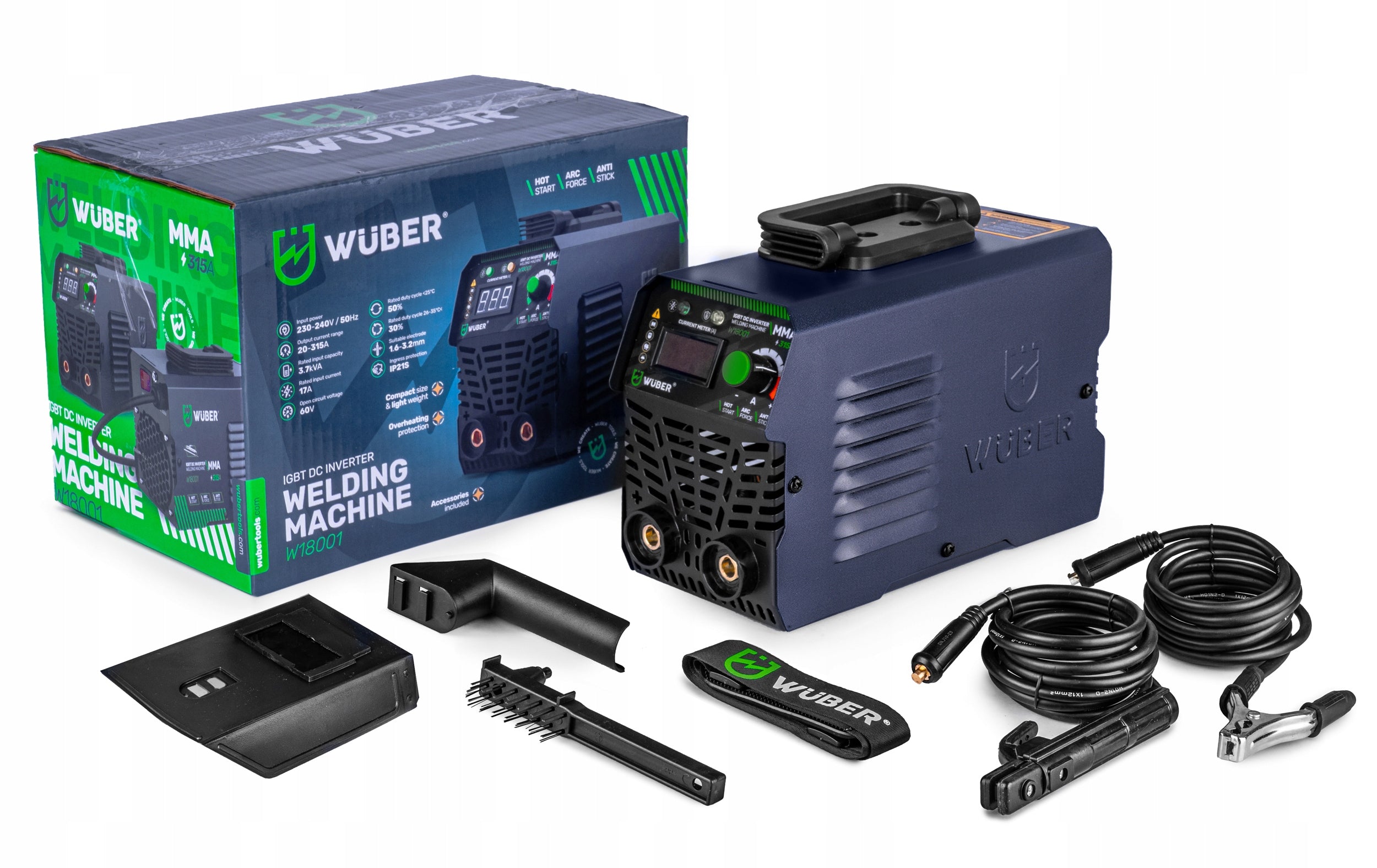

THE SET INCLUDES:

• ► Welding machine WUBER

• ► Bulk cable

• ► Electrode cable

• ► Protective shield with fast

• ► Wire brush

• ► Welding machine carrying strap

• ► Clear User Manual

• ► Original manufacturer packaging

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Wuber
Parametry	Welding methods	MMA
Parametry	Power consumption	3.7 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	50%
Parametry	Maximum electrode diameter	3.2 mm
Parametry	Device weight	2.3 kg
Parametry	Welding range	20–315 A
Parametry	Length of ground cable	250 cm
Parametry	Welding cable length	250 cm
Parametry	Product weight with unit packaging	3.7 kg
Parametry	Manufacturer code	W18001
Parametry	EAN (GTIN)	5905873300675
Parametry	Packaging status	original
Parametry	Model	W18001
Parametry	Additional features	welding mask included,infinitely adjustable welding current,LCD display
