Suvirinimo invertorius WUBER 200A, MIG, FLUX, MMA, TIG, 4,5 kVA, IGBT

Trumpai apie prekę

Prekė: Suvirinimo invertorius WUBER 200A, MIG, FLUX, MMA, TIG, 4,5 kVA, IGBT. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: Wuber
• Modelis: W19003 SPAWARKA INWERTOROWA MIGOMAT WUBER

⭐ High Power Multi-Purpose Welding Machine

✅ Working cycle ► The welding machine has a duty cycle of 60%, which means 5 minutes of operation on full load, followed by a 5 minute break.

✅ MIG FLUX (gas-free welding) / MMA / TIG ► Allows welding by three different methods, providing exceptional versatility.

✅ Reliable wire feeder ► Compatible with wire with a diameter of 0,8 or 1,0 mm and a weight of 1 kg.

✅ Maximum electrode diameter ► Supports electrodes up to 4,0 mm, allowing welding of thicker materials requiring more power.

✅ Welding current range ► From 15A to 200A, allows you to precisely adjust the parameters to the thickness of the material and the type of weld.

⭐A range of functions to facilitate work

✅ Synergy function ► Automatic adjustment of all welding parameters with one knob, which significantly simplifies work, even for beginners.

✅ IGBT Transistor ► Provides high energy efficiency and stable welding current.

✅ Advanced cooling system ► Effectively dissipates heat, allowing longer operation without the risk of overheating.

✅ Hot Start, Arc Force, Anti-Stick ► These functions make work easier by preventing electrodes from sticking to the material, which is especially useful for less experienced users.

✅ Long and thick wires 2,6m ► Wires with a length of 2,6 meters with a thick copper winding allow convenient welding in all conditions.

⚙ TECHNICAL DATA:

• Producer: Wuber

• Supply Voltage: 230-240V / 50Hz

• MIG output current range: 35-200A

• MMA Output Current Range: 20-200A

• TIG output current range: 15-200A

• Operating cycle < 25°C : 60%

• Operating cycle 26-35°C< : 30%

• Idle Voltage: 60V

• Rated Power Consumption: 4,5kVa

• Rated current consumption: 20A

• Possibility of welding with electrodes with diameter: 1.6-4.0 mm

• Wire diameter: 0,6-1.0 mm

• Wire feed roller: 0,8/1,0 mm

• Wire spool weight: max. 1 kg

• Protection class: F

• Degree of protection: IP21S

• Length of mass cable: 2,6m

• Length of electrode cable: 2,6m

• MIG handle: 2,2m

• Dimensions: 16,5x33x25 (W x debt. x H )

⭐ Why should you choose our equipment?

Our welding machines are made from high-quality materials and are based on proven technologies, making them the best choice in their price category.

• High quality workmanship

• Attention to every technical and aesthetic detail

• Brand with an established position on the market

• Full access to spare parts and fast service

► MIG FLUX: 35-200A

In MIG FLUX mode (wire welding without gas), the welding machine allows you to work with output current in the range from 35A to 200A

✔ For thinner sheets, the lower current ensures softer melting of the material, minimizing the risk of puncture and allowing the creation of aesthetic, even welds

✔ When welding thicker components, the ability to increase the current to 200A guarantees a deeper melt, which is crucial for achieving durable, robust connections.

­

► MMA: 20-200A

In MMA mode (electrode welding) current range from 20A to 200A

✔ This allows the welding machine to effectively work with both thin and thick components, which makes it suitable for a wide range of jobs, from minor repairs to heavier structures

✔ The ability to adjust the current in such a wide range also provides appropriate weld properties, regardless of the type of material, such as carbon steel, stainless steel or cast iron

­

► TIG: 15-200A

In TIG mode (welding with a non-melting tungsten electrode), the welding machine offers a current range of from 15A to 200A

✔ Lower current settings (from 15A) allow for gentle and controlled welding of thin elements, where precision is crucial

✔ In turn, the possibility of increasing the current to 200A gives the user flexibility in working with thicker materials, ensuring a strong melt and durable welds, without losing the accuracy and quality of the finish

­

* ATTENTION! The TIG holder is not part of the set

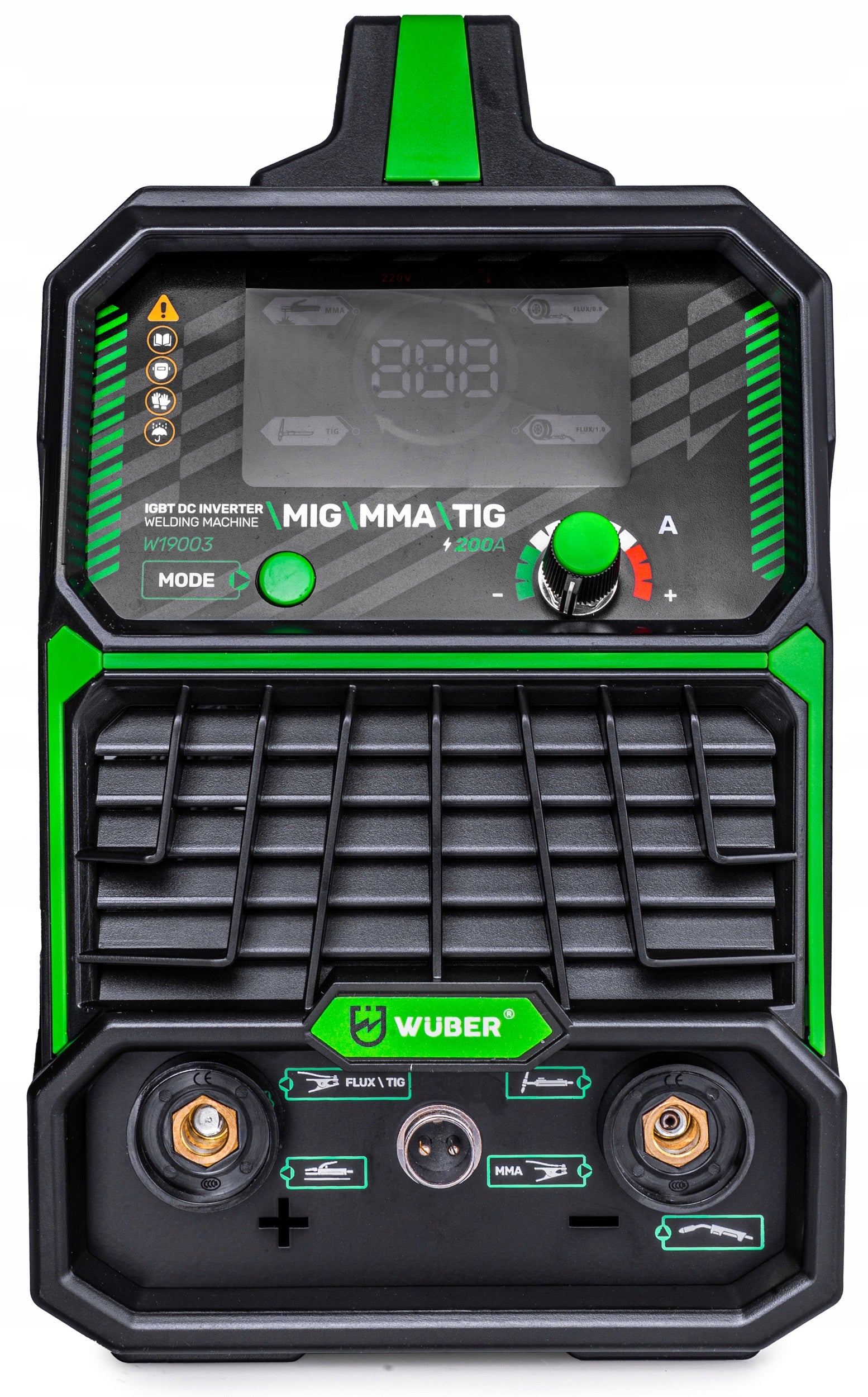

⚡ Clear DIGITAL panel

All values and the selected welding mode/type will be shown on the screen, so you will always see the current amp level and operating mode

⚡ Synergy Function

• The welder is equipped with a synergy function, which automatically adjusts all welding parameters - all you have to do is use one knob

This is especially useful for less experienced users, allowing them to achieve professional results without having to manually adjust all settings

✅ DESCRIPTION OF PANEL ELEMENTS:

⭐ Hot Start

Hot Start function automatically increases the welding current at the beginning of operation, which facilitates fast and stable arc glow, especially when welding difficult materials

⭐ Arc Force

Arc Force stabilizes the welding arc by dynamically adjusting the current when the arc becomes too short, making welding more smooth and stable

⭐ Anti-Stick

Anti-Stick prevents the electrode from sticking to the material, automatically reducing current when the electrode gets too close, which minimizes the risk of the electrode sticking

⚡ High quality + attractive price = perfect weld

You don't have to be an expert in welding to achieve a deep melt with this welding machine

✔ Features that are usually only available in the most expensive IGBT devices can also be found in WUBER welding machines.

Making a nice, superficial weld is simple, but the real art is achieving deep penetration , which ensures a clean, complete and extremely durable weld.

✔ Our welding machine has parameters that will allow even laymen to achieve such effects!

⚙ Wire feeder

► Built-in failure-free wire feeding system works with rolls of wires with diameters of 0,8/1,0 mm and a maximum weight of 1 kg, and its design excludes slipping

► Access to the feeder is very easy, just open the side cover and you can start to mount the spool!

­

⭐ Electrodes

► In addition, the welding machine allows welding with electrodes with a diameter of 1,6-4,0 mm

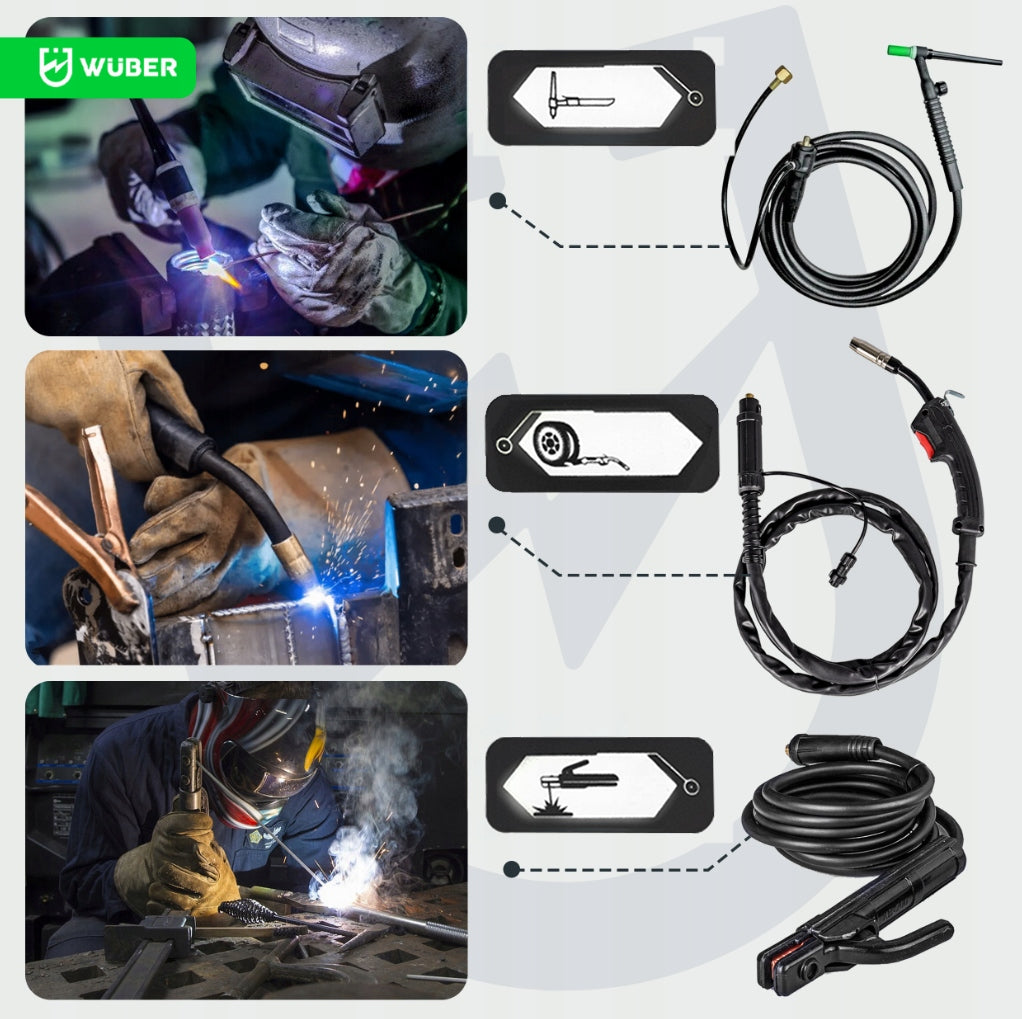

MIG handle

✔ Welding using the MIG FLUX method is very convenient thanks to this handle, which automatically feeds the wire for welding - just press the trigger

✔ His connection and installation of the wire roller is very simple, so you will certainly be able to handle the assembly and get started quickly!

­

✔ The wires of our handles are very long, which will make your work easier!

• Bulk holder - 2,6 m
• MMA DIN handle - 2,6 m
• MIG handle - 2,2 m

The wires have a thick copper winding, which increases their strength

How long are our cables?

In the form of a curiosity, we will help you visualize the length of our cables, which can be compared to the length of an adult horse, which is from 2,4 to 2,6m!

⭐ Cycle of Work

✔ The welder offers a work cycle of 60%, which means that it can work continuously for 5 minutes at full power, after which it requires a break of similar length

✔ Such a work cycle means that during the welding process you will not have to take a break at all. Weld long items without worrying about the device overheating!

­

⭐ VRD

This system is responsible for reduction of voltage on the wrapped electrode, as well as for switching off the power supply within a few milliseconds after welding

This makes welding with our welding machine convenient, efficient and pleasant even for beginners

✅ IGBT Technology – Ideal for Beginners Welders

The welder is based on IGBT (Insulated Gate Bipolar Transistor) technology, which makes it an excellent choice for those just starting their welding adventure

► IGBT technology is characterized by high energy efficiency and stability of welding current, which is crucial for obtaining high quality welds

► IGBT- based devices are more forgiving of errors that may occur during welding, such as uneven gun guidance or suboptimal parameter settings

⭐ Quick Start Guide

The welding machine control panel is designed for maximum simplicity and convenience

First, select the appropriate operating mode using the "Mode" button. Press it to switch between different welding methods: MMA (welding with wrapped electrode), MIG FLUX (gas-free welding), and TIG (welding with non-melting electrode)

• MMA method:

After selecting MMA mode, set the welding current value from 20A to 200A, adjusting it to the thickness of the material and the diameter of the electrode (you can use electrodes with a diameter of 1,6 mm to 4,0 mm)

• MIG FLUX method:

For the MIG FLUX method, select the wire diameter on the panel (0,8 mm or 1,0 mm). Then set the welding current in the range from 35A to 200A, to match the power to the thickness of the material being welded.

• TIG method:

If you choose TIG welding,remember that you need to buy a special TIG handle, which is not included as standard.

Set the welding current from 15A to 200A, depending on the precise welding needs of materials such as stainless steel or aluminum.

⚡ Lightness and Compactness

The device is characterized by compact dimensions and light weight, which makes it an ideal solution for people who need mobile equipment

Thanks to the length of the (2,6 m) cables for the mass cable, electrode and MIG holder), the device ensures comfortable operation in various conditions, allowing free access to the welded material

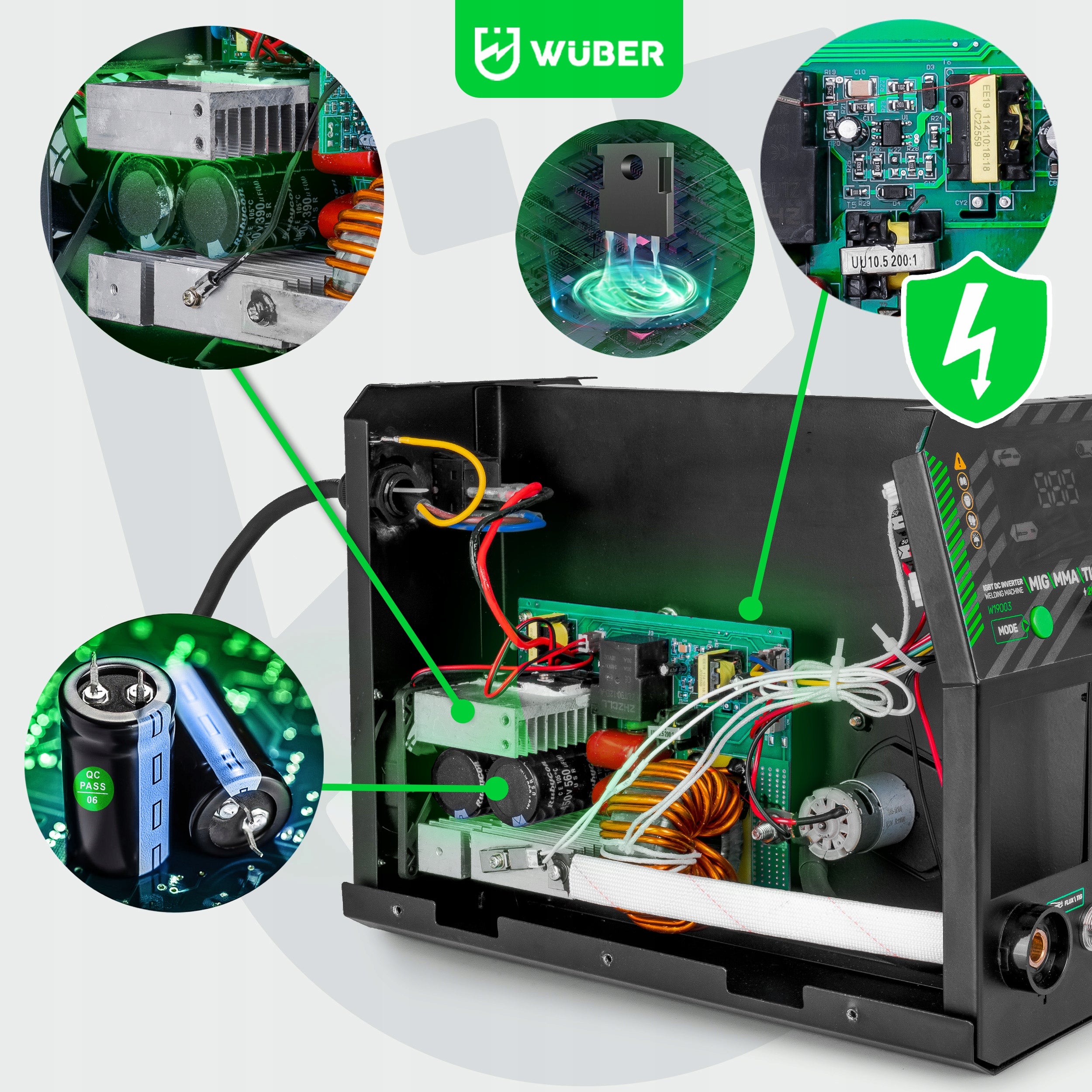

✅ Motherboard with AWC system

Control board with AWC (Advanced WeldControl), i.e. advanced electronic module, which integrates all necessary functions, such as current, voltage regulation, etc.

► 2x Powerful Capacitors

Provide constant and stable power supply for electronic components

Their performance has a direct impact on the welding machine's ability to deal with voltage fluctuations

► 3x Efficient Heatsinks

They provide adequate cooling and prevent overheating of key electronics components

They are responsible for efficient heat dissipation from the components generating the most heat, such as the processor and IGBT transistors.

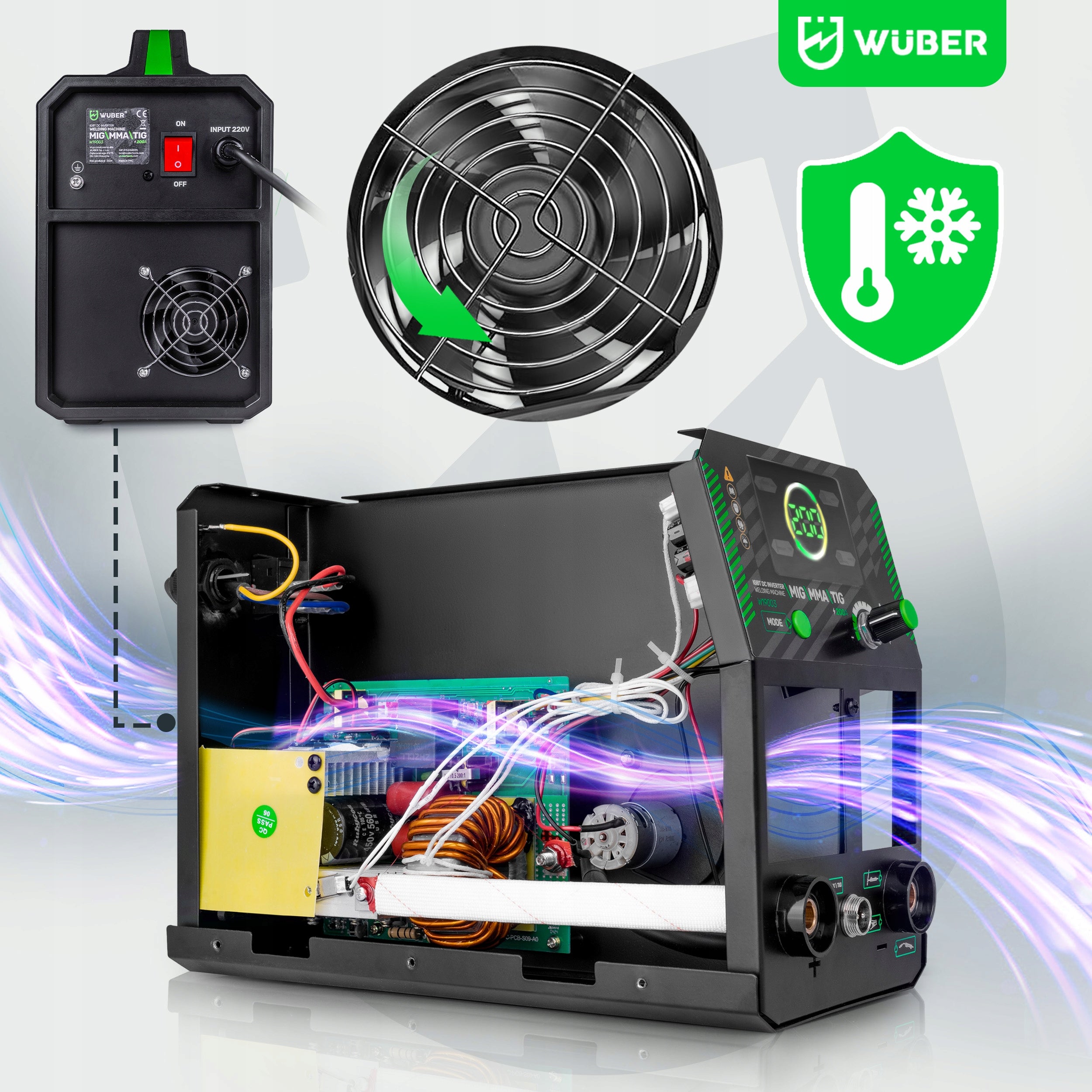

❄ Advanced Heat Shield Cooling System

Thanks to the advanced cooling system, the Wuber welding machine is able to maintain stable operating parameters even in difficult conditions, minimizing the risk of overheating

• This system is particularly effective under heavy use, which increases the life of the device

► Powerful fan and three reliable heat sinks effectively dissipate excess heat and maintain the optimal operating temperature of the device

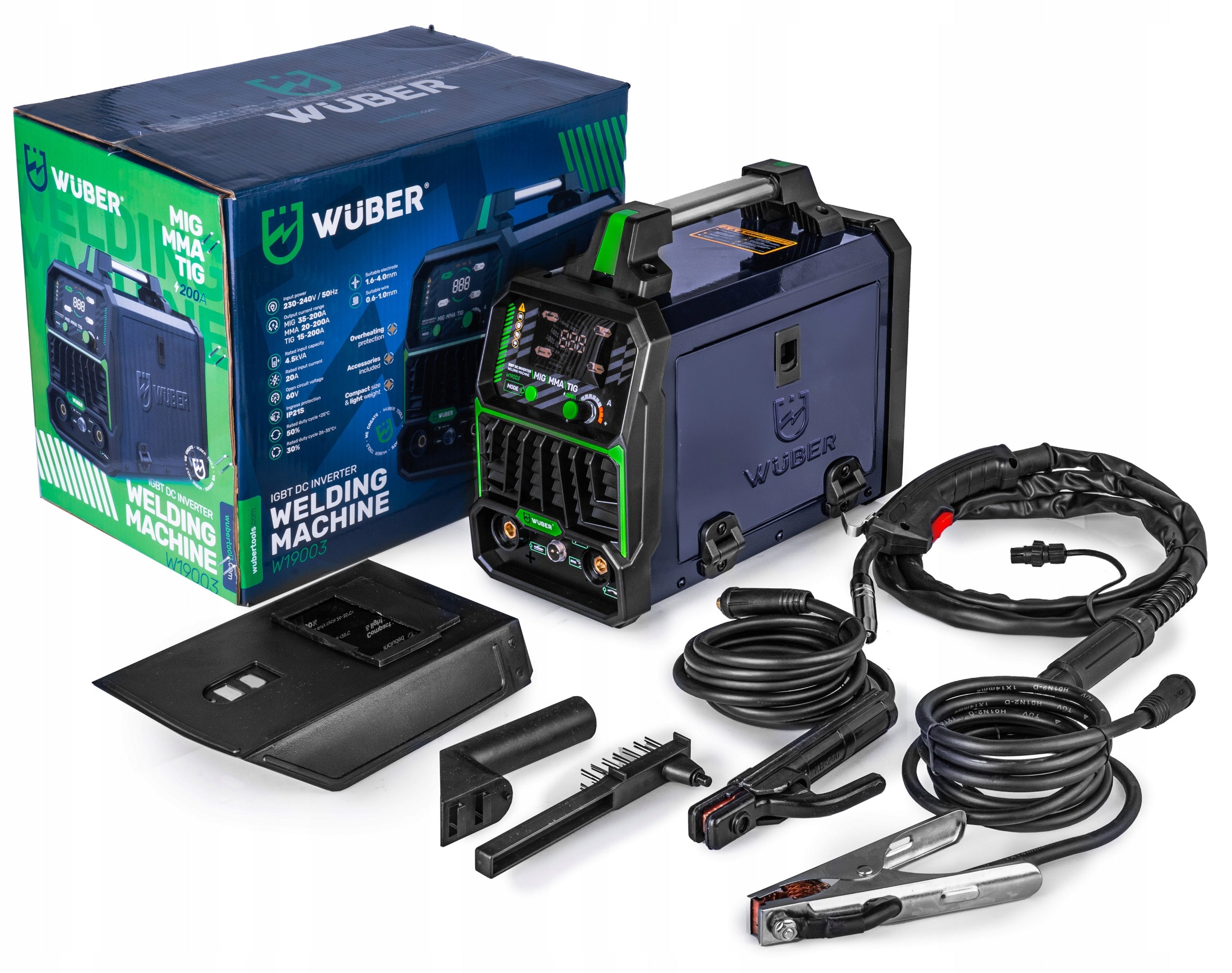

THE SET INCLUDES:

• ► Welding machine WUBER

• ► MIG handle

• ► Bulk cable

• ► Electrode cable

• ► Protective shield with fast

• ► Wire brush

• ► Clear User Manual

• ► Original manufacturer packaging

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Wuber
Parametry	Power consumption	4.5 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	4.5 kg
Parametry	Welding range	15–200 A
Parametry	Length of ground cable	250 cm
Parametry	Welding cable length	250 cm
Parametry	Product weight with unit packaging	6.2 kg
Parametry	Manufacturer code	W19003 SPAWARKA INWERTOROWA MIGOMAT WUBER
Parametry	EAN (GTIN)	5905873300705
Parametry	Packaging status	original
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle
