Aprašymas
Trumpai apie prekę
Prekė: Suvirinimo skydelis Sherman V5a su automatiniu filtru. Kategorija: Kaukės.
- Gamintojas: Sherman
- Modelis: 7812278
WELDING VISOR SHERMAN PROFI V5a
| Brand: Sherman | Filter class: 1/1/1/1 | Darkening range: DIN 4 - 13 | Number of sensors: 4 | Field of view: 100x65mm | Grinding: TAK |

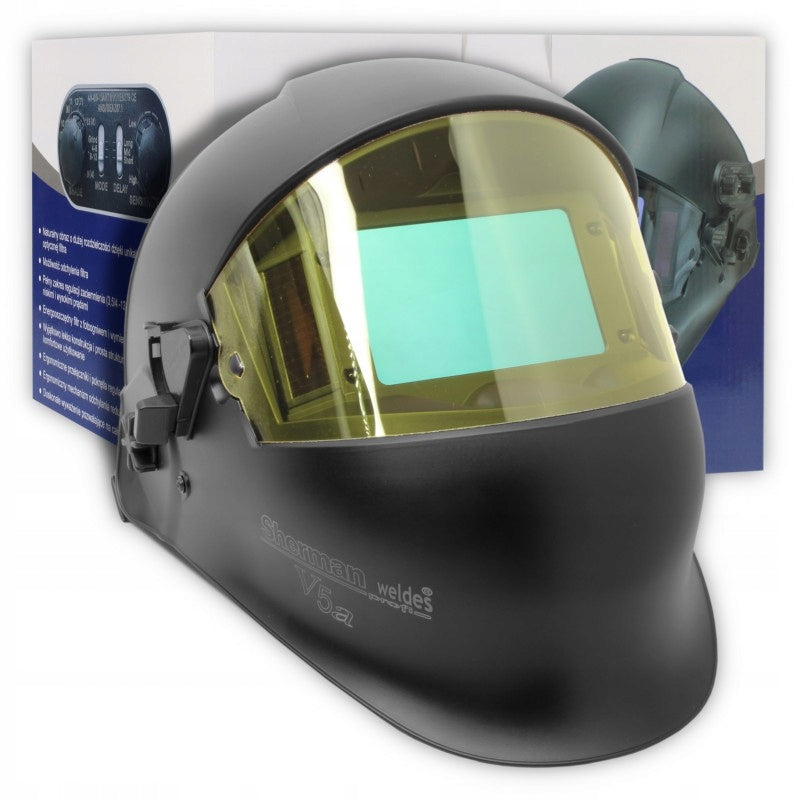

SHERMAN V5a
The Sherman-profi V5a automatic welding visor is designed to protect the eyes and face from sparks, chipping and harmful radiation during electric and gas welding, soldering, soldering, oxygen cutting and grinding.
Automatic blackout filter automatically changes from light to dark after arcing, and when welding is complete, it becomes bright again.

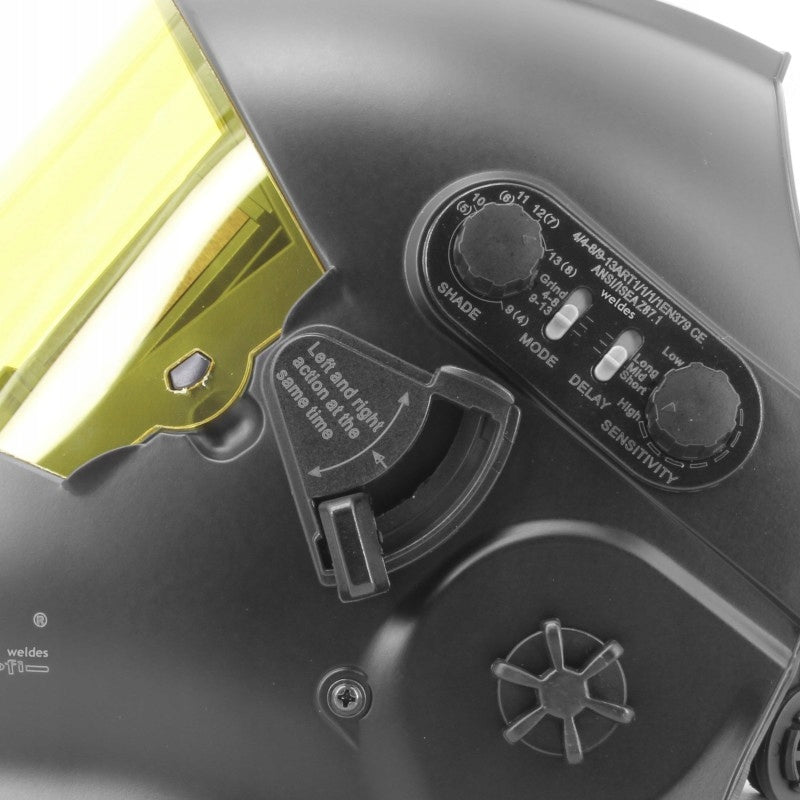

The V5a visor has two external knobs that allow you to adjust the darkening degree from 4 to 13 according to DIN and smoothly adjust the sensitivity of photosensors to arc intensity during welding, as well as two external switches that allow for three-position adjustment of the dark/bright state switching delay time and change the operating mode. The blackout filter has the highest optical class ensuring full safety of the welder. It is equipped with four photosensors, which is particularly important when welding with low currents.
Thanks to the large viewfinder with dimensions 100 x 65mm, the V5a visor has an extremely large field of view. In addition, it is possible to completely deflect the blackout filter, which significantly increases the viewing angle and is particularly useful when performing precise activities or working in adverse lighting conditions.
The V5a visor is equipped with an advanced, comfortable and ergonomic head, allowing a perfect fit and full adjustment of the visor position. Special tilting system changes the centre of gravity of the visor relative to the welder's head.
After selecting the grinding function, the blackout filter switches to a bright state without the option to adjust the blackout.

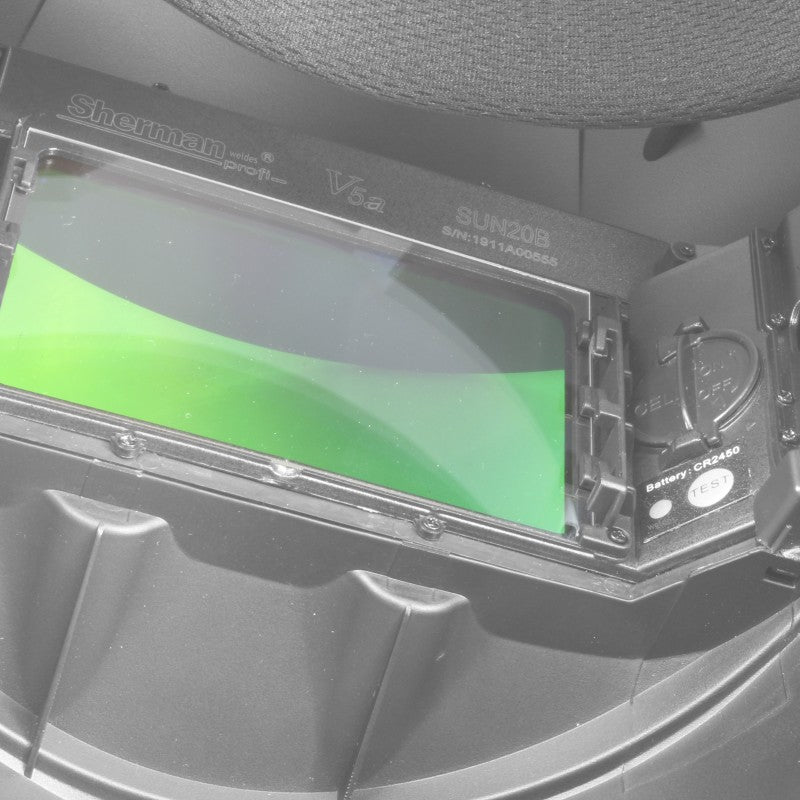

On the internal control panel there is a Test button that allows you to check the battery status and the correct operation of the blackout filter.
TECHNICAL SPECIFICATION
- Blackout range: 4 -13 according to DIN
- Switching time - light/dark [s]: 1/30000
- Switching time - dark/bright [s]: 0,3 - 0,9 (jumping)
- Sensitivity adjustment: Smooth
- Welding/Grinding: YES/YES
- Number of photosensors: 4
- Field of view [mm]: 100 x 65
- UV/IR protection: 16 according to DIN
- Darkening in bright condition: 3 - 3,5 according to DIN
- Optical filter class: 1/1/1/1
- Power Supply: Photocell
- On/Off: Automatic
- Working temperature [°C]: -5 ÷ +55
- Mass [kg]: 0,54
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Sherman |
| Parametry | Kind | welding |
| Parametry | Shape | face shield |
| Parametry | Product weight with unit packaging | 0.6 kg |
| Parametry | Manufacturer code | 7812278 |
| Parametry | EAN (GTIN) | 5903686608339 |
| Parametry | Medical device | no |
| Parametry | Optical class | 1/1/1/1 |
| Parametry | Number of sensors | 4 |
| Parametry | Visor type | automatic |
| Parametry | Series | V5a |
| Parametry | Blackout time | 1/30000 [s] |
| Parametry | Additional information | sandable,sensitivity adjustment,delay adjustment,auto-darkening |
