Suvirinimo skydelis su automatinio tamsėjimo funkcija Sherman V4

Trumpai apie prekę

Prekė: Suvirinimo skydelis su automatinio tamsėjimo funkcija Sherman V4. Kategorija: Kaukės.

• Gamintojas: Sherman
• Modelis: V4

Manufacturer: MAGNUM║ Purpose: TIG, MIG/MAG, MMA, Grinding ║ Filter type: AUTOMATIC ║ Blackout: 13 DIN

The main advantages of the visor:

• Very high speed automatic filter with the highest filter class 1/1/1/1
• Welding or grinding function
• Double and Unprecedented Darkening Adjustment DIN 4-8 / DIN 9-13
• can work up to +55 degrees Celsius
• TEST function
• Large field of view 100x65
• 4 modern photo sensors
• Perfectly matched

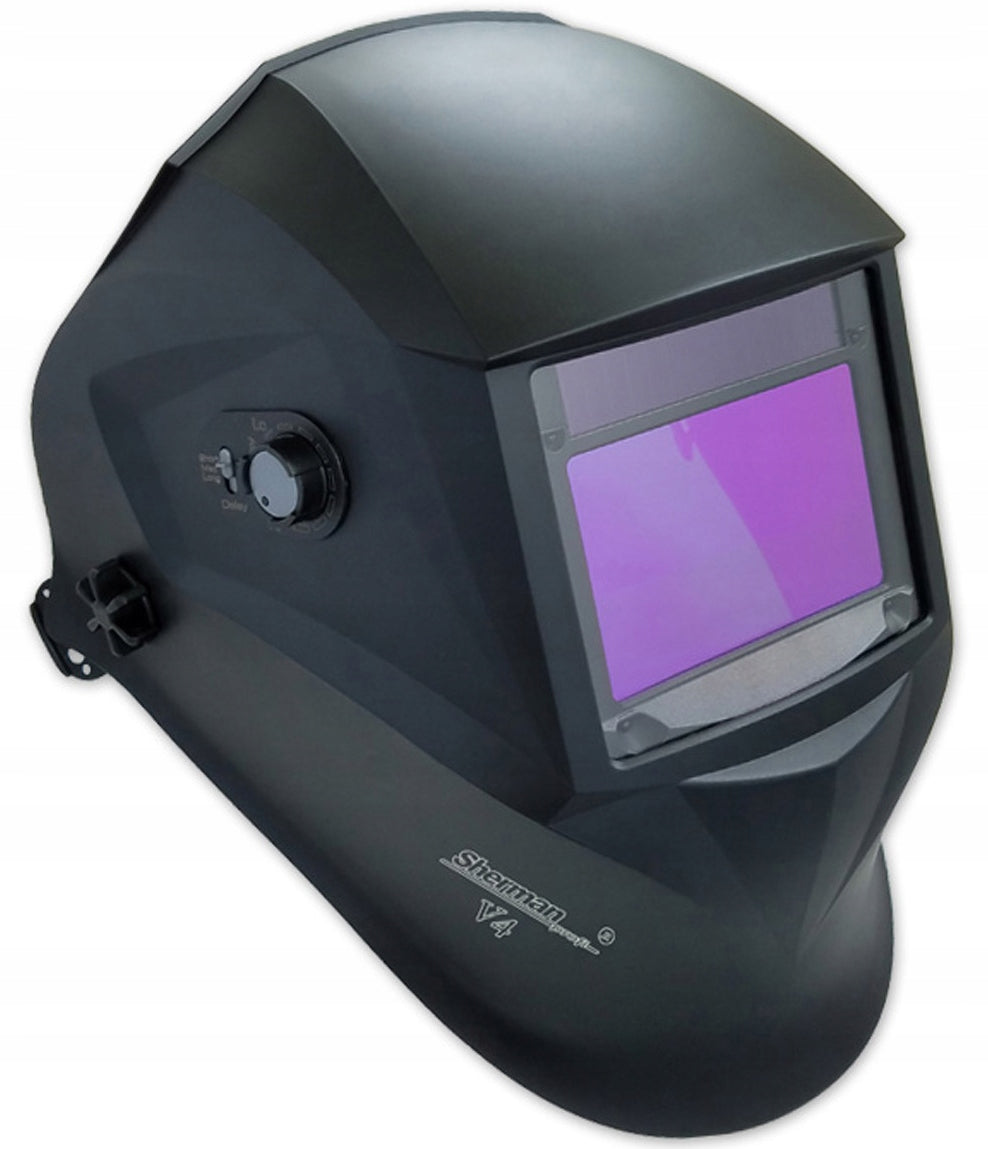

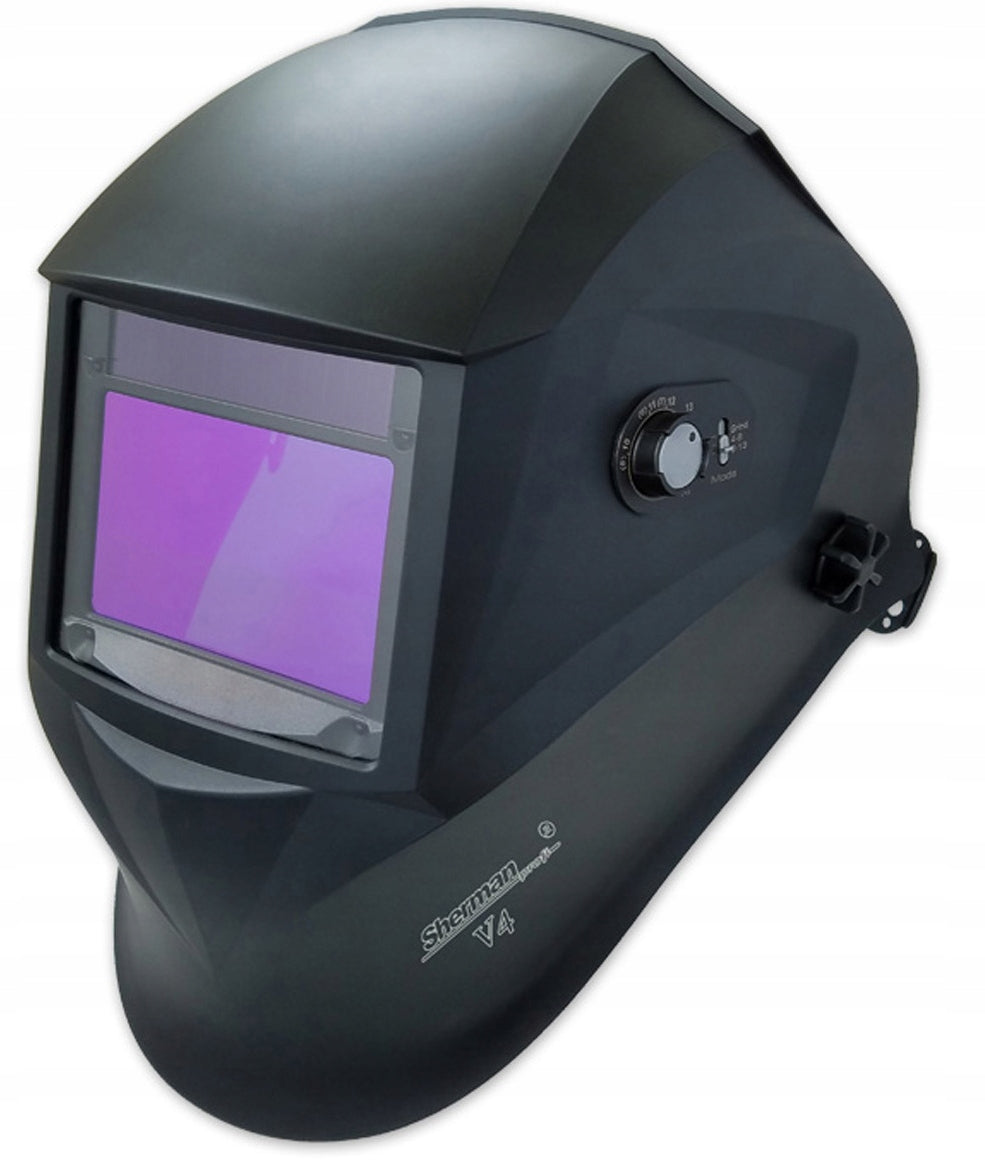

SHERMAN V4 visor - protect your eyes and head

The Sherman V4 automatic welding visor is designed to protect the eyes and face from sparks, chipping and harmful radiation during electric and gas welding, soldering, soldering, oxygen cutting and grinding.

The automatic blackout filter automatically changes from light to dark after arcing, and when the welding is finished, it becomes bright again.

Adjustment of the degree of obfuscation

The V4 visor has two external knobs that allow you to adjust the darkening degree from 4 to 13 DIN and smoothly adjust the sensitivity of the photo sensors to the arc intensity during welding, as well as two external switches that allow for three-position adjustment of the dark/bright state switching delay time and change the operating mode. The blackout filter has the highest optical class ensuring complete safety of the welder. It is equipped with four photo sensors, which is particularly important when welding with low currents.

The visor is made of the highest quality materials, perfectly protects against the harmful consequences of welding. Available in as many as three colors, so that each customer can adjust it to their individual needs and preferences. Perfect for any amateur welder or professional. The automatic welding visor is equipped with a welding filter, having the ability to change the degree of darkening. The filter before welding is transparent, so the welder has the ability to accurately observe the working area. When an electric arc is formed, the filter will immediately darken. When the electric arc expires, the filter will become transparent again. The visor operator has the ability to smoothly change the blackout in the range of 5-13 DIN (depending on the model – see the table with data).

Technical data:

• Blackout range: 4 -13 according to DIN
• Switching time - light/dark: 1/25000s
• Switching time - dark/bright: 0,3 - 0,9s (jumping)
• Sensitivity adjustment: Liquid
• Welding/Grinding: YES/YES
• Number of photosensors: 4
• Field of view: 100 x 65mm
• UV/IR protection: 16 according to DIN
• Darkening in bright condition: 3,5 according to DIN
• Optical filter class: 1/1/1/1
• Power Supply: Photocell
• On/Off: Automatic
• Working temperature: -5 ÷ +55°C
• Mass: 0,5kg

Large field of view

The V4 visor has an exceptionally large field of vision and an advanced, comfortable and ergonomic headgear, enabling perfect fit and full adjustment of the visor position. A special tilting system changes the centre of gravity of the visor relative to the welder’s head. After selecting the grinding function, the blackout filter switches to a bright state without the option to adjust the blackout. In terms of technological advancement, technical parameters and quality of workmanship, the visor is comparable to the products of leading companies.

Automatic welding visor

It provides complete protection against UV/IR radiation (ultraviolet/infrared), even when the filter is brightened. The visor is powered by solar cells and replaceable batteries. The automatic welding visor is equipped with four photo-sensors. In addition, the visor is made of a thermo stable, wear-resistant polymer, into which welding chips do not blend.

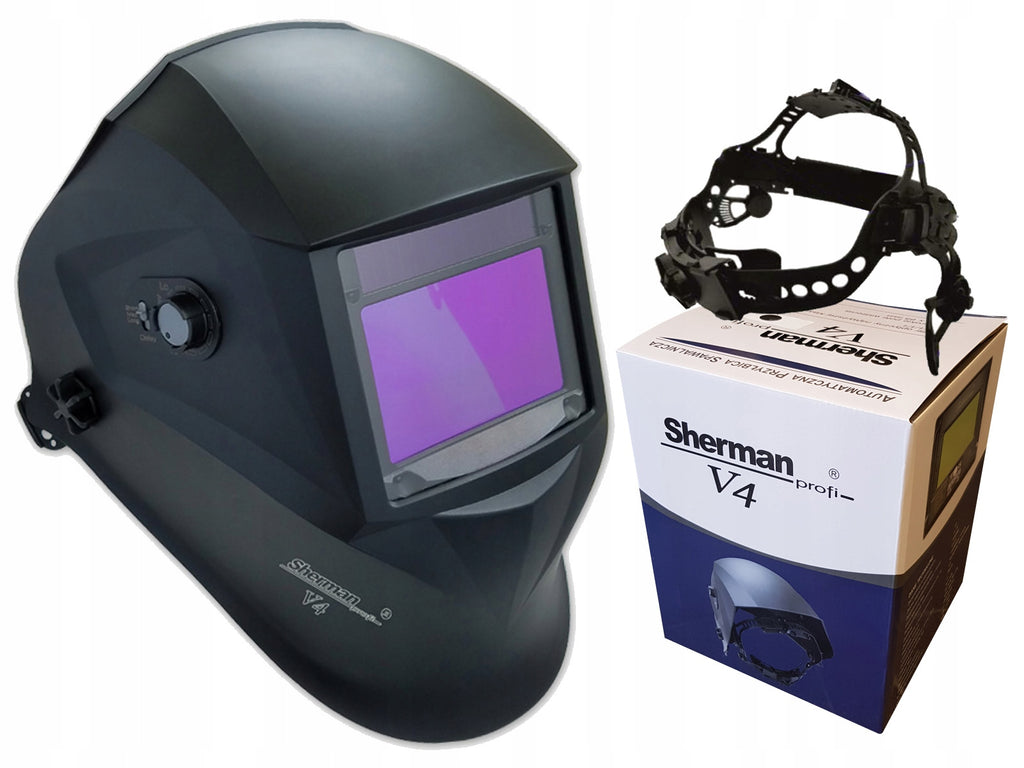

• Self-tinting visor SHERMAN V4
• Cardboard packaging
• User manual in Polish

Specifications
