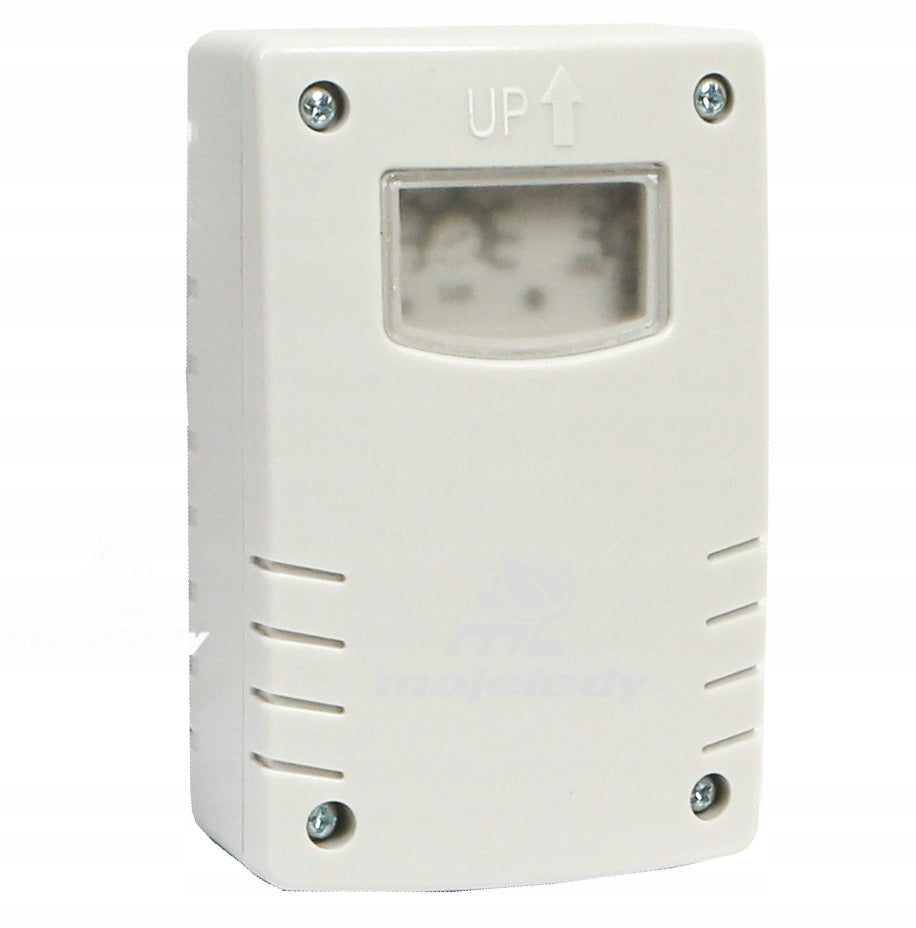

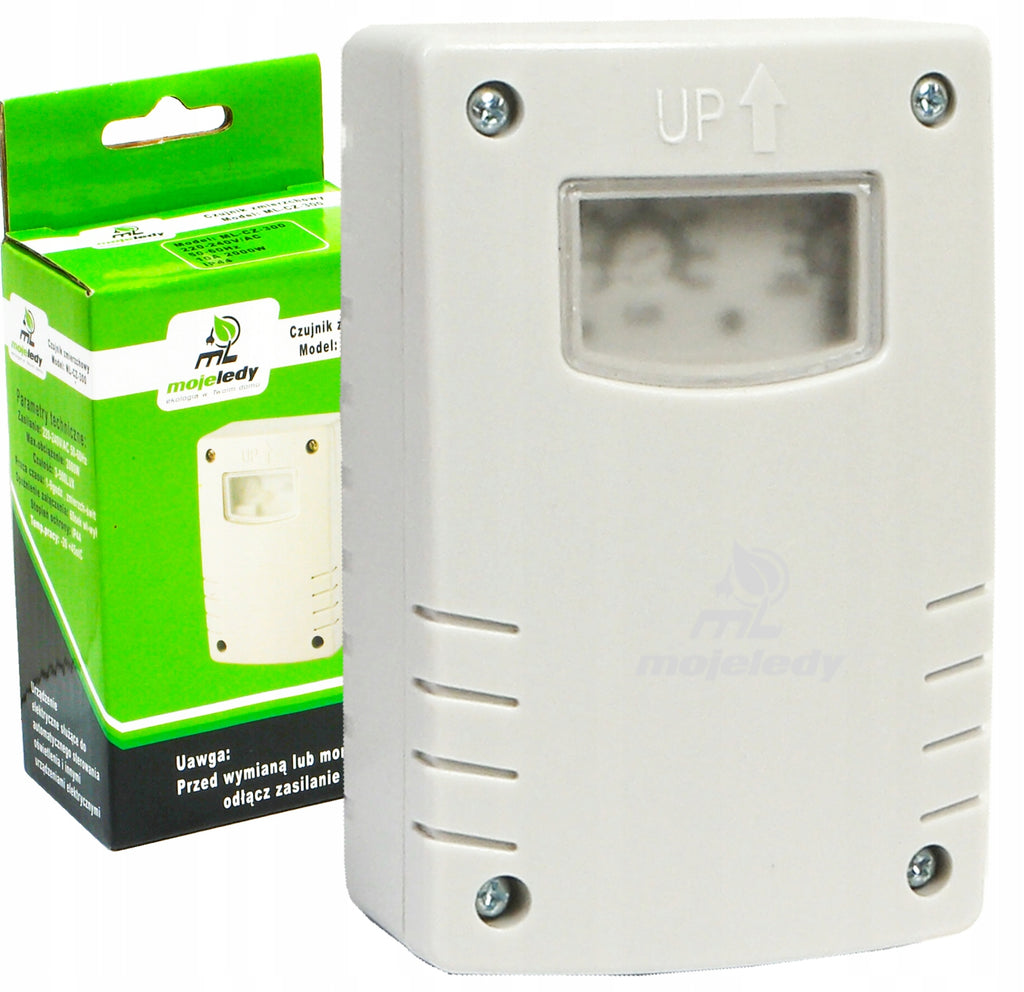

Šviesos jutiklis su laikmačiu, paviršinis, 2000W, IP

Trumpai apie prekę

Prekė: Šviesos jutiklis su laikmačiu, paviršinis, 2000W, IP. Kategorija: Jutikliai.

• Gamintojas: no brand
• Modelis: 2000W ML-CZ-300 hermetyczny

• Producer: Mojeledy ✔
• ML Series ✔
• Rated voltage 230-240V AC / 50-60Hz ✔
• Power 1200W ✔
• Light intensity 3-500Lux (adjustable) ✔
• Application On plaster ✔
• Housing color Gray ✔
• PVC housing ✔
• Insulation voltage 500V ✔
• Degree of protection IP44 ✔
• Operating temperature -20 / +40 degrees C. ✔
• Dimensions 108mm x 70mm x 40mm ✔
• Weight 0.135kg ✔
• Current 10A ✔
• Working range 1-8H ✔
• humidity: <93%RH ✔
• Clock range: 1, 2, 3, 4, 5, 6, 7, 8, 9 hours or continuous ✔

Mode of action

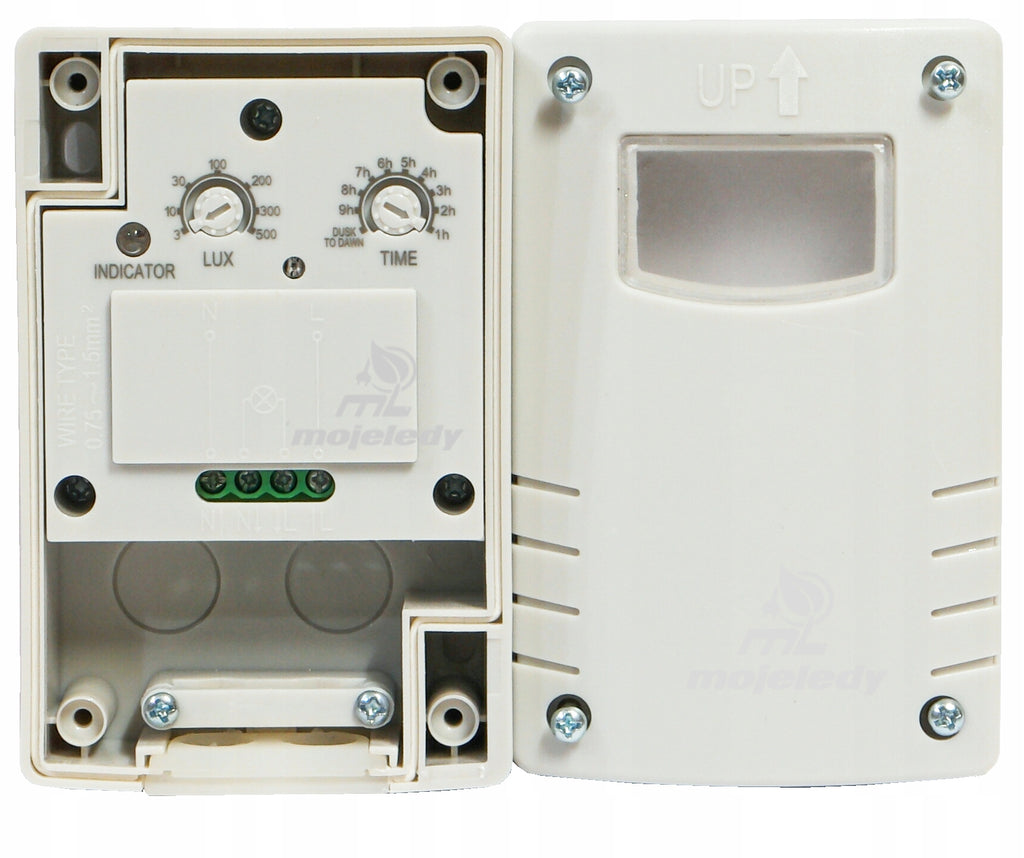

Adjustment of the ambient light intensity "LUX": turning the knob counterclockwise to "MOON" ("Moon" - minimum setting) causes the photocell to switch on the receiver only after dark (at an intensity below 3 lux). Turning the knob clockwise to "SUN" increases the value of the ambient light intensity, so the sensor will switch on loads controlled by it only in daylight.

Adjustment of the "TIMER" receiver operating time clock: the photocell allows, in addition to switching the receivers on and off under the influence of light intensity (i.e. switching on lamps at night and switching them off at dawn), controlling the operation of connected receivers using a clock. It is therefore possible to set the power-up time of the controlled receiver for a given ambient light intensity setting

The LED indicator inside the sensor will flash to display the current times as follows: 1. 1 o'clock: flashes once 2. 2 hours: flashes twice 3. 3 hours: flashes three times 4. 4 hours: flashes four times 5. 5 hours: flashes five times 6. 6 hours: flashes six times 7. 7 hours: flashes seven times 8. 8 hours: flashes eight times 9. 9 o'clock: flashes nine times 10. from dusk to dawn: flashes ten times quickly

When the power is on, the indicator will flash three times and then turn off.

The activation time can be adjusted from 1 to 8 hours or from dusk to dawn (dusk to down)

1. The intensity is set with the LUX knob. Adjustments should be made during the day when the light is stronger.
2. Turn the knob anti-clockwise until the LED indicator lights up and the light will turn on within 1 minute after the indicator light comes on.
3. When the sensor turned on the light and there is another light source nearby, within 1 minute the sensor will disconnect, when the foreign light source disappears, the sensor will turn on again after 1 minute
