SWR matuoklis, 120W, 1,8–54 MHz, spalvotas ekranas

Trumpai apie prekę

Prekė: SWR matuoklis, 120W, 1,8–54 MHz, spalvotas ekranas. Kategorija: Siųstuvai.

• Gamintojas: no brand
• Modelis: 14749953628

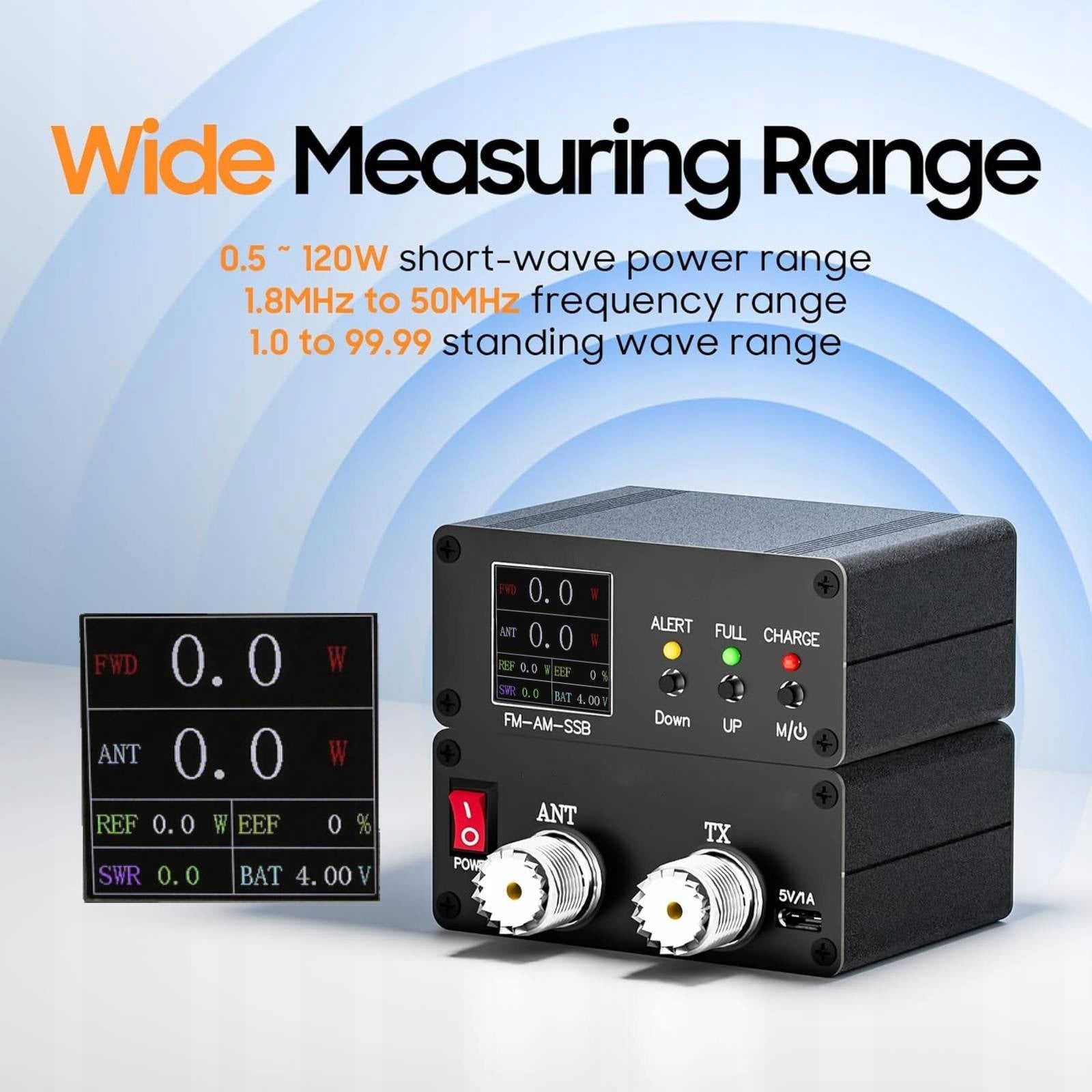

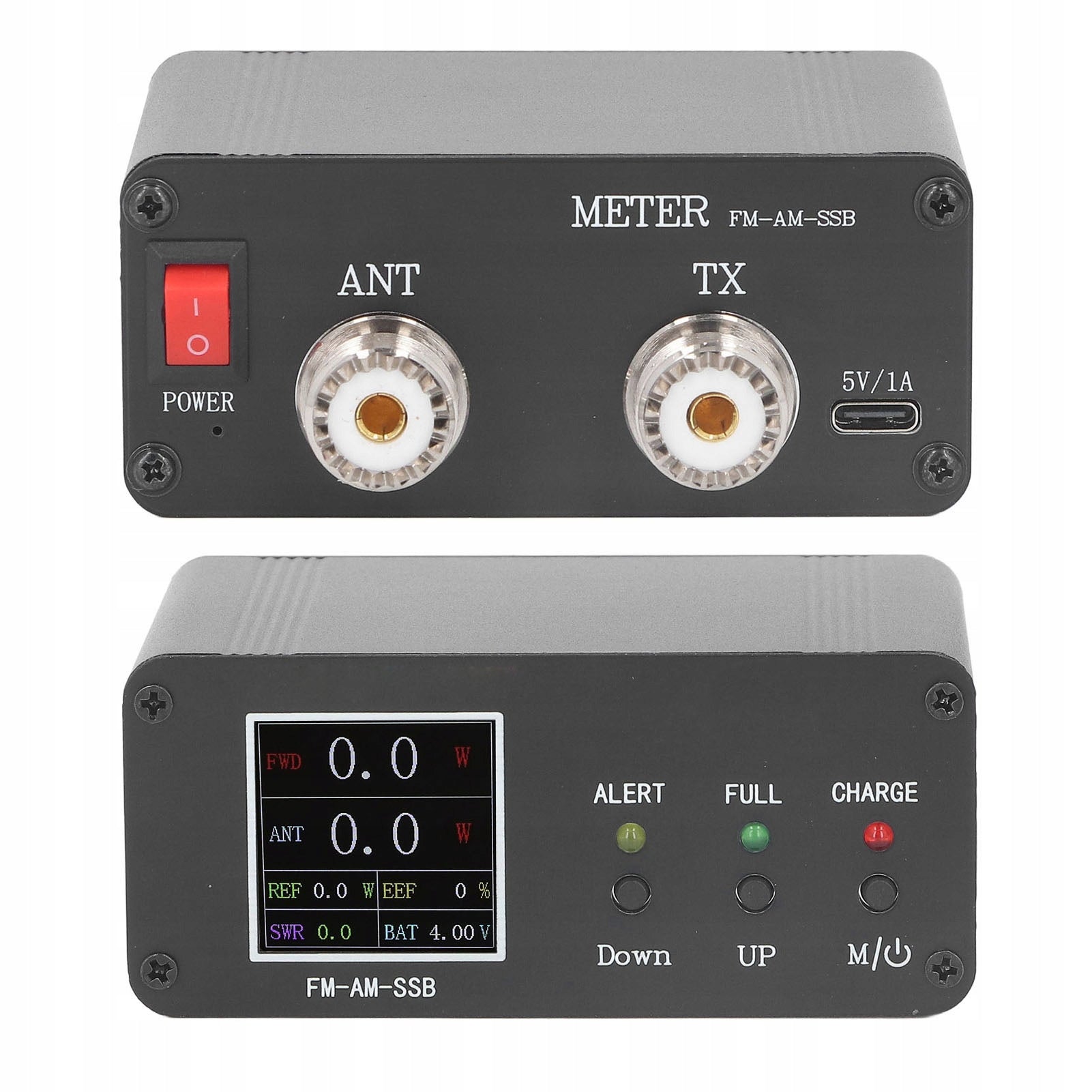

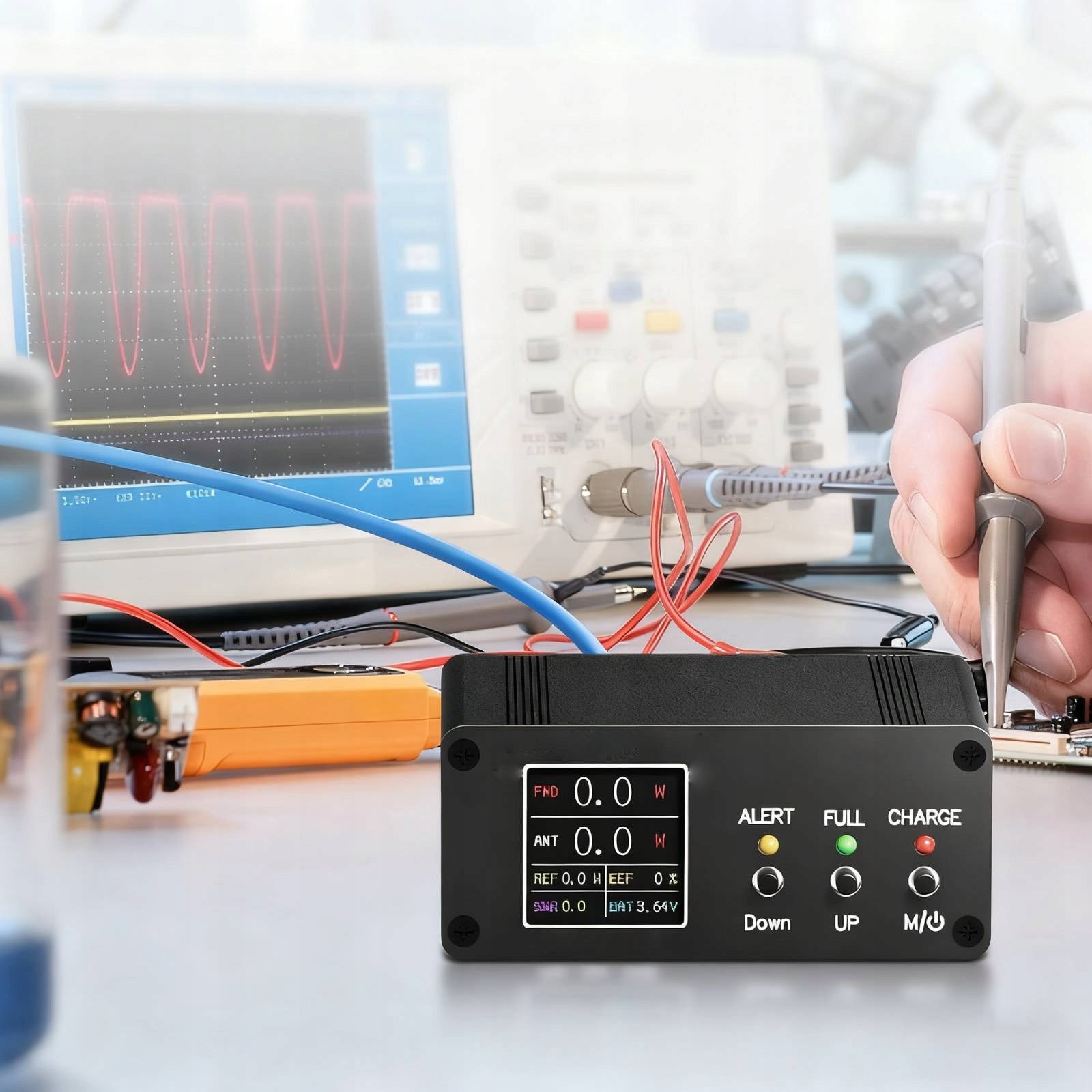

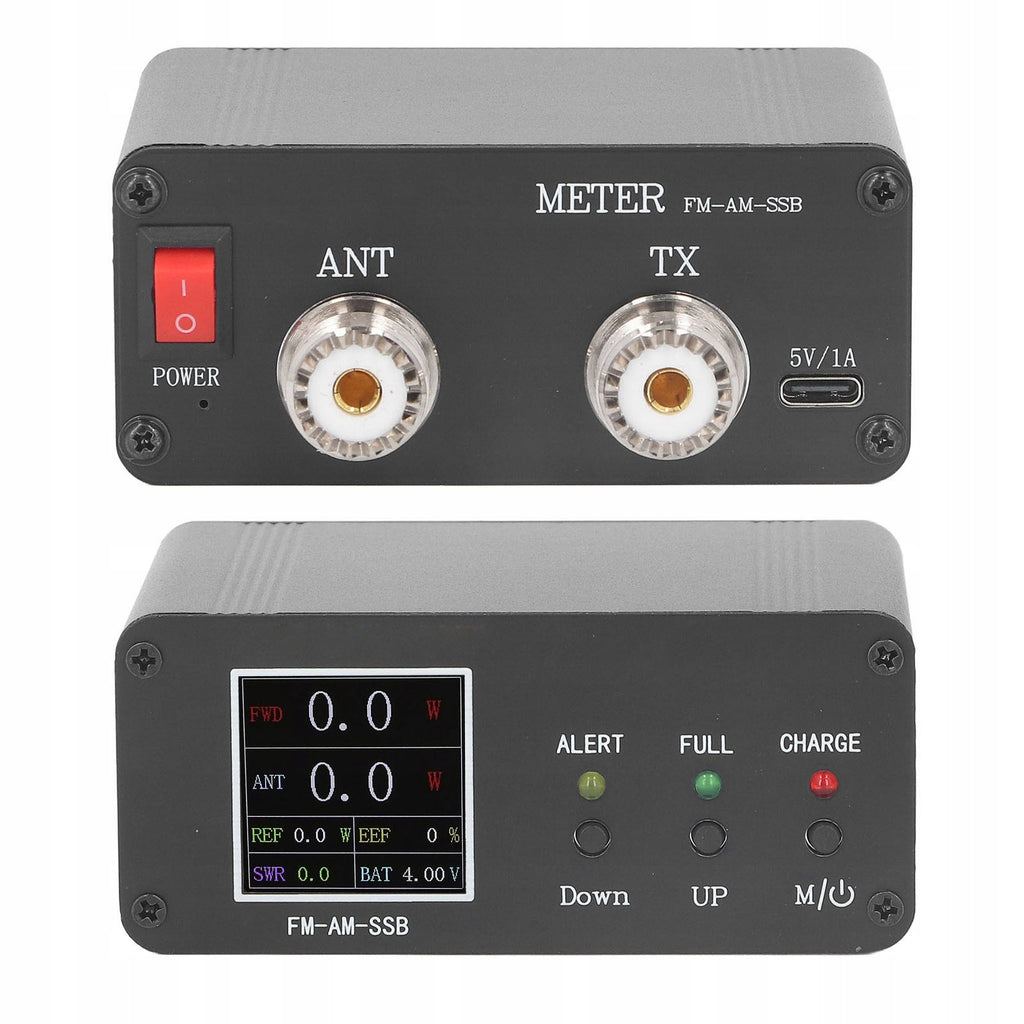

⚡Clear display: 240 x 240 HD color display, directly reading many parameters of standing power wave forward and backward.

⚡Working safety: supports delayed shutdown function, automatic start function, battery voltage protection function, dual LED indication function.

⚡Easy to carry: With its compact size and light weight, the SWR meter allows easy carrying and storage for indoor and outdoor use.

Convenient adjustment:

It supports power tuning function, standing wave tuning function, Chinese and English menu with one key switching function, one buzzer key on and off function.

Simple setting:

It supports one-button switching function of multi-display interface, user-defined standing wave alarm setting function and user-defined shutdown delay setting function.

Item Type: SWR Meter

Operating Frequency: 1,8-54 MHz

Measuring range: 0,5-120 W. SSB mode can reach a maximum of 200 W, and the buzzer will sound an alarm when it exceeds 200 W.

Standing wave range: 1-99,9. The default alarm is greater than 2,0, and the alarm point can be set manually using the function.

Charging interface: Type C 5V 1A.

Battery model: 3,7V 1000mAh lithium battery, supplied with built-in battery. When the battery voltage is lower than 3,4V, the buzzer will ring to charge and automatically close when the battery voltage drops below 3,35V.

Interface type: UHF SL16.

Housing size: approx. 88 x 63 x 38 mm / 3,46 x 2,48 x 1,5 inches (excluding protruding parts).

1 x SWR Meter
