Taškinio suvirinimo aparatas 8000W, dvigubas impulsas, 18650 rinkinys

Trumpai apie prekę

Prekė: Taškinio suvirinimo aparatas 8000W, dvigubas impulsas, 18650 rinkinys. Kategorija: Transformatoriniai suvirinimo aparatai.

• Gamintojas: Agoal
• Modelis: ZGRZEWARKA PUNKTOWA
• Aukštis: 50 mm

Spot welding machine 100-240V Household 8000W 1200A (pedal version)

⭐Function:

8000W high power intelligent spot welding machine with double pulsing, built-in battery, good performance and long service life.

The cordless welder is specially designed for welding 18650 batteries and can also be used for welding nickel strips with thickness of 0,1, 0,15, 0,2, 0,25, 0,3 mm.

It is equipped with soldering pen with good electrical conductivity and low contact resistance.

ABS coating material, surface anodic oxidation technology, wear-resistant, safe to use.

Small and portable design, easy to carry.

⭐Technical data:

Color: black

Input: 100-240 V

Output: 8,4 V

Battery type: Lithium battery

Point welding current: 0-1200A

Power: 8000 W

Built-in battery capacity: 9600mA

Maximum output voltage: 8,4 V

Maximum output power: 8000W

Thickness of nickel strip for spot welding: 0,1, 0,15, 0,2, 0,25, 0,3mm (copper/aluminium/gold/silver cannot be spot welded)

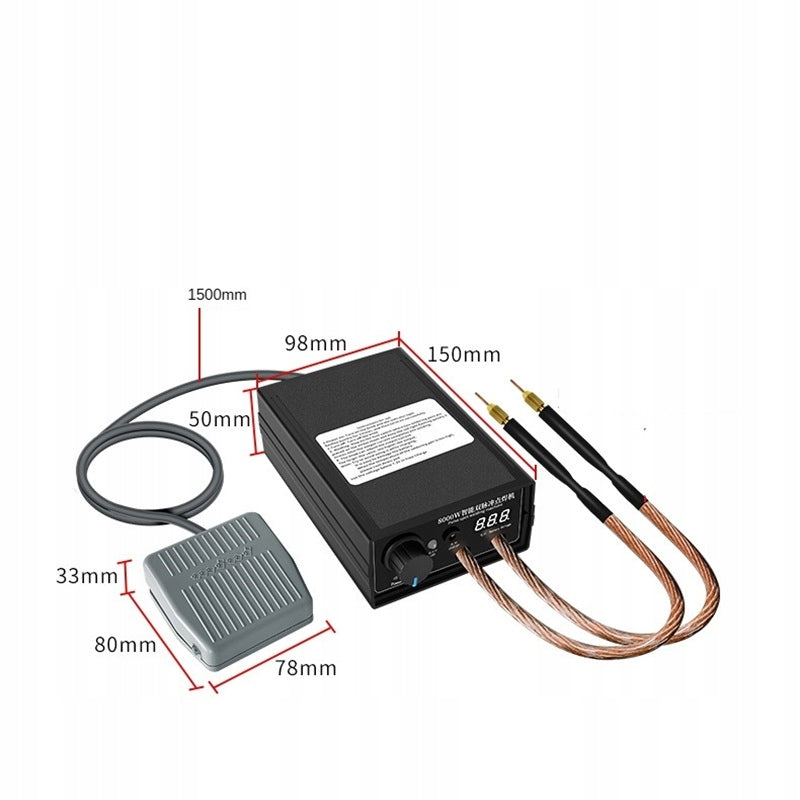

Machine size: about length 15 * width 9.8 * height 5 cm

Length of spot welding pen: 47 cm

⭐Tip:

The product is divided into automatic type and nożnego.Ten type switch type is foot switch type.

Our product is a "wireless spot welding machine" and not a transformer.

This spot welding machine is used for spot welding of nickel or iron sheets and stainless steel sheets of 18650 lithium batteries, but cannot spot welding of copper and aluminum.

Nickel belts are divided into nickel belts and pure nickel belts. Spot welding thickness of spot welding machine is nickel plating thickness in millimeters (mm)

⭐Difference between automatic switch and foot switch:

The automatic model does not have a foot switch, and spot welding begins about 0,5 seconds after the welding pen comes into contact with nickel tape.

For models equipped with a foot switch, press the switch with your foot. After the welding pen comes into contact with the nickel strip, do spot welding for about 0,5 s. Release the foot switch to complete spot welding.

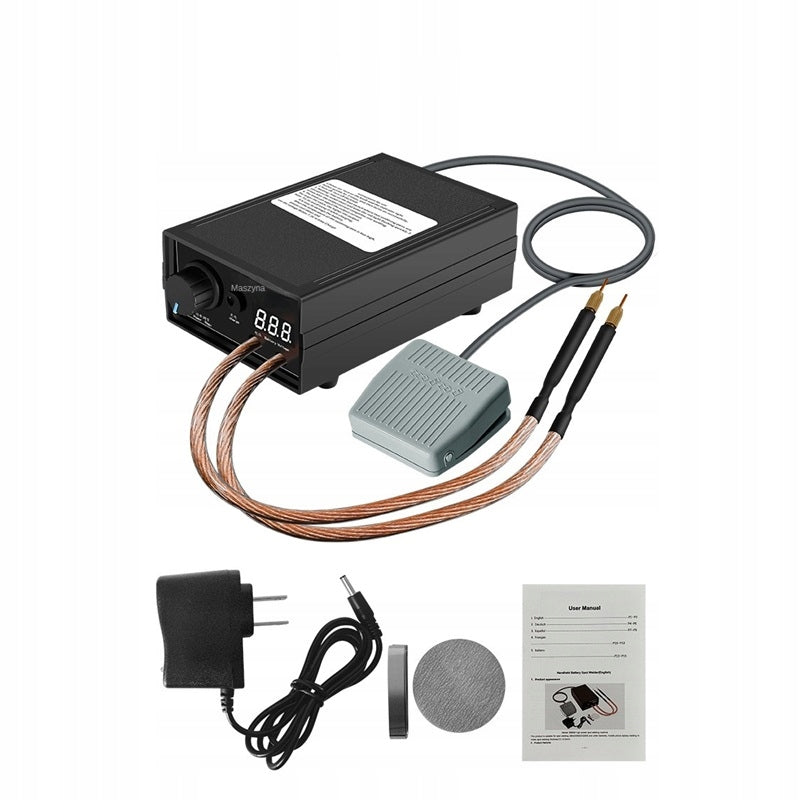

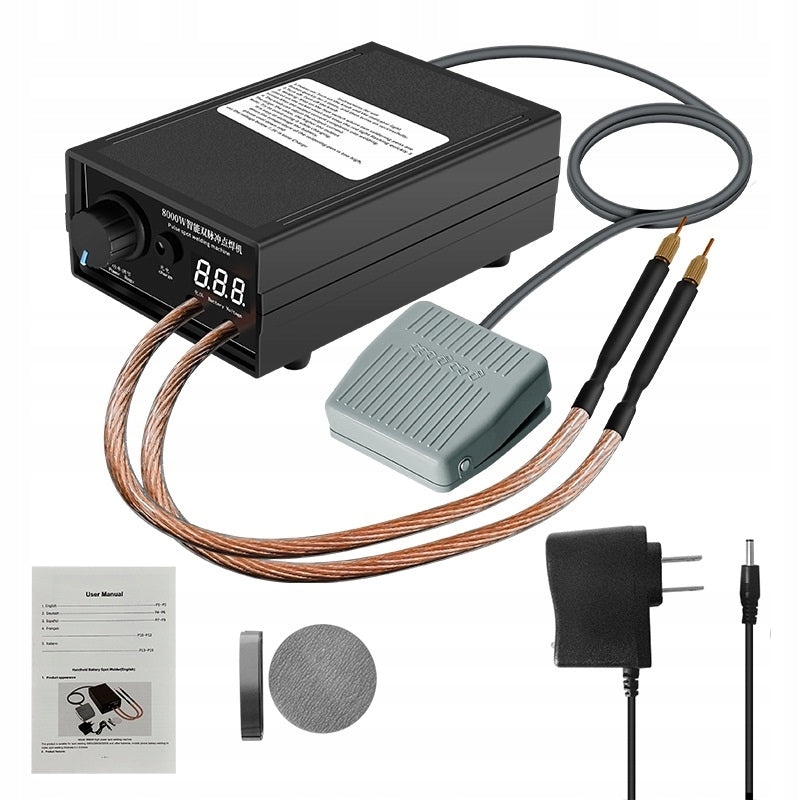

The package contains:

1 * Spot welding machine

1 * EU Power Supply

1 * 1m Nickel Tape

1 * Sandpaper

Specifications
