Taškinio suvirinimo aparatas CAR PROPULL X-2000, skirtas kėbulo lakštams

Trumpai apie prekę

Prekė: Taškinio suvirinimo aparatas CAR PROPULL X-2000, skirtas kėbulo lakštams. Kategorija: Sandarikliai.

• Gamintojas: Welder Fantasy
• Modelis: CPRX2000
• Įtampa: 230 V

• Producer: Welder Fantasy
• Method: Welding
• Power supply: 230 V
• Current: 2000 A

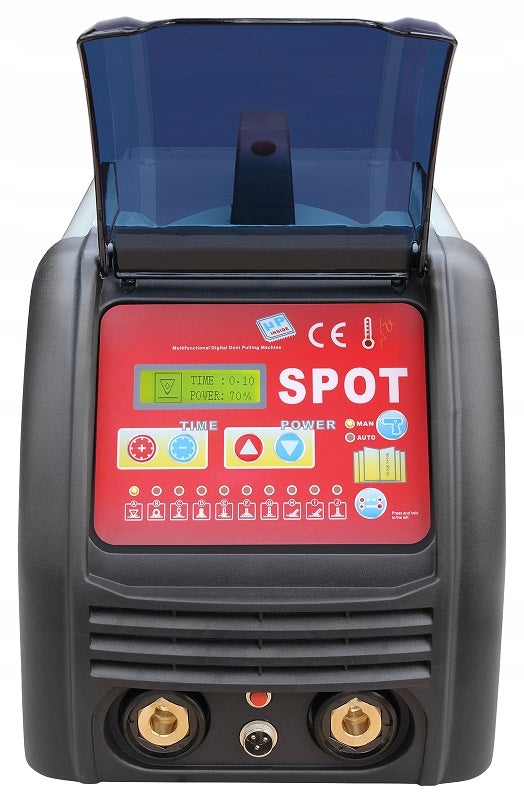

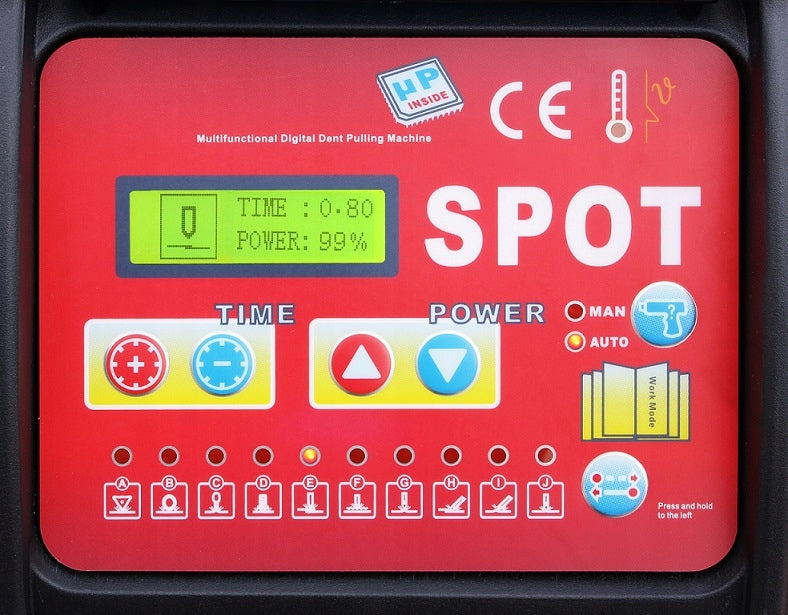

The device SPOTTER CAR PROPULL X-2000 is a professional welding machine for body sheets of the renowned company Welder Fantasy. The flashing spotter with microprocessor control is used for pulling out, one-sided welding, patching and heating with a carbon electrode of sheets. It is designed especially for car body repairs. All welding machine settings are available from the control panel. The welding machine operates in two modes AUTO and MANUAL. After selecting the AUTO operating mode, the device will automatically adjust the welding current and optimal operating cycles. In MANUAL mode, it is possible to manually set the time and power depending on the thickness of the welded sheets.

The user can choose from the following programs:

- welding of triangular washers

- welding of round washers

- welding of OT washers

- welding of dowels

- one-sided welding of sheets

- welding of corrugated wire

- flattening of sheet metal

- Carbon electrode welding

- heating/shrinking of sheet metal with a carbon electrode

- cutting with a carbon electrode

Technical data:

• GENERAL PARAMETERS

- supply voltage 230 V

- 50/60 Hz current frequency

- 30 A protection

- 10 kW power consumption

- dimensions 460 x 480 x 1050 mm

- weight of 35 kg

• TECHNICAL PARAMETERS

- max sheet thickness with one-sided welding 0,8 - 1,2 mm

- regulation of welding time 0,1 - 99 ms

- max welding current 2000 A

- degrees of adjustment of welding current steplessly

- 30 A input current

- Output voltage

• AC 6V - 10V - carbon electrode heating
• AC 1V - 12V - welding washers
• AC 1V - 13V - welding mandrels

Features of the device:

- Compact, compact design

- small dimensions and low weight

- simple operation

- automatic selection of parameters

- possibility of manual setting

- 10 ready-made operating modes

https://vimeo.com/946197616

(copy and paste the above link into any web browser)

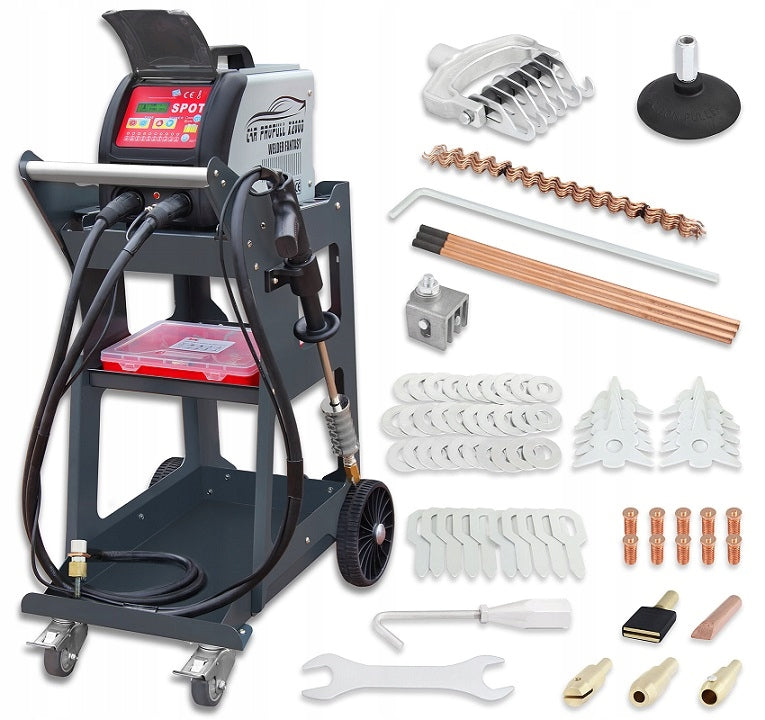

- spotter device CAR PROPULL X2000 1pcs.

- transport trolley 1 pc.

- 2 m puller gun

- 2 m mass cable

- 1 pc. point mass holder

- Claw mass holder 1 pc.

- claw handle 1 pc.

- connector for triangular washers 1 pc.

- connector for round washers and OT 1 pc.

- Flat connector for OT washers 1 pc.

- connector for studs 1 pc.

- carbon electrode connector 1 pc.

- electrode for one-sided welding 1 pc.

- kinetic hammer 1 pc.

- vacuum suction cup 1 pc.

- hook 1 pc.

- lock long 31 cm 1 pc.

- Triangular washers for welding 10 pcs.

- Round washers for welding 30 pcs.

- OT washers for welding 10 pcs.

- welding pin M6 10 pcs.

- carbon electrode 3 pcs.

- corrugated wire for welding 15 pcs.

- in Polish instruction

Specifications
