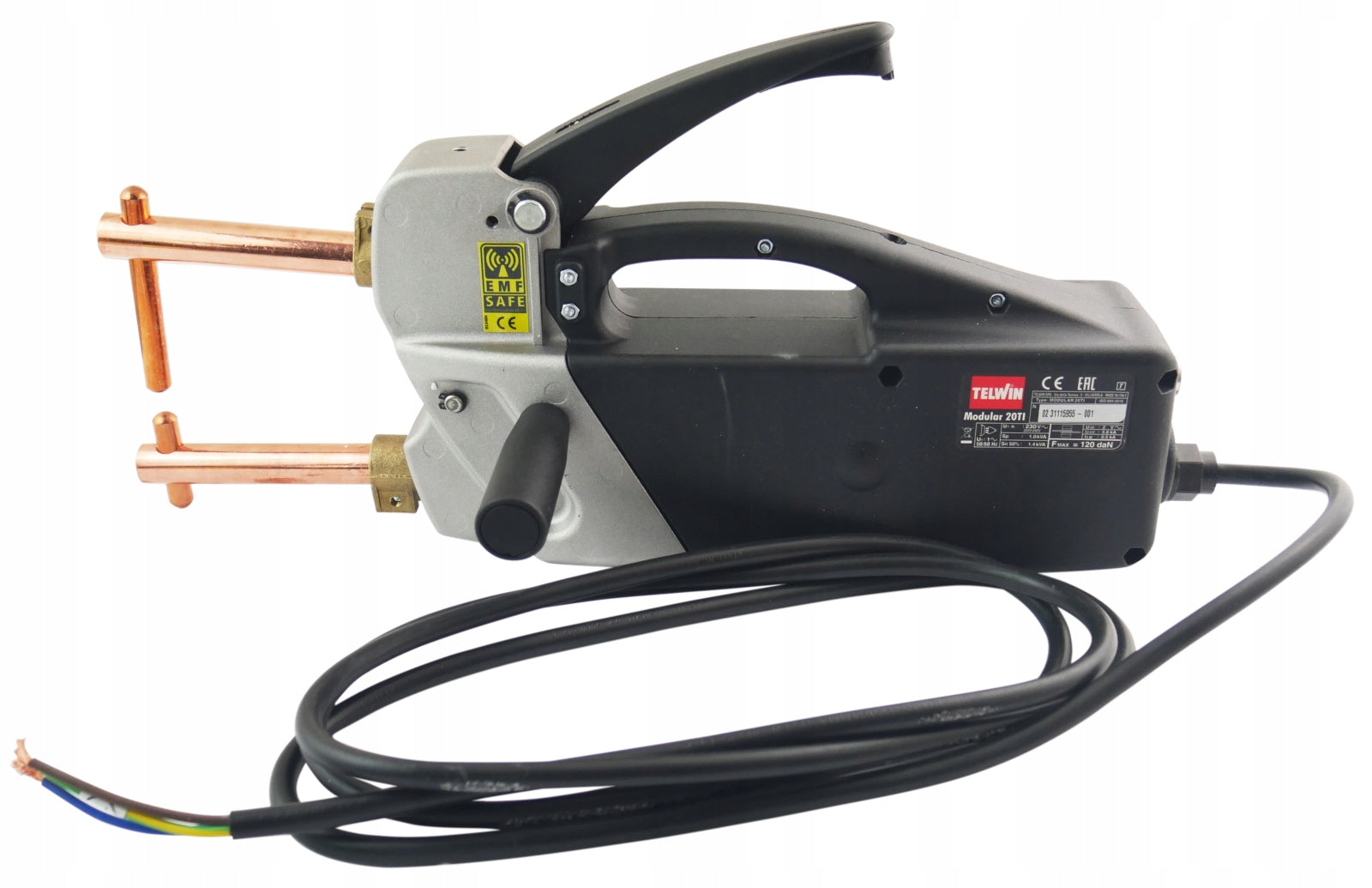

Taškinio suvirinimo aparatas DIGITAL MODULAR 20TI metalui

Trumpai apie prekę

Prekė: Taškinio suvirinimo aparatas DIGITAL MODULAR 20TI metalui. Kategorija: Sandarikliai.

• Gamintojas: Telwin
• Modelis: DIGITAL MODULAR 20/TI zgrzewania blach

➡ Power supply 230V, maximum power 6kW. Built-in welding time controller.

Included:

• ⭐ Digital Modular 20TI Tick Welding Machine
• ⭐ Set of arms with electrodes XA1 (L=120 mm)
• ⭐ Additional electrodes 12mm - 2pcs

Technical data:

➡ Physical parameters

• ⭐ Degree of protection: IP 20
• ⭐ Weight: 10 kg
• ⭐ Overall dimensions L x W x H: 440x100x185mm
• ⭐ Length of power cable: 2,8m

➡ Technical parameters

• ⭐ Power: 6 kW
• ⭐ Rated Power: 1,2 kW 50%

➡ Parameters power

• ⭐ Power supply network protection: 16 A
• ⭐ Rated supply voltage: 230 V; 50Hz (1ph)
• ⭐ Single-phase power supply

➡ Welding parameters

• ⭐ Working cycle: 1,5 %
• ⭐ Sterile secondary voltage: 2 V
• ⭐ Maximum thickness of sheets during double-sided welding: 1 + 1 mm
• ⭐ Maximum welding current: 3800 A

Number of welds per hour:

☑ Modular 20/Ti:

• Thickness: 0,6 + 0,6 | continuous welding: 380

• Thickness: 0,8 + 0,8 | continuous welding: 280

• Thickness: 1 + 1 | continuous welding: 200

☑ Modular 230/400:

• Thickness: 0,6 + 0,6 | continuous welding: 380
• Thickness: 0,6 + 0,6 | pulsation welding: 150

• Thickness: 0,8 + 0,8 | continuous welding: 280
• Thickness: 0,8 + 0,8 | pulsation welding: 115

• Thickness: 1 + 1 | continuous welding: 200
• Thickness: 1 + 1 | pulsation welding: 90

• Thickness: 1,2 + 1,2 | continuous welding: 130
• Thickness: 1,2 + 1,2 | pulsation welding: 65

• Thickness: 1,5 + 1,5 | continuous welding: 75
• Thickness: 1,5 + 1,5 | pulsation welding: 50

• Thickness: 2 + 2 | continuous welding: 42
• Thickness: 2 + 2 | pulsation welding: 35

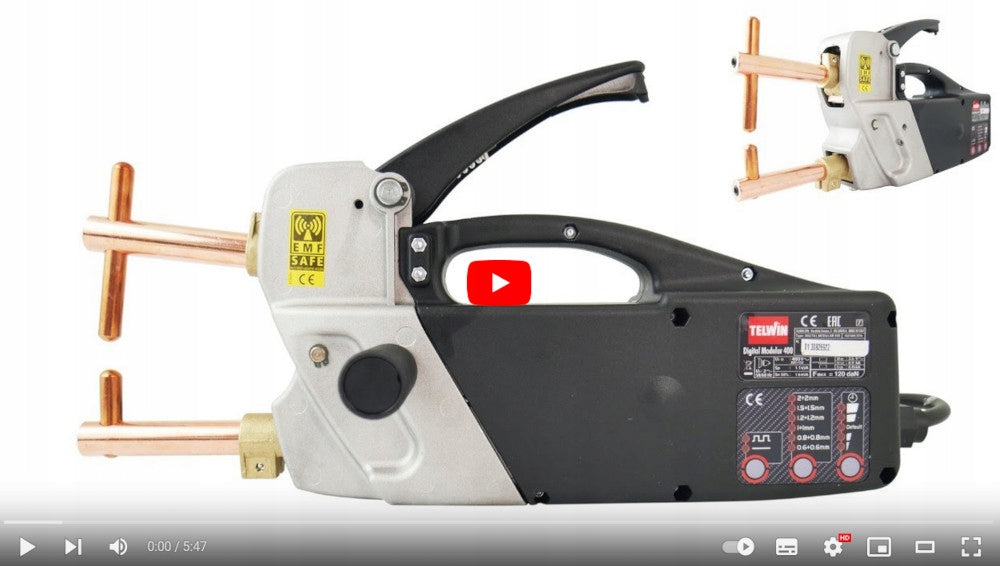

See a similar model of a tick welding machine in the video:

Copy the link and paste into your browser window

☑ Manual welding machine is used in welding stainless steel and low carbon sheets with a maximum thickness of 1 + 1mm.

• ➡ It is used especially for car body repairs.

Tick welding machine – precise adjustment and solid workmanship

• ⭐ The welding time adjustment ranges from 0,1s to 1,2s.
• ⭐ Adjustable arm pressure from 40kg to 120kg (at the arms L=120mm)
• ⭐ The handle is made of heat-insulating material.
• ⭐ The device has overload protection.
• ⭐ The equipment includes a set of arms and electrodes L=120mm

☑ The electrodes are durable and used by the tick welding machine for point welding of stainless steel and low carbon sheets. It is especially used for repairs of car bodies.

Dimensions:

• ⭐ Length: 100mm
• ⭐ Diameter: 12mm
• ⭐ Weight: 97g

Arms with electrodes:

• ⭐ XA1 L=120mm [standard] - cod. 803151
• ⭐ XA2 L=120mm - cod. 803150
• ⭐ XA3 L=120mm - cod. 803158
• ⭐ XA4 L=120mm - cod. 803155
• ⭐ XA5 L=140mm - cod. 803159
• ⭐ XA6 L=250mm - cod. 803152
• ⭐ XA7 L=350mm - cod. 803153
• ⭐ XA8 L=350mm - cod. 803154
• ⭐ XA9 L=500mm - cod. 803156

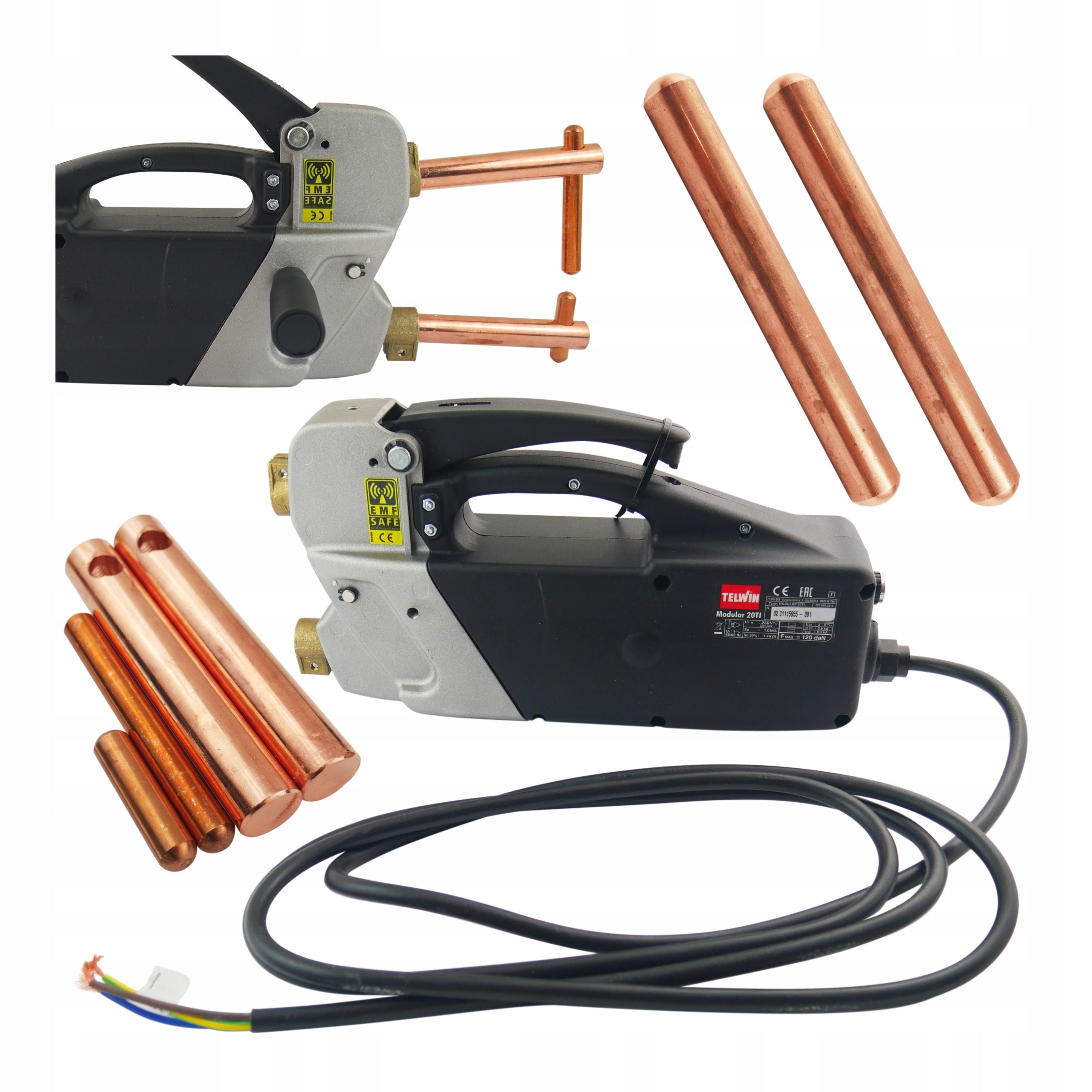

Included:

• ⭐ Digital Modular 20TI Tick Welding Machine
• ⭐ Set of arms with electrodes XA1 (L=120 mm)
• ⭐ Additional electrodes 12mm - 2pcs
