Taškinio suvirinimo aparatas FNIRSI SWM-10, 1200A, 0,1–0,25 mm, 5000mAh, LCD ekranas

Trumpai apie prekę

Prekė: Taškinio suvirinimo aparatas FNIRSI SWM-10, 1200A, 0,1–0,25 mm, 5000mAh, LCD ekranas. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Fnirsi
• Modelis: SWM-10

FNIRSI SWM-10 - portable spot welding machine 1200A

FNIRSI SWM-10 is a compact spot welding machine for working with plates with a thickness of 0.1-0.25 mm. It will work well for servicing battery packs, RC electronics, FPV and workshop work requiring a short and strong welding pulse.

The device has a built-in 5000mAh battery, a 1.8 inch color LCD screen and a maximum welding current of 1200A.

The most important features

• Welding current up to 1200A - a strong pulse for welding thin conductive plates.
• Thickness range 0.1-0.25 mm - suitable for typical plates used in battery packs.
• 5000mAh battery - mobile operation without permanent connection to the power supply.
• LCD screen 1.8 inch - quick view of settings and status of the device.
• 4 levels of adjustment - easier adjustment of energy to the material and thickness of the plaque.
• Power bank function - charging and discharging 5V / 2.1A.
• Electronic protection - protection against overheating, too low voltage and short circuit.

For nickel, steel and aluminium plates

SWM-10 supports welding of nickel, iron, stainless steel and aluminum plates. This makes it suitable for many service jobs on electronics, cells and battery packs.

Dual pulse technology helps to achieve a more stable welding point. Before proper work, it is worth doing a test on the waste of the same plaque and choosing the lowest level that gives a certain connection.

Technical specification

• Brand: FNIRSI
• Model: SWM-10
• Type: portable spot welding machine
• Maximum welding current: 1200A
• Welding thickness range: 0.1-0.25 mm
• Battery capacity: 5000mAh
• Charging: 5V / 2.1A
• Discharge: 5V / 2.1A
• Screen: color LCD 1.8 inch
• Adjustment: 4 combined levels
• Supported materials: nickel plate, iron plate, stainless steel, aluminum plate
• Security: overheating, too low voltage, short circuit
• Dimensions: 155 x 82 x 28 mm
• Working environment: from -5 to 40 C, relative humidity up to 80%

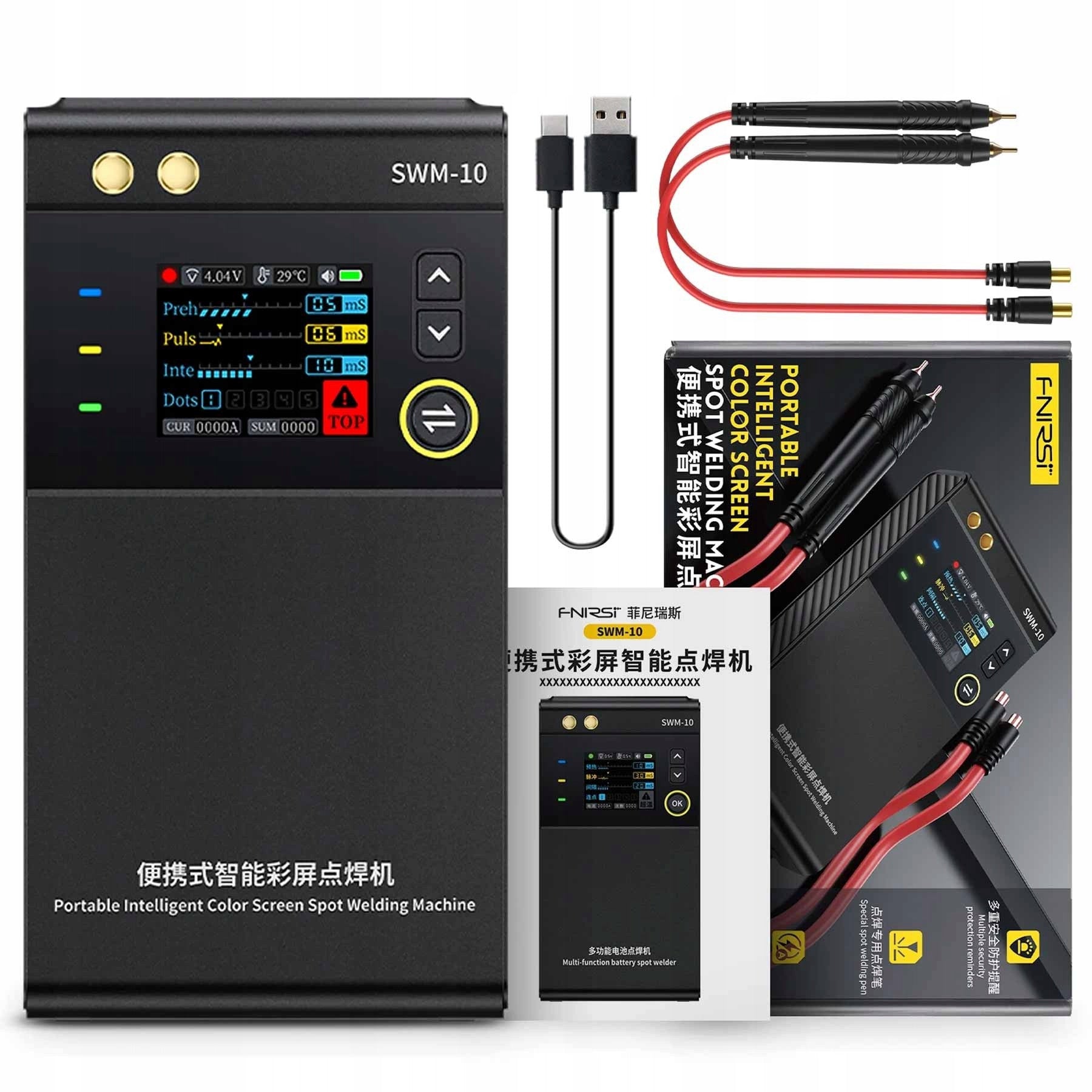

Contents of the set

• Spot welding machine FNIRSI SWM-10
• Welding pen
