Taškinio suvirinimo aparatas IDEAL TECNO 8000 kėbulo plienui

Trumpai apie prekę

Prekė: Taškinio suvirinimo aparatas IDEAL TECNO 8000 kėbulo plienui. Kategorija: Sandarikliai.

• Gamintojas: IDEAL
• Modelis: TSPOT8
• Įtampa: 400 V

INCLUDED WITH FULL EQUIPMENT AND NECESSARY EQUIPMENT TO GET STARTED! CHECK WHAT YOU GAIN BY CHOOSING THE OFFER OF PROFESSIONALS !

Manufacturer: IDEAL ║ Device type: SPOTTER ║ Power supply: 400 V ║ Welding current: 5 400 A ║ Max. thickness of welded material: 0,8+1,0mm

• Display monochrome
• Regulation of current value and time
• Selection of thickness of welded material
• Overload protection
• over and undervoltage protection
• Fan — optimally cools and increases efficiency
• Possibility of mounting working electrodes in the holder together with tooling
• Ideal for simple repairs and complicated work
• Necessary in automotive plants, plate and industrial
• Allows you to repair posts, mask, doors, trunk lid, fender roof and thresholds
• Automatic operation
• 10 operating modes

• Welding sheets up to 1,0mm thick
• Set of for pulling, welding, patching and warming sheets
• Professional device
• Maximum current 5400A !
• Powered by 400V
• Comprehensive body repair with one device
• Controlled by microprocessor
• Body Panel Repair Equipment
• The possibility of avoiding thermal deformation and overheating sheets — just choose the right setting
• Possibility of stepless adjustment of current and welding time
• Tailored to the needs of the user
• Highest precision

IDEAL TECNO SPOTTER 8000 is ideal for simple and quick repair of the car body. The welding machine is also ideal for patch, warming, bubble and sheet metal swelling. The great advantage of IDEAL TECNO SPOTTER 8000 is its high power 5400A. An additional advantage is also stable operation while maintaining all mechanical properties of the elements on which we work. Another plus is the automatic selection of parameters after selecting the program, in addition, we have the ability to manually set parameters.

LOOK AT THE FOLLOWING APPLICATION IN PRACTICE!

POWER SUPPLY PARAMETERS

• Power supply voltage: 400V
• Frequency: 50Hz

WELDING PARAMETERS

• Maximum sheet thickness for single-sided welding: 0,8+0,8mm
• Maximum welding current: 5400A
• Welding time adjustment: 0-99ms
• Degrees of welding current adjustment: Stepless

TECHNICAL PARAMETERS

• Power: 19kW
• Output voltage: 1-13V
• Input current: 50A

PHYSICAL PARAMETERS

• Weight of the device / set: 49kg / 80 kg
• Overall dimensions: 570x370x890mm

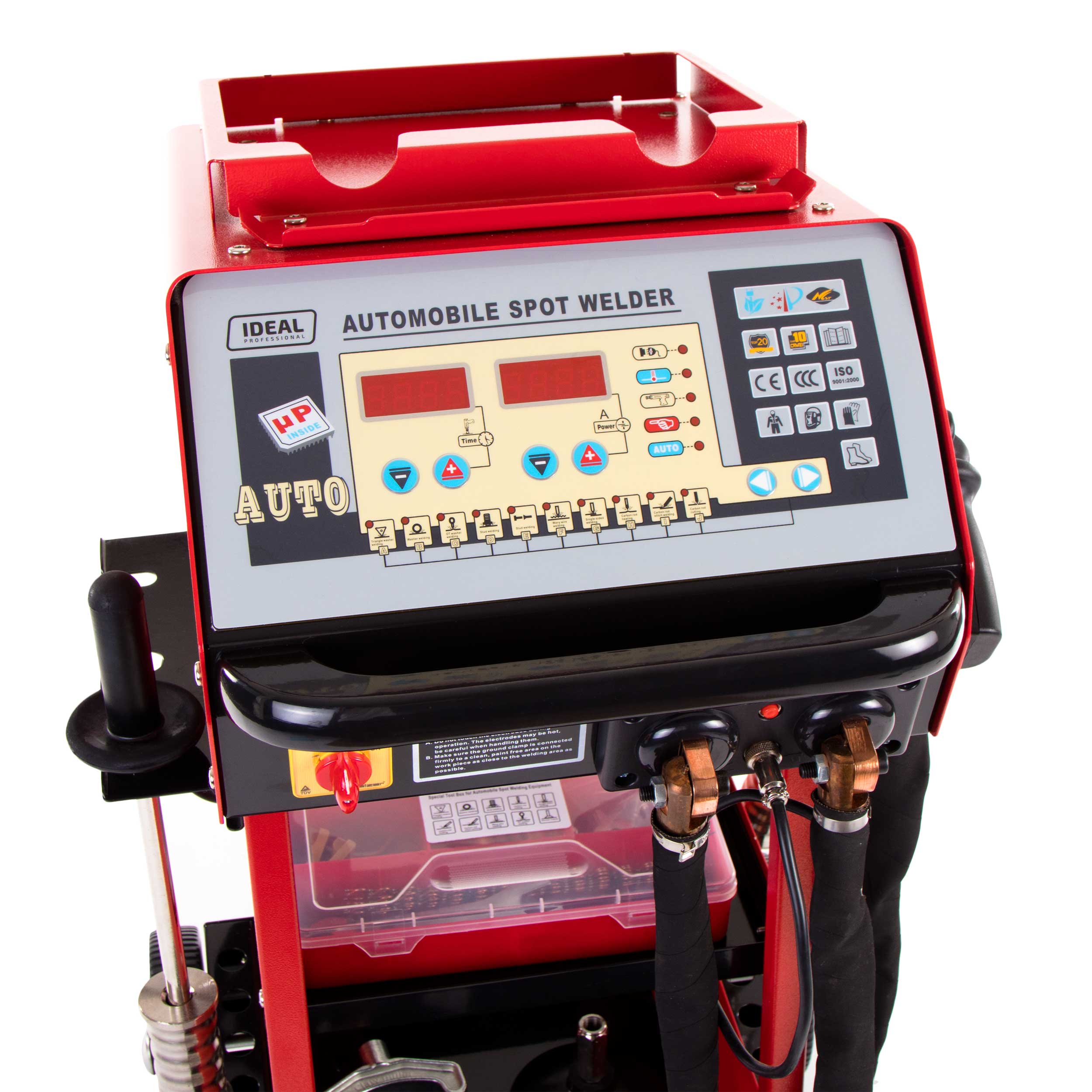

INTUITIVE OPERATION AND AUTOMATIC SELECTION OF PARAMETERS

• Automatic selection of parameters
• Simple operation - just select the program
• 10 ready-made operating modes
• Guarantee of the highest precision
• Possibility of stepless adjustment of current and welding time - adjustment to the needs

IDEAL TECNO SPOTTER 8000 is a modern device. The heating and welding process begins automatically when the electrode comes into contact with the element.

After the time programmed by the user or removing the electrode from the sheet metal, the welding is automatically interrupted. Properly selected welding machine allows you to achieve the expected effect with the least possible energy consumption.

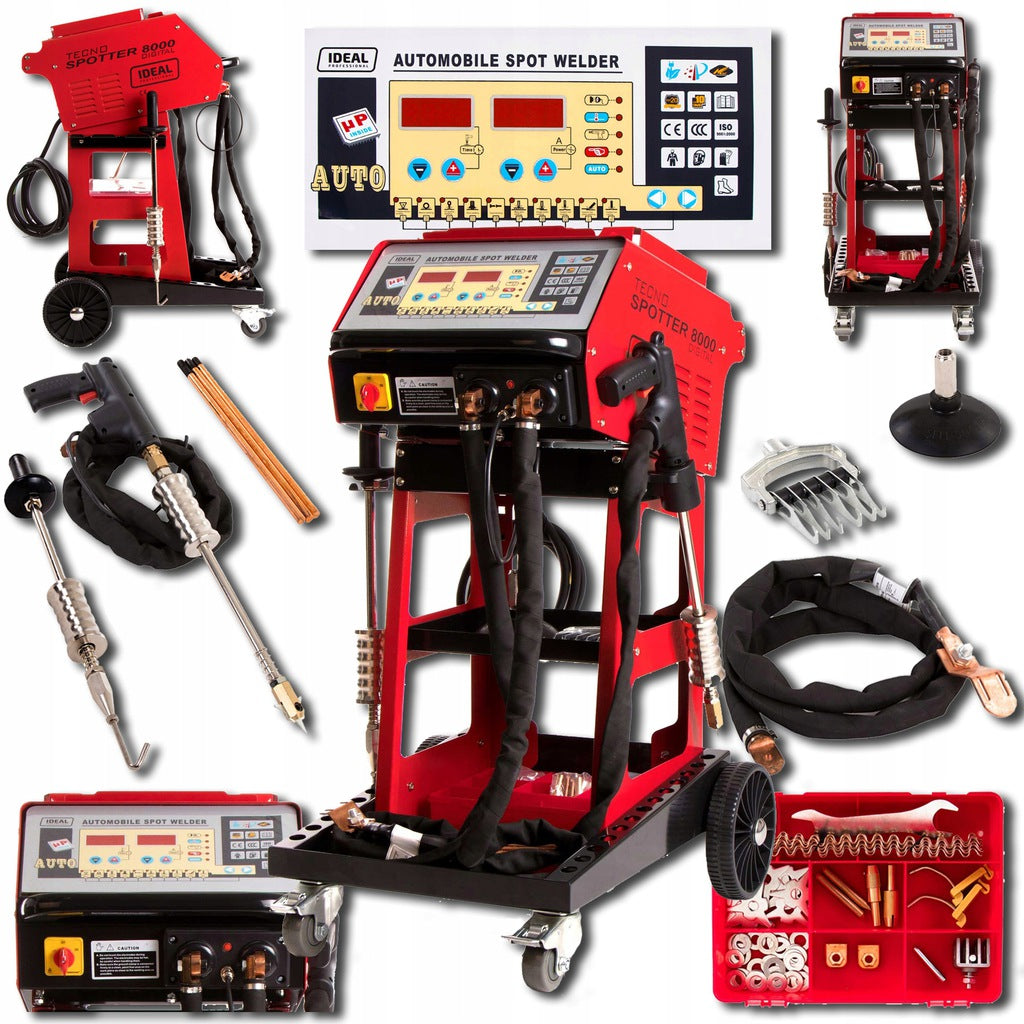

IDEAL TECNO SPOTTER 8000 is mounted on a special cart, which is included in the set. Trolley has a number of amenities, such as:

• Holders for punches,
• Kinetic hammers,
• Additional shelves for accessories,
• Lockable swivel casters.
• Optimal sizes
• Perfectly matched weight of the trolley
• Easy to transport
• Made from the highest quality materials
• Proven design
• Large wheels
• Top shelf for easy access to the control panel,
• Two shelves under the welding shelf allow you to store, transport additional accessories.

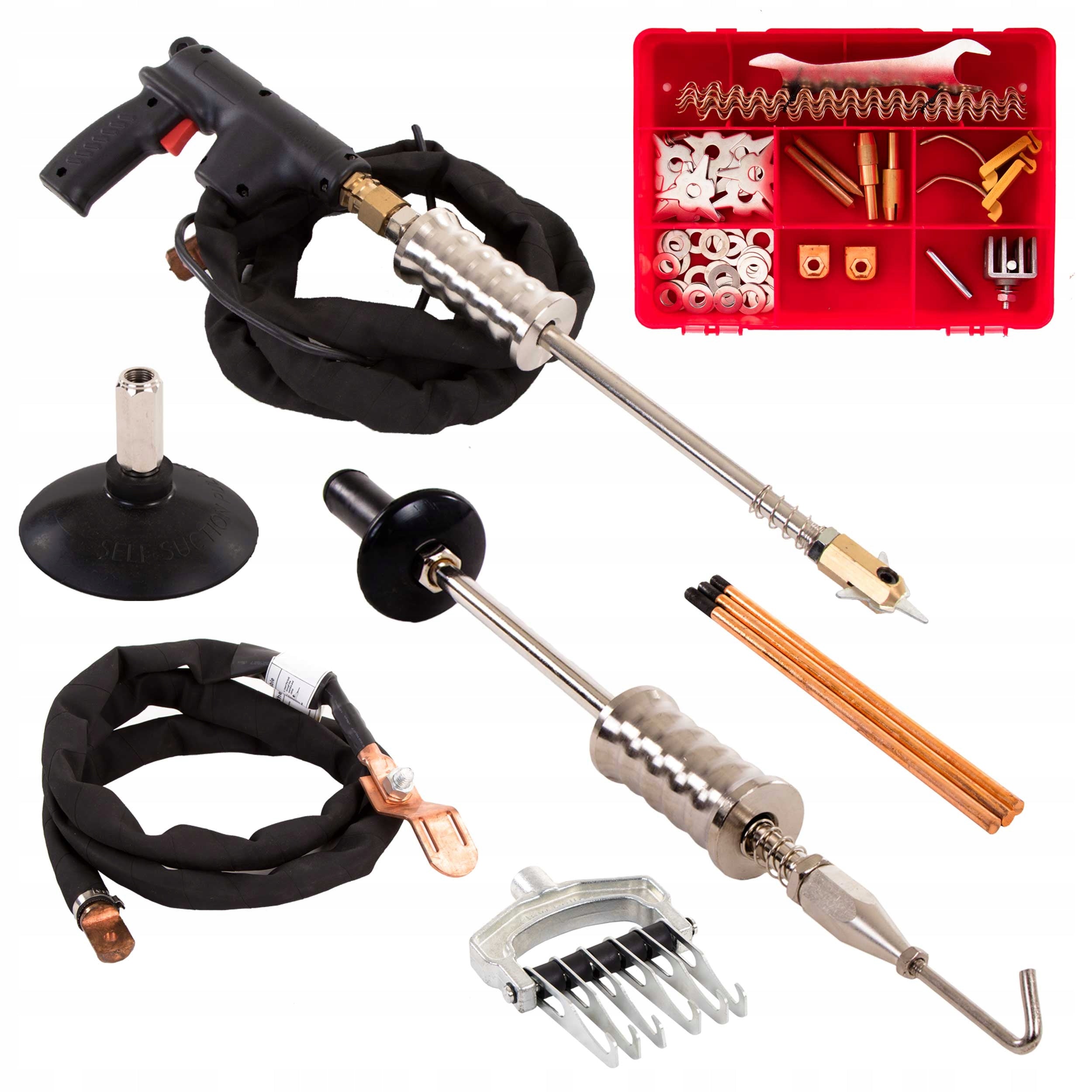

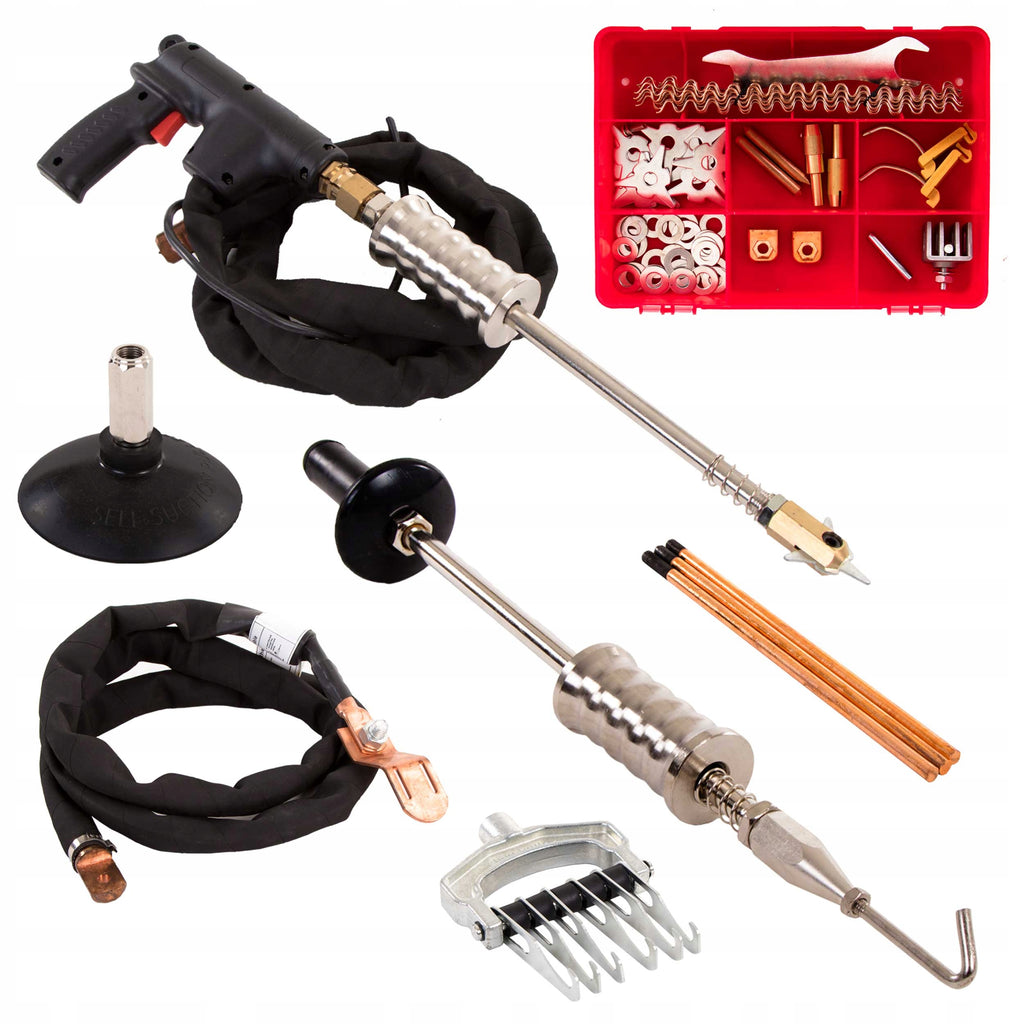

SET INCLUDES

• Device IDEAL TECNO SPOTTER 8000 DIGITAL
• Cart
• Working cable with gun
• Bulk cable with mounting bracket,

+ ADDITIONAL ACCESSORIES

• Accessories box (M10, M12 pads, corrugated wire, corrugated wire electrode, welding electrode, triangular washers, bubble electrodes)
• Punch with hook for washersM8-M12
• Punch with handle for triangular washers
• Rubber suction cup for shallow dents
• 6-pin handle for pulling corrugated wire
