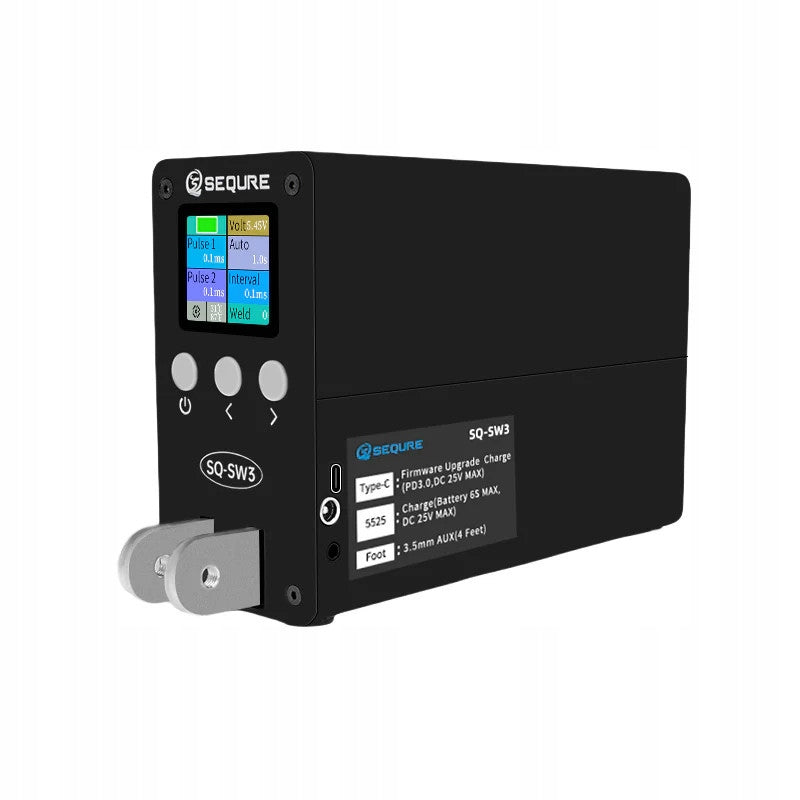

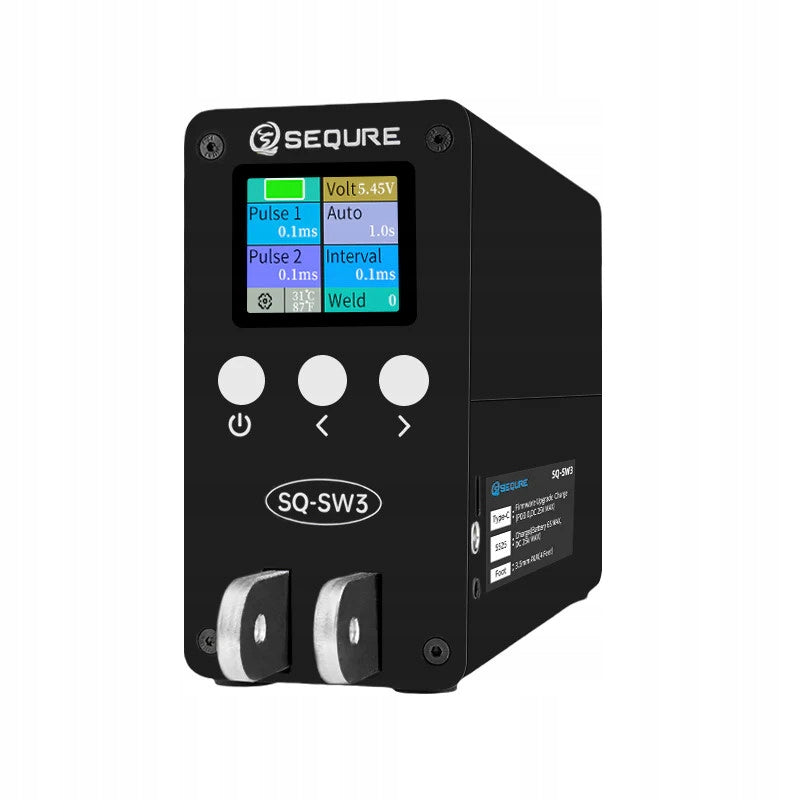

Taškinio suvirinimo aparatas SEQURE SQ-SW3 SWP25, 2500A, tinkamas 18650, 21700 Li-Ion baterijoms

Trumpai apie prekę

Prekė: Taškinio suvirinimo aparatas SEQURE SQ-SW3 SWP25, 2500A, tinkamas 18650, 21700 Li-Ion baterijoms. Kategorija: Sandarikliai.

• Gamintojas: no brand
• Modelis: SEQURE SQ-SW3

SEQURE SQ-SW3 SWP25 - spot welding machine for Li-Ion packages

SEQURE SQ-SW3 SWP25 is a capacitor spot welding machine for building and servicing battery packs from 18650 and 21700 cells. It will work well when welding nickel-plated tapes, pure nickel and thin copper sheet.

The SWP25 version reaches a maximum output current of 2500A and is equipped with split welding handles and a foot pedal, which facilitates serial operation with packages.

The most important features

• Maximum current 2500A - high pulse energy for welding tapes used in battery packs.
• For 18650 and 21700 cells - suitable for the most commonly used Li-Ion cells in modeling, service and workshop packages.
• Support for nickel-plated tape up to 0.5 mm - the ability to work with material often used in the construction of packages.
• Pure nickel up to 0.3 mm - a better solution for packages where conductivity and durability of the connection count.
• Copper sheet up to 0.2 mm - the ability to work also with thinner copper materials.
• Automatic and manual mode - fast operation without pedal or full impulse trigger control.
• LCD screen 1.8 inch - a clear preview of the settings and status of the device.
• AC, DC, USB-C charging and battery - greater flexibility in the workshop.

Capacitor energy storage and strong welding pulse

SQ-SW3 does not work like a classic soldering iron. The device stores energy in capacitors and then gives it away in a short pulse through welding electrodes. Thanks to this, you can make a permanent connection of the tape to the cell pole without long heating of the entire battery.

This is important for Li-Ion cells because too long exposure to temperature can worsen the safety and life of the cell. The spot welding machine is the right tool for building packages 18650 and 21700.

Technical specification

• Brand: SEQURE
• Model: SQ-SW3
• Variant: SWP25 EU Plug
• Type: capacitor spot welding machine
• Maximum output current: 2500A
• Maximum output voltage: 5.6V
• Screen: color LCD 1.8 inch
• Working modes: automatic and manual
• Nickel-plated tape: up to 0.5 mm
• Pure nickel: up to 0.3 mm
• Copper sheet: up to 0.2 mm
• USB-C: firmware update, PD3.0 charging, DC 25V max
• Pedal socket: AUX 3.5 mm
• Device dimensions: 223 x 133 x 68 mm
• Net weight: 1565 g
• Package dimensions: 270 x 230 x 240 mm
• Package weight: 3425 g

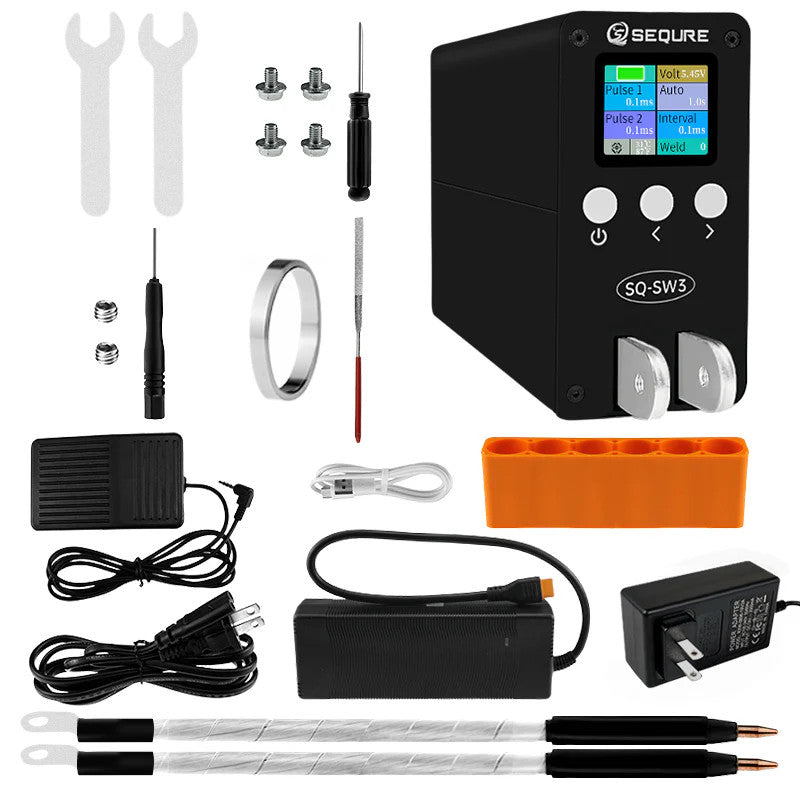

Contents of the set

• Spot welding machine SQ-SW3 - 1 pc.
• Charger 5.6V 15A - 1 pc.
• Charger 19V 2A - 1 pc.
• USB cable - 1 pc.
• Holder for cells 18650 - 1 pc.
• Pure nickel strip 0.1 x 8 mm, 5 m - 1 pc.
• File - 1 pc.
• Split handle SWP25 - 2 pcs.
• Foot pedal - 1 pc.
• Screw M3 x 2 - 2 pcs.
• Hexagon Screwdriver 1.5 mm - 1 pc.
• Screw M6 x 8 - 4 pcs.
• Phillips screwdriver 4.0 mm - 1 pc.
• Hexagonal flat wrench 10 mm - 2 pcs.
