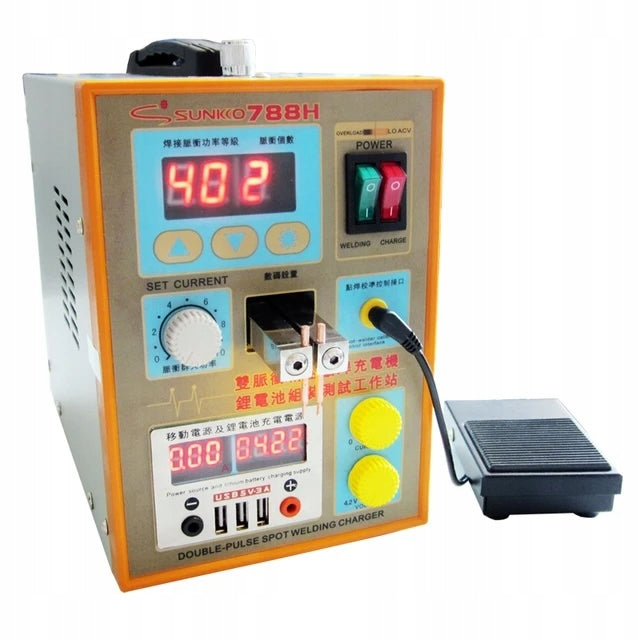

Taškinio suvirinimo aparatas su akumuliatorių įkrovikliu ir testeriu SUNKKO 788H 3in1

Trumpai apie prekę

Prekė: Taškinio suvirinimo aparatas su akumuliatorių įkrovikliu ir testeriu SUNKKO 788H 3in1. Kategorija: Sandarikliai.

• Gamintojas: Rosfix
• Modelis: 17Y1-I3Q4
• Įtampa: 230 V

✅ The use of different modes: The Sunkko S788H-USB cordless spot welding machine offers flexibility thanks to the choice of pulse mode and current adjustment from 0 to 99. With these features, welding nickel strips becomes more reliable, providing solid connections.

✅ Three functions: Provides spot welding, lithium battery testing and charging - three applications in one device.

✅ Precise microcomputer control: Allows you to set welding parameters up to 199 (99 * 1; 99 * 2), which guarantees accuracy and control.

✅ Ultra-fast welding modes: Choosing between single and double pulse welding, allowing you to adapt to different needs.

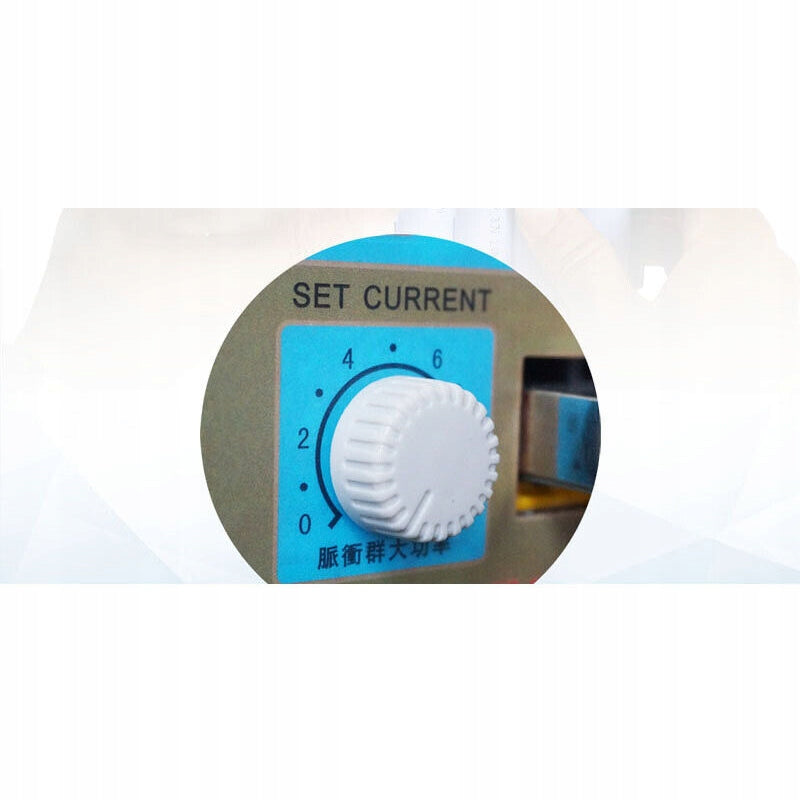

✅ Welding Current Adjustment: It has both fast pulse group setting mode (16 pulses) and slow high current welding mode, perfect for welding thicker nickel plates.

✅ Adjustable charging device: With adjustable voltage of 4,2V-36V and current of 3A, it allows you to charge lithium batteries after welding.

✅ Lithium Battery Tester: Unique charging current testing function for full control over battery status.

✅ Pedal operation: Introduces convenience and improves welding quality with the trigger pedal.

✅ Professional needle pressure regulation: Ensuring stability and precision during the welding process.

‼ Other accessories such as moulds, t-shirts, tapes, tips, flasks for welding machines can be found in our offer ‼

✅ Fast pulse mode: It has an adjustable, fast group pulse mode using a knob (16 pulses) and a slow welding mode with high current power, suitable for welding thick nickel cells with a thickness of 0,25 mm.

✅ Built-in battery charger: Has 3 standard USB charging ports with 5V voltage and 0 to 3A output current. It is perfect for testing the actual charging current of smartphones with fast charging with 2-3A current, tablets, portable power supplies, etc.

✅ Ideal for Lithium Battery Packs: The welding machine is perfect for building small sets of lithium batteries, guaranteeing robust and durable connections. This reliable tool can handle even the most demanding tasks.

✅ LED Backlight: Additional LED lighting makes it easier to work in low-light conditions, providing better visibility during welding.

✅ Effective heat dissipation: Good heat dissipation has a positive effect on the performance and service life of the device, which is important during intensive use.

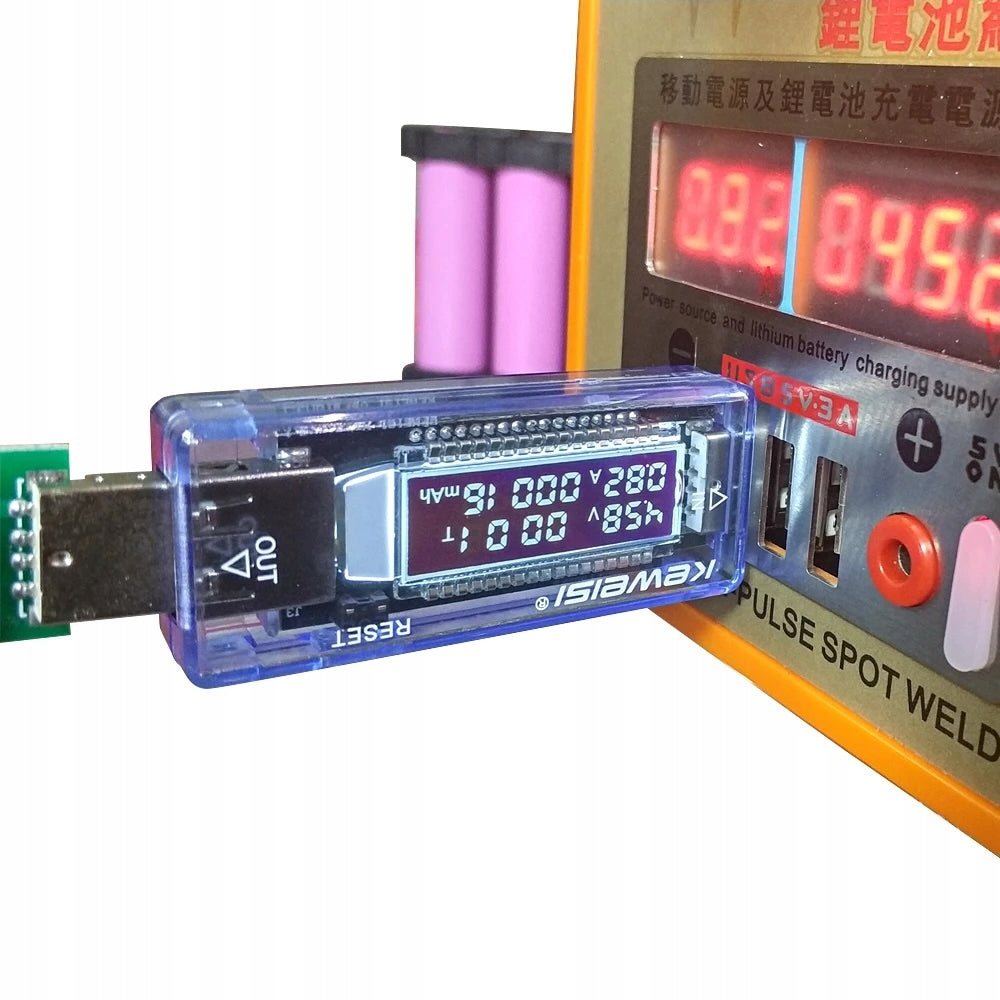

✅ Three USB output ports: o total output capacity 3A. The picture shows that they have a charging voltage of 4,48V and a charging current of 2A

✅ Fixed Welding Head with Copper Needle: The head made of copper needle allows welding of 0,05 to 0,25 mm of nickel, which allows you to quickly obtain strong and accurate welds.

✅ Pulse Display and Current Adjustment: 1/2 pulse welding modes available and current adjustment ranging from 300 to 750g, providing a wide range of welding options for various materials.

✅ Welding Pressure Regulator: The welding pressure regulator at the top allows you to adjust the pressure to details of different thicknesses, which positively affects the welding accuracy.

✅ Application Multiple: The compact design makes the welding machine easy to carry and operate, suitable for various applications such as welding batteries, button batteries, polymer batteries, as well as in electronics industry, maintenance, battery industry, welding, printed circuit boards, etc.

✳ How to Adjust Pressure During Welding:

Look at the Material: Assess the thickness of the material you are going to weld. Make sure the tool is suitable for the type of material.

Watch Welding Point: Carefully track the welding point during the process. Make sure that the welding energy is evenly distributed.

Settings Consistent with Thickness:

• If You Weld Thicker Material: Turn the knob according to the clock directions.
• If you are welding thinner material: Turn the knob counterclockwise.

Customize According to Indications: Follow the material thickness indications to adjust the pressure precisely. The manufacturer’s indications are crucial for optimal use of the tool.

Monitor Effects: After adjusting the pressure, carefully observe the welding results. Make sure that the resulting connections are strong and aesthetically pleasing.

Test on Trial Materials: Conduct tests on test pieces of material to verify the effectiveness of pressure adjustments.

Continue Adjustments: Depending on the different types of materials, continue adjusting the pressure to maintain optimal welding conditions.

Adjusting the pressure according to the above steps will allow you to get effective and durable seals.

✳ Device specification:

• Supply Voltage: 180-240V
• Power 1,5KW
• 1 pulse time: 0,5 - 5 ms (variable)
• Time 2 pulses: 1 - 10 ms (variable)
• Suitable washer thickness 0,05 - 0,25 mm for fixed head
• Dimensions: 200 x 140 x 245 mm (H x W x Long)
• Weight: 4300g

✳ Charger specification:

• Output Voltage: 4.2~36V
• Output Current: 0~2A (Maximum)
• Output Power: 38W (50W Instant)
• Voltage Stability: ≤1.5% (Value Set)
• Current Accuracy: +2.5% (Value Set)
• Error value: ≤1.5% (Value set)

‼ Remember these rules when using the welding machine

• Stable Power Supply: For best results, it is recommended to connect the welding machine to a wall outlet, ensuring a stable power supply.
• Current Protection: The rated operating current of the circuit breaker should be 40-63A to meet the instantaneous large welding current. By ensuring proper current protection, you will maintain safe working conditions and extend the life of the welding machine.
• Precise Settings: The pressure regulator should be set to the appropriate value as needed. This guarantees efficient welding.
• Cleanliness: Regular cleaning of needle surfaces with sandpaper will keep your device in top condition.
• Welding Needle Sharpness: Ensure the sharpness of your welding needles for optimal results.

❗ Attention! During use, temporary flashes of light may occur due to high power and immediate discharge of high intensity. This is a normal phenomenon and does not affect the effectiveness of the welding machine.

✳ Included:

• SUNKKO S788H-USB welding machine
• Allen key
• 2 x 20A fuse
• 4 x Welding Needle
• 1 x Foot Pedal
• 100 x Nickel Plate

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Rosfix
Parametry	Maximum power	1500 W
Parametry	Power supply	mains
Parametry	Supply voltage	230 V
Parametry	Device weight	4.3 kg
Parametry	Manufacturer code	17Y1-I3Q4
Parametry	EAN (GTIN)	5905954104901
Parametry	Batteries included	yes
Parametry	Packaging status	original
Parametry	Purpose	other
