Taškinio suvirinimo aparatas SW3 su rankena SWP25 Sequre

Trumpai apie prekę

Prekė: Taškinio suvirinimo aparatas SW3 su rankena SWP25 Sequre. Kategorija: Sandarikliai.

• Gamintojas: no brand
• Modelis: SQ-SW3-SWP25
• Įtampa: 5.6 V

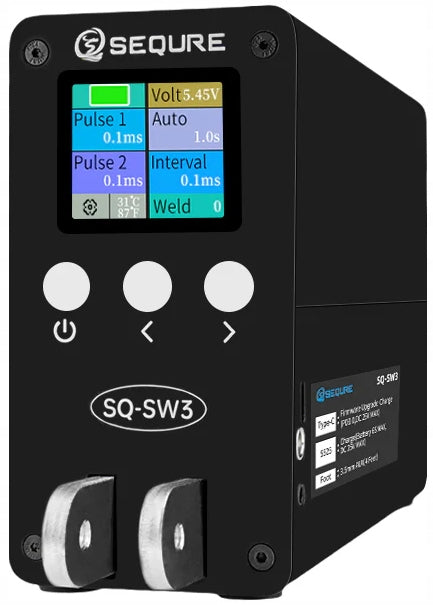

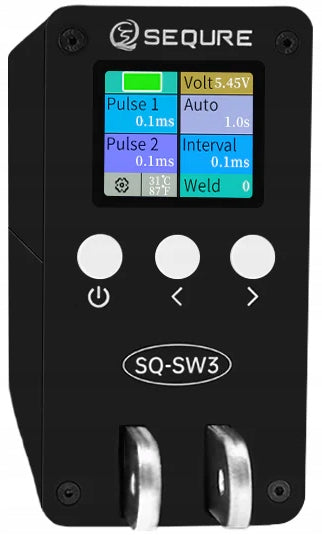

SW3 advanced spot welding machine 2500A 5,6V for 18650 21700 Sequre battery

The device is characterized by high efficiency thanks to a maximum output current of 2500A, enabling precise welding of nickel-plated and clean materials. Support for various charging methods, such as AC, DC or fast charging, provides flexibility and efficiency of use.

The device is equipped with a 1,8-inch high-resolution color LCD screen, which streamlines operation and facilitates the selection of operating modes. The design allows the use of two trigger modes – automatic and manual – ensuring full control over the welding process. The aluminum housing ensures durability and efficient heat dissipation, while additional features such as software updates enhance its versatility.

Technical data:

• Producer: Sequre
• Model: SW3
• Output voltage: 5,6V (max. )
• Output current: 2500A (max. )
• maximum nickel plating thickness: ≤0,5 mm
• maximum thickness of pure nickel: ≤0,3 mm
• maximum thickness of copper sheet: ≤0,2 mm
• charging methods: AC, DC, fast charging, slow charging, battery charging
• display: color LCD 1,8"

• Charging connectors:

➡ XT60IE-M: 5,6V 15A (max. )

➡ USB-C: PD3.0, DC 25V (max. )

➡ 5525: DC 25V (max. ), 6S battery (max. )

• Foot pedal input type: 3,5mm AUX (4-pin)
• Trigger Modes: Automatic / Manual
• dimensions: 223×133×68 mm
• Product weight: 1565 g

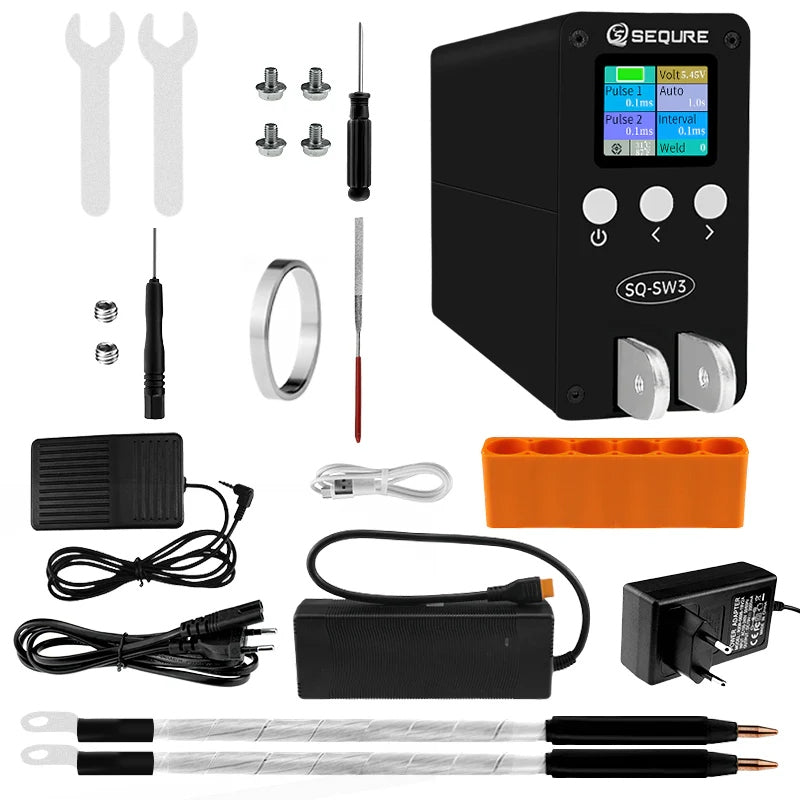

The set includes:

• 1× SQ-SW3 spot welding machine
• 1× charger 5,6V 15A
• 1× 19V 2A charger
• 1× USB-C cable
• 1× battery holder 18650
• 1× Pure Nickel Tape 0,1×8mm (5m)
• 2× SWP25 handle
• 1× foot pedal
• 2× screw M3×2
• 1× 1,5mm hex screwdriver
• 4× screw M6×8
• 1× Phillips screwdriver 4,0mm
• 2× 10mm flat wrench
