Taškinio suvirinimo aparatas TELWIN Digital Puller 5500, 230V

Trumpai apie prekę

Prekė: Taškinio suvirinimo aparatas TELWIN Digital Puller 5500, 230V. Kategorija: Sandarikliai.

• Gamintojas: Telwin
• Modelis: Zgrzewarka punktowa Digital Puller 230V
• Įtampa: 230 V

resistance welding device for industrial and professional use

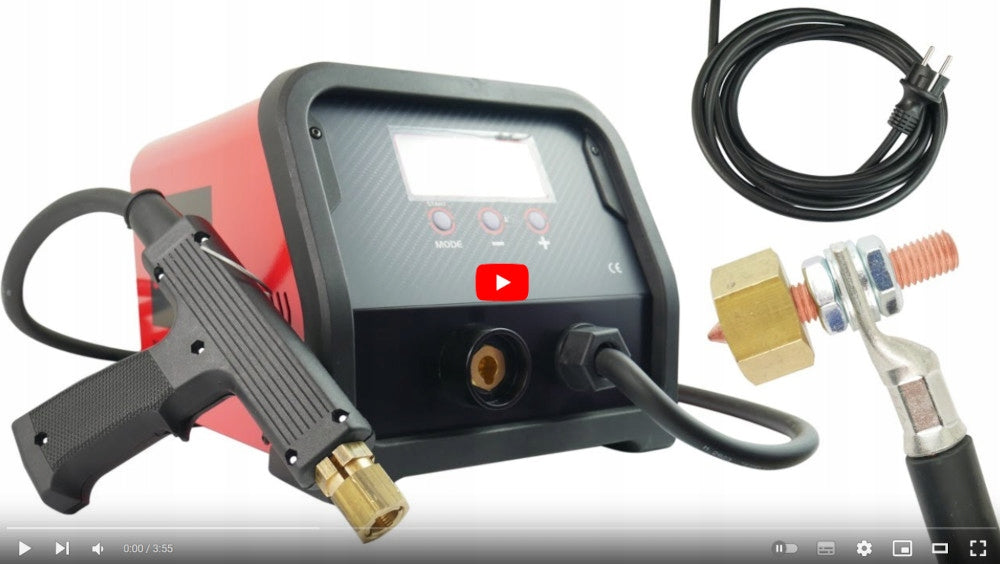

See the Telwin 5500 230v welding machine in the video:

Copy the link and paste into your browser window

✅ Portable resistance welding system (point welding machine) with microprocessor controller digital. The device allows you to perform numerous types of machining on hot and point on sheets that are specific for the automotive sector and those sectors where there are analogous types of sheet metal.

✅ The main parameters of the device are as follows:

• ✔ automatic setting of welding parameters
• ✔ the ability to change the welding time in relation to the value set in automatic mode
• ✔ limitation of line overcurrent after turning on the device
• ✔ backlit liquid crystal display for displaying commands and set parameters

✅ Spot welding machine can be used for welding low carbon iron sheets and galvanized iron sheets.

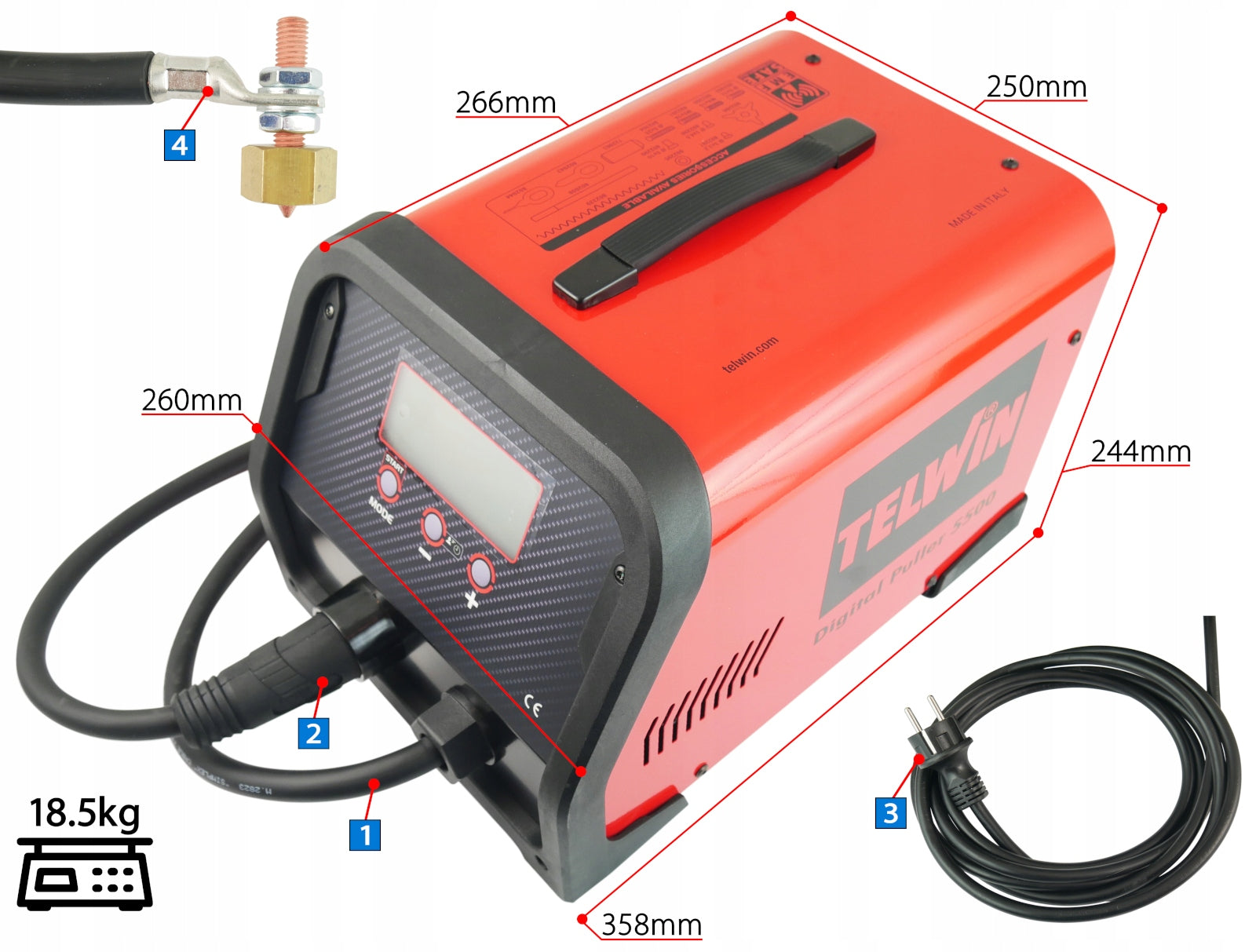

• 1 Cable leading to the gun: 2.5m
• 2 Cable mass: 1.5m
• 3 Power cable with plug: 3.5m
• 4 Handle with scoring mass

Display:

• A. Multi-function button

  - ✔ "START" activates the device to function the first time it is turned on

  - ✔ “MODE” selecting the program of the tool being used from H to K

  - ✔ “SELECTING THE UNIT OF MEASURE” – holding the button for 3 seconds allows you to set the sheet thickness unit [mm], [in], [ga]

• B. Reducing sheet thickness, welding time and power
• C. Increasing sheet thickness, welding time and power
• D. Liquid crystal display
• E. "START" Indicates that you need to press the "MODE" button to activate the device to work
• F. Displays the program used, sheet thickness or alarm code (explained in more detail in the user manual)
• G. "Studder" pistol without trigger (version with activation by contact with the workpiece)
• H. Spot welding of pins, rivets, washers, eye washers, triangles
• I. Welding of screws/nits with a diameter of 4-6mm
• J. Using an electrode for bubbles
• K. Using an electrode to drive in
• L. Indicates the welding time level relative to the value set automatically
• M. Activates with "Studder" pistol
• N. Indicates that used ticks are being used
• O. Represents the thickness of the welded sheet
• P. Indicates that the device is in a thermostatic protection state
• Q. Indicates unit of measurement [mm], [in], [ga]

Technical data:

• ✔ Rated supply voltage: 230V
• ✔ Network frequency: 50/60Hz
• ✔ Maximum welding current: 3800A
• ✔ Sterile secondary voltage: 5.6V
• ✔ Maximum power: 10.5kW
• ✔ Rated Power: 1.8kW 50%
• ✔ Maximum spot welding current: 2500A
• ✔ Network Fuse: 16A
• ✔ Power factor: 0.8
• ✔ Working cycle: 1.5%
• ✔ Degree of protection: IP22

The user must follow the following recommendations to reduce exposure to electromagnetic fields:

• ✔ attach together as close as possible two welding wires, (if any)
• ✔ the head and torso should be as far as possible from the scoring circuit
• ✔ do not wrap welding wires (if any) around each other
• ✔ do not make spot connections while in the vicinity of the welding circuit. Make sure that both wires are on the same side
• ✔ connect the return wire of the spot welding current (if any) to the object on which the point connection is made, as close as possible to the connection
• ✔ does not make point connections in the near the spot welding machine, do not sit down and lean on it during the operation (minimum distance: 50cm)
• ✔ do not leave ferromagnetic objects (producing magnetic field around each other) near the spot welding circuit

Gun with brass electrode holder

• 1 Electrode holder for electrodes Ø10/16mm
• 2 Automatic pistol
• 3 Pistol grip
• 4 Holder for hanging

Inertial hammer:

✅ It is used to remove dents of both small body dents and larger ones.

• ✔ Tip: handle for triangles / stars spotter

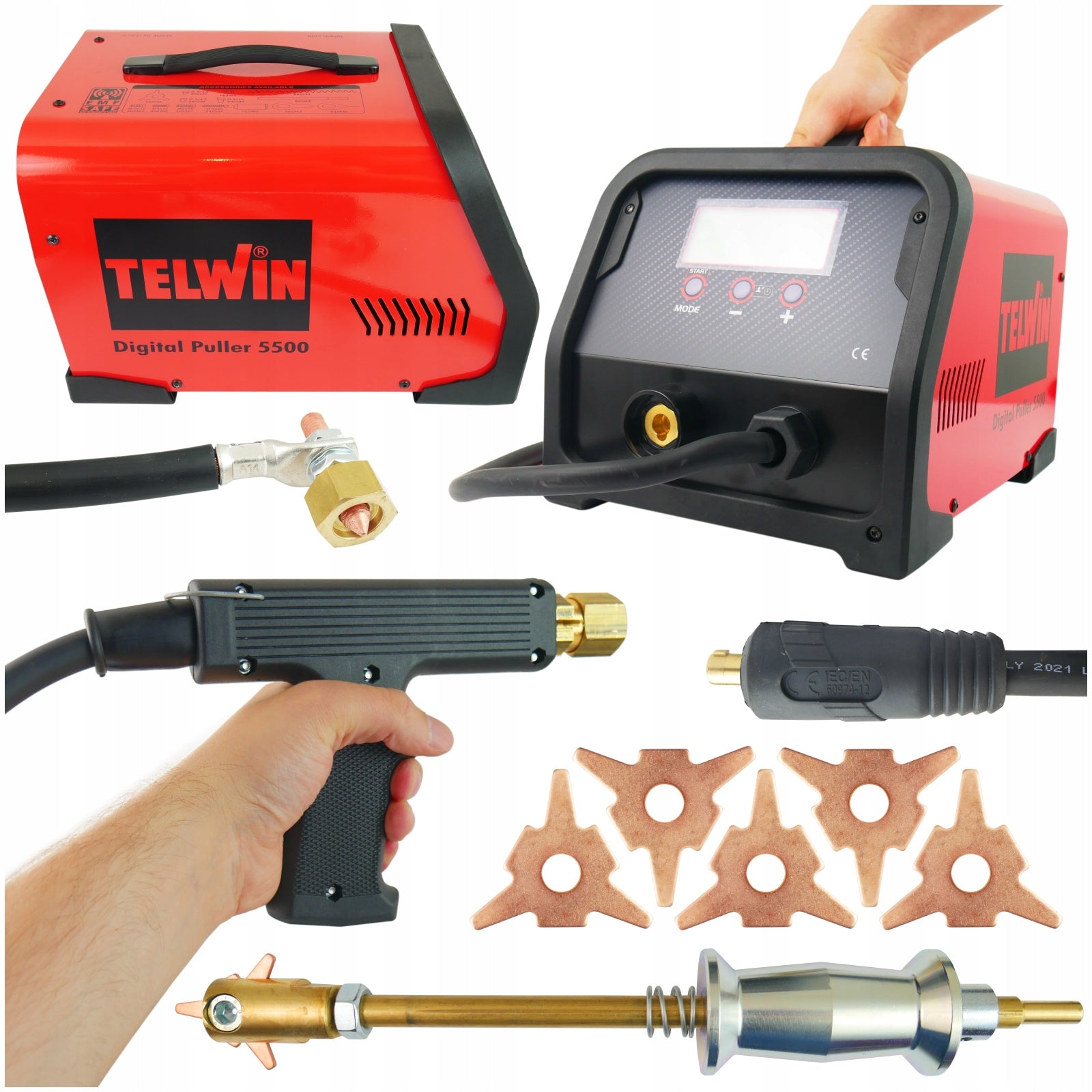

Included:

• ✔ Welding machine Telwin Digital Puller 5500 230V
• ✔ Gun without trigger
• ✔ Mass cable with scoring mass
• ✔ Impact winch with star holder
• ✔ Stars - 5pcs
