Aprašymas
Trumpai apie prekę
Prekė: Taškinio suvirinimo aparato valdymo plokštė 40A NY-D01. Kategorija: Sandarikliai.
- Gamintojas: no brand
- Modelis: Elektroweb C-006 5905523319859

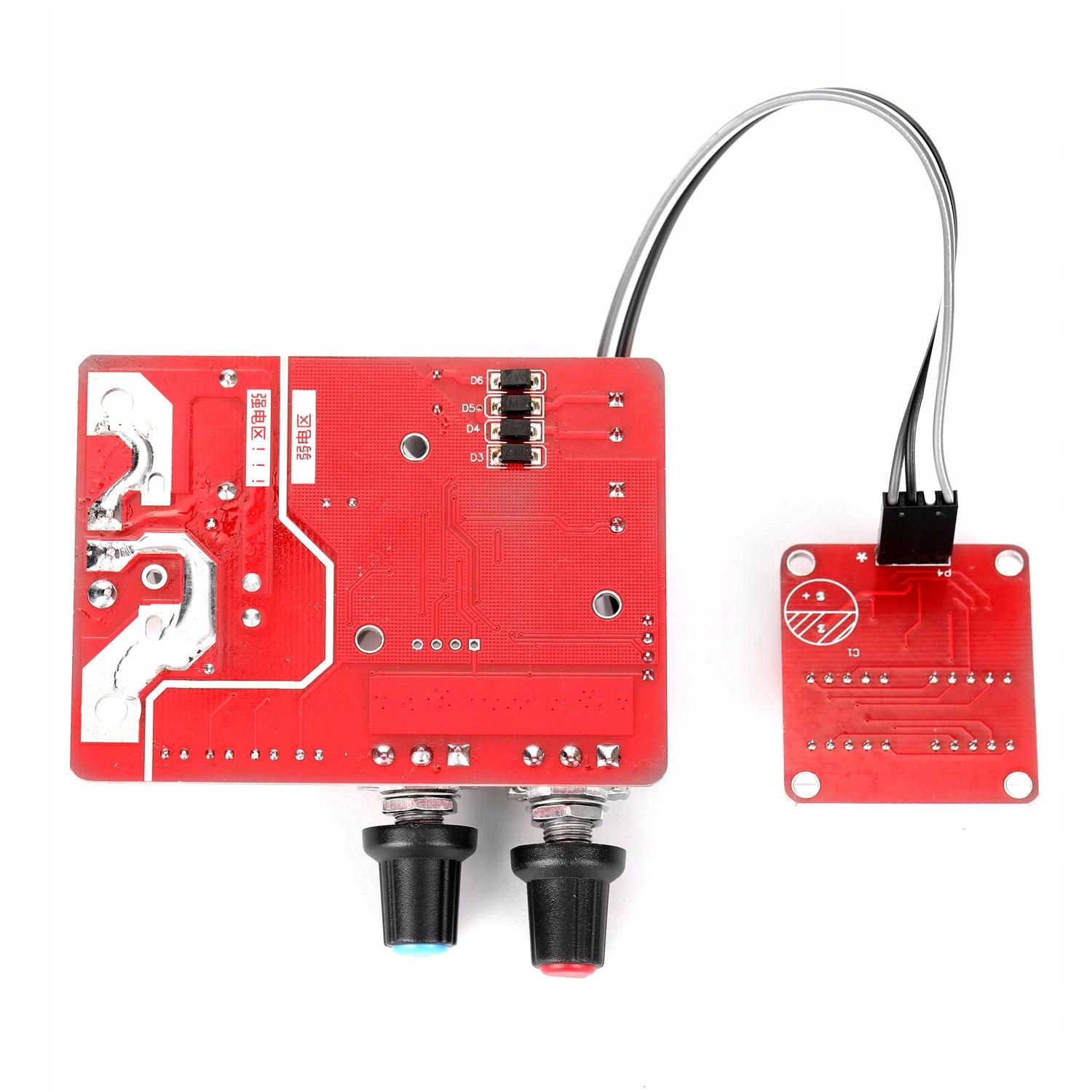

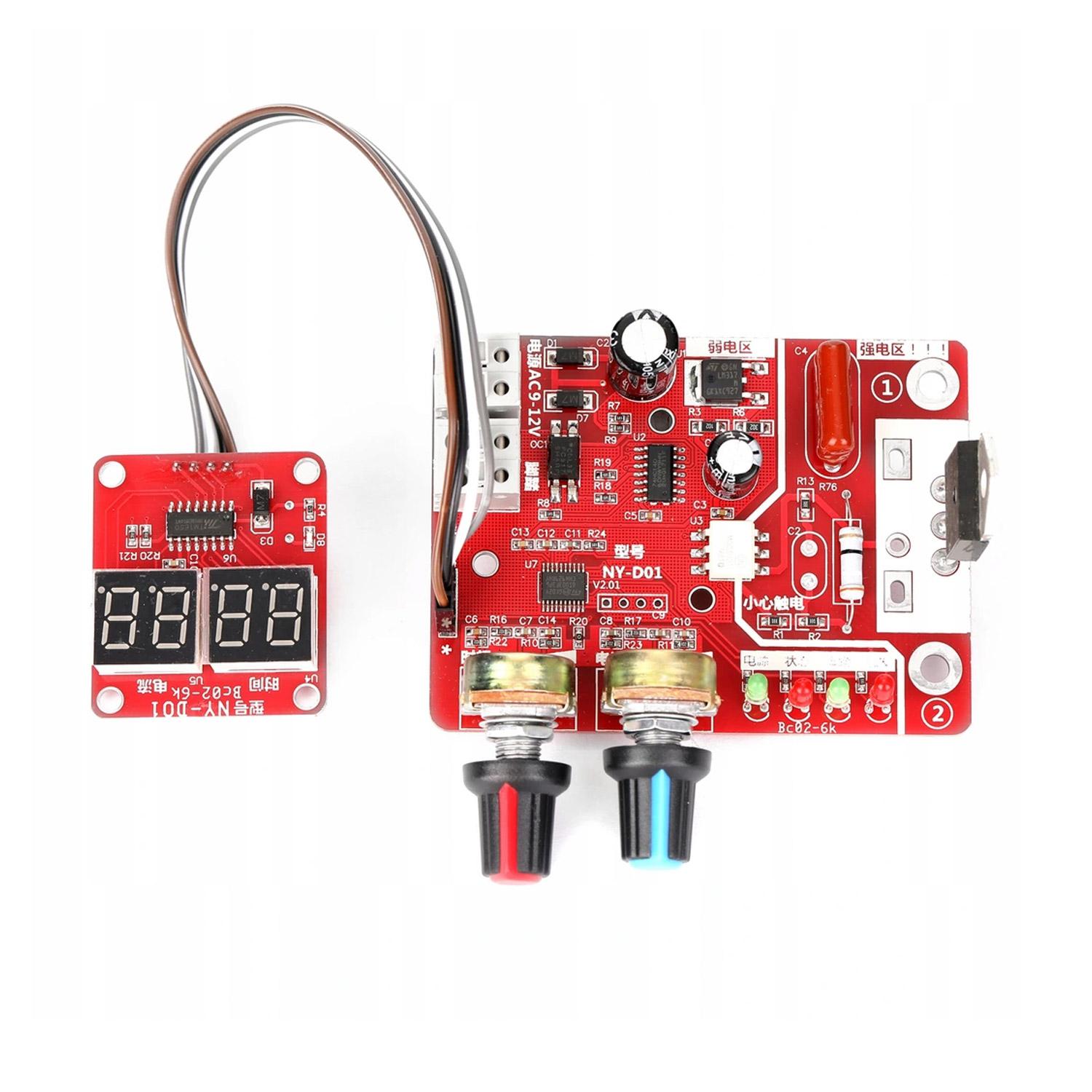

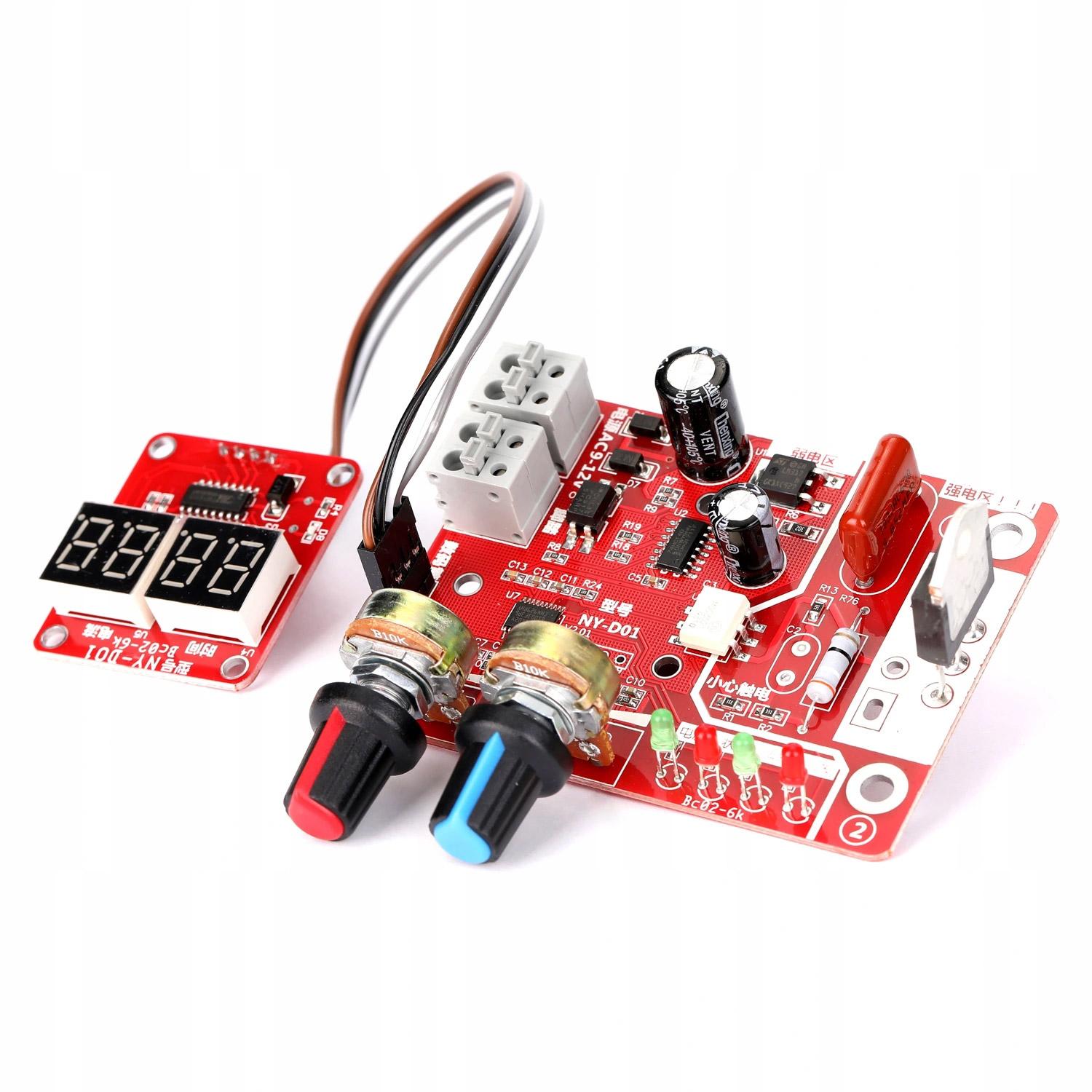

Spot welding machine control board supporting current up to 40A. The module is carefully made, has 2 displays showing pulse time and welding current and 2 high-quality 1-bit potentiometers that allow you to accurately set the parameters shown on the display. The optocoupler effectively isolates the 230V power supply from the board, making it safer to operate.
On the displays we have time values in the range from 1 to 50, each unit is equivalent to 20 milliseconds, and current values regulated in the range of 30-99, which should be interpreted as % of the current output.
The set includes: control board, display board.
For operation, you also need: power supply, transformer, welding electrodes, pulse trigger pedal.
Specification:
- 9V AC supply voltage
- maximum current 40A
- pulse time adjustment every 20 milliseconds
- smooth regulation of current at the output
- microcontroller: STM8
- dimensions: control panel 80mm x 60mm, panel with displays 40mm x 35mm
Spot welding machine control board 40A NY-D01
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Maximum power | 360 W |
| Parametry | Power supply | mains |
| Parametry | Manufacturer code | Elektroweb C-006 5905523319859 |
| Parametry | EAN (GTIN) | 5905523319859 |
| Parametry | Batteries included | no |
| Parametry | Packaging status | original |
