Taškinis suvirinimo aparatas Sherman Car Spotter F40, 3800A, 400V, su vežimėliu

Trumpai apie prekę

Prekė: Taškinis suvirinimo aparatas Sherman Car Spotter F40, 3800A, 400V, su vežimėliu. Kategorija: Sandarikliai.

• Gamintojas: Sherman
• Modelis: CAR SPOTTER F40 400V
• Įtampa: 400 V

⭐ Professional body repair spotter

The Sherman Car Spotter F40 / 400 V resistance welding machine is an advanced device designed for professional bodywork workshops. It allows for effective extraction of dents, welding and heating of sheets, which makes them an essential tool for body repairs. Thanks to the use of modern technology, the device ensures precision and repeatability when working with body elements.

📦 Rich standard equipment

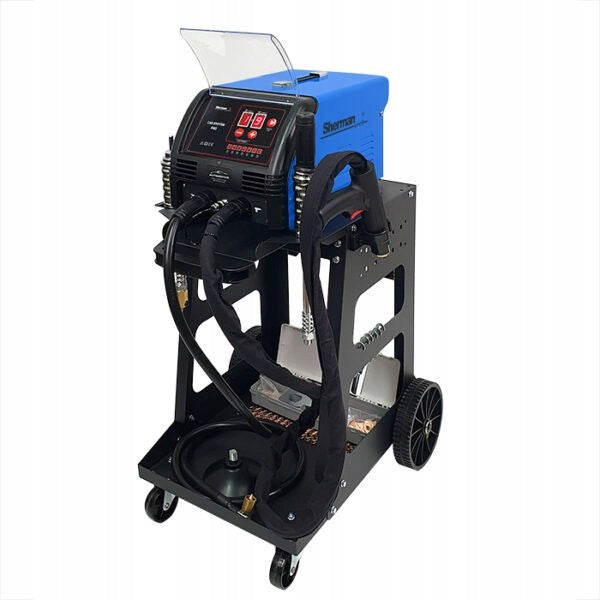

By choosing the Sherman Car Spotter F40 / 400 V, you get a complete set ready for immediate operation. The equipment includes:

• Transport trolley for easy movement of the device
• Inertial hammer with mandrel for triangular washers
• Inertial hammer with hook and 6-piece claw
• Clamps for carbon washers and electrodes
• Set of consumables: round washers (20 pcs. ), OT (10 pcs. ), triangular (10 pcs. )
• Corrugated wire (10 pcs. ) and carbon electrodes (2 pcs. )
• Mechanical suction cup and mounting wrench

🎛 Intuitive control panel and operating modes

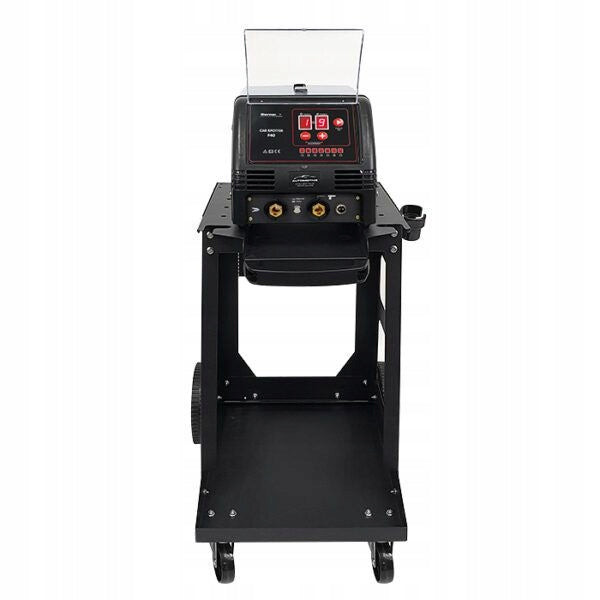

The Sherman Car Spotter F40 / 400 V offers 7 dedicated operating modes that allow you to optimally adjust the parameters to a specific task. The control panel allows for easy navigation:

• A. display of the current operating mode
• B. welding power display
• C. mode selection and approval switch
• D. precise adjustment buttons

The ability to work in manual or automatic mode (Auto) provides full control over the repair process.

💡 Versatility of flashing applications

The Sherman Car Spotter F40 / 400 V enables a wide range of repair work. Available modes include, but are not limited to, heating of triangular washers, OT meshes, rivets and corrugated wire. In addition, the device allows for heating with a carbon electrode and classic welding of sheets. The high welding current of 3800 A ensures durable connections and efficient operation even with demanding structural elements.

🛡 Robust construction and safety

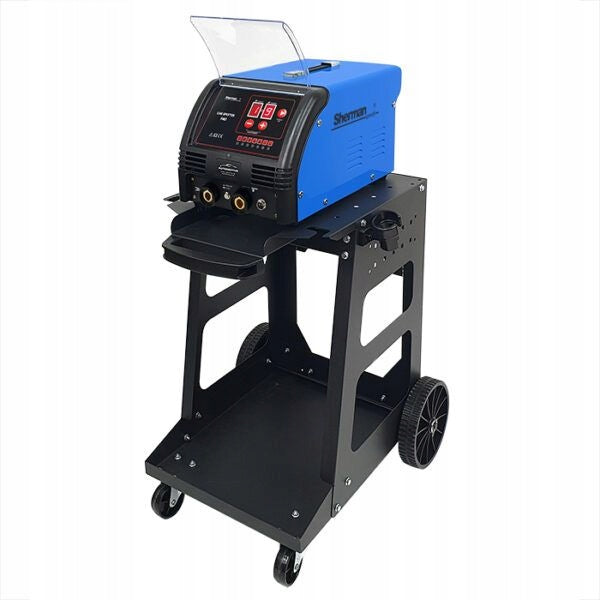

The welding machine is mounted on a durable trolley, which in combination with the weight of 25 kg ensures stability and mobility in workshop conditions. The degree of protection IP21 and appropriate network protection guarantee safe use. Long working wires (1,9 m) and mass cables (2 m) allow you to freely operate around the repaired vehicle without having to move the entire device frequently.

🔧 Full technical specification

• Supply Voltage: AC 400 V; 50 Hz
• Rated power supply: 21 kVA
• Power Current: 16 A
• Welding current: 3800 A
• Welding Current Voltage: AC 1-7 V
• Thickness of welded element: 0,6-1,2 mm
• Network Security: 25 A
• Degree of protection: IP21
• Welding machine dimensions (L. x W x H ): 505 x 320 x 350 mm
• Welding machine weight: 25 kg
