Taškų suvirinimo aparatas 9000W 1330A, skirtas 18650 elementams, nikelio ir vario juostelėms iki 0,3 mm

Trumpai apie prekę

Prekė: Taškų suvirinimo aparatas 9000W 1330A, skirtas 18650 elementams, nikelio ir vario juostelėms iki 0,3 mm. Kategorija: Sandarikliai.

• Gamintojas: no brand
• Modelis: Profesjonalna Zgrzewarka Akumulatorowa AWithZ
• Įtampa: 220 V

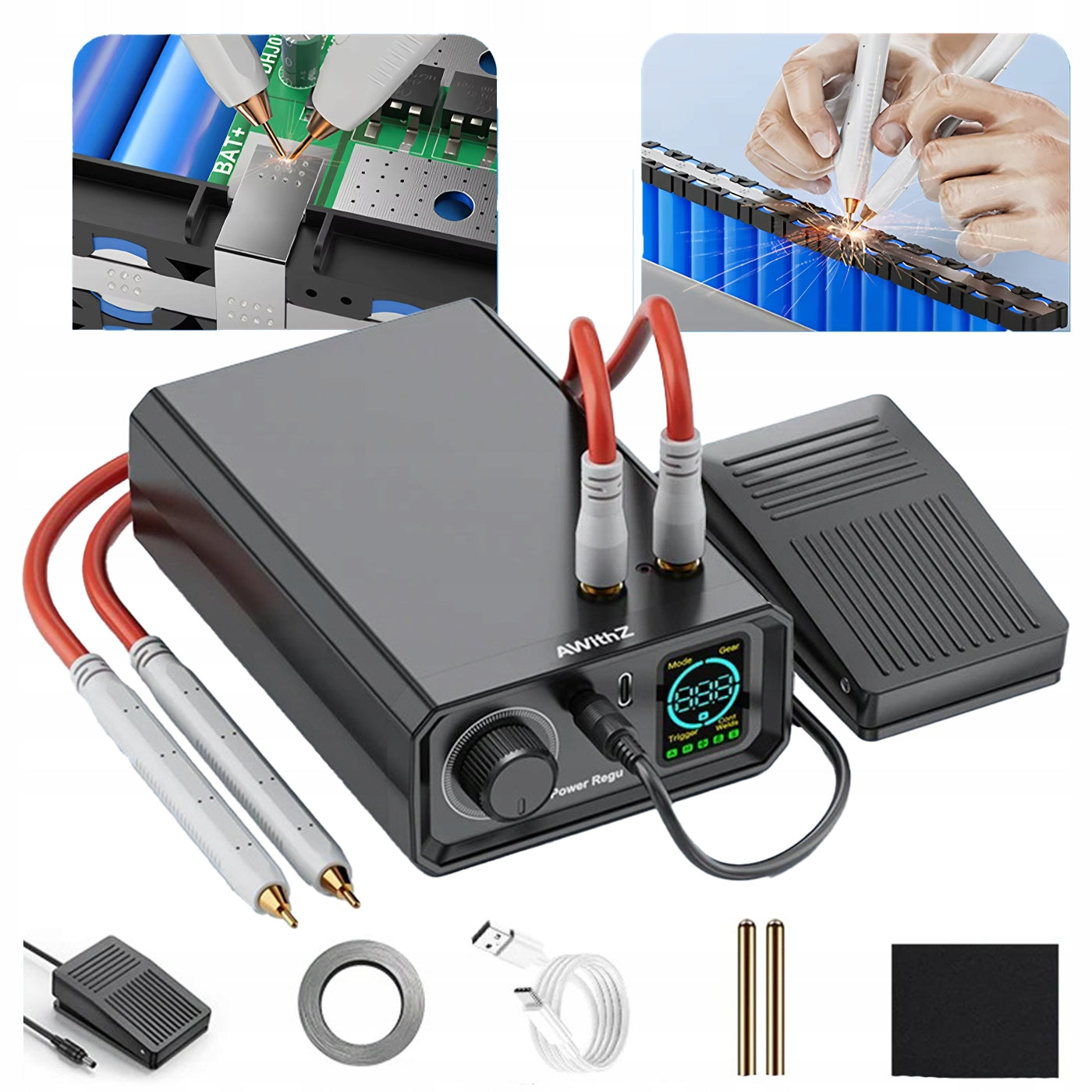

Are you regenerating batteries in screwdrivers, building packages for electric bikes or drones? Forget about the big stationary machines. This ultra-light (300g) welding machine generates a powerful pulse of 9 kW, which in a fraction of a second bonds nickel plates and even demanding pure copper. This tool is designed for those who require mobility from their equipment without sacrificing downforce.

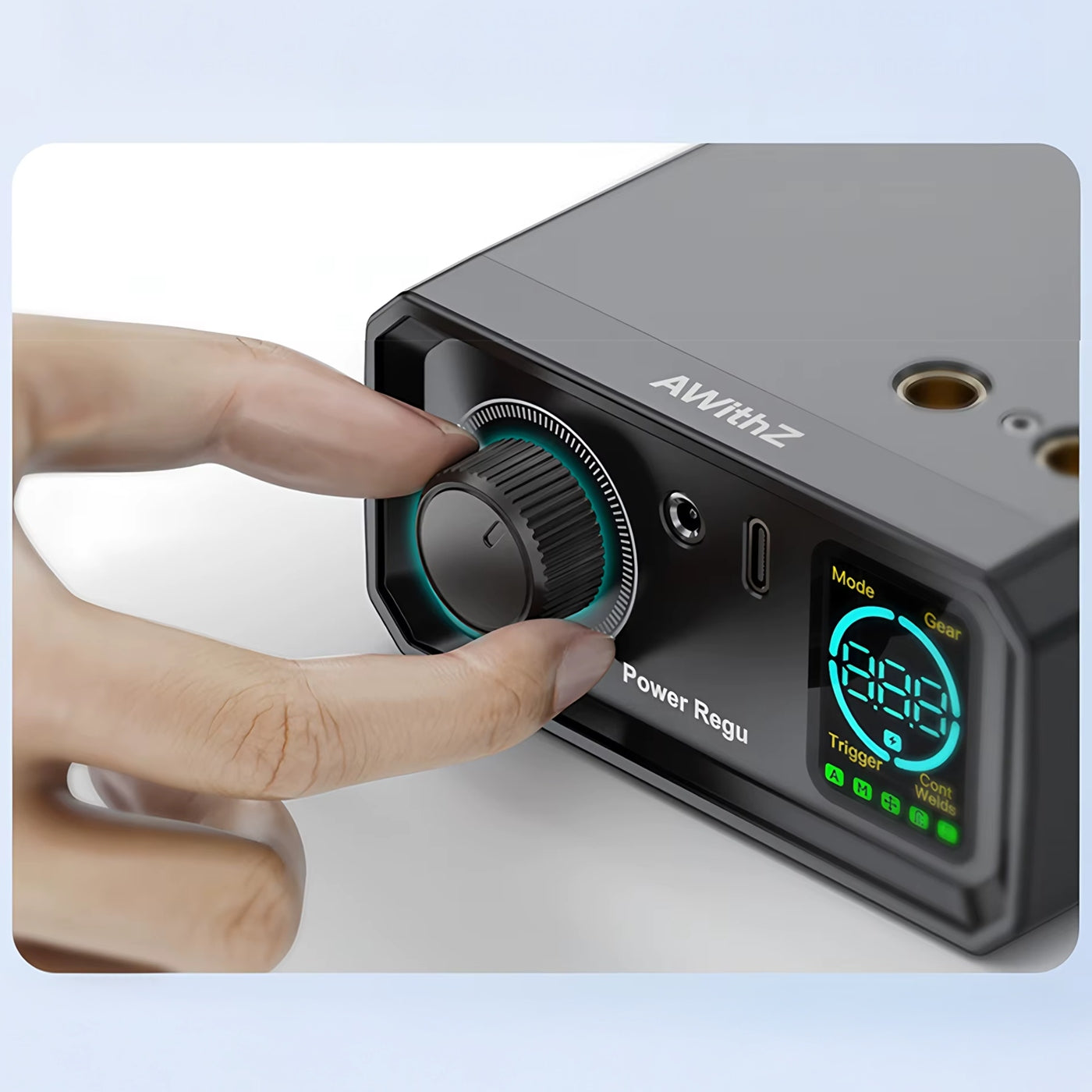

1. 1 TURN ON AND SET: Use the precision knob to select the power to the thickness of the plate. You can see everything on the HD screen.
2. 2 SELECT MODE: * Automatic: The machine will sense the contact itself and shoot with a pulse (quick work).

   Manual: Connect the included pedal and control the moment of foot welding (maximum precision).

3. 3 WELD: Apply the feathers to the cell. The double pulse first cleans the contact and then permanently welds the material.
4. 4 CHARGE: When the power drops, connect the device to a regular USB-C cable.

Forget the guessing. This machine is a multi-purpose expert that supports:

• Nickel-plated sheet metal: to 0.3 mm (maximum thickness for high current packages)
• Steel and iron: to 0.25 mm
• Pure nickel: to 0.15 mm
• Pure copper: to 0.1 mm (real power test for welding machines! )

Spot welding is a battle against time. Power 9000W (1330A) allows you to:

• Copper welding (up to 0.1mm): Most amateur welding machines cannot handle copper – this machine has the power to do it.
• Block security: The pulse lasts microseconds. The heat will not penetrate into the battery, which protects it from damage and loss of capacity.
• Support for thick nickel (up to 0.3mm): Ideal for high current packages where thin plates are not enough.

Unlike standard models, here the cable sockets are placed on the front:

• Real 40 cm range: You do not lose the length of the cable to bend it at the housing.
• Replaceable needles: Oxide copper tips are removable. When they wear out, you only replace the needle, which reduces operating costs by 75%.
• Portable design: The device fits in the hand, but the energy is equal to that of large workshop machines.

• peak power: 9000 W (9 kW)
• Output current: 1330 A
• Maximum weld thickness: 0.3 mm (nickel) / 0.1 mm (copper)
• Power Supply: Built-in lithium cells (USB-C charging)
• Security: Intelligent protection against overheating, short circuit and overcharging.

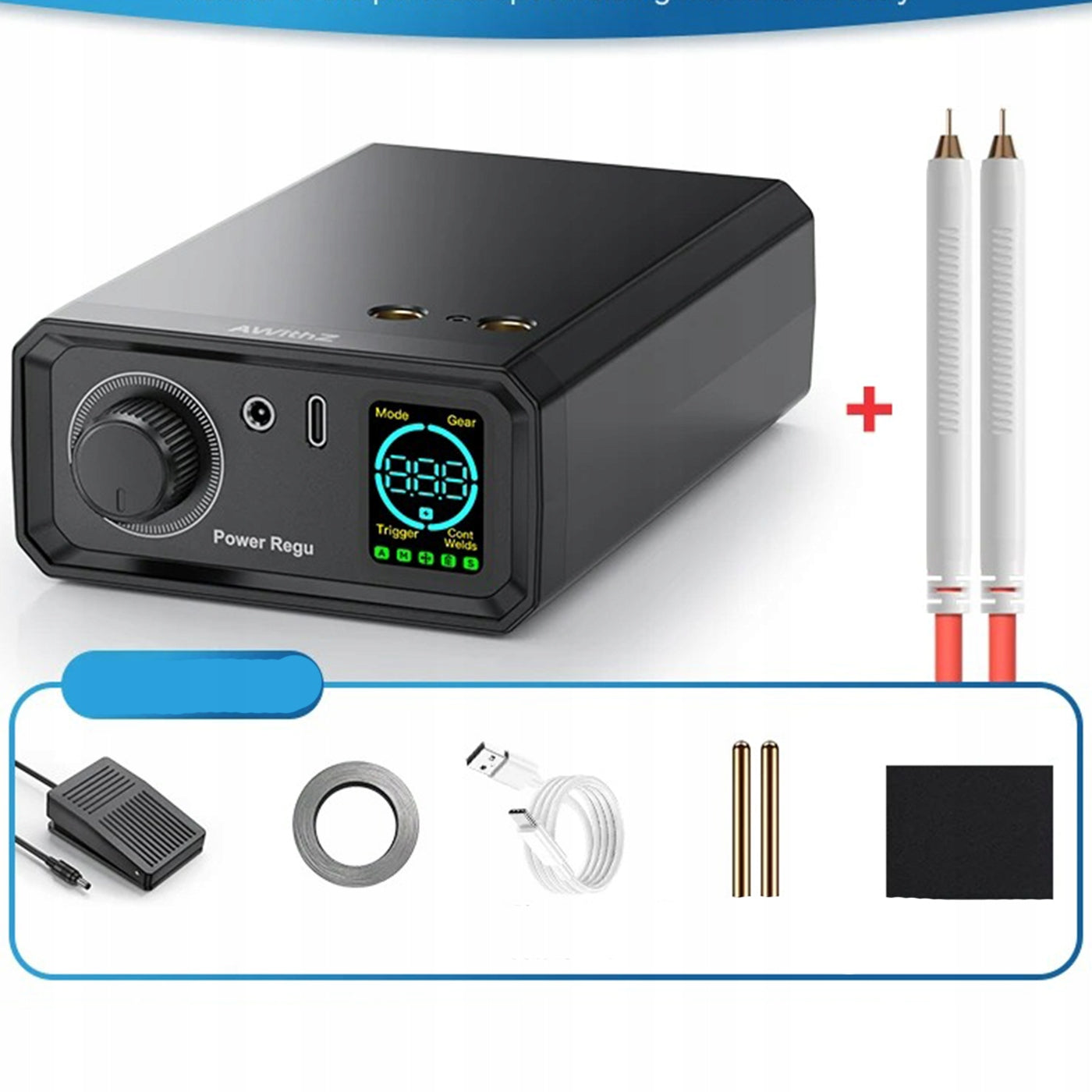

• Main unit of welding machine.
• Professional welding pens (with a supply of length).
• Foot pedal for full manual control.
• USB-C cable for charging.
• Nickel plate sheet to start.

Specifications
