Televizijos antena Dipol Tri Digit Combo UHF/VHF, DVB-T2, 38 dBi, LNA-169, MUX-8

Trumpai apie prekę

Prekė: Televizijos antena Dipol Tri Digit Combo UHF/VHF, DVB-T2, 38 dBi, LNA-169, MUX-8. Kategorija: Antenos.

• Gamintojas: Dipol
• Modelis: 28/5-12/21-69
• Spalva: silver

Gain up to 38 dBi

Product Polish

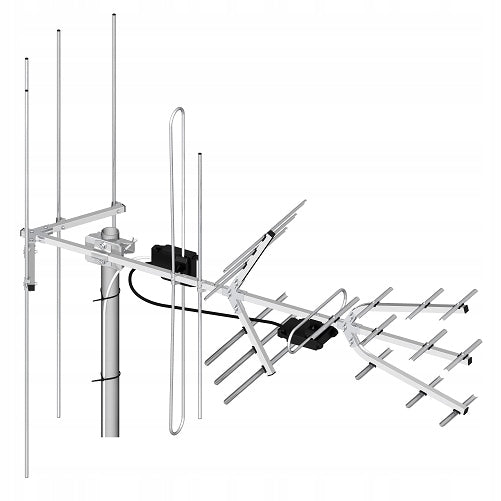

Antenna assembled for VHF reception in vertical polarization.

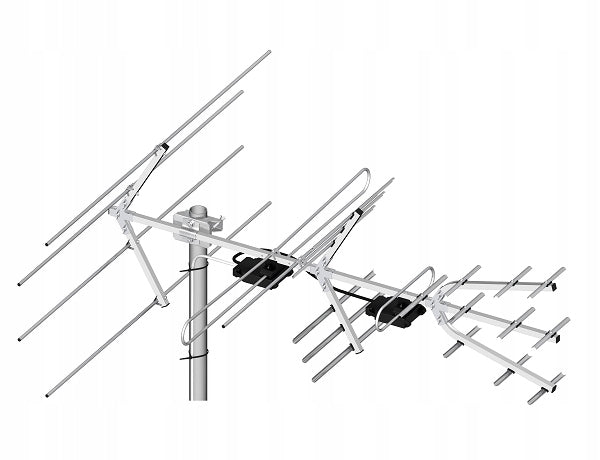

Antenna assembled with VHF reception in horizontal polarization.

Distinguishing features:

• Antenna made of aluminium
• antenna receives DVB-T2 signals in the VHF band in vertical or horizontal polarization
• antenna receives DVB-T2 signals in the UHF band in new frequencies 470 - 694 MHz
• built-in VHF/UHF crossover
• modern design - large profit with small dimensions
• Antenna box to protect against water
• 100% product Polish
• Factory carton packaging
• Antenna by Dipol

Specially designed to receive new DVB-T2 frequencies

The Tri Digit Combo is designed to receive frequencies in the UHF band 470-694 MHz (21-48 channels), in which it reaches gain up to 38 dBi.

The antenna eliminates interference caused by 5G and LTE broadcast in bands 700 and up.

Tri Digit Combo is adapted to receive DVB-T and DVB-T2 digital terrestrial television in the VHF (174-230 MHz) and UHF (470-694 MHz) bands. This means that it receives all multiplexes: MUX-1, MUX-2, MUX-3, MUX-4 and MUX-6 and MUX-8. The universal design of the antenna allows you to freely change the polarity of horizontal and vertical (V/H) reception for both the VHF and UHF bands.

The modern design provides large gain with small dimensions and allows signal reception from the most distant transmitters.

The main elements of the antenna are made of aluminium. Steel structural elements are galvanized. This guarantees high resistance of the antenna to weather conditions and damage. You can be sure that the antenna will serve you for many years!

Tri Digit Combo has a built-in crossover in the VHF antenna box and a LNA-169 amplifier in the UHF antenna box. The amplifier is factory connected by a cable with a crossover on compression connectors.

Easy installation

The antenna is pre-assembled at 90%. Installation involves tightening a few screws and takes less than a few minutes.

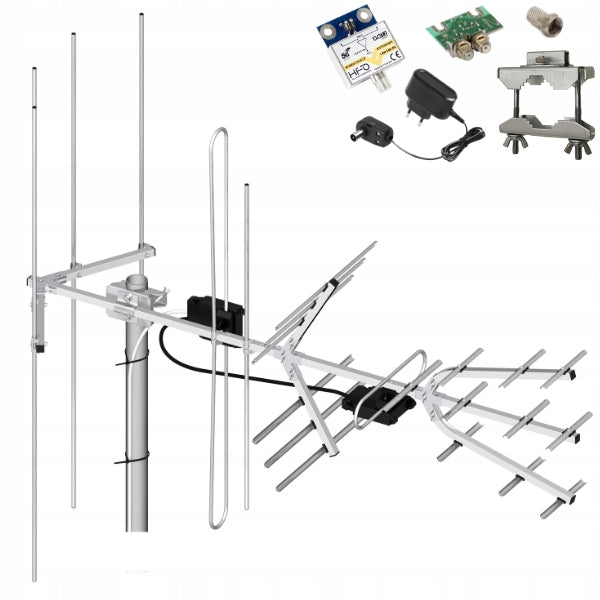

The set includes crossover, amplifier LNA-169 with LTE filter 5G, power supply 12 V, connectors type F and cover used to mount the antenna to a vertical or horizontal tube. In our store you can buy a mast and antenna cable.

Specially designed can antenna allows easy access to devices mounted inside (symmetrizer, crossover, amplifier), while perfectly protecting them from water.

You buy PROVEN Polish PRODUCT

The antenna was designed and manufactured in Poland and tested for the declared parameters in the Department of Electronics of the AGH University of Science and Technology in Krakow.

The antenna uses a crossover for F connectors, which ensures a good matching of the antenna and small signal loss. In addition, the installation of the antenna cable is very simple and convenient. An additional advantage is the possibility of using compression connectors that provide the most durable connection (compression connectors were used on the cable connecting the symmetrizer with the crossover).

Technical data:

VHF

• Profit [dBi]: to 7
• Channels: 5-12
• Ray ratio. front/rear [dB]: >13,5
• Polarization: H (V when rotated 90°)
• Standing Wave Ratio: 1,3-1,97

UHF

• Profit [dBi]: to 38
• Channels: 21-48
• Ray ratio. front/rear [dB]: 10,7-14,5
• Standing Wave Ratio (VSWR): ≤ 1,55
• Polarization: H (V when rotated 90°)
• Standing wave factor: 1,31 - 1,97

General

• Impedance [Ω]: 75
• Packaging: carton
• Mass [kg]: 1,5
• Dimensions [mm]: 1025x887x365
• Maximum mast diameter [mm]: 55
