Televizijos antena TELMOR ASR, DVB-T2, 4K, MUX8

Trumpai apie prekę

Prekė: Televizijos antena TELMOR ASR, DVB-T2, 4K, MUX8. Kategorija: Antenos.

• Gamintojas: Telkom-Telmor
• Modelis: ASR Classic P20
• Spalva: silver

🆕 THE NEWEST VERSION OF THE WELL-KNOWN AND VALUED ASR CLASSIC ANTENNAS!!! 🆕

POLISH BRAND TELMOR

Model: ASR Classic

• Optimized to receive multiple digital TV (DVB-T) signals
• Full HD 4K
• Ideal for receiving DVB-T/DVB-T2
• Built-in amplifier
• Wide range of received TV frequencies
• Allows reception of MUX 1, MUX 2, MUX 3, MUX 4 and MUX 8
• Wide range of supply voltages +5...+12V, power supply included
• Low noise ratio only 2dB!
• High resistance to wind and weather conditions
• Modern, lightweight and stable design
• Very easy to install and connect antenna
• Polish product

• ASR Classic Telmor Antenna
• Antenna power supply with Telmor separator
• Amplifier (built-in antenna)
• Cybant - holder (attached to antenna)
• Antenna installation instructions
• Plug F

It is a modern broadband antenna dedicated to receiving DVB-T/DVB-T2 digital TV signals. They have a large energy gain and a built-in ultra low noise preamplifier, which can be powered by voltage from a wide range of +5...+24V (included +12V power supply with ZZA-7) power crossover. The low self-noise level of the first degree of amplification is very important for obtaining good signal quality (large signal/noise interval).

The antenna enables the reception of DVB-T digital terrestrial television signals in the 174 - 790MHz band, that is, works with all multiplexes available in Poland including MUX-8 depending on the transmitter strength.

• MUX 1: Stopframe TV, Eska TV, TTV, Polo TV, ATM Entertainment, TV Trwam, TVP ABC, Fokus TV
• MUX 2: Polsat, TVN, TV 6, TV Puls, TV Puls 2, TVN 7, Super Polsat
• MUX 3: TVP 1 HD, TVP 2 HD, TVP Info HD, TVP 3, TVP Sport HD, TVP History
• MUX 8: New TV, Metro, Zoom TV, WP, TVP Entertainment, TVP Culture HD

The ASR Classic antenna is completely complex. Preparing the antenna for installation requires only a slight unscrewing of the side knobs and after opening the “wings” of the headlights, tightening them again. Installation of the antenna does not require any additional tools.

The antenna has a built-in F socket to which you directly screw the antenna cable

The antenna also receives signals from the VHF band, which is intended in the future for the diffusion of DAB digital radio signal. It will therefore be possible to receive DAB signal without the need to mount an additional antenna.

• Width: 45 cm
• Depth: 22 cm
• Height: 79,8 cm

Connecting the antenna to the TV is very simple:

1. Earn the ends of the coaxial cable according to the scheme, screwing one end into the power supply, and on the other wind the plugs F.
2. Connect the power supply to the mains outlet, insert its tip with a TV plug into the TV
3. Search for channels on TVs.

If you do not have an antenna cable - it is also available at our auctions in ready-made lengths or per meter.

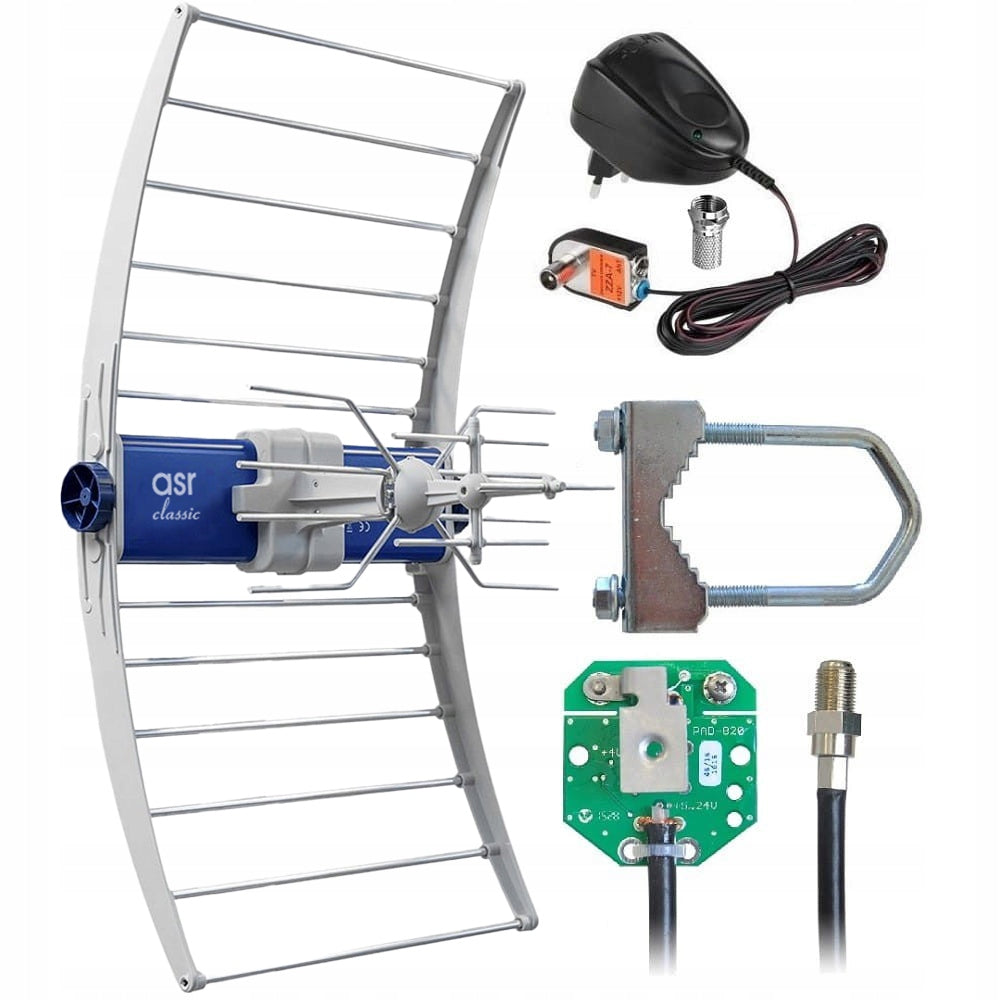

• ASR Classic Telmor Antenna
• Antenna power supply with Telmor separator
• Amplifier (built-in antenna)
• Cybant - holder (attached to antenna)
• Antenna installation instructions
• Plug F

Specifications
