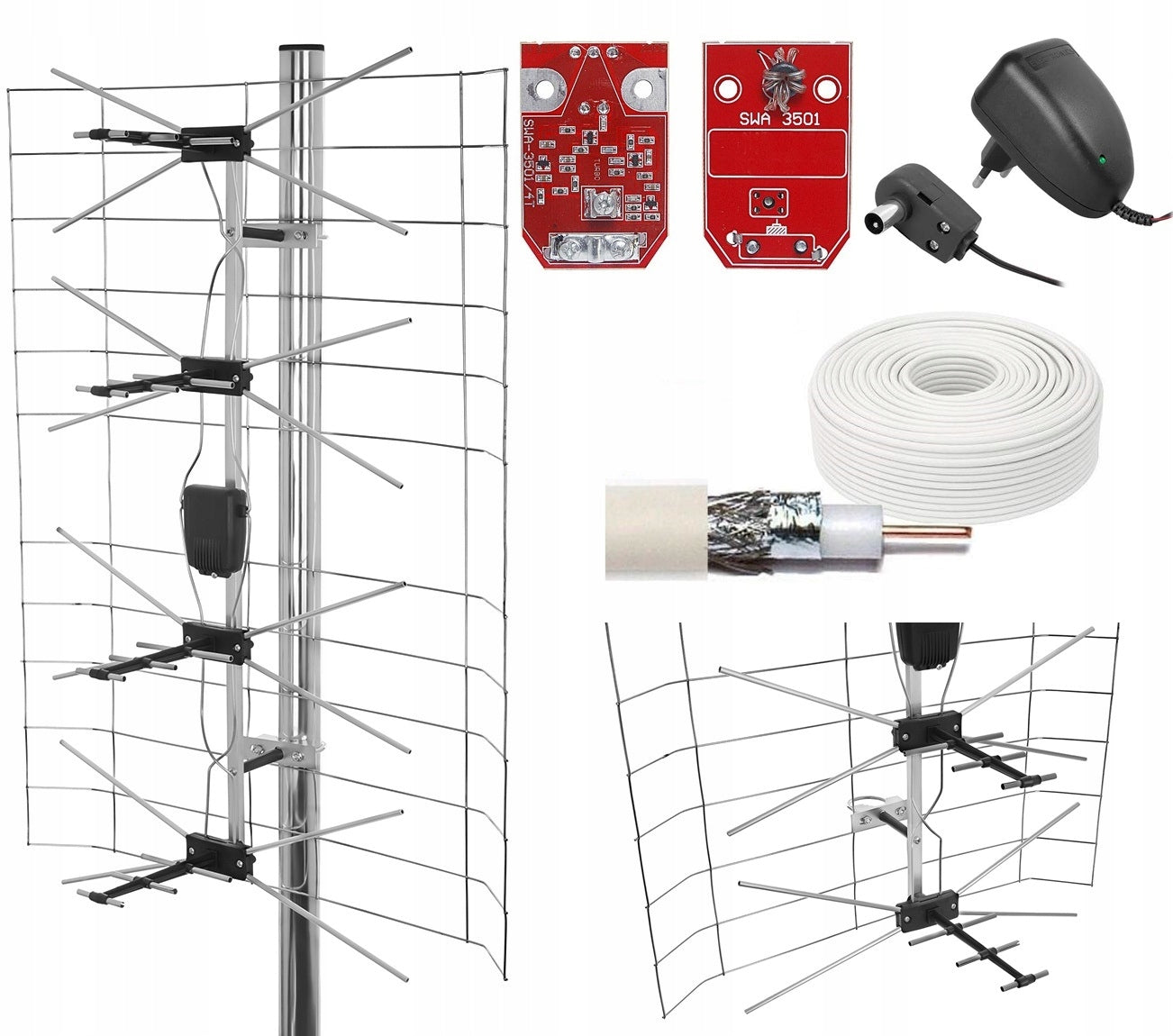

Televizijos antenos rinkinys POWERFUL DVB-T2 su maitinimo bloku ir kabeliu, MUX-1-8, Lenkija

Trumpai apie prekę

Prekė: Televizijos antenos rinkinys POWERFUL DVB-T2 su maitinimo bloku ir kabeliu, MUX-1-8, Lenkija. Kategorija: Antenos.

• Gamintojas: MAT-COMPANY
• Modelis: CRAFT-M1-8

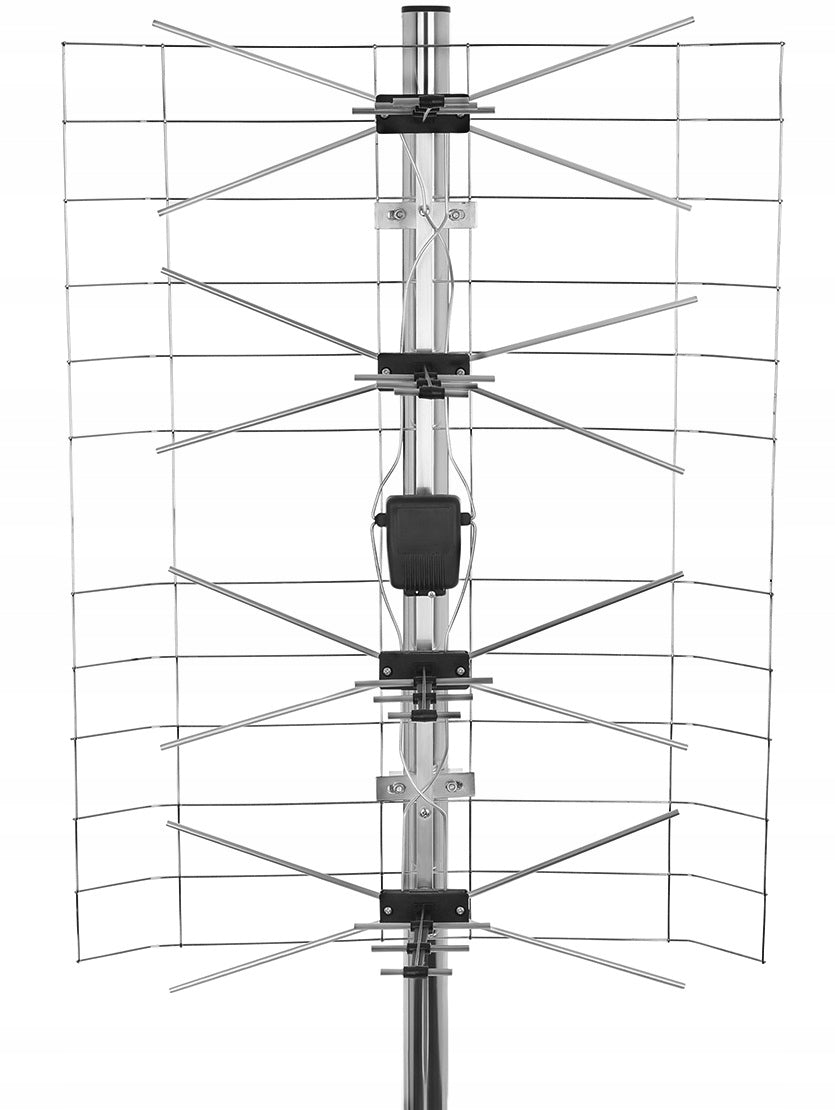

_____________________________________________________________________ TRIPLE DIRECTOR MESH ANTENNA

Antenna is used to receive television programs where passive antenna reception is impossible due to a weak signal.

Strong suppression of GSM signals, thanks to appropriate shaped characteristics

Antenna parts made of aluminum are galvanically anodized, galvanized steel structural elements. Such protection of individual elements of the antenna makes it completely resistant to all weather conditions.

In large cities, between large buildings, between blocks, the choice of a mesh antenna will be a better solution, due to the reception of DVB-T2 signal at a wider angle. The Grid Antenna has a much wider TV signal reception angle than the directional antenna and can work optimally in such a location.

TECHNICAL PARAMETERS

• Receipt channels: 6-12 / 21-60
• Energy Gain: 13.5 - 60 dB
• Angle visibility: 46°
• Vertical angle visibility: 27°
• Output Impedance: 75 Ohm
• External dimensions: 740 - 560 mm
• Antenna weight: 0.8 kg
• Coaxial cable mounting: Screw clamp

• MUX-1
• MUX-2
• MUX-3
• MUX-6
• MUX-8

________________________ ANTENNA AMPLIFIER SWA-3501 _________________________

Signal amplifier for each broadband antenna. One of the strongest amplifiers available on the market, it is distinguished by low noise and high gain level. Designed to be mounted on terminals in the antenna box, thanks to this solution it provides signal amplification already at the antenna input.

Specification:

• Receipt channels: 1 - 68
• Reinforcement: 26-34 dB
• Noise: 1,8 dB
• Input Impedance: 300 Ohms
• Output Impedance: 75 Ohms
• Power Supply: DC 10-15V
• Distance from TV transmitter: 70-120 km

_____________________________ ANTENNA POWER SUPPLY 12V 100mA _____________________________________________________

Antenna power supply is a device that was created to transmit voltage through the antenna cable to the amplifier located in the antenna box. A special antenna plug with a separator directs the voltage towards the antenna, while blocking its flow towards the receiver (TV, DVB-T tuner).

The power supply is adapted to continuous operation.

Antenna power supply specifications:

• Input voltage 230V/50Hz
• Output voltage 12V
• Maximum current 100 mA

How to connect the antenna cable to the power separator:

Prepare the cable according to the photo. Roll the braid over the outer jacket of the cable.

Slide the cable under the plate so that the middle vein is screwed with the middle screw, and the braid is under the plate. Make sure that none of the braid wires and aluminum foil braid will short-circuit the middle vein.

The cable must be tightened so that the braid touches the circuit board, probably stayed in the plug but was not crushed enough for the braid (screen) to touch the middle vein.

Do it calmly and carefully. :) Negligently screwing the cable to the plug is one of the most common failures causing signal loss.

Most power supplies are equipped with a control diode. The power supply does not work if the LED stops shining. The reason may be a short circuit on the antenna cable or damage to the power supply itself. A long-term short circuit can completely damage the power supply.

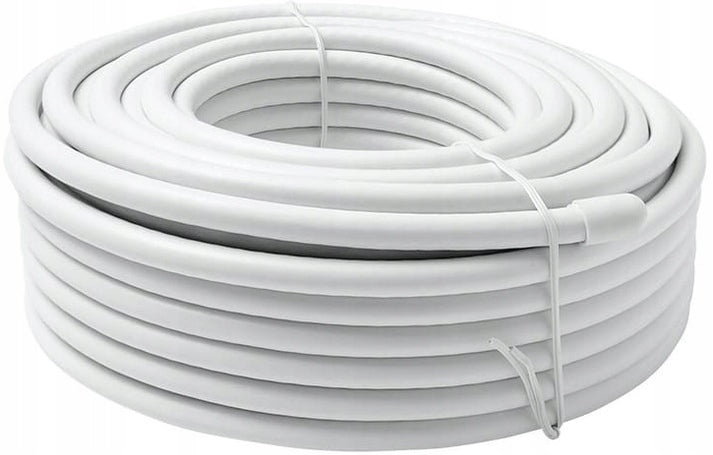

____________________ RG6U ANTENNA COAXIAL CABLE ____________________

RG-6 coaxial cable with copper core, in PE jacket. PE coat (polyethylene), provides resistance to the destructive effects of ultraviolet rays.

CABLE LENGTH- 20m.

TECHNICAL DATA

On another of our auctions also available for purchase antenna holder:

No. allegro offers: 17760913458
