Aprašymas
Trumpai apie prekę
Prekė: Televizijos signalo stiprintuvas Spacetronik, reguliuojamas stiprinimas, su nuolydžiu. Kategorija: Stiprintuvai.
- Gamintojas: Spacetronik
- Modelis: SPA28SG

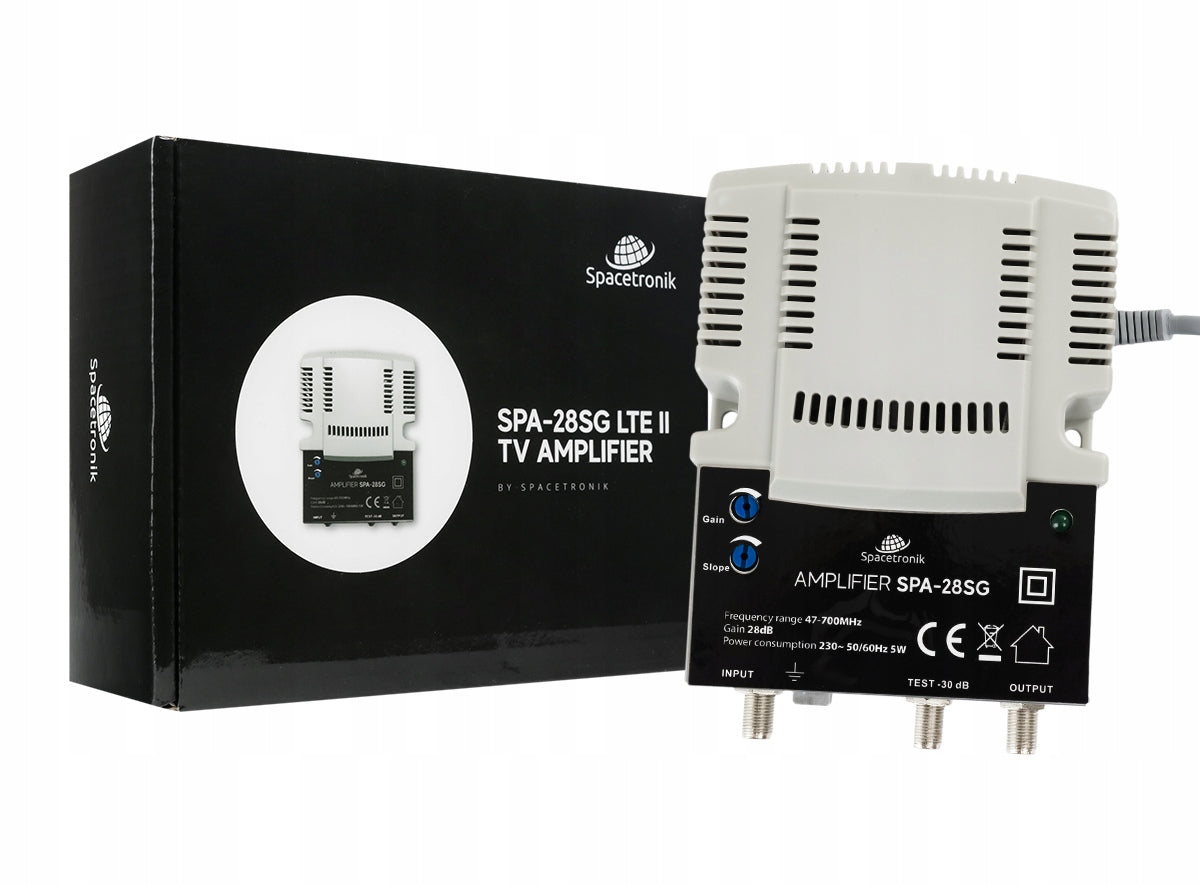

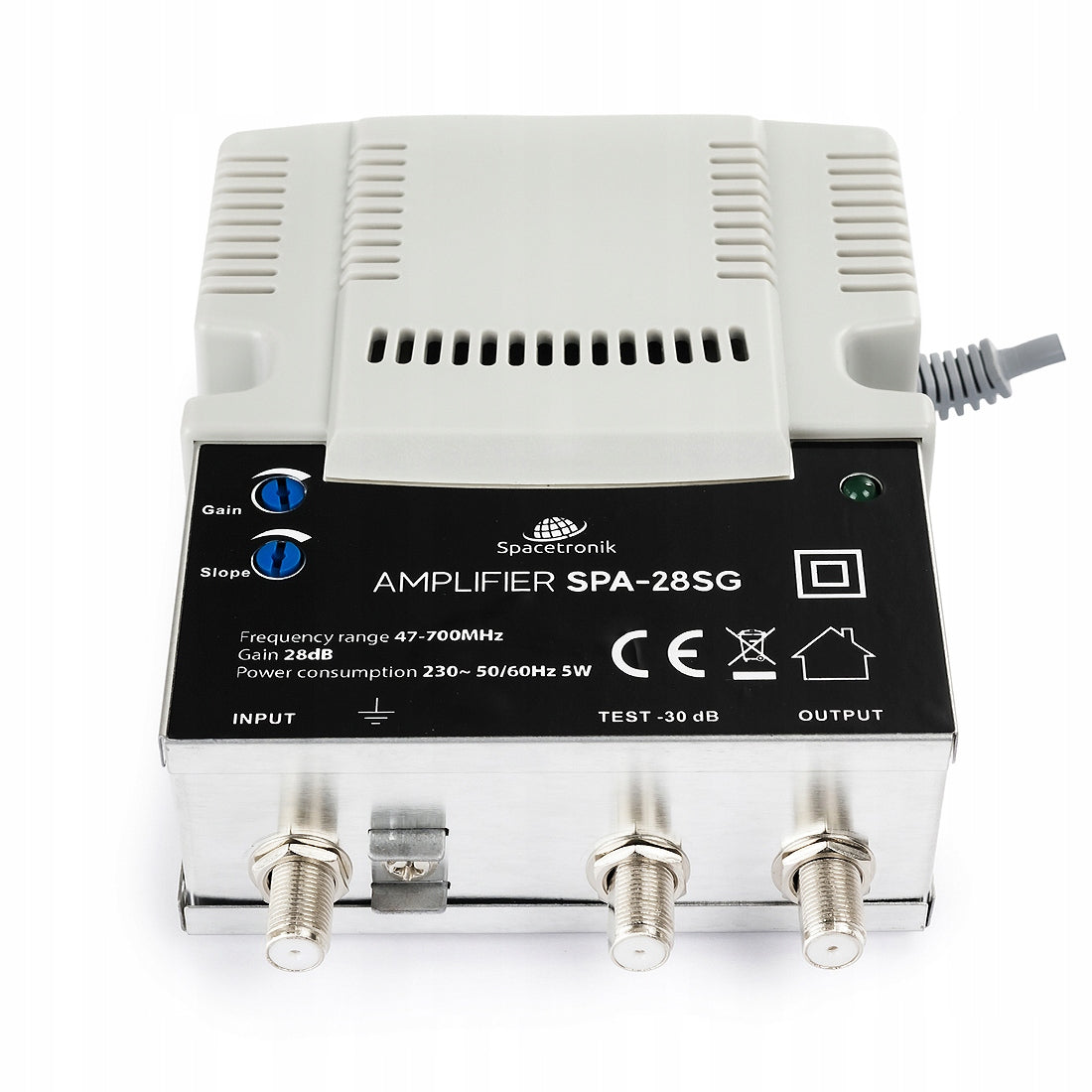

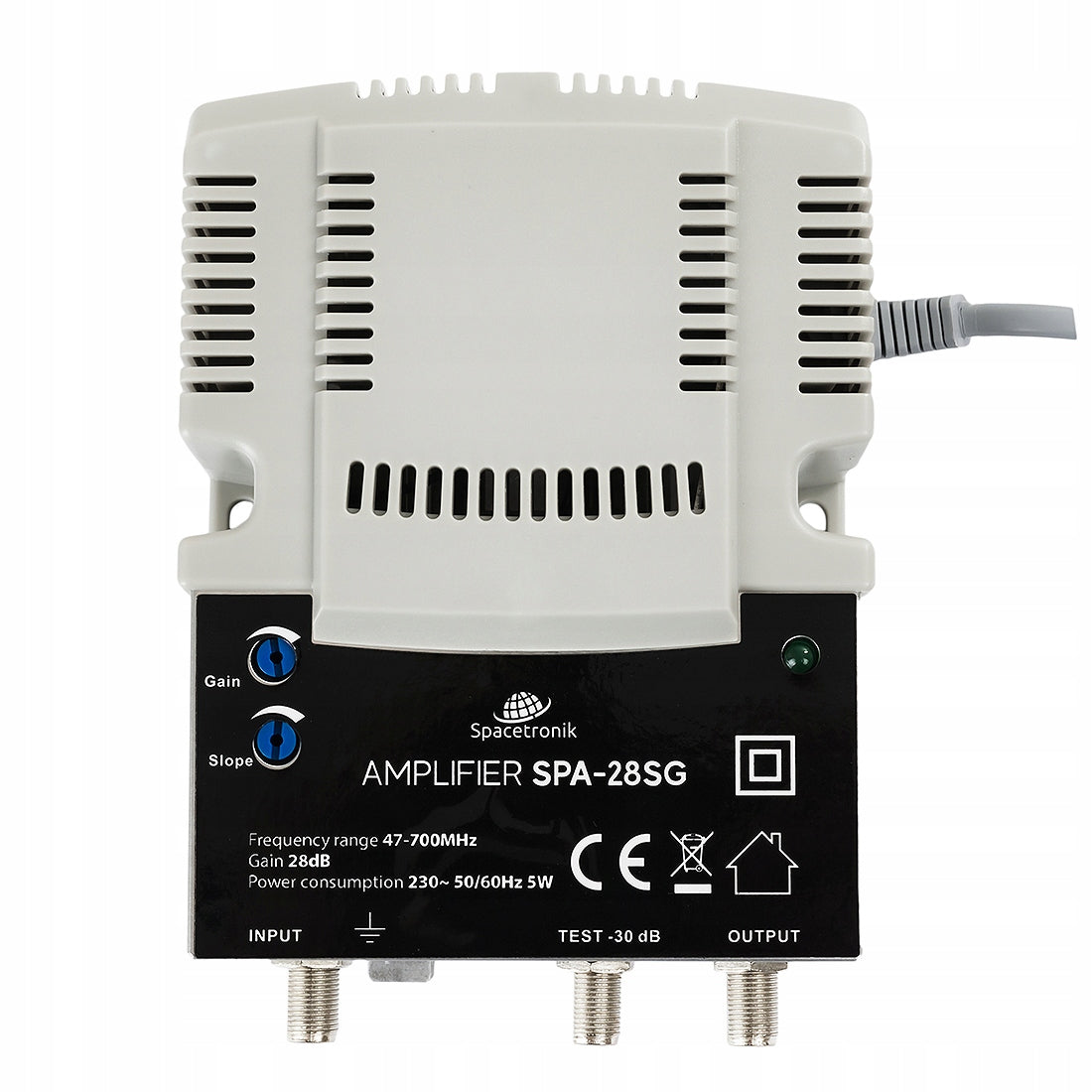

WZMSZSPA28SG; Building amplifier Spacetronik SPA-28SG SLOPE
Adjustable terrestrial and cable TV signal amplifier Spacetronik SPA-28SG LTE II
The SPA-28SG is an adjustable TV signal amplifier for terrestrial and cable TV systems for home applications and more. It allows you to adjust gain and damping using the built-in knobs. The device has one input and two outputs - 1 ordinary and 1 test. . The operating frequency ranges for this device are: for VHF from 47-318 MHz, for UHF from 470-700 MHz.
The device allows you to amplify the signal to adjustable up to 28dB. In addition, "Slope" 18dB adjustable allows you to compensate for differences in the damping of coaxial wires at higher frequencies (precorrection of characterization anachylation). Built-in power supply.
How to connect a TV signal amplifier?
Technical data
- Frequency range: 47-700MHz LTEII
- Gain: 28dB
- Flatness: +/- 0.5dB
- Gain adjustment: 20dB
- Slope adjutment: 18dB
- Maximum output level: 117dBµV
- Input and output return loss: 101dBµV
- Noise figure: 6dB
- Test point: -30dB
- Supply voltage, power consumption: 187-250V~50/60Hz 5W
- Operating temperature: -20°C ~ +50°C
- Dimension/Weight: 107x148x53mm/0.6kg
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Spacetronik |
| Parametry | Model | SPA28SG |
| Parametry | Product weight with unit packaging | 0.5 kg |
| Parametry | EAN (GTIN) | 5903031034509 |
| Parametry | Manufacturer code | SPA28SG |
