Aprašymas
Trumpai apie prekę

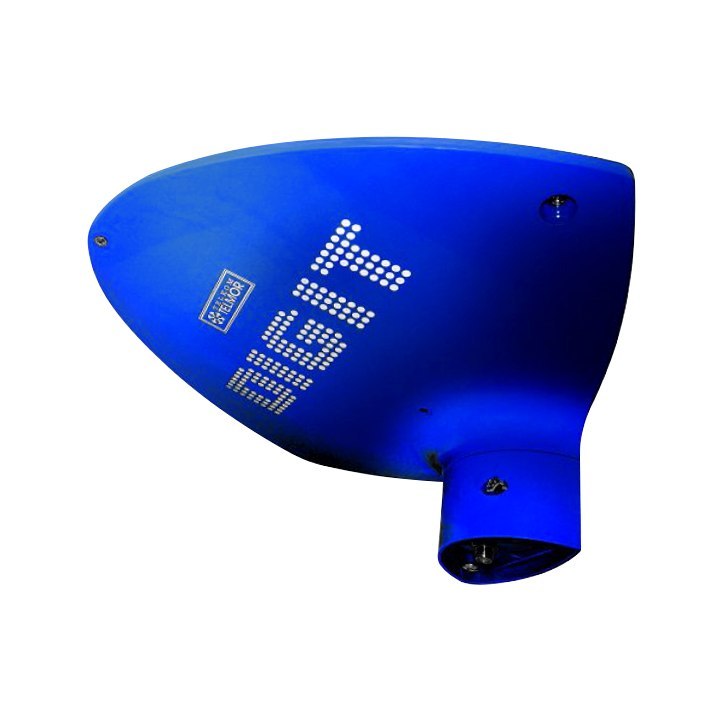

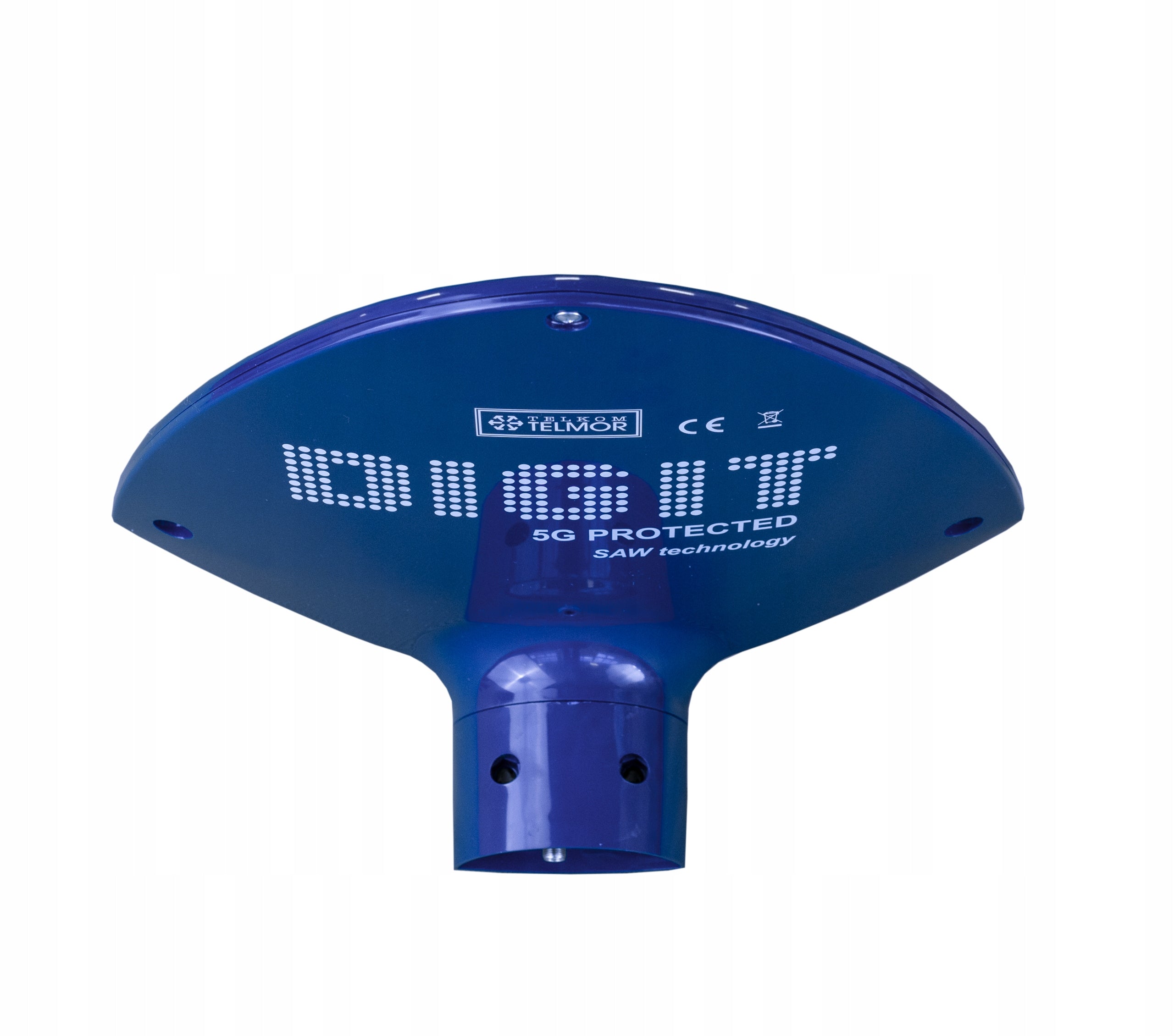

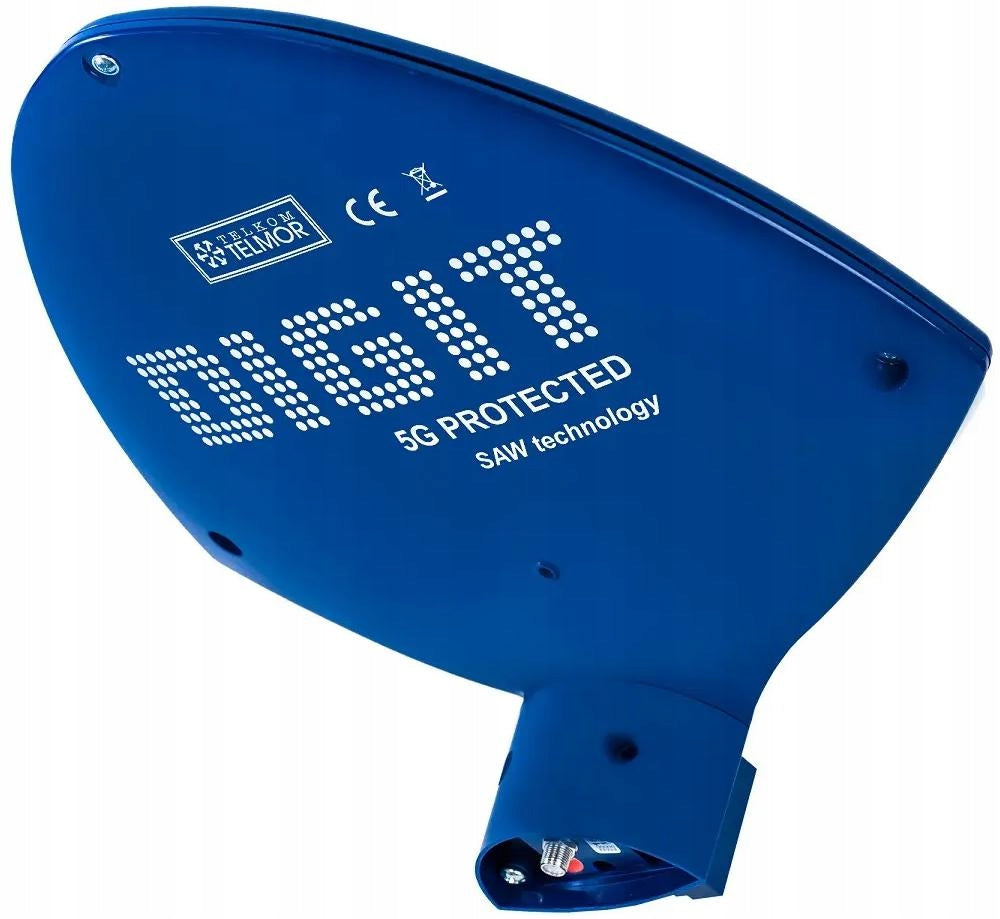

Prekė: Televizoriaus antena UHF Telkom-Telmor DIGIT Activa 5G mėlyna. Kategorija: Antenos.
- Gamintojas: Telkom-Telmor
- Modelis: DIGIT ACTIVA 5G
- Spalva: blue
DVB-T/T2 DIGIT 5G PROTECTED TV Antenna ACTIVE blue Telkom Telmor
---------- Features ---------- Antenna adapted to receive analogue and digital TV signals (DVB-T/T2) Built-in antenna preamplifier Built-in 5G SAW filter Strong attenuation of GSM/LTE/5G mobile phone signals Very low standing wave coefficient value WFS =< 2,2 High resistance to adverse weather conditions Excellent technical and functional parameters Luxury class antenna - reliability,durability, aesthetics Simple installation without the need for tools Ideal antenna for the city,for camping and wherever a large antenna is impossible to use. ---------- Technical data ---------- Operating frequency range: 47 -694 MHz (UHF: k.5-k.48)* Profit:4,5 dBi Antenna gain: 18...22 dB Amplifier internal gain: 18 +/-2 Amplification (+) attenuation (-) in the barrage band:-15 dB/800 MHz Antenna efficiency (gain + gain): 23 +/-2 dB/470-694 MHz,-10 dB/800 MHz Polarity:Horizontal (H) Noise Ratio: < 4,5 dB Maximum output level for 2 TV signals: 107 dBuV Beam size 3dB in horizontal plane:75 Degrees 3dB Beam Dimension Vertical: 130 Degrees Rear/Front Radiation Ratio:>15 dB Standing Wave Ratio WFS: =< 2,2 Power supply for internal preamplifier*: 5...24 V/40 mA Current consumption:40 mA @ +12 V Mast diameter: 25 - 45 mm Antenna dimension: 360 x 335 x 155 mm Net weight: 1,19 kg The set includes:- antenna - antenna power supply with ZZA-7 separator - amplifier (built into the antenna) -mounting cybant - plug F - installation instructions *Antenna open to the VHF band,However, there is a small profit in this respect, so the reception of channels from the VHF band can only take place with strong signals. For VHF reception, we recommend TurboT V or TurboT V3 antennas and ZWR210DC crossover, which effectively signals from both antennas to one cable. Pallet quantity: 100 pieces
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Telkom-Telmor |
| Parametry | Color | blue |
| Parametry | Model | DIGIT ACTIVA 5G |
| Parametry | Kind | external |
| Parametry | Product weight with unit packaging | 1.2 kg |
| Parametry | EAN (GTIN) | 5903953006332 |
| Parametry | Manufacturer code | WAN-0102-007-01 |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE,WEEE |
