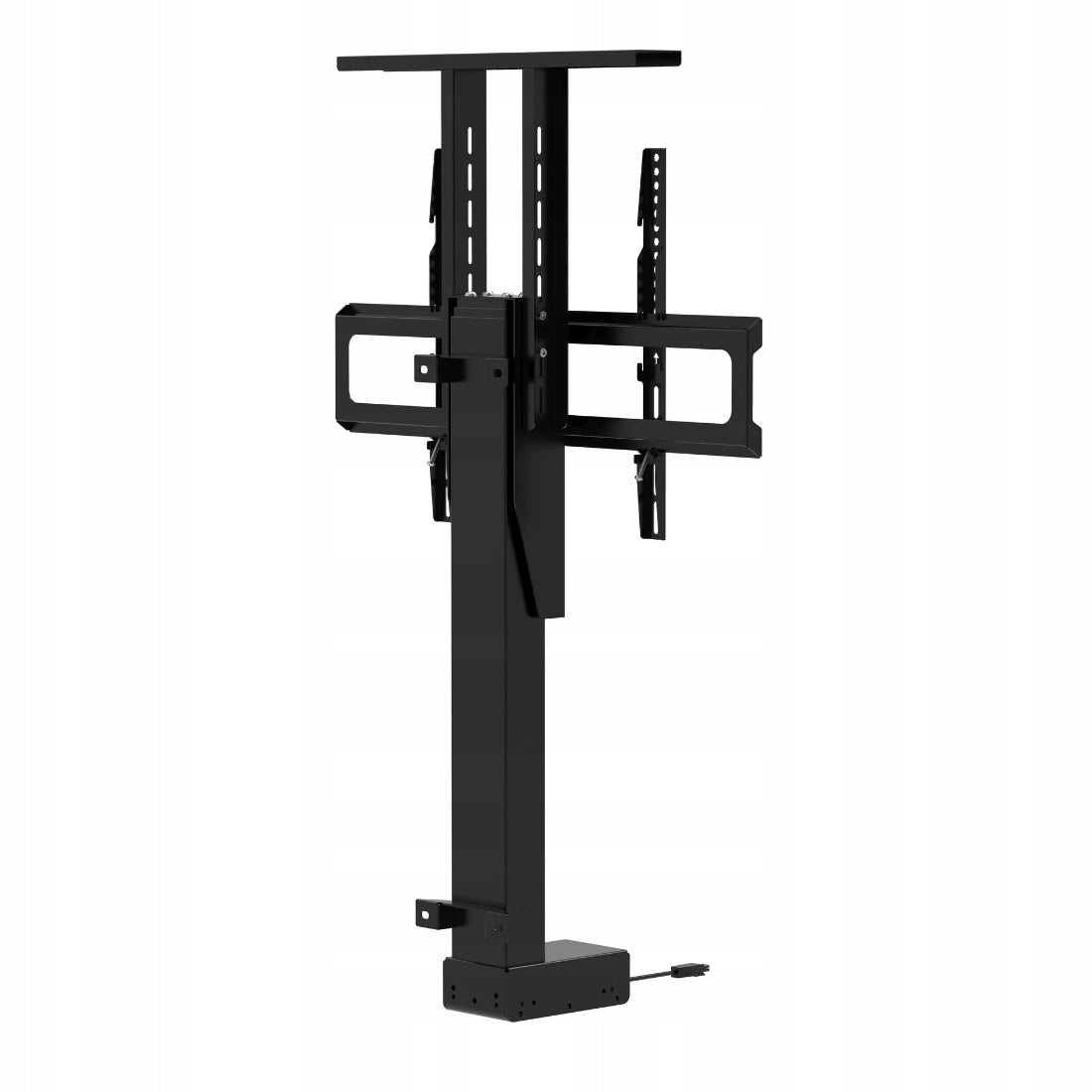

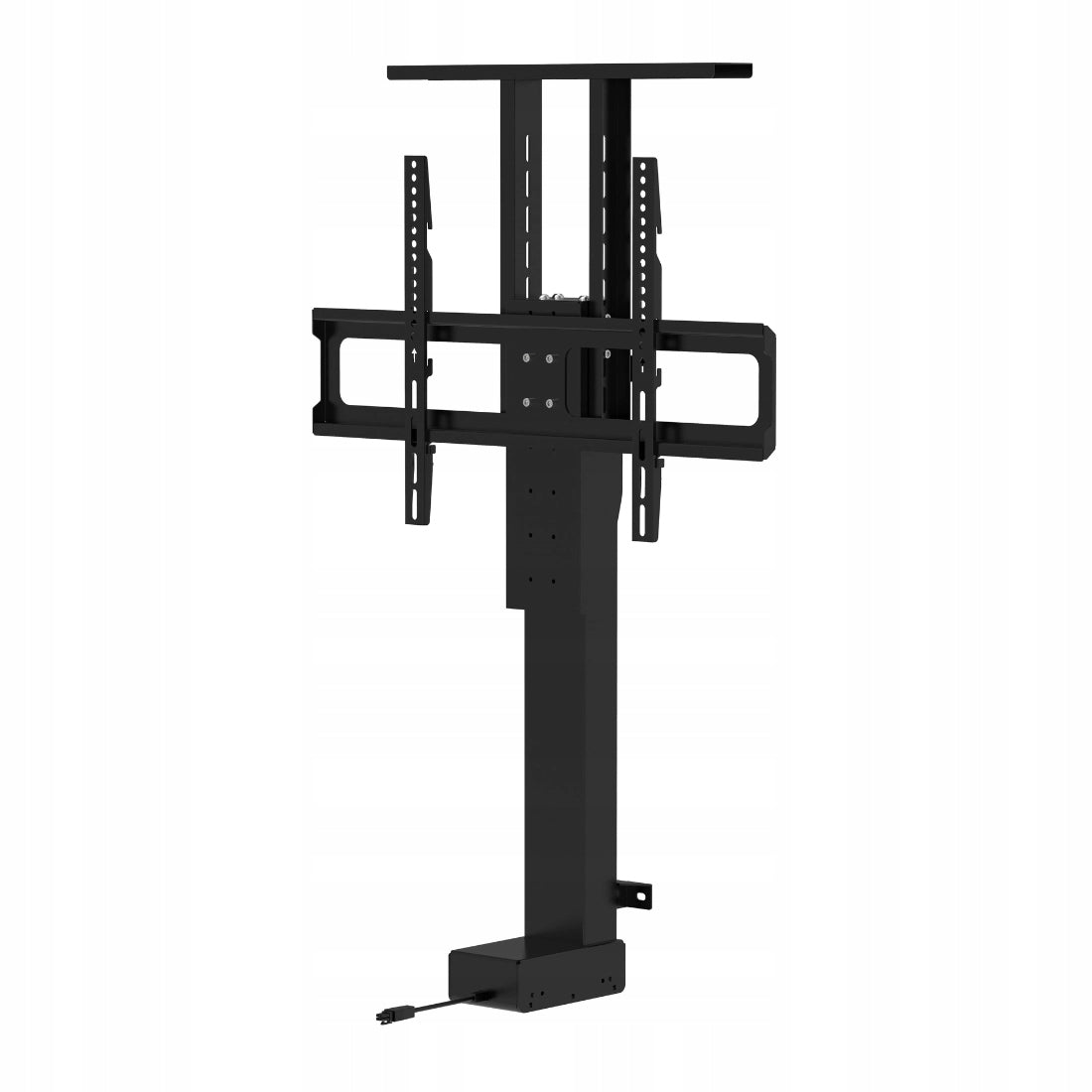

Televizoriaus keltuvas Spacetronik, elektrinis, iki 60 kg, su VESA, išmanus nuotolinio valdymo pultas

Trumpai apie prekę

Prekė: Televizoriaus keltuvas Spacetronik, elektrinis, iki 60 kg, su VESA, išmanus nuotolinio valdymo pultas. Kategorija: Rankenos.

• Gamintojas: Spacetronik
• Modelis: SPET14

SKU: SPET14

Key Features

☑ Massive design with a lifting capacity of up to 60 kg: You can mount even a very large and heavy TV without worrying about stability or disturbing vibrations when lifting.

☑ Record 2 favorite heights on the remote control: You will always extend the screen to the perfect level for your eyes – just one click to make the elevator stop in a precisely programmed place.

☑ Automatic retraction with the "Home" button: After the session, you will quickly leave the TV to the very bottom of the cabinet, regaining space and minimalist look of the living room.

☑ Standardized VESA mounting up to 600x400: Quickly and without additional adapters, you can screw almost any modern screen using a universal mounting system.

☑ Freedom of installation thanks to the 407 cm cable: Aesthetically guide and hide the wires inside the carpentry building, freely reaching to a remote wall outlet.

☑ Flat beam under the masking flap: You can easily attach the upper element of the cabinet to the elevator, so that when the TV goes down, the furniture will gain a perfectly smooth, closed surface.

☑ Maximum height from 81 to 216 cm: Precisely adjust the mechanism to the depth of your chest of drawers, guaranteeing collision-free and quiet operation of the hidden system.

Do I need a professional for installation?

Assembly is simple and stress-free.

Thanks to the well-thought-out design, clear instructions and diagrams, the system can be easily installed on its own or with the help of a carpenter, step by step.

Is the system suitable for motorhomes?

No. It is a massive, deliberately weighted system designed for uncompromising stability of heavy home furniture (e.g. for living room or bedroom).

For this reason, we strongly advise against mounting it in recreational vehicles or light mobile buildings.

What about minor errors in cabinet measurements?

Even if the inner height of your dresser is not perfectly calculated, the mechanism forgives small deviations.

Integrated top and mounting zone calibration systems allow you to fine-tune the position of the screen so that when hidden, it perfectly faces the top surface of the countertop.

Can the lift be mounted on the ceiling?

However, this specific model is designed exclusively for classic bottom-up extension.

This orientation guarantees the full safety of expensive audio-visual equipment and maintains the engine's factory operating performance.

VESA standard

Choosing the right mount is facilitated by the international VESA standard. With it, you can be sure that the mount will fit your TV perfectly.

• Safety: Stable and reliable design without the risk of equipment falling.
• Simple installation: No need to look for unusual adapters.

Specification

Contents of the set:

• electric TV lift (including mounting elements and wiring)
• remote control and user manual

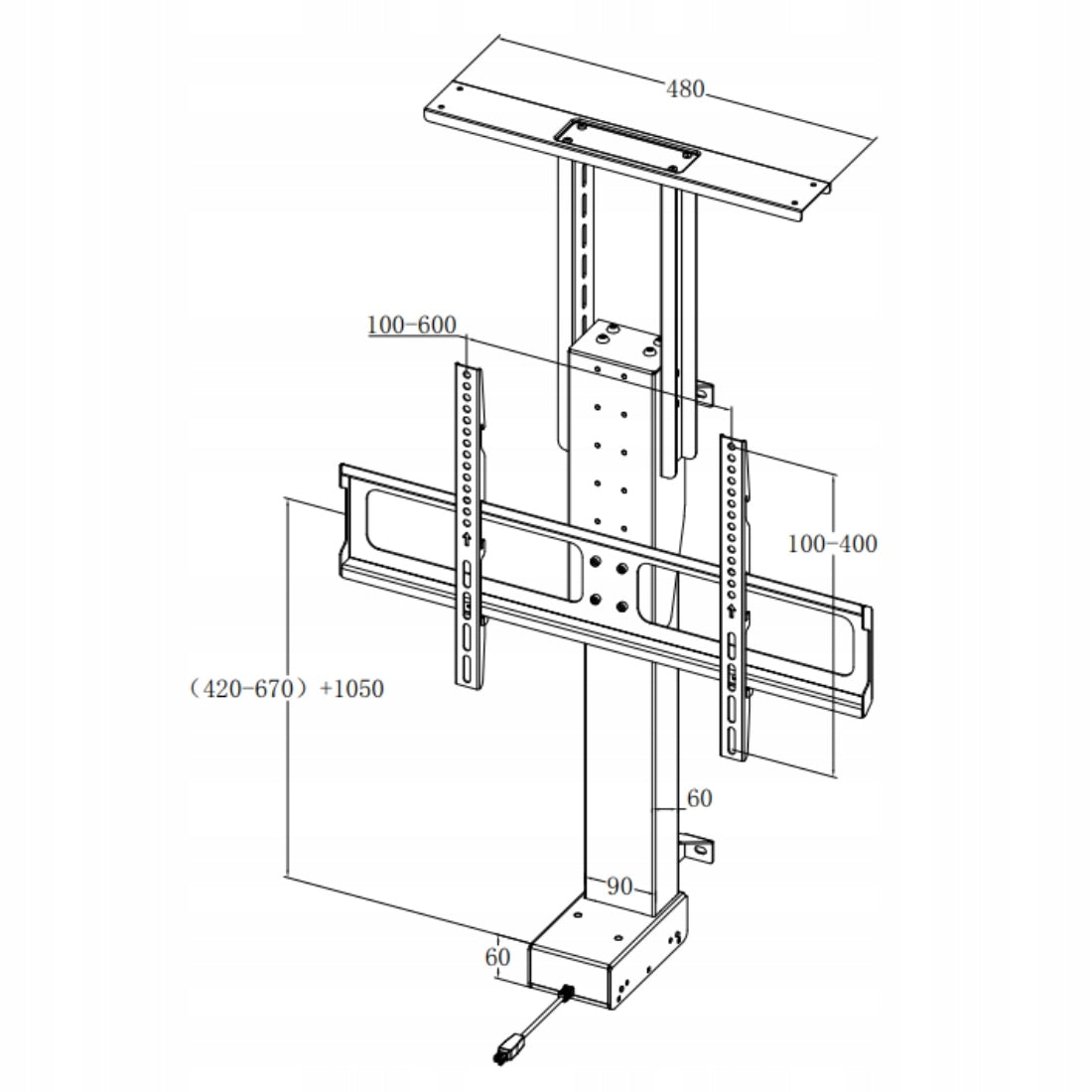

Physical parameters and dimensions:

• lifting capacity: 60 kg
• VESA standard: 75x75-600x400 (recommended 100x100)

Handle height adjustment:

• The handle has several independent height adjustment points. The final mounting height depends on the selected variant of setting individual elements of the handle.

Handle height range:

• minimum height of setting: from 56 cm to 161 cm depending on the configuration,
• maximum height of setting: from 81,5 cm to 203 cm depending on configuration.

Adjustment of the lower/main part of the handle:

• step adjustment every 5 cm, 6 to 8 adjustment positions available, depending on the setting variant.

Adjustment of the upper part of the handle:

• step adjustment every 4 cm, 7 to 9 adjustment positions available, depending on the setting variant. In practice, this means that the height of the handle can be adjusted in several ways – e.g. By setting one part in the lowest position and the other in the highest, we will get a different dimension than when setting both parts to the minimum or maximum.
• cable length: 407 cm

Control and functions:

• remote control included: yes
• remote control functions: up/down, home (handle goes all the way down), reset, set, 2 memory buttons

Materials and finish:

• material: metal construction
• Finish: Matte

Applications:

• building a TV in a dresser in the living room
• bedrooms (hiding the screen in the furniture at the foot of the bed)
• open spaces (kitchen islands and barges)
• offices and conference rooms

FAQ

I have a suspended ceiling in my bedroom – can I mount this mechanism upside down so that the TV goes down?

No, the SPET14 is designed exclusively for vertical operation, extending the screen from bottom to top. Reversing the design threatens to damage the engine and fall the TV. For such projects, you should look for lifts dedicated to ceiling installation.

I'm building a motorhome and looking for a 32 inch TV lift. Will this lift work in mobile buildings?

No, we advise against such use due to the large own weight of the mechanism itself. Spacetronik SPET14 is a heavy construction created for stability in massive home furniture, not in vehicles. In the motorhome, a lighter system with less lifting capacity will work much better.

I want to hide the TV in the dresser. How will the top flap of the furniture open when the screen is extended?

The masking flap is permanently screwed to a flat beam, which is located at the very top of the elevator. When lifting the TV, the mechanism simply lifts this part of the tabletop with it. When the screen goes down, the flap closes the opening, facing the rest of the furniture.

The TV cabinet will stand in the middle of the living room, and the outlet is 2 meters away in the floor. Is the cable enough?

Yes, the cable in this model is over 4 meters long. It allows you to easily reach a remote outlet. There is no need for additional extension cords.

How tall does my cabinet have to be inside for the mechanism to fit in when it is completely lowered?

The interior space of the furniture must be at least 81 cm high, because this is how much the fully assembled column of the lift measures. This should include a possible supply for the TV itself, if its housing protrudes beyond the outline of the holder. It is always worth leaving a few centimeters of slack for free arrangement of cables.

Do I have to hold the button on the remote every time and aim for the TV to stop at a good height for viewing?

There is no need for this, because the included remote control has the function of writing two positions. You set the optimal height once and save it in the device memory. The next time you start, just one press of the button and the elevator will stop exactly at the designated point.
