Televizoriaus laikiklis 102 cm, tvirtas, 43–75 colių ekranams

Trumpai apie prekę

Prekė: Televizoriaus laikiklis 102 cm, tvirtas, 43–75 colių ekranams. Kategorija: Rankenos.

• Gamintojas: Vetouson
• Modelis: VX-530 Długi 102cm 43-80 cali

• ➡️ Extra long 102 cm mount for 43-75 inch TVs
• ✅ Achieve a full 90° swivel for TVs up to 184 cm wide!
• ➡️ This mount has been tested and verified by our technicians for a load capacity of 30kg!
• ✅ TV mount with option for corner installation. Also allows for installation directly on the wall.
• ✅ Smooth 180° adjustment at 3 points
• ✅ Wide wall plate ensures even weight distribution of the TV on the wall, allowing installation with 6 or more anchors if needed.
• ✅ This mount is universal and fits all TV models with VESA mounting hole patterns from 200x200 to 800x400 mm and weighing up to 30 kg.
• ➡️ Also fits TVs with curved backs
• ✅ Package includes a full set of mounting accessories (including anchors, screws, washers for attaching the mount to the wall, and screws and washers for attaching the TV to the mount, as well as a spirit level and a template for marking holes on the wall)
• ➡️➡️➡️Product demonstration available in a short video at (copy and paste link into your browser): https://www.youtube.com/watch?v=8I8ar2haQmM

Extra Long Arm Mount for 43-75" LCD/LED TVs

✅ SPECIFICATIONS:

• SERIES: PREMIUM
• model: VX-530
• TV size: 43"- 75"

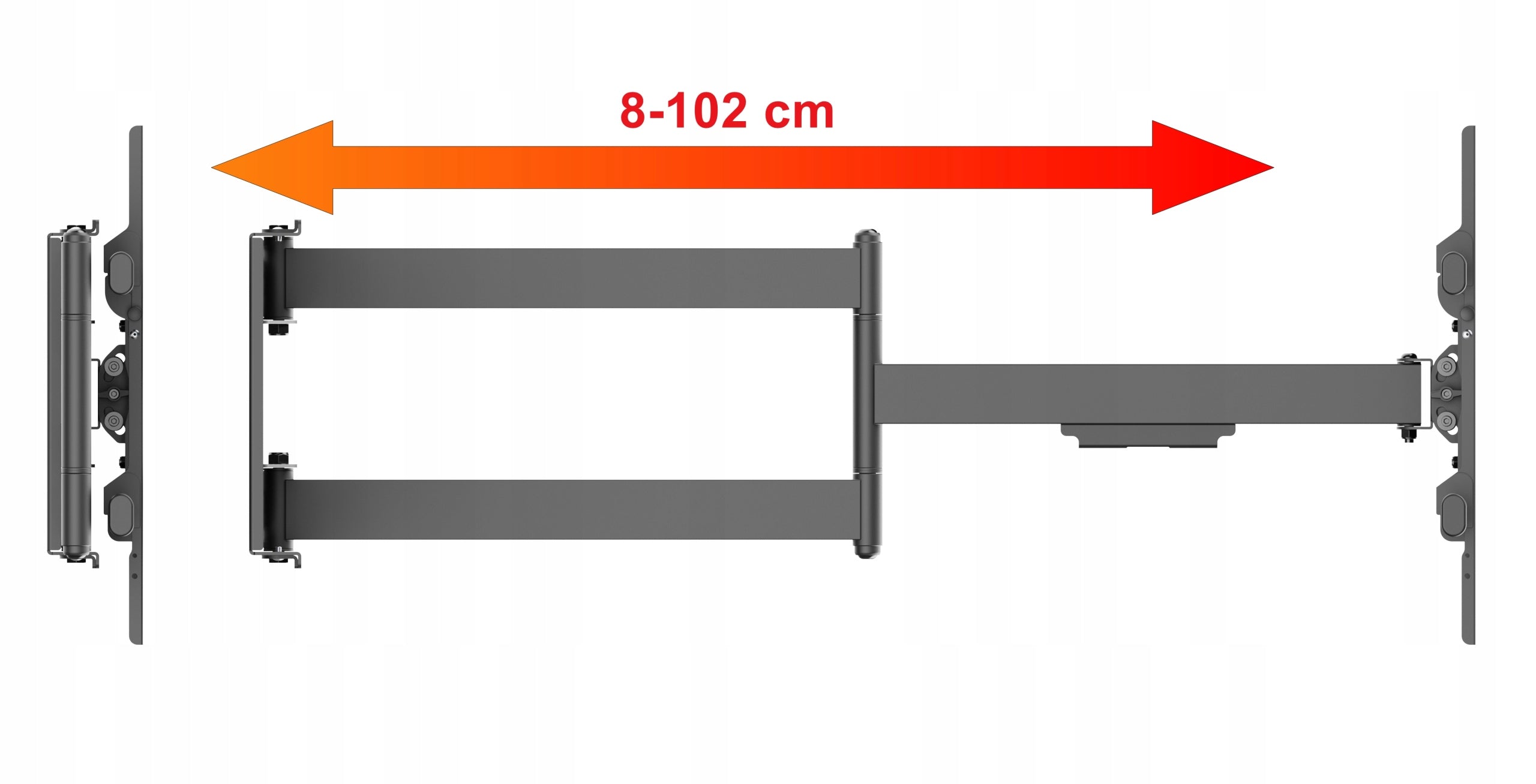

• Adjustable distance from wall: 8 - 102 cm
• Maximum TV weight: up to 30 kg
• VESA (mounting hole pattern on TV): 200x200, 200x300, 200x400, 300x200, 400x200, 300x300, 300x400, 400x300, 400x400, 500x400, 600x400, 800x400 mm - also fits all intermediate values
• ➡️ Arm length is up to 102 cm
• Right/left swivel adjustment: 180° at 3 points
• ➡️Can position TV perpendicular to the wall!
• Tilt adjustment (up/down): +5° / -15°
• Mounting error correction: -6° / +6°
• Wall mounting for 6 anchors, with option for more
• ➡️ Cable management system
• Strong and robust construction
• ➡️ Full set of mounting accessories including template for marking holes on the wall
• Perfectly painted mount - crafted with attention to detail
• Mount color: black

✅Handle with full adjustment range

• right/left rotation adjustment: 180° at 3 points
• the ability to set any position of the TV both very close - 8 cm and very far from the wall - 102 cm

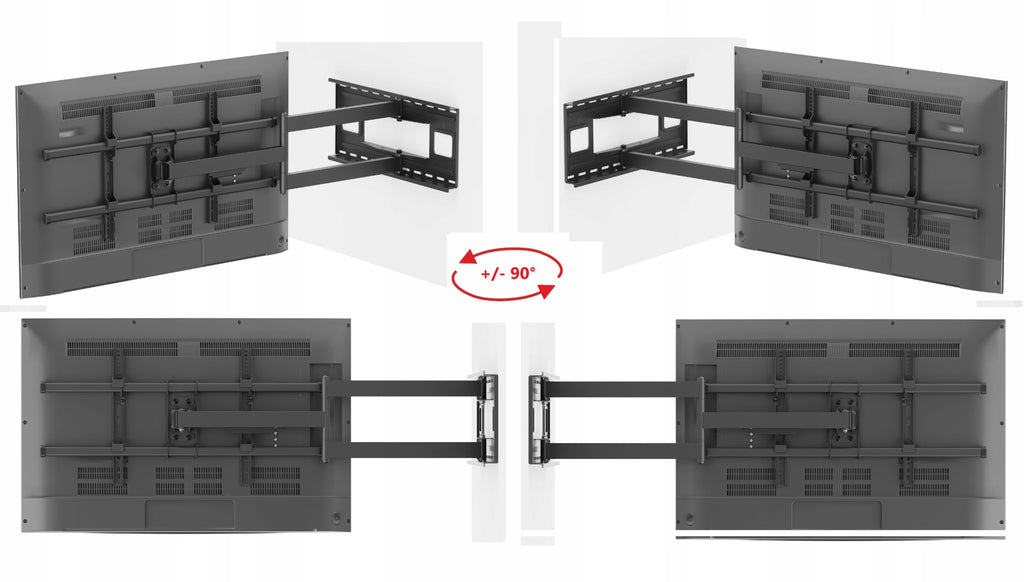

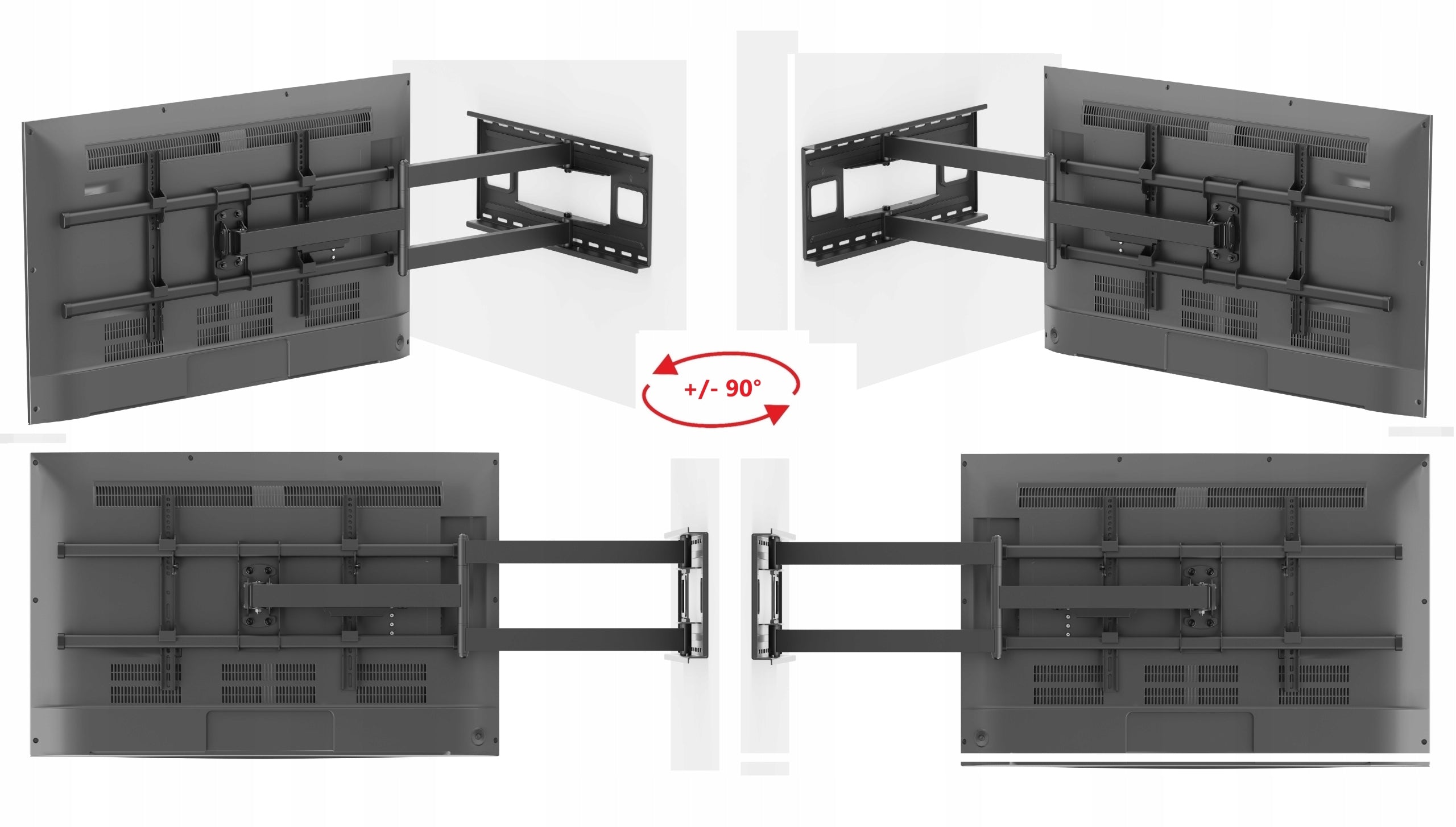

✅Large angle of rotation to the right or left

• Thanks to the long 102 cm arms, the handle can be installed at a very large even ➡ 90° angle to the wallsy, as well as in the corner of the room. Of course, it also allows installation on direct walls.
• easily and smoothly set the selected angle of rotation of the TV

✅Close or far from the wall

• you can set the handle very close - 8 cm or very far from the wall - 102 cm
• ➡ full 90° that is, the handle perpendicular to the wall of rotation you will reach for a TV with a width of up to 184 cm!

✅Tilt adjustment

• In the handle, you can set the tilt level both up and down in the up/down range: +5° / -15°

✅TESTED for 30kg!

• ➡ The holder has been tested by our technicians on a load of 30 kg!

✅VIDEO presentation

➡ ➡ ➡ Product presentation video

• is available at (copy the link to your browser)
• https://www.youtube.com/watch?v=8I8ar2haQmM

✅CABLE MANAGEMENT SYSTEM

• Easy cable management system will allow you to neatly guide cables

✅STRONG - SAFE - ELEGANT

• Robust, durable hardened steel
• Elegant even perfect powder coating
• Double arms guarantee complete safety

✅Universal

• ➡ mount is universal and can be installed on all the most popular TV brands, in the range of 43-75 inches e.g. ✅ 43 INCHES ✅ 50 INCHES ✅ 55 INCHES ✅ 58 INCHES ✅ 65 INCHES ✅ 70 INCHES ✅ 75 INCHES which have VESA mounting hole spacing in the range : 200 x 200 to 800 x 400 mm and weigh up to 30 kg
• VESA 200x200 (horizontal 200mm x vertical 200 mm)
• VESA 200x300 (horizontal 200mm x vertical 300 mm)
• VESA 200x400 (horizontal 200mm x vertical 400 mm)
• VESA 300x200 (horizontal 300mm x vertical 200 mm)
• VESA 300x300 (horizontal 300mm x vertical 300 mm)
• VESA 400x200 (horizontal 400mm x vertical 200 mm)
• VESA 400x400 (horizontal 400mm x vertical 400 mm)
• VESA 500x400 (horizontal 500mm x vertical 400 mm)
• VESA 600x400 (horizontal 600mm x vertical 400 mm)
• VESA 700x400 (horizontal 700mm x vertical 400 mm)
• VESA 800x400 (horizontal 800mm x vertical 400 mm)
• and all intermediate values, e.g. 330mm x 350mm
• ➡ handle also fits TVs with curved housing

✅Assembly on two sides to choose from

• The handle can be installed both so that the arm comes out on the right or left side - to choose from. If you need to change sides, unscrew the two screws and fasten the handle to the other side.

✅Wide wall plate that evenly distributes the weight of the TV

• If you already have your new TV, you know that it is really large, which is why a wide wall plate is so important that it will allow you to install the holder on ➡ 6 and more studs if necessary, ensuring even distribution of its weight
• The wall plate consists of a main board measuring 289 x 646 mm

✅MOUNTING ERROR CORRECTION SYSTEM

The handle allows you to adjust the level needed, e.g. with inaccurate drilling of holes in the wall in the range of -6° / +6°

Note!

The mount is designed for users who use a single TV setting. If we use several settings at the same time, e.g. Once the TV is at the wall itself and other times the TV perpendicular to the wall, we are not able to level the TV for both settings at the same time. The handle has a leveling adjustment through 4 screws but for each change of setting a new level adjustment is necessary. Therefore, we offer this mount for people who once set the TV and later do not change its position.

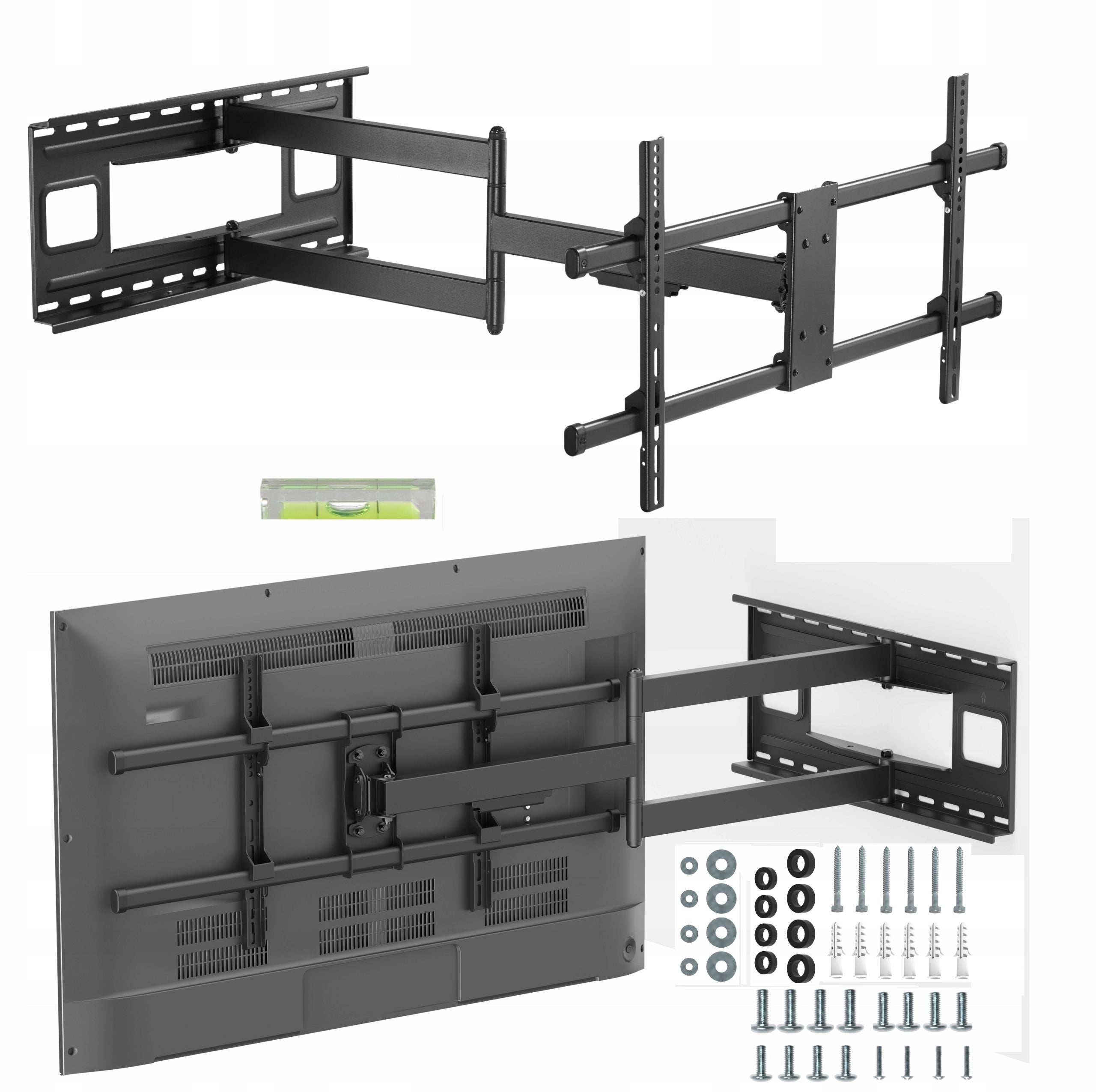

✅SET COMPOSITION

• ➡ ➡ ➡ Product presentation and assembly method is available in a short instructional video at the address (copy the link to the browser)
• https://www.youtube.com/watch?v=oKJlNvPURac

• ➡ handle with necessary mounting accessories
• ➡ simple and intuitive installation
• mounting accessories for wall mount:

• Screws M8X90 6 pcs
• Dowels 12X60 6 pcs
• TV mount mounting accessories:
• Screw for TV/monitor installation M6X14 4 pcs
• (choose the right screw for the holes on your TV)
• Screw for TV/monitor installation M8X16 4 pcs
• Screw for TV/monitor installation M6X30 4pcs
• Screw for TV/monitor installation M8X35 4pcs
• Washers for the above screws 4 pcs
• Plastic bushings 5 mm 4pcs
• Plastic bushings 10 mm 4pcs
• instruction in Polish, English and German

Attention. The mount includes a universal set of TV mounting screws that fits most TVs on the market. It may happen that your TV will need other screws, then you need to purchase them on your own.
