Televizoriaus laikiklis, 108 cm, 50–98" ekranams, iki 64 kg

Trumpai apie prekę

Prekė: Televizoriaus laikiklis, 108 cm, 50–98" ekranams, iki 64 kg. Kategorija: Rankenos.

• Gamintojas: Vetouson
• Modelis: VX-534 Dlugi Uchwyt do TV 50 55 58 65 75 83 85 98

• ▶ Extra long 108 cm TV mount 50-98 inches
• ▶ The handle has been tested and tested by our technicians on a load of 64kg!
• ▶ Handle on double arms for stability and safety
• ✅ You can reach a full 60° rotation for a TV up to 240 cm wide!
• ✅ You can reach a full 90° rotation for a TV up to 168 cm wide!
• ✅TV mount with corner installation option. It also allows installation on direct walls.
• ✅Wide wall plate guaranteeing even distribution of the weight of the TV on the wall which will allow you to install the mount on up to 6 or more studs if necessary
• ✅The mount is universal and fits all TV models that have VESA mounting hole spacing in the range of 200 x 200 to 800 x 600 mm and weigh up to 64 kg.
• ▶ The holder also fits TVs with a curved housing
• ✅The package includes a full set of mounting accessories (including pegs, screws, washers needed to screw the mount to the wall, and screws and washers needed to screw the TV to the mount, as well as a template to draw holes)

✅SPECIFICATIONS:

• model: VX-534
• series: PREMIUM
• TV size: 50"- 98"
• adjustable distance from wall: 7.55 - 108 cm
• ▶️maximum TV weight: up to 64 kg
• VESA (mounting hole pattern on TV): 200x200, 200x300, 200x400, 300x200, 400x200, 300x300, 300x400, 400x300, 400x400, 600x400, 700x400, 800 x 400, 800x600 mm - mount also fits all intermediate values between 100x200 and 800x400 mm
• ▶️arm length is up to 108 cm

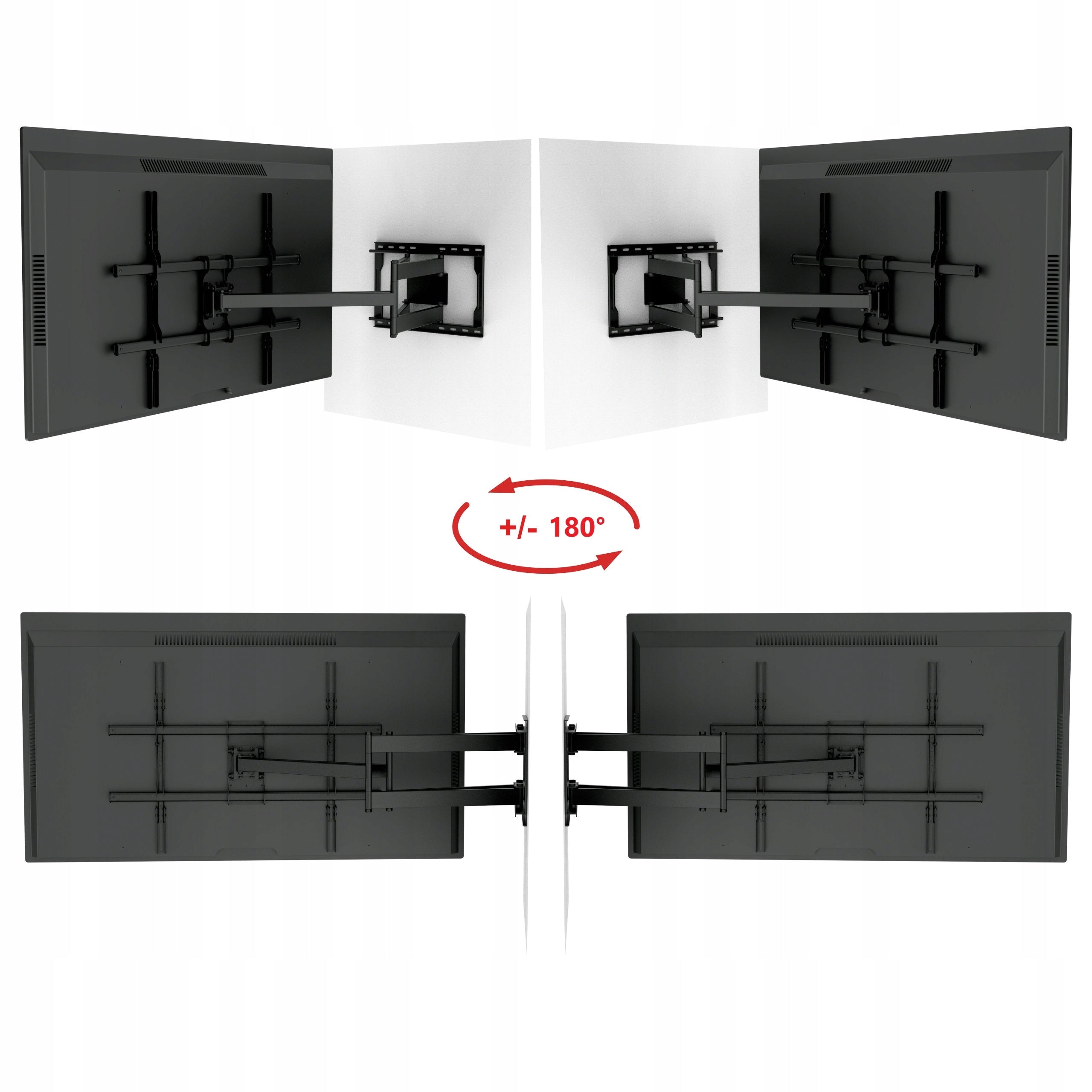

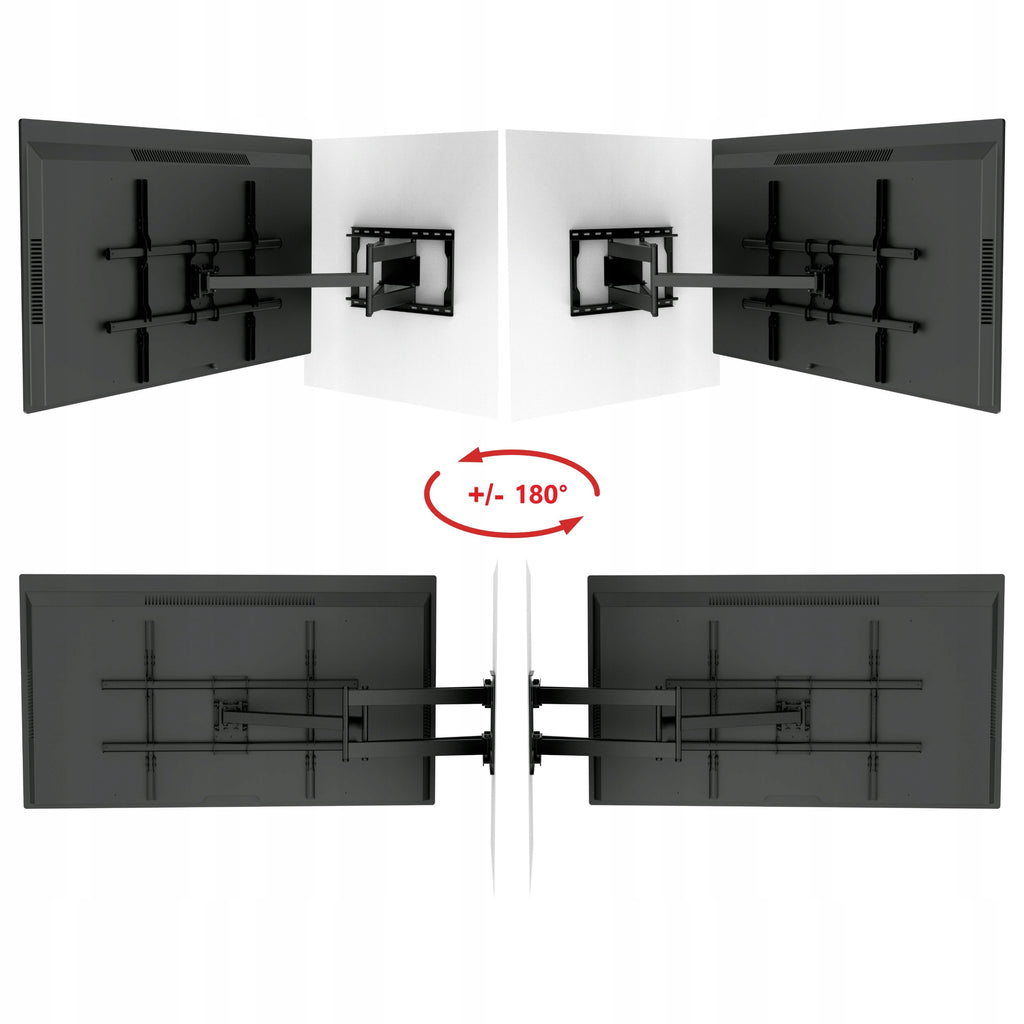

• swivel adjustment right/left: 180° in 3 points
• tilt adjustment up/down: +8° / -10°
• mounting error correction: -5° / +5°
• wall mount using 6 anchors (more can be added)
• cable management system
• strong and solid construction
• full set of mounting accessories, including a template for marking holes on the wall
• mount is perfectly lacquered - made with attention to detail
• mount color: black

✅Mount with Full Adjustment Range

• swivel adjustment right/left: 180° in 3 points
• allows you to position the TV in any position, both very close - 7.5 cm and very far from the wall - 108 cm
• ▶️full 90° swivel (mount perpendicular to the wall) is achievable for TVs up to 168 cm wide, i.e., 50, 55, 58, 65 inch TVs!
• Please check your TV's dimensions and compare.
• ▶️full 60° swivel is achievable for TVs up to 240 cm wide, i.e., 50, 55, 58, 65, 75 inch TVs! Please check your TV's dimensions and compare.

✅Tilt adjustment

• In the handle, you can set the tilt level both up and down in the up/down range: +8° / -10°

✅Close or far from the wall

• handle set very close - 7,5 cm or very far from the wall - 108 cm

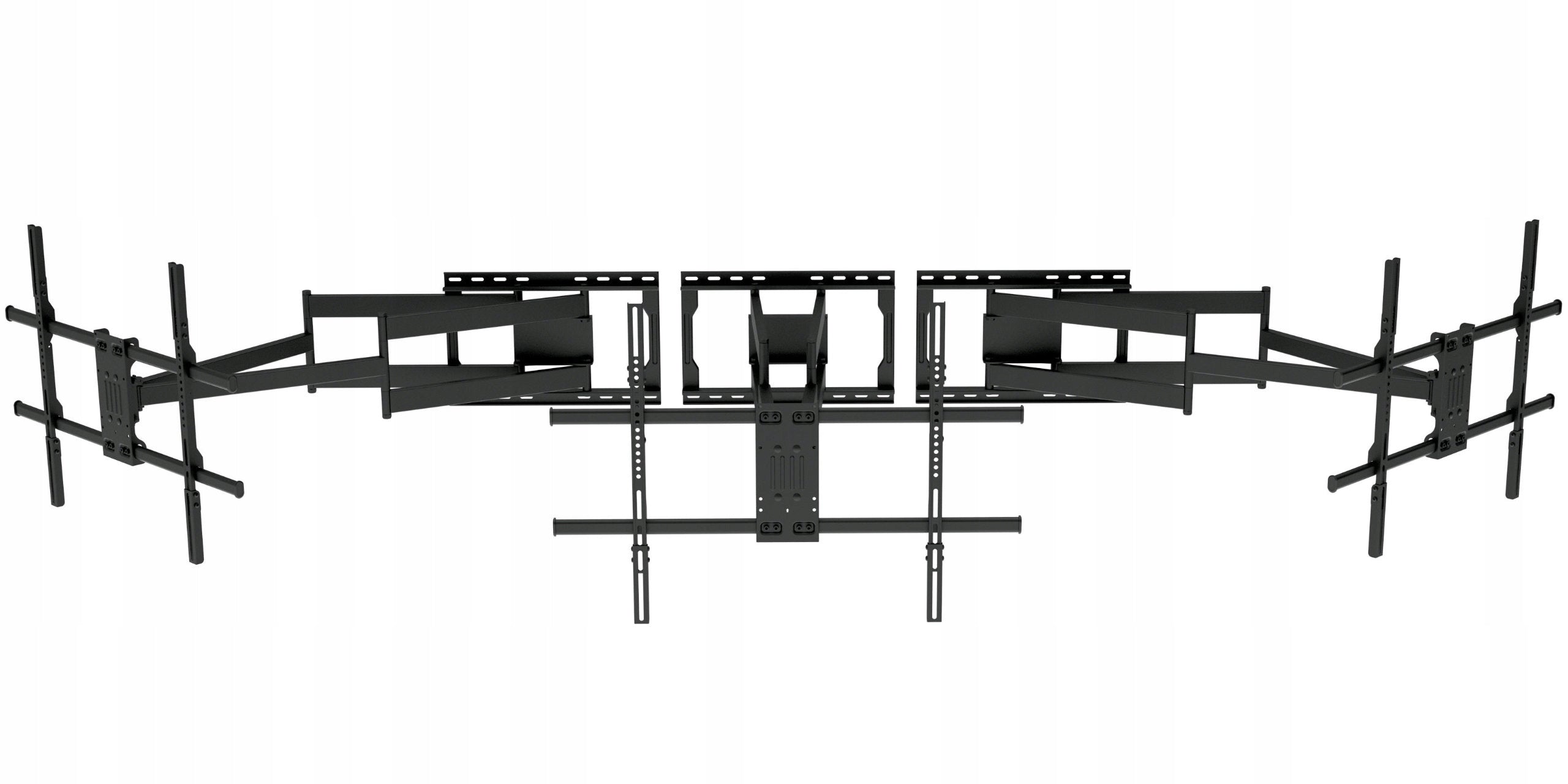

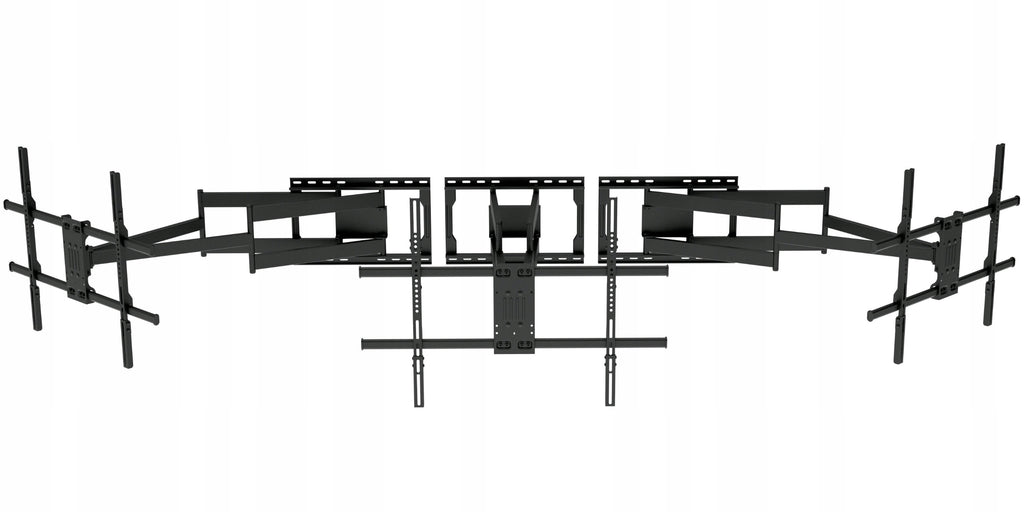

✅Wide Swivel Angle Left or Right

• thanks to the ▶️long 108 cm arms, the mount can be installed at a very wide angle, even 90° to the wall, and also in a room corner. It also allows for installation directly on the wall.
• easily and smoothly set your desired TV swivel angle
• ▶️full 90° swivel (mount perpendicular to the wall) is achievable for TVs up to 168 cm wide, i.e., 50, 55, 58, 65 inch TVs!
• Please check your TV's dimensions and compare.
• ▶️full 60° swivel is achievable for TVs up to 240 cm wide, i.e., 50, 55, 58, 65, 75 inch TVs! Please check your TV's dimensions and compare.

✅TESTED at 64kg!

• ▶ The handle has been tested by our technicians on a load of 64 kg - so we can ensure its highest quality!

✅Assembly on two sides to choose from

• The handle can be installed both so that the arm comes out on the right or left side - to choose from. If you need to change sides, unscrew the two screws and fasten the handle to the other side.

✅Swipe to the right or left

• The handle can be moved to the right or left by 83cm.
• thanks to its double arms, its design is more stable than handles on a single long arm

✅CABLE MANAGEMENT SYSTEM

• Easy cable management system will allow you to neatly guide cables
• The set includes special wide Velcro straps that can be easily and anywhere fastened with cables

✅ PURPOSE

• ➡ mount is universal and can be installed on all the most popular TV brands, in the range of 50-98 inches e.g. ✅ 50 INCHES ✅ 55 INCHES ✅ 58 INCHES ✅ 65 INCHES ✅ 70 INCHES ✅ 75 INCHES ✅ 85 INCHES ✅ 86 INCHES ✅98 INCHES which have VESA mounting hole spacing in the range : 200 x 200 to 800 x 600 mm and weigh up to 64 kg
• VESA 200x200 (horizontal 200mm x vertical 200 mm)
• VESA 200x300 (horizontal 200mm x vertical 300 mm)
• VESA 200x400 (horizontal 200mm x vertical 400 mm)
• VESA 300x200 (horizontal 300mm x vertical 200 mm)
• VESA 300x300 (horizontal 300mm x vertical 300 mm)
• VESA 400x200 (horizontal 400mm x vertical 200 mm)
• VESA 400x400 (horizontal 400mm x vertical 400 mm)
• VESA 600x400 (horizontal 600mm x vertical 400 mm)
• VESA 800x400 (horizontal 600mm x vertical 400 mm)
• VESA 800x600 (horizontal 600mm x vertical 400 mm)
• and all intermediate values, e.g. 330mm x 350mm
• ➡ handle also fits TVs with curved housing

✅STRONG - SAFE - ELEGANT

• Robust, durable hardened steel
• Elegant even perfect powder coating
• Double arms guarantee complete safety

✅MOUNTING ERROR CORRECTION SYSTEM

The handle allows you to adjust the level needed, e.g. with inaccurate drilling of holes in the wall in the range of -5° / +5°

✅Wide wall plate that evenly distributes the weight of the TV

• If you already have your new TV, you know that it is really large, which is why a wide wall plate is so important that it will allow you to install the holder on ➡ 6 and more studs if necessary, ensuring even distribution of its weight

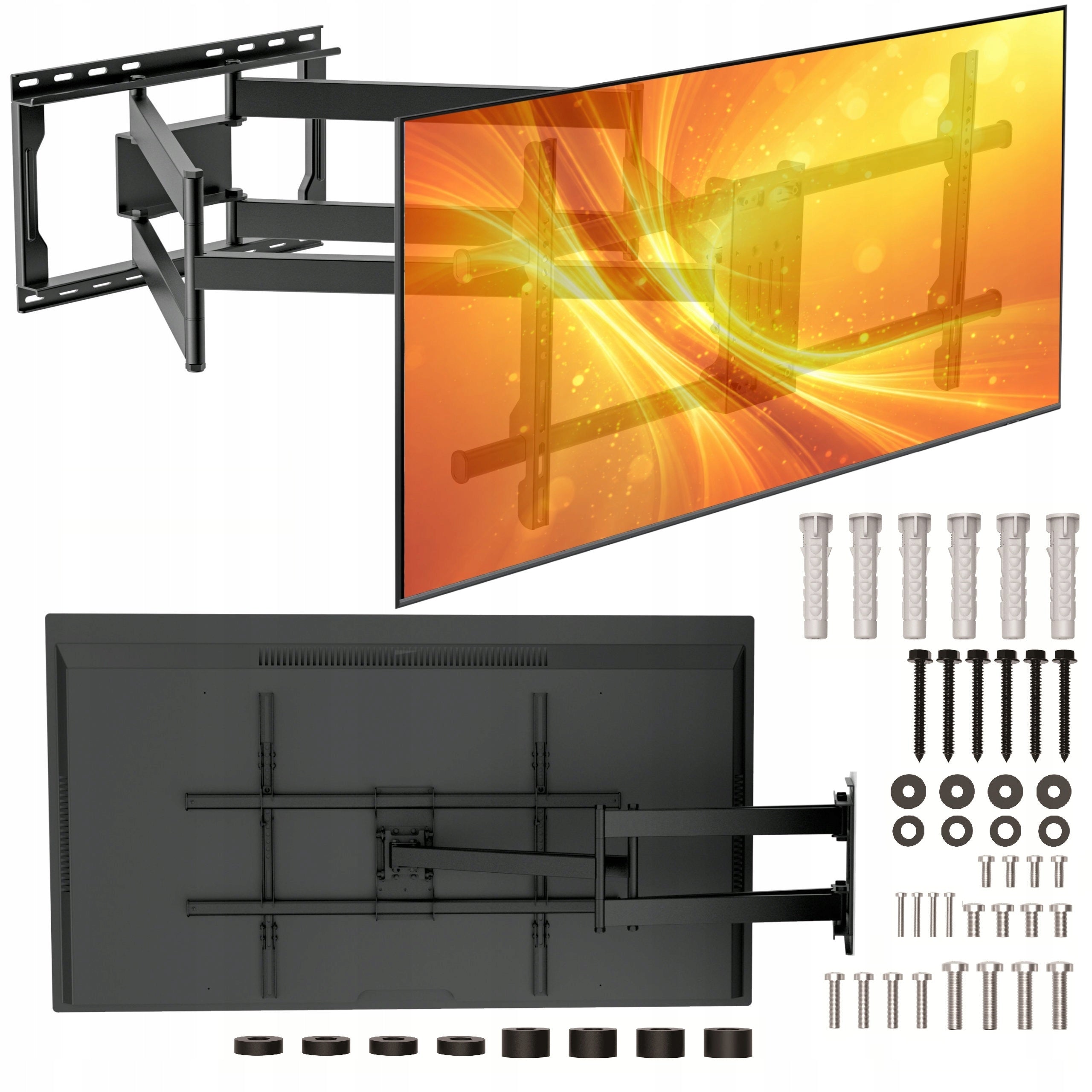

✅SET COMPOSITION

• ➡ handle with necessary mounting accessories
• ➡ simple and intuitive installation
• mounting accessories for wall mount:

• ➡ handle with necessary mounting accessories
• ➡ simple and intuitive installation
• mounting accessories for wall mount:
• Screws M8x70 6 pcs
• Dowels M10X60 6 pcs
• washers 6 pcs
• TV mount mounting accessories:
• Screw for TV/monitor installation M4X25 4 pcs (choose the screw suitable for the holes in your TV)
• Screw for TV/monitor installation M6X15 4 pcs
• Screw for TV/monitor installation M6X25 4 pcs
• Screw for TV/monitor installation M8X15 4 pcs
• Screw for TV/monitor installation M8X30 4 pcs
• Washers for the above screws 4 pcs
• Plastic bushings 5 mm
• Plastic bushings 10 mm
• instruction in Polish, English and German

Attention. The mount includes a universal set of TV mounting screws that fits most TVs on the market. It may happen that your TV will need other screws, then you need to purchase them on your own.
