Televizoriaus laikiklis, 108 cm, pasukamas, 43–95" ekranams

Trumpai apie prekę

Prekė: Televizoriaus laikiklis, 108 cm, pasukamas, 43–95" ekranams. Kategorija: Rankenos.

• Gamintojas: Athletic
• Modelis: Długie ramię 108cm

ROTATING TV MOUNT LCD 43”-95’’

✅ Solid and durable TV mount, suitable for TVs ranging from 43 to 95 inches.

✅ Lifts the TV up to 68 kg.

✅ It has a very long arm with full range of motion.

✅ Nthe best quality of steel ensures the handle reliability and safety.

✅ Tilt angle adjustment up to 12°.

✅ Rotation angle adjustment up to 180°.

✅ Adjust the screen level to 6°.

✅ The long arm allows you to adjust the distance from the wall from 86 to 1082 mm.

✅ VESA:

• ➡ MIN: 200x100mm
• ➡ MAX: 800x400mm

✅ Fits even curved screens!

✅ The set also includes: assembly instructions, a set of screws, pins, screws, washers, spacers, wrench and level.

Compatibility

✅ Size: 43” to 95”

✅ Weight: up to 68kg

✅ Type of wall: concrete or wooden.

✅ VESA:

➡ MIN: 200x100mm,

➡ MAX: 800x400mm.

Durable

✅ Made of the best quality materials (steel) - ensures stability and durability.

✅ Locking mechanism prevents uncontrolled movement of the TV.

✅ Lifting capacity: up to 68 kg.

✅ Strong and stable construction guarantees safety.

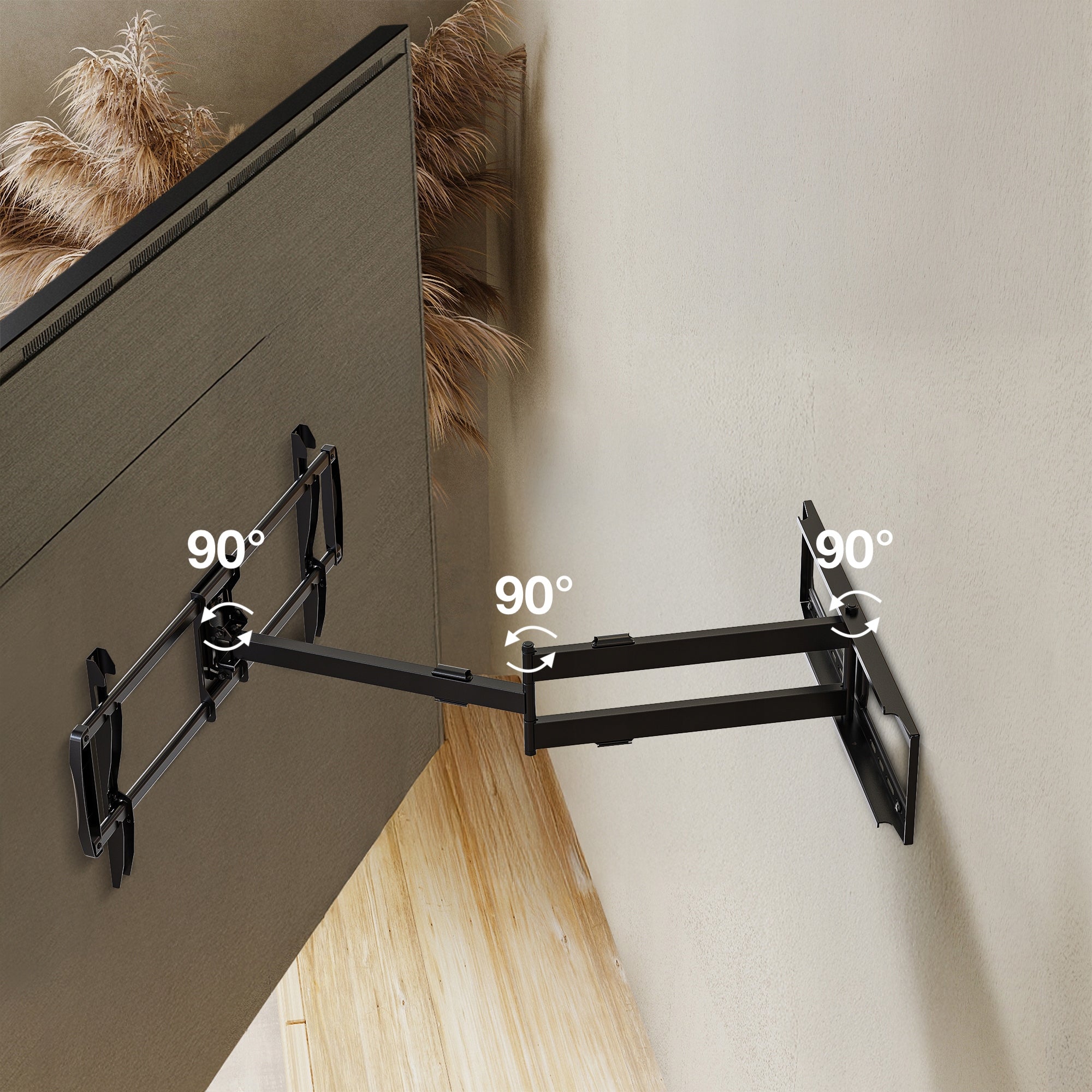

✅ Horizontal rotation

➡ The ability to rotate the TV to the right or left from +90° to -90°.

➡ Adjust the viewing angle to different places in the room.

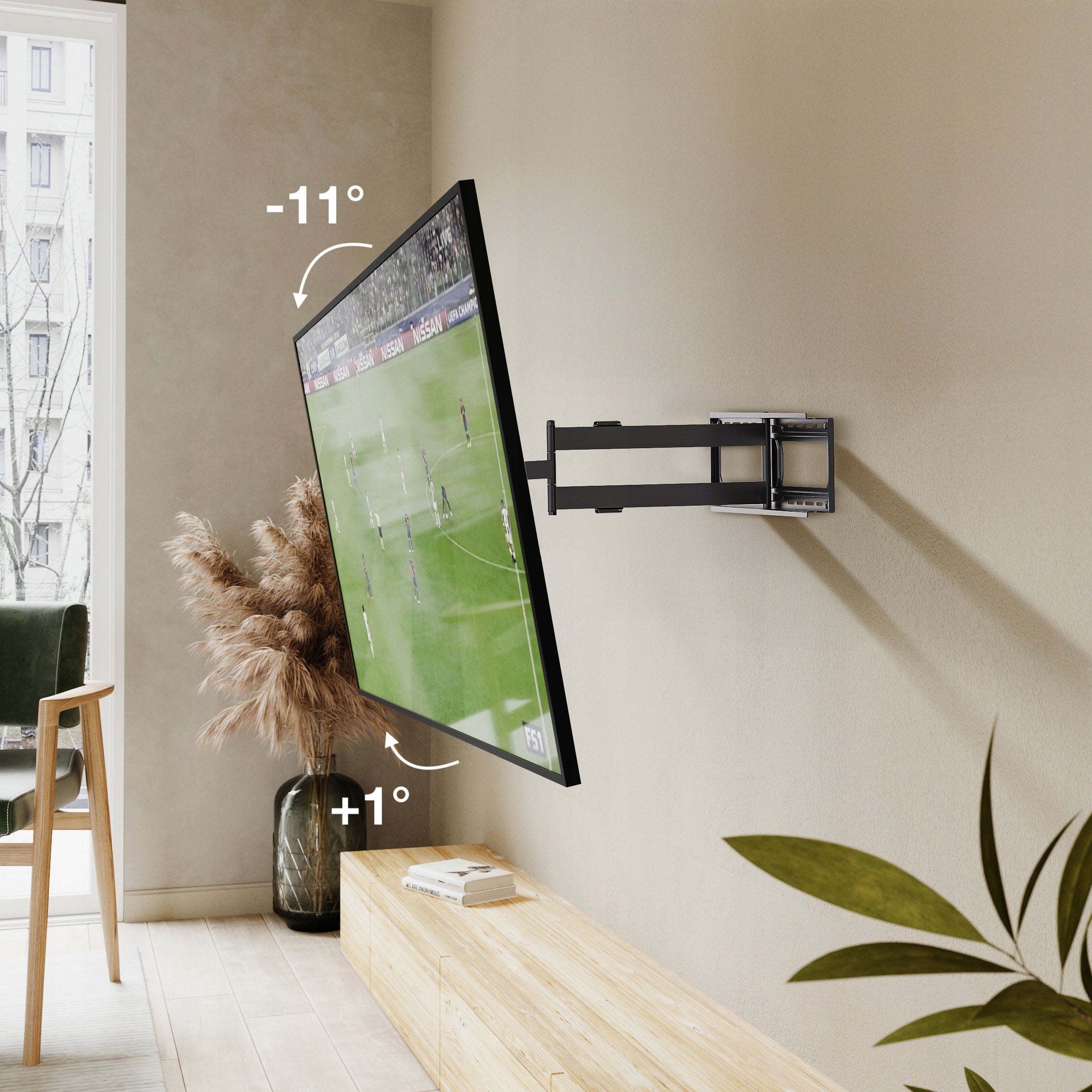

✅ Vertical tilt adjustment

➡ Allows you to tilt the screen up or down from +1° to -11°.

➡ Elimination of light glare improving visibility.

✅ Adjustable distance from wall

➡ Possibility of moving the TV away from the wall in the range of from 86 to 1082 mm

➡ This allows you to easily connect cables or adjust the screen.

✅Screen level correction

➡ This function allows you to move the screen left or right from +3° to -3° degree.

➡ It is helpful when, however, after installation, the screen is not perfectly even.

➡ Correction is simple, it is done with adjustment screws, which can be tightened or loosened.

➡ Adjust the screen setting without having to drill into the wall again.

➡ The screen can be perfectly positioned horizontally, which improves aesthetics and viewing comfort.

Simple mounting of the handle

✅ Thanks to the instructions included in the set, you can easily mount the handle in 15 minutes.

✅ 3-step assembly instructions:

1. Screw the handle plate to the wall
2. Screw the rails to the back of the TV.
3. Hang the TV on the wall.

STANDARD VESA

✅ Compatible with various VESA standards:

➡ MIN: VESA 200x100 mm

➡ MAX: VESA 800x400 mm

➡ And all intermediate values!

✅ Before buying, it is best to check the VESA standard:

➡ Check if the mount fits the mounting holes on your TV. All you have to do is measure the distance between the holes located on the back of the TV - vertically and horizontally, measuring from the center of the holes.

✅ Maximum weight of the TV - 68 kg.

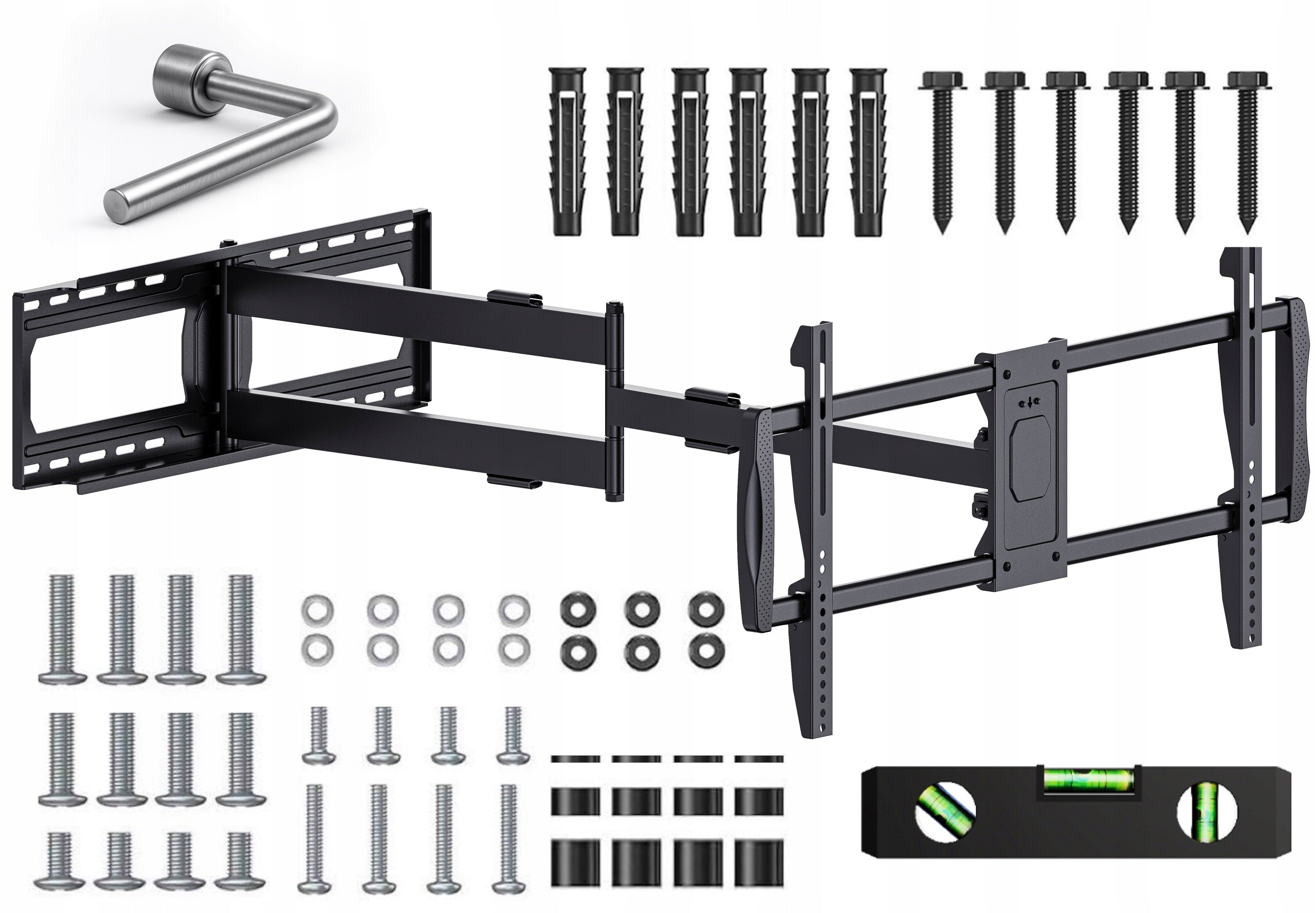

Set equipment:

✅ Handle arm / wall plate x1

✅ Front bracket x1

✅ Cap x2

✅ Mounting plate template x1

✅ Level x1

✅ Socket wrench x1

✅ Brackets x2

✅ Dowels x6

✅ Mounting screws ST8x90mm x6

✅ Screws M6 15mm x4

✅ Screws M6 35mm x4

✅ Screws M8 15mm x4

✅ Screws M8 35mm x4

✅ Screws M8 50mm x4

✅ Washers M6/M8 x4

✅ Distance bushings L2.5mm x8

✅ Distance bushings L10mm x4

✅ Distance bushings L22mm x4

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	Długie ramię 108cm
Parametry	Model	Długie ramię 108cm
Parametry	Maximum TV size	95"
Parametry	Brand	Athletic
Parametry	Maximum load	68 kg
Parametry	Mounting location	wall
Parametry	Product weight with unit packaging	7 kg
Parametry	EAN (GTIN)	5905489745266
Parametry	Packaging status	original
Parametry	Kind	rotating,retractable
Parametry	VESA Standard	200 x 100,200 x 150,200 x 200,200 x 300,300 x 200,300 x 300,300 x 400,400 x 200,400 x 400,600 x 300,600 x 400,800 x 400
