Televizoriaus laikiklis, 32–65", 83 cm, ypač tvirtas

Trumpai apie prekę

Prekė: Televizoriaus laikiklis, 32–65", 83 cm, ypač tvirtas. Kategorija: Rankenos.

• Gamintojas: Vetouson
• Modelis: VX-430A

• ▶ Extra long 83,5 cm handle for TV 32-65 inches
• ▶ Full 90° rotation you will reach for the TV width up to 150 cm !
• ▶ The holder has been tested and checked by our technicians on a load 35kg !
• ✅TV mount with corner installation option. It also allows installation on direct walls.
• ✅Smooth 180° adjustment at 3 points
• ✅Perfect for 32 42 43 48 50 55 58 65 inch TVs
• ✅Handle installation even on 6 pins
• ✅The mount is universal and fits all models of TV, which have VESA mounting hole spacing ranging from 100 x 100 to 600 x 400 mm and weigh up to 35 kg.
• ▶ The holder also fits TVs with a curved housing
• ✅The package includes a full set of mounting accessories (including pegs, screws, washers needed to screw the mount to the wall, and screws and washers needed to screw the TV to the mount)

✅SPECIFICATIONS:

• Version: ▶️PREMIUM
• Model: VX-430
• TV Size: 32"- 65"
• Adjustable Distance from Wall: 5.5 - 83.5 cm
• Maximum TV Weight: Up to 35 kg
• VESA Compatibility (Mounting Hole Pattern): 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x200, 400x200, 300x300, 300x400, 400x300, 400x400, 500x400, 600x400 mm - This mount also supports all intermediate values.
• ▶️Arm Length: Up to 83.5 cm
• Swivel Adjustment (Left/Right): 180° in 3 points
• ▶️Can be positioned perpendicular to the wall!
• Tilt Adjustment (Up/Down): +5° / -12°
• Mounting Error Correction: -4° / +4°
• Wall Mounting: 6 anchors with option for more
• ▶️Cable Management System
• Strong and Solid Construction
• ▶️Full Mounting Hardware Kit Included
• Perfectly Painted Mount - Made with Attention to Detail
• Mount Color: Black

✅Large angle of rotation to the right or left

• Thanks to the long 83,5 cm arms, the handle can be installed at a very large even ▶ 90° angle to the wallsy, as well as in the corner of the room. Of course, it also allows installation on direct walls.
• easily and smoothly set the selected angle of rotation of the TV

✅Handle with full adjustment range

• right/left rotation adjustment: 180° at 3 points
• possibility of setting any position of the TV both very close - 5,5 cm and very far from the wall - 83,5 cm

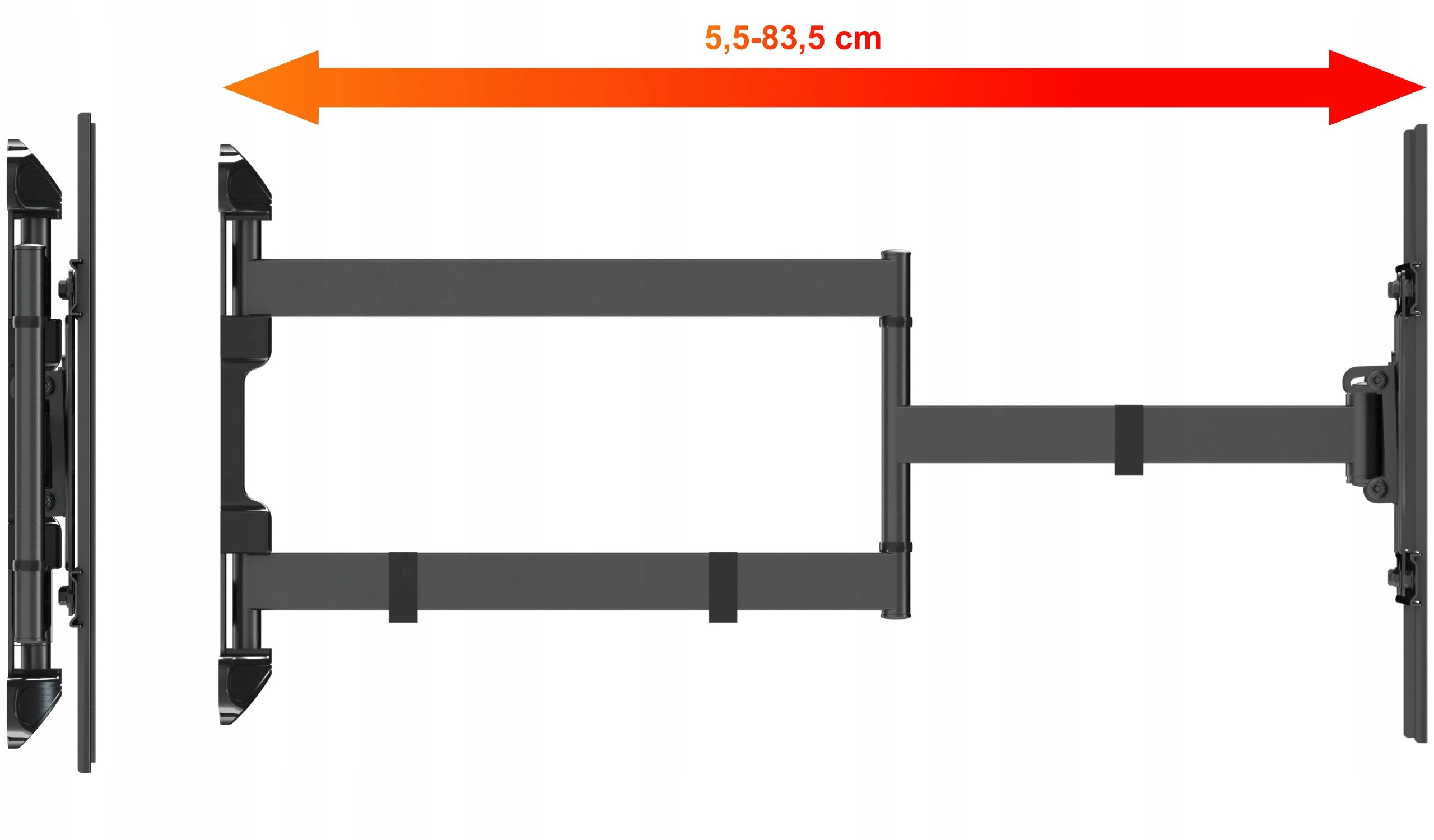

✅Close or far from the wall

• you can set the handle very close - 5,5 cm or very far from the wall - 83,5 cm
• ▶ full 90° that is, the mount perpendicular to the wall of rotation you will reach for a TV with a width of up to 150 cm, i.e. a distance of TVs up to 65 inches!

✅Alternative

If you need to rotate an even larger TV at right angles to the wall, then we offer the model VX-408A with arm 92cm offer no. 11897764199 or VX-531 with arm 107cm offer no. 18234679827

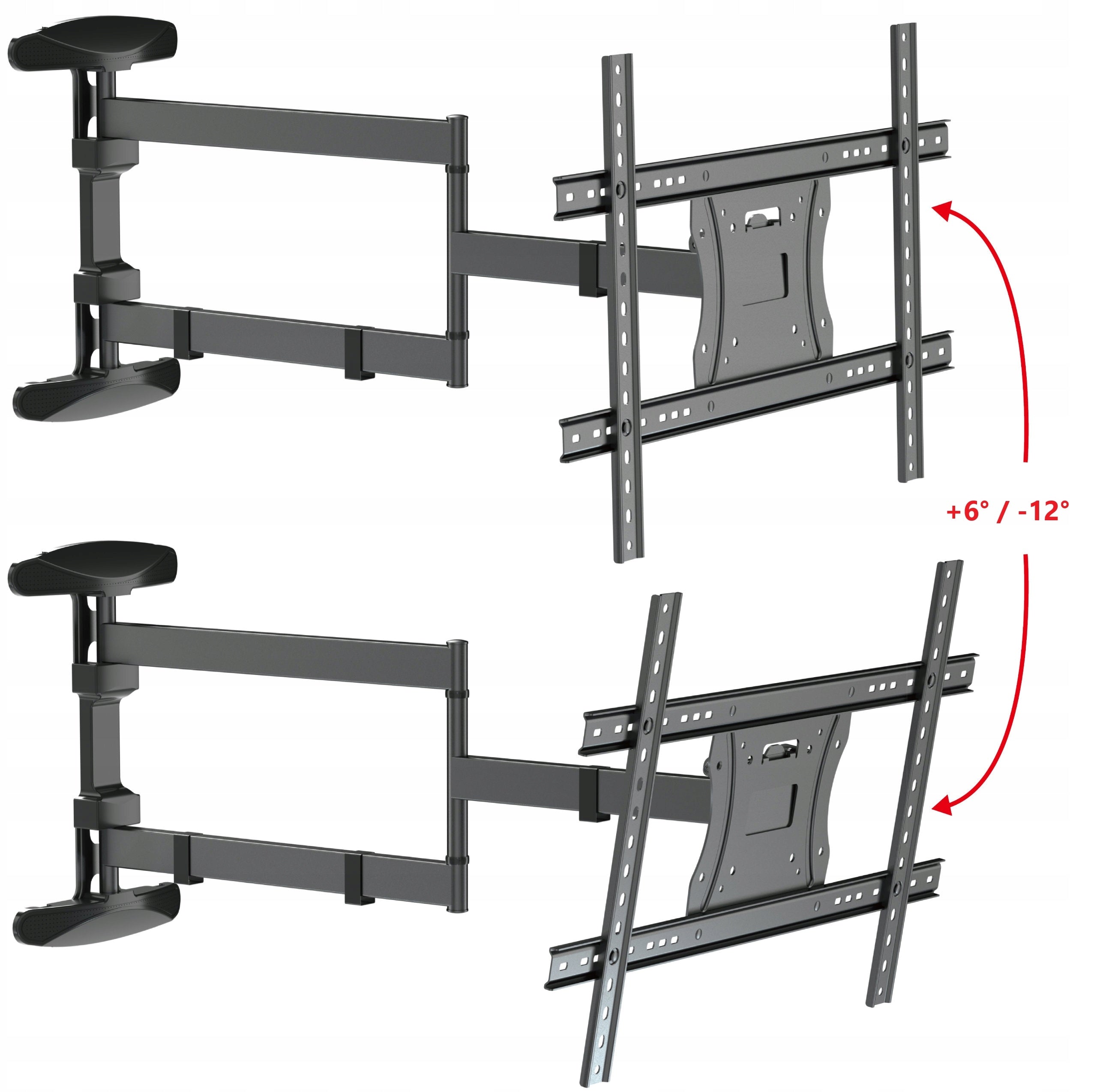

✅Tilt adjustment

• In the handle, you can set the tilt level both up and down in the up/down range: +5° / -12°

✅TESTED at 35kg!

• ▶ The handle has been tested by our technicians on a load of 35 kg!

✅CABLE MANAGEMENT SYSTEM

• Easy management system will allow you to neatly guide cables

✅STRONG - SAFE - ELEGANT

• Robust, durable hardened steel
• Elegant even perfect powder coating

✅Wall plate

• which enables installation on ▶ 6 pins.
• has aesthetic covers covering the screws

✅Universal

• ▶ the mount is universal and can be installed on all the most popular TV brands, in the range of 32-70 inches e.g. ✅ 32 INCHES ✅ 42 INCHES✅ 43 INCHES ✅ 48 INCHES ✅ 50 INCHES ✅ 55 INCHES ✅ 58 INCHES ✅ 60 INCHES ✅65 inches which have VESA mounting hole spacing in the range : 100 x 100 to 600 x 400 mm and weigh up to 35 kg
• VESA 100x100 (horizontal 100mm x vertical 100 mm)
• VESA 200x100 (horizontal 200mm x vertical 100 mm)
• VESA 100x200 (horizontal 100mm x vertical 200 mm)
• VESA 200x200 (horizontal 200mm x vertical 200 mm)
• VESA 200x300 (horizontal 200mm x vertical 300 mm)
• VESA 200x400 (horizontal 200mm x vertical 400 mm)
• VESA 300x200 (horizontal 300mm x vertical 200 mm)
• VESA 300x300 (horizontal 300mm x vertical 300 mm)
• VESA 400x200 (horizontal 400mm x vertical 200 mm)
• VESA 400x400 (horizontal 400mm x vertical 400 mm)
• VESA 500x400 (horizontal 500mm x vertical 400 mm)
• VESA 600x400 (horizontal 600mm x vertical 400 mm)
• and all intermediate values, e.g. 330mm x 350mm
• ▶ handle also fits TVs with curved housing

✅Assembly on two sides to choose from

• The handle can be installed both so that the arm comes out on the right or left side - to choose from.

✅ Allows installation of sockets

• The shape of the wall plate is like profiled that on each side we are able to fit e.g. nest or avoid another obstacle in the wall

✅MOUNTING ERROR CORRECTION SYSTEM

The handle allows you to adjust the level needed, e.g. with inaccurate drilling of holes in the wall in the range of -4° / +4°

Attention!

The mount is designed for users who use a single TV setting. If we use several settings at the same time, e.g. Once the TV is at the wall itself and other times the TV perpendicular to the wall, we are not able to level the TV for both settings at the same time. The handle has a leveling adjustment through 4 screws but for each change of setting a new level adjustment is necessary. Therefore, we offer this mount for people who once set the TV and later do not change its position.

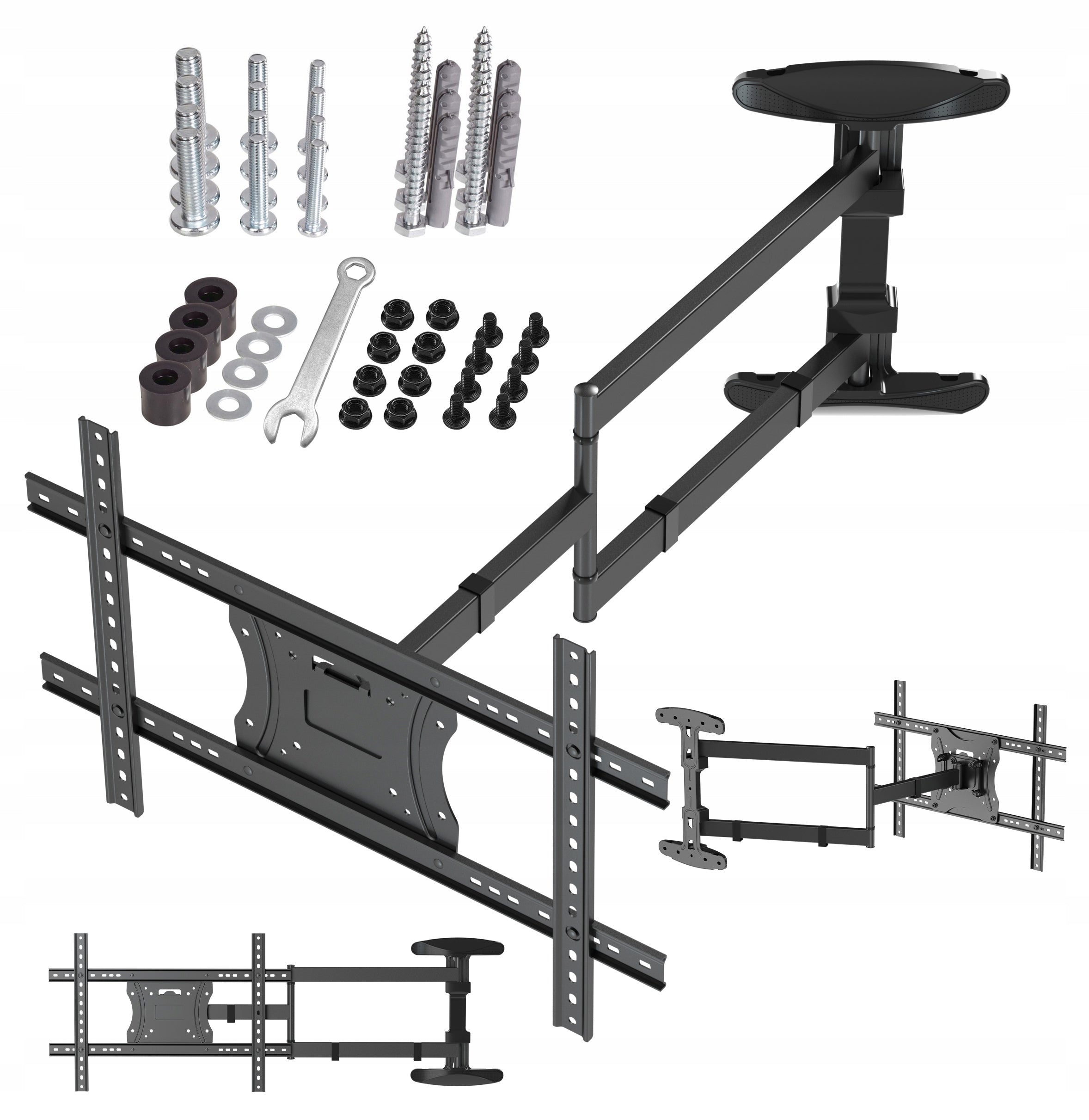

✅SET COMPOSITION

• ▶ handle with necessary mounting accessories

• ▶ simple and intuitive installation
• mounting accessories for wall mount:

• Screws M7X80 6 pcs
• Dowels 10X60 6 pcs
• TV mount mounting accessories:
• Screw for TV/monitor installation M8X16 4 pcs
• (choose the right screw for the holes on your TV)
• Screw for TV/monitor installation M8X25 4 pcs
• Screw for TV/monitor installation M6X25 4pcs
• Screw for TV/monitor installation M5X25 4pcs
• Washers for the above screws 4 pcs
• Plastic bushings 12 mm 4pcs
• instruction in Polish, English and German

Attention. The mount includes a universal set of TV mounting screws that fits most TVs on the market. It may happen that your TV will need other screws, then you need to purchase them on your own.
