Televizoriaus laikiklis, 50 cm, kampinis, tinka 32–60 colių ekranams

Trumpai apie prekę

Prekė: Televizoriaus laikiklis, 50 cm, kampinis, tinka 32–60 colių ekranams. Kategorija: Rankenos.

• Gamintojas: Vetouson
• Modelis: VX-204A 32 42 43 48 50 55 58 cali

• ➡ Long 50cm arm - will allow you to rotate the TV up to 80cm wide perpendicular to the wall
• ➡ SAFE strong hardened steel - construction recommended by TV installers
• ➡ TV mount with corner installation option. It also allows installation on direct walls.
• ➡ Tilt adjustment 15° (up/down), rotation 180° (right/left) and distance from the wall 82-505 mm
• ➡ Installation on up to 6 pins
• ➡ Wide wall plate for even distribution of TV weight
• ➡ It is possible to install both on the right and left side
• ✅The mount is UNIVERSAL and fits all TV models that have VESA mounting hole spacing in the range : from 100x 100 to 400x 400 mm and weigh up to 30 kg
• ✅The mount also fits TVs with a curved housing
• ✅The package includes a full set of mounting accessories (including pegs, screws, washers needed to screw the mount to the wall and screws and washers needed to screw the TV to the mount as well as a level and cable straps)

SPECIFICATIONS:

• ✅Series: PREMIUM
• ✅Model: VX-204
• ✅TV Size: 32 - 60 inches
• ✅Maximum TV Weight: up to 30 kg
• VESA: 100x100, 200x100, 200x200, 200x300, 300x200, 300x300, 400x200, 400x300, 400x400, 200x400, 300x400, 400x400 mm and all intermediate sizes

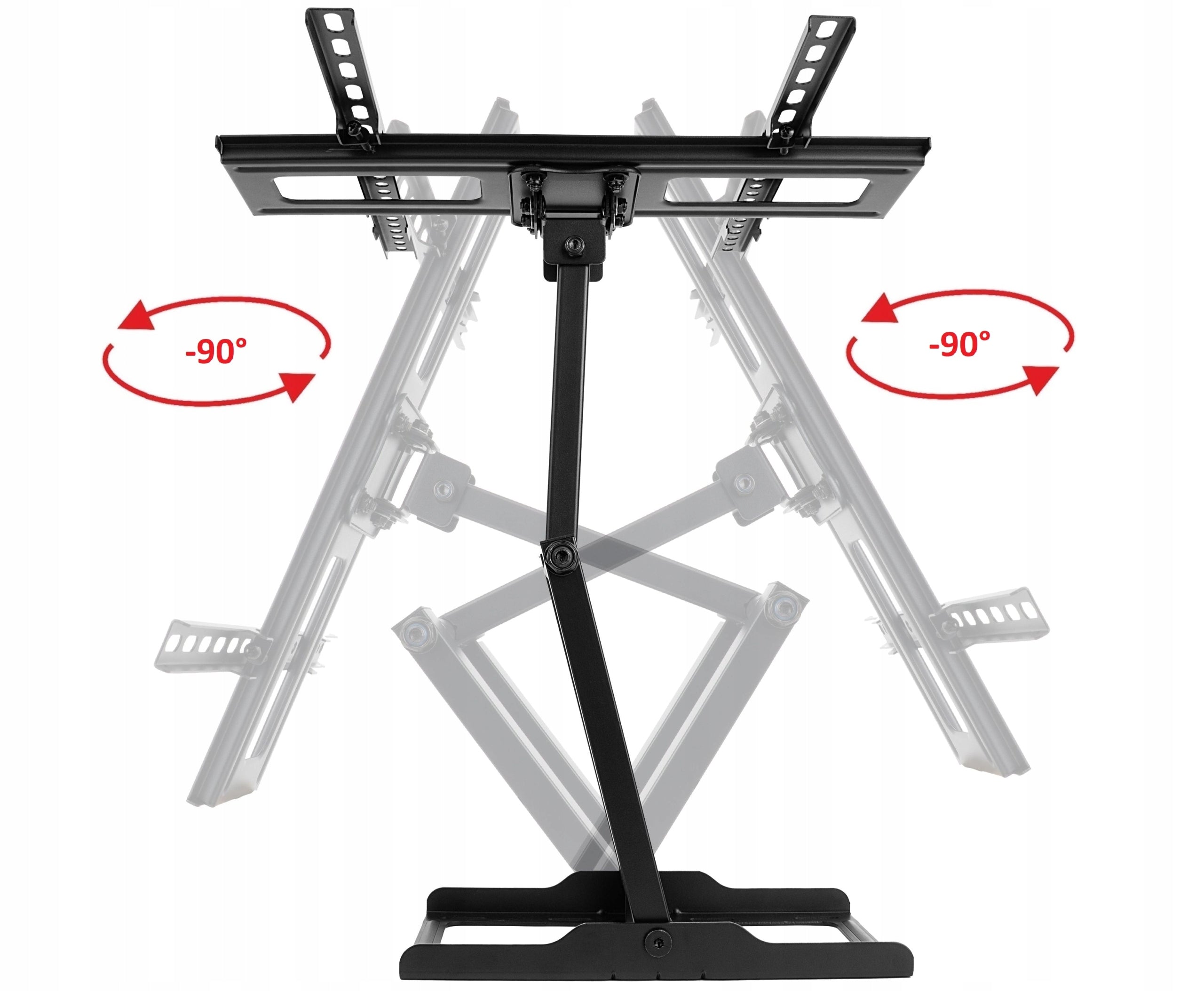

• ➡️Swivel Left/Right: +/-180° with 3 pivot points
• ➡️Mount with corner installation option
• ➡️Tilt Adjustment Up/Down: -15° / +15°
• ➡️Adjustable Wall Distance: 82 - 505mm
• Mounting error correction -5° / + 5°
• Strong and robust construction
• ✅ Full set of mounting accessories - including wall plugs, screws, washers for attaching the mount to the wall, and screws and washers for attaching the TV to the mount, as well as a spirit level and cable ties)
• Mount made with attention to detail
• Color: Black

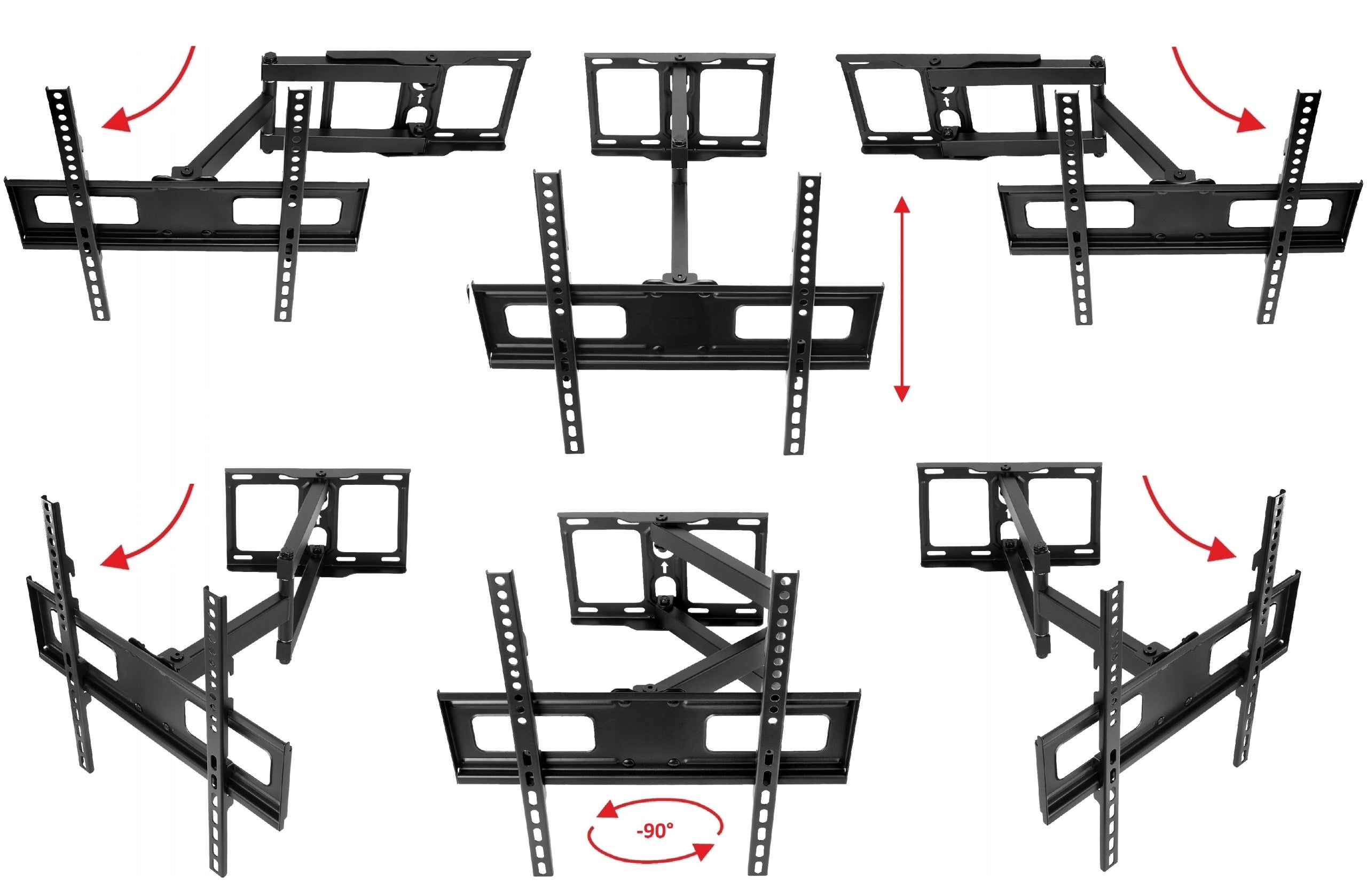

✅Full range of rotary adjustment

• enables corner installation and from any other angle as well as in front of the wall
• adjustment of the distance from the wall in the range of 82-505 mm
• the ability to rotate the handle in the range of +/-180°
• the ability to set any position of the TV both very close and far from the wall
• ➡ full 90° rotation will be achieved for a TV with a width of less than 80 cm (in practice, it will be TVs up to 32 inches)
• If you need a bracket with a longer arm that rotates the larger TV at right angles to the wall, we recommend the following models: VX-200 to 42 and 43 inches Offer number: 11446102491, VX-408 to 50 55 58 65 inches Offer number: 11897764199 or VX-530 Offer number 16872619509

✅DESTINATION

• The handle is universal and can be installed on all the most popular TV brands, which have VESA mounting hole spacing in the range : 100x 100 to 400x 400 mm and weigh up to 30 kg
• VESA standard - universal
• ➡ The holder also fits TVs with a curved housing
• recommend especially for TV 26 inches, 32 inches, 42 inches , 43 inches 48 inches, 50 inches, 55 inches

✅Close or far from the wall

• adjustment of the distance from the wall in the range of 82-505 mm
• the ability to rotate the handle in the range of +/-180°
• the ability to set any position of the TV both very close and far from the wall

✅Corner Holder

• Rooms where it is necessary to rotate the TV by a significant angle, e.g. 90 degrees or the need for a significant distance of the TV
• The holder allows you to achieve a large angle of rotation, and for TVs narrower than ➡ 80cm even a full 90 degree rotation relative to the wall
• The mount allows you to significantly distance the TV from the wall up to 50cm, e.g. to set a better TV position
• The handle can be installed both in front of the wall and in the corner (thanks to the long arm)

✅Cable management system

• The holder in the set has special cable straps so they can be fastened to organize

✅Up/down and right/left adjustment

• up/down tilt adjustment: -15° / +15°
• the ability to rotate the handle at three points in the range of +/-180°

✅Sturdiness and Safety

• Made of thick tempered steel
• Elegant powder coating
• Wide wall plate ensuring even weight distribution of the TV and mounting with up to 8 anchors
• The mount includes a mechanical lock to prevent the TV from accidentally falling off

✅Assembly on two sides to choose from

• The handle can be installed both so that the arm comes out on the right or left side - to choose from - of course these are just two of the many options for setting

✅Handle leveling

• The handle allows you to adjust the level in the range of -5° / +5° needed e.g. when not very accurate drilling holes in the wall or if under the influence of weight the handle will hang.

➡ Important!!! The mount is designed for users who use only one TV setting. If we use several settings at the same time, e.g. Once the TV is at the wall itself and other times the TV perpendicular to the wall, we are not able to level the TV for both settings at the same time. The handle has adjustment of leveling through screws but every time you change the setting, a new level adjustment is necessary. Therefore, we offer this mount for people who once set the TV and later do not change its position.

✅Wide wall plate that evenly distributes the weight of the TV

• If you already have your new TV, you know that it is really large, which is why a wide wall plate is so important that it will allow you to install the holder even on 8 (mounting set contains 4 studs) studs, ensuring even distribution of its weight on the wall - this is especially important for not too massive and strong walls

The VESA standard specifies the spacing of the four mounting holes on the back of the TV. The location of these holes depends on the make, model and size of the screen. Dimensions are given in millimeters: the first dimension determines the distance between the holes horizontally (left - right), and the second dimension is the distance between the holes vertically (upper - lower).

Information on the VESA compatibility of the TV can be found in the user manual or on the manufacturer’s website. You can also check and measure the hole spacing yourself.

EXAMPLE

Next to it is an example photo of a TV with a hole spacing VESA 300x300. The distance between horizontal and vertical holes is 300mm.

✅Set any TV position

• Close or very far from the wall
• Very long 505 mm arm - will allow you to rotate the TV by any angle lun its offset from the wall. The rotation of the TV will no longer be blocked by too short an arm.

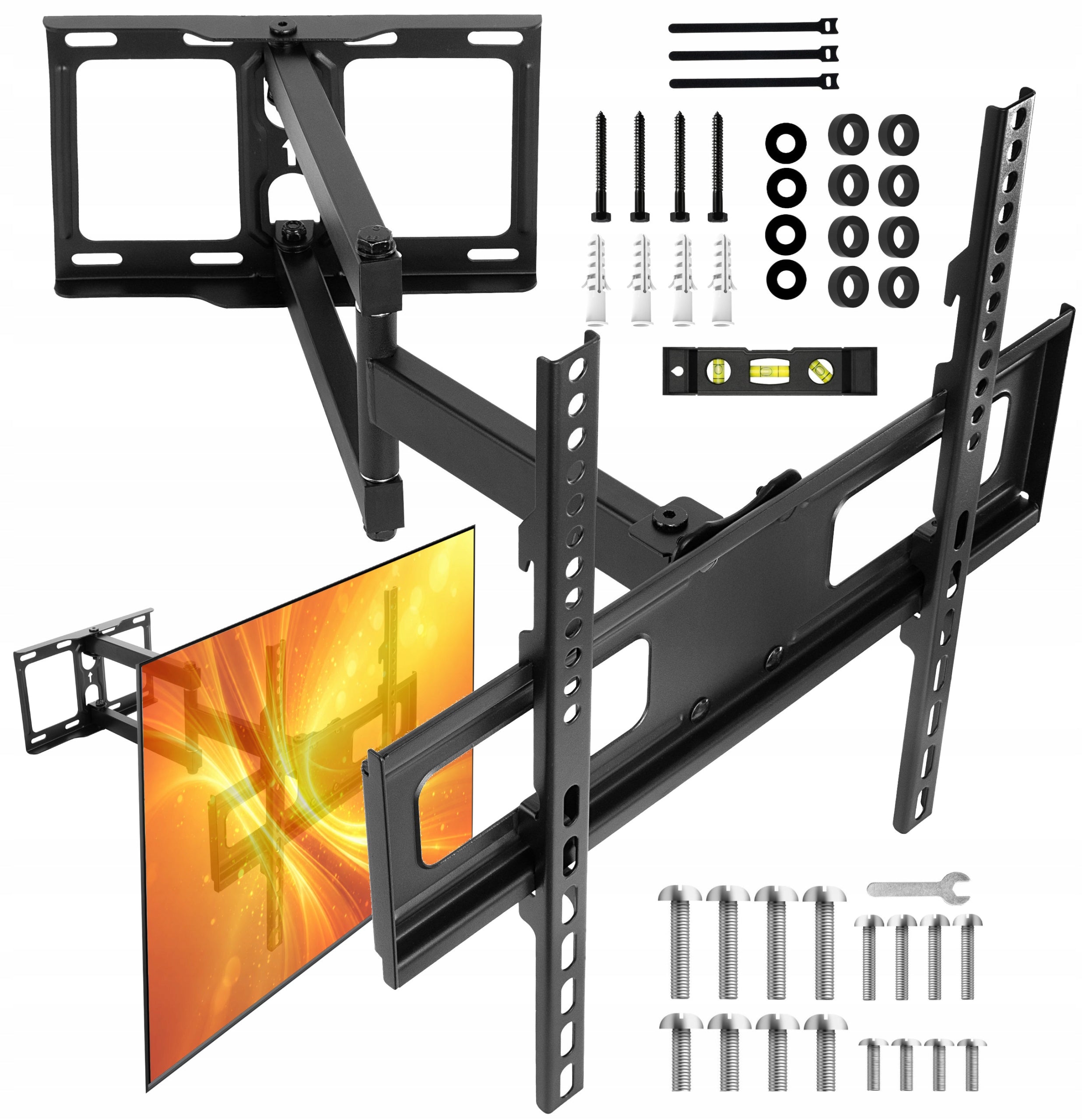

✅SET COMPOSITION

• ➡ handle with necessary mounting accessories
• ➡ simple and intuitive installation
• mounting accessories for wall mount:

• Screws 4 pcs
• Dowels 4 pcs
• Washers for studs/screws 4pcs
• TV mount mounting accessories:
• Screw for TV/monitor installation M4X12 4 pcs (choose the screw suitable for the holes in your TV)
• Screw for TV/monitor installation M4X30 4 pcs
• Screw for TV/monitor installation M6X30 4 pcs
• Screw for TV/monitor installation M6X15 4 pcs
• Screw for TV/monitor installation M8X20 4 pcs
• Screw for TV/monitor installation M8X50 4 pcs
• Screw washers M5/M6/M8 for the above screws 4 pcs
• Bushing/distance 5mm 8 pcs, 10mm 8 pcs - for TVs with recessed mounting holes
• instruction in Polish

The mount includes a universal set of TV mounting screws that fits most TVs on the market. It may happen that your TV will need other screws, then you need to purchase them on your own.
