Televizoriaus laikiklis, 61 cm, tinkamas 26–60 colių kampiniams televizoriams

Trumpai apie prekę

Prekė: Televizoriaus laikiklis, 61 cm, tinkamas 26–60 colių kampiniams televizoriams. Kategorija: Rankenos.

• Gamintojas: Vetouson
• Modelis: VX-420 Długi 72cm Wieszak TV

• ▶️Extra-long 61cm arm for 32-60 inch TVs
• ✅Achieve a full 90° swivel even with TVs up to 106cm wide!
• ▶️This mount has been tested by our technicians with a load of 30kg!

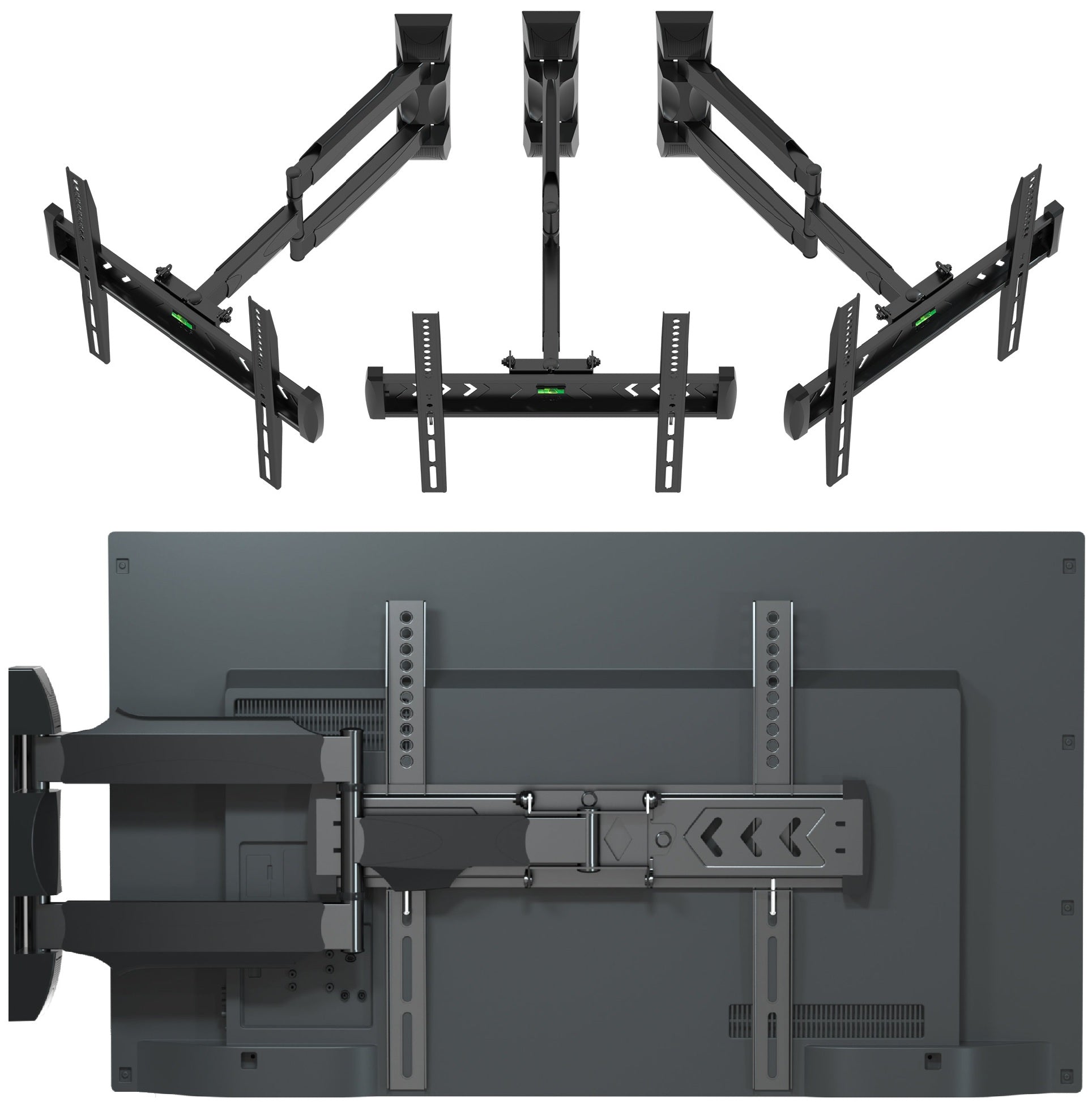

• ✅TV mount with the option for corner installation. Can also be installed directly on a wall.
• ✅Smooth 180° adjustment in 3 points
• ✅Narrow wall plate - allows installation even when you need to fit it next to a power outlet, on a pole, or on a narrow wall.
• ✅Allows installation with up to 5 wall anchors
• ✅This mount is universal and fits all TV models with VESA mounting hole patterns ranging from 75 x 75 to 400 x 400 mm and weighing up to 30 kg.
• ▶️Also suitable for TVs with curved backs
• ✅Package includes a full set of mounting accessories (including wall anchors, screws, washers needed to attach the mount to the wall, and screws and washers needed to attach the TV to the mount, as well as a spirit level)

✅SPECIFICATIONS:

• Model: VX-420X
• TV size: 26"- 60"
• Adjustable distance from the wall: 6.5 - 61 cm
• Maximum TV weight: up to 30 kg
• VESA (mounting hole pattern on the TV): 75x75, 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x200, 400x200, 300x300, 300x400, 400x300, 400x400 mm - also compatible with all intermediate values
• ▶️Arm length: a full 61 cm

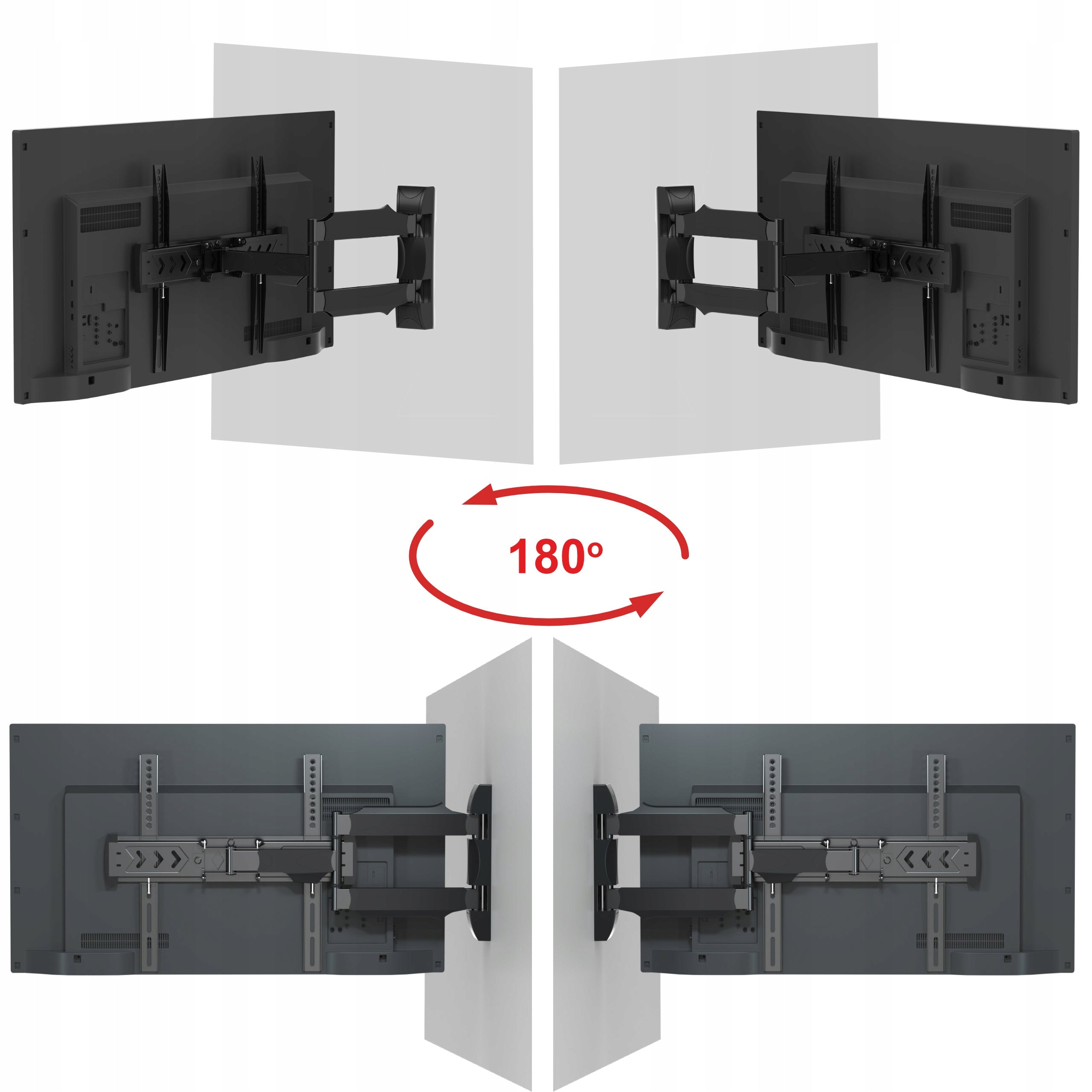

• Swivel adjustment left/right: 180° in 3 points
• ▶️Can be positioned perpendicular to the wall!
• Tilt adjustment up/down: +5° / -8°
• Mounting error correction: -3° / +3°
• Wall mounting with 5 anchors, with option for more
• ▶️Cable management system
• Strong and solid construction
• ▶️Full set of mounting accessories
• Perfectly lacquered mount - made with attention to detail
• Mount color: black

✅Handle with full adjustment range

• right/left rotation adjustment: 180° at 3 points
• the ability to set any position of the TV both very close - 6,5 cm and very far from the wall - 61 cm

✅Large angle of rotation to the right or left

• Thanks to the long 61 cm arms, the handle can be installed at a very large even ▶ 90° angle to the wallsy, as well as in the corner of the room. Of course, it also allows installation on direct walls.
• easily and smoothly set the selected angle of rotation of the TV

✅Close or far from the wall

• You can set the handle very close - 6,5 cm or very far from the wall - 61 cm
• ▶ full 90° that is, the handle perpendicular to the wall of rotation you will reach for a TV with a width of up to 106 cm, i.e. a distance of TVs up to 48 inches!

✅Alternative

If you need to rotate a larger TV at right angles to the wall, e.g. 50 55 58 65 inches then we offer model VX-408A with arm 92cm offer no. 11897764199 or VX-531 with arm 107cm offer no. 18234679827

✅Tilt adjustment

• In the handle, you can set the tilt level both up and down in the up/down range: +5° / -8°

✅TESTED for 30kg!

• ▶ The holder has been tested by our technicians on a load of 30 kg!

✅CABLE MANAGEMENT SYSTEM

• Easy management system will allow you to neatly guide cables

✅STRONG - SAFE - ELEGANT

• Robust, durable hardened steel
• Elegant even perfect powder coating

✅Narrow wall plate

• which allows installation when you need to fit a power socket next to it or on a pole or narrow wall

✅Assembly on two sides to choose from

• The handle can be installed both so that the arm comes out on the right or left side - to choose from.

✅Universal

• ▶ mount is universal and can be installed on all the most popular TV brands, in the range of 32-60 inches e.g. ✅ 32 INCHES ✅ 42 INCHES✅ 43 INCHES ✅ 48 INCHES ✅ 50 INCHES ✅ 55 INCHES ✅ 58 INCHES ✅ 60 INCHES which have VESA mounting hole spacing in the range : 75 x 75 to 400 x 400 mm and weigh up to 30 kg
• VESA 75x75 (horizontal 75mm x vertical 75 mm)
• VESA 100x100 (horizontal 100mm x vertical 100 mm)
• VESA 200x100 (horizontal 200mm x vertical 100 mm)
• VESA 100x200 (horizontal 100mm x vertical 200 mm)
• VESA 200x200 (horizontal 200mm x vertical 200 mm)
• VESA 200x300 (horizontal 200mm x vertical 300 mm)
• VESA 200x400 (horizontal 200mm x vertical 400 mm)
• VESA 300x200 (horizontal 300mm x vertical 200 mm)
• VESA 300x300 (horizontal 300mm x vertical 300 mm)
• VESA 400x200 (horizontal 400mm x vertical 200 mm)
• VESA 400x400 (horizontal 400mm x vertical 400 mm)
• and all intermediate values, e.g. 330mm x 350mm
• ➡ handle also fits TVs with curved housing

✅MOUNTING ERROR CORRECTION SYSTEM

The handle allows you to adjust the level needed, e.g. with inaccurate drilling of holes in the wall in the range of -3° / +3°

Attention!

The mount is designed for users who use a single TV setting. If we use several settings at the same time, e.g. Once the TV is at the wall itself and other times the TV perpendicular to the wall, we are not able to level the TV for both settings at the same time. The handle has a leveling adjustment through 4 screws but for each change of setting a new level adjustment is necessary. Therefore, we offer this mount for people who once set the TV and later do not change its position.

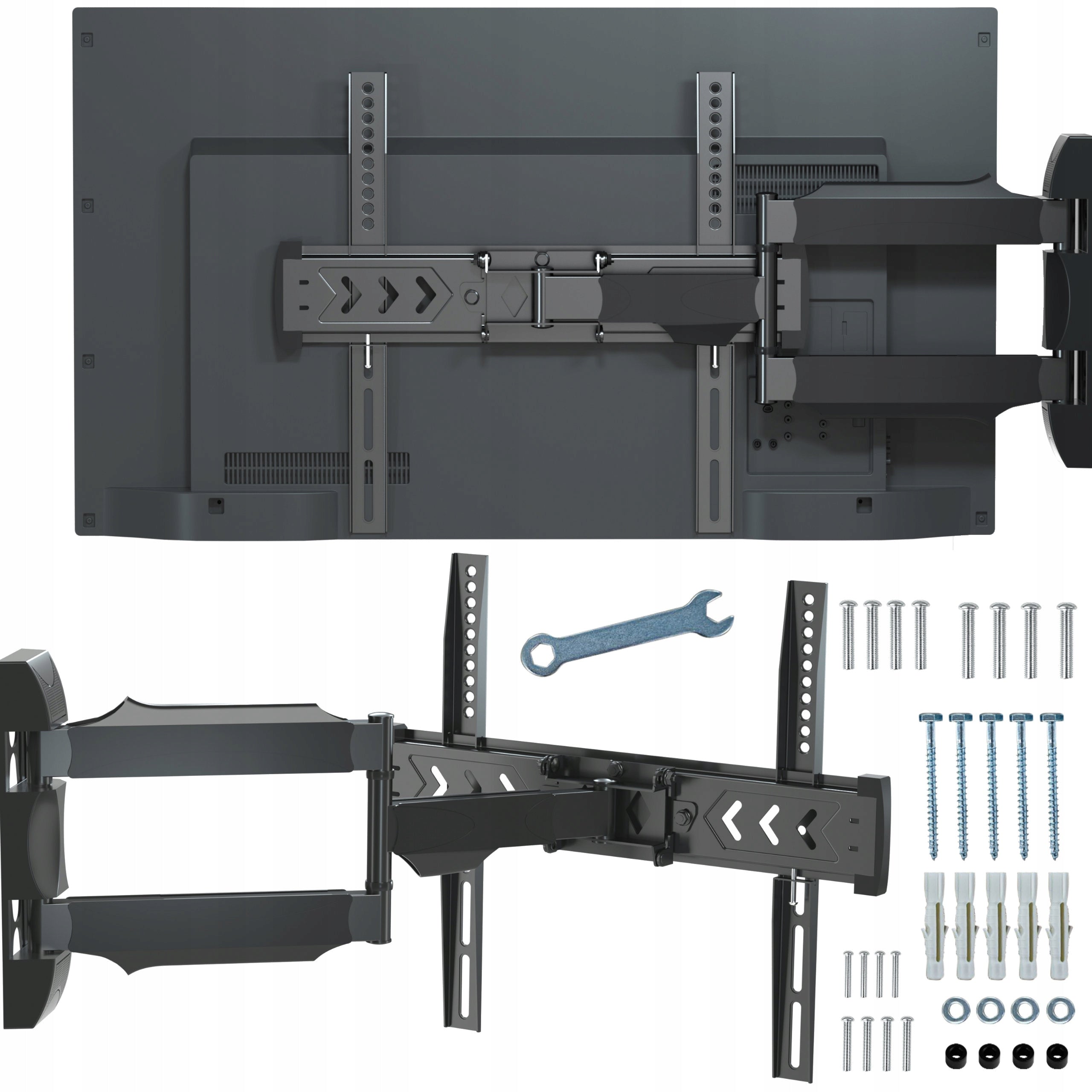

✅SET COMPOSITION

• ➡ handle with necessary mounting accessories
• ➡ simple and intuitive installation
• mounting accessories for wall mount:

• Screws M7X80 5 pcs
• Dowels 10X7X60 5 pcs
• TV mount mounting accessories:
• Screw for TV/monitor installation M8X25 4 pcs
• Screw for TV/monitor installation M6X25 4pcs
• Screw for TV/monitor installation M5X25 4pcs
• Screw for TV/monitor installation M4X25 4pcs
• Washers for the above screws 4 pcs
• Plastic bushings 4pcs
• instruction in Polish, English and German

Attention. The mount includes a universal set of TV mounting screws that fits most TVs on the market. It may happen that your TV will need other screws, then you need to purchase them on your own.
