Televizoriaus laikiklis, 92 cm ilgio, tvirtas, tinkamas 50–65" TV

Trumpai apie prekę

Prekė: Televizoriaus laikiklis, 92 cm ilgio, tvirtas, tinkamas 50–65" TV. Kategorija: Rankenos.

• Gamintojas: Vetouson
• Modelis: VX-408A

• ▶ STRONG and SAFE design recommended by installers of TVs
• ▶ Extra long 92 cm swivel arm
• ▶ You can reach a full 90° turn for a TV up to 170 cm wide!
• ▶ The handle has been tested and verified by our technicians on a load of 40kg!
• ✅TV mount with corner installation option. It also allows installation on direct walls.
• ✅Smooth 180° adjustment at 3 points
• ✅Tilt adjustment 15° (up/down), rotation 180° at 3 points (right/left) and distance from the wall 80-920 mm
• ✅Wide wall plate for even distribution of TV weight
• ✅ The holder is universal and fits all TV models that have a VESA mounting hole spacing in the range of 100 x 200 to 400 x 400 mm and weigh up to 40 kg.
• ▶ The holder also fits TVs with a curved housing
• ✅Wide wall plate guaranteeing even distribution of the weight of the TV on the wall which will allow, if necessary, to install the mount on up to 5 or more studs
• ✅The package includes a full set of mounting accessories (including pegs, screws, washers needed to screw the mount to the wall and screws and washers needed to screw the TV to the mount as well as a template to draw holes on the wall)
• ▶ Product presentation is available in a short video at (copy the link to your browser) https://www.youtube.com/watch?v=oKJlNvPURac

✅ SPECIFICATIONS:

• ▶ series: PREMIUM
• ✅model: VX-408A
• ✅TV size: 26"- 65"
• ✅adjustable distance from the wall: 80 - 920 mm
• ✅maximum TV weight: up to 40 kg
• universal VESA spacing, i.e. spacing of mounting holes in the TV: 100x200, 200x100, 200x200, 200x300, 200x400, 300x200, 400x200, 300x300, 300x400, 400x300, 400x400 mm - the holder also fits all intermediate values in the range of 100x200 to 400x400 mm
• ▶ shoulder length is up to 92 cm
• right/left rotation adjustment: 180° at 3 points
• up/down tilt adjustment: +5° / -10°
• correction of assembly errors: -5° / +5°
• wall mounting on 5 studs with option for more
• cable management system
• strong and robust construction
• full set of accessories for mounting including template to draw holes in the wall
• handle perfectly varnished - made with attention to detail
• handle color: black

✅Handle with full adjustment range

• right/left rotation adjustment: 180° at 3 points

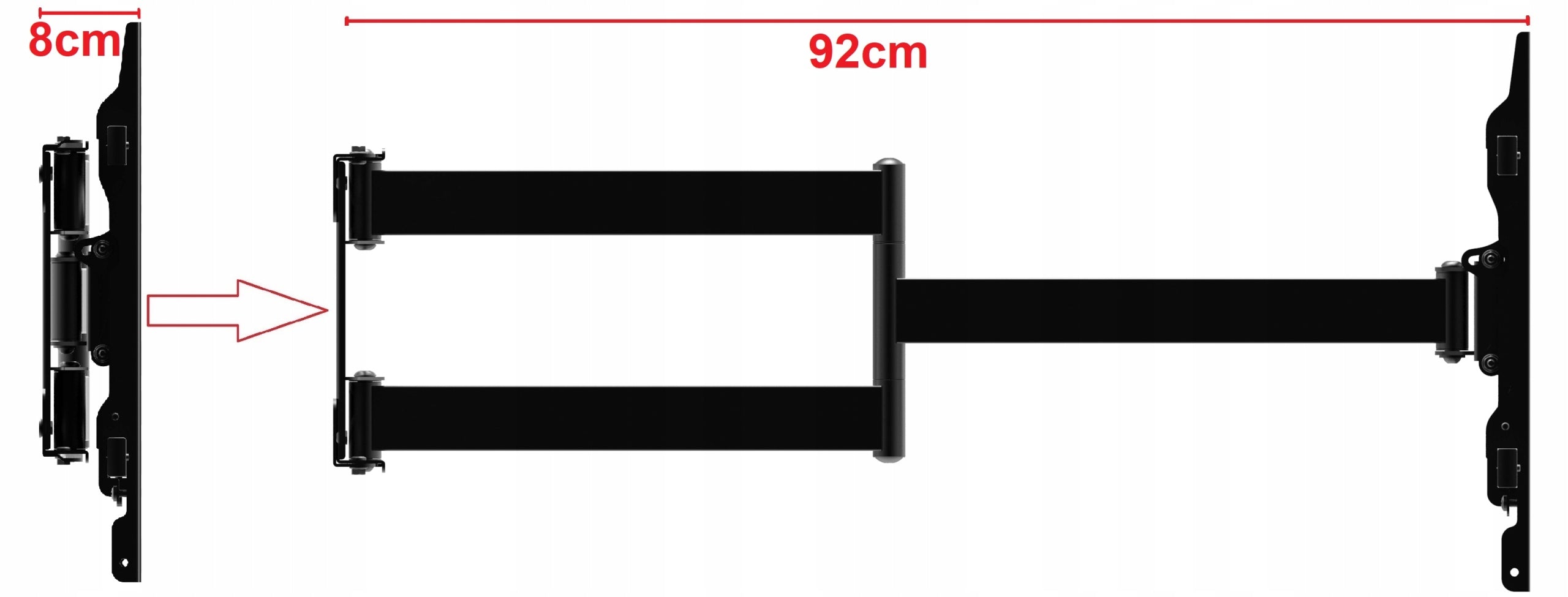

• the ability to set any position of the TV both very close - 8 cm and very far from the wall - 92 cm

✅Tilt adjustment

• In the handle, you can set the tilt level both up and down in the up/down range: +5° / -10°

✅Close or far from the wall

• handle set very close - 8 cm or very far from the wall - 92 cm

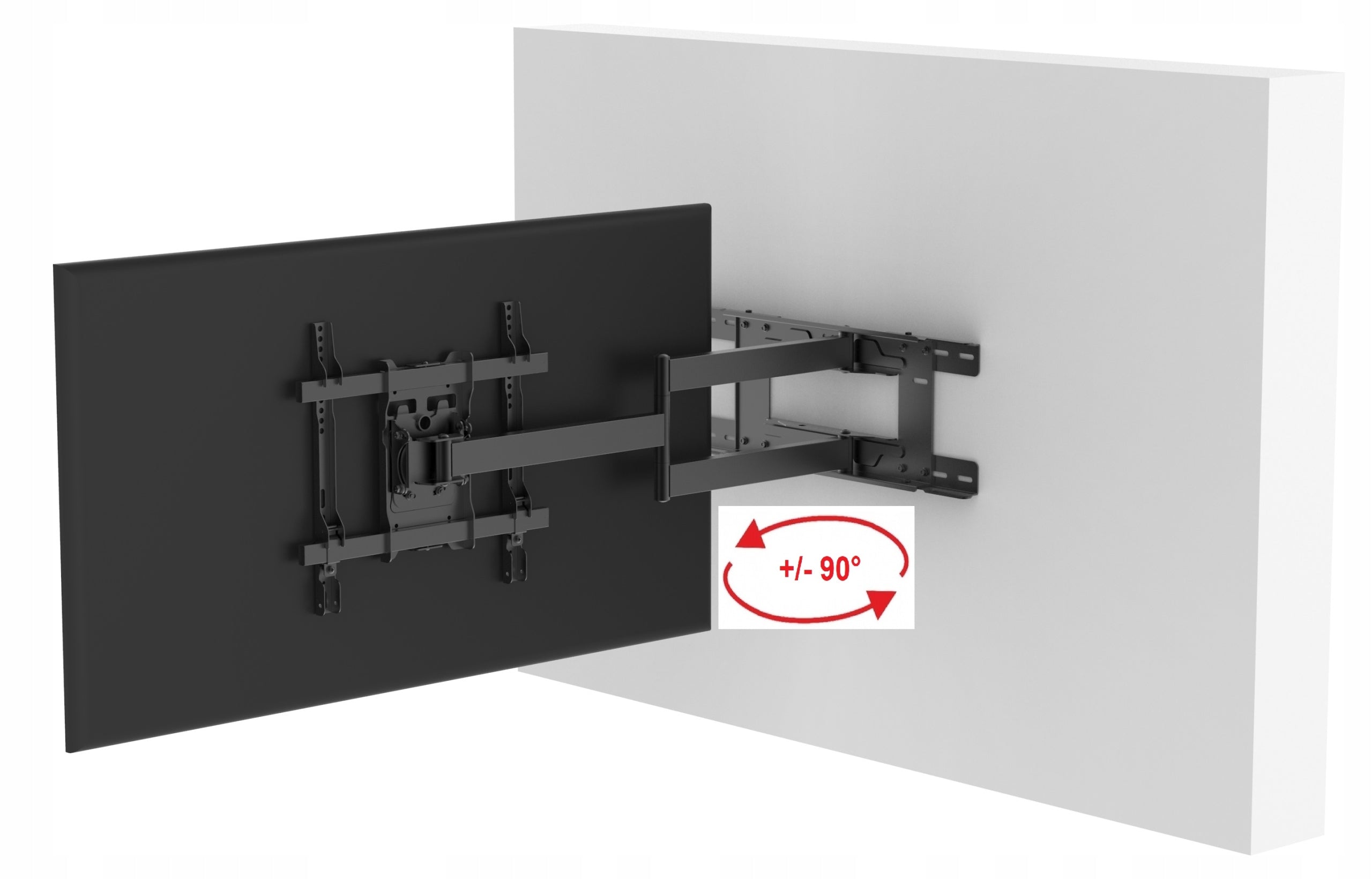

• full 90° or a handle perpendicular to the wall of rotation you will reach for a TV with a width of up to 170 cm !

✅Large angle of rotation to the right or left

• Thanks to the long 92 cm arms, the handle can be installed at a very large even ▶ 90° angle to the wallsy, as well as in the corner of the room. Of course, it also allows installation on direct walls.
• easily and smoothly set the selected angle of rotation of the TV

✅TESTED at 40kg!

• ▶ The holder has been tested by our technicians on a load of 40 kg for a period of 12 months - so we can assure you of its highest quality!
• ▶ This holder has been in our offer for 3 years and its quality is also evidenced by thousands of positive comments and satisfied customers

✅ DESTINY

• Perfect for living room, room or office
• will also fit perfectly in public places such as companies, restaurants, offices, lecture halls

▶ ▶ ▶ Product presentation video

• is available at (copy the link to your browser)
• https://www.youtube.com/watch?v=oKJlNvPURac

✅CABLE MANAGEMENT SYSTEM

• Easy cable management system will allow you to neatly guide cables
• The set includes special wide Velcro straps that can be easily and anywhere fastened with cables

✅Universal

• ▶ mount is universal and can be installed on all the most popular TV brands, in the range of 40-90 inches e.g. ✅ 32 INCHES ✅ 43 INCHES ✅ 50 INCHES ✅ 55 INCHES ✅ 58 INCHES ✅ 65 INCHES which have VESA mounting hole spacing in the range : 100 x 200 to 400 x 400 mm and weigh up to 40 kg
• VESA 100x200 (horizontal 100mm x vertical 200 mm)
• VESA 200x100 (horizontal 200mm x vertical 100 mm)
• VESA 200x200 (horizontal 200mm x vertical 200 mm)
• VESA 200x300 (horizontal 200mm x vertical 300 mm)
• VESA 200x400 (horizontal 200mm x vertical 400 mm)
• VESA 300x200 (horizontal 300mm x vertical 200 mm)
• VESA 300x300 (horizontal 300mm x vertical 300 mm)
• VESA 400x200 (horizontal 400mm x vertical 200 mm)
• VESA 400x400 (horizontal 400mm x vertical 400 mm)
• and all intermediate values, e.g. 330mm x 350mm
• ▶ handle also fits TVs with curved housing

✅STRONG - SAFE - ELEGANT

• Robust, durable hardened steel
• Elegant even perfect powder coating
• Double arms guarantee complete safety

✅Wide wall plate that evenly distributes the weight of the TV

• If you already have your new TV, you know that it is really large, which is why a wide wall plate is so important that it will allow you to install the holder on ▶ 5 and more studs if necessary, ensuring even distribution of its weight
• The wall plate consists of a main board with dimensions of 455 x 255 mm with the option of its ▶ extension by 200 mm thanks to additional plates - this option can be used but does not need to be used and whether we decide on it depends on the person mounting the handle

✅MOUNTING ERROR CORRECTION SYSTEM

The handle allows you to adjust the level needed, e.g. with inaccurate drilling of holes in the wall in the range of -5° / +5°

Note!

The mount is designed for users who use a single TV setting. If we use several settings at the same time, e.g. Once the TV is at the wall itself and other times the TV perpendicular to the wall, we are not able to level the TV for both settings at the same time. The handle has a leveling adjustment through 4 screws but for each change of setting a new level adjustment is necessary. Therefore, we offer this mount for people who once set the TV and later do not change its position.

✅Assembly on two sides to choose from

• The handle can be installed both so that the arm comes out on the right or left side - to choose from. If you need to change sides, unscrew the two screws and fasten the handle to the other side.

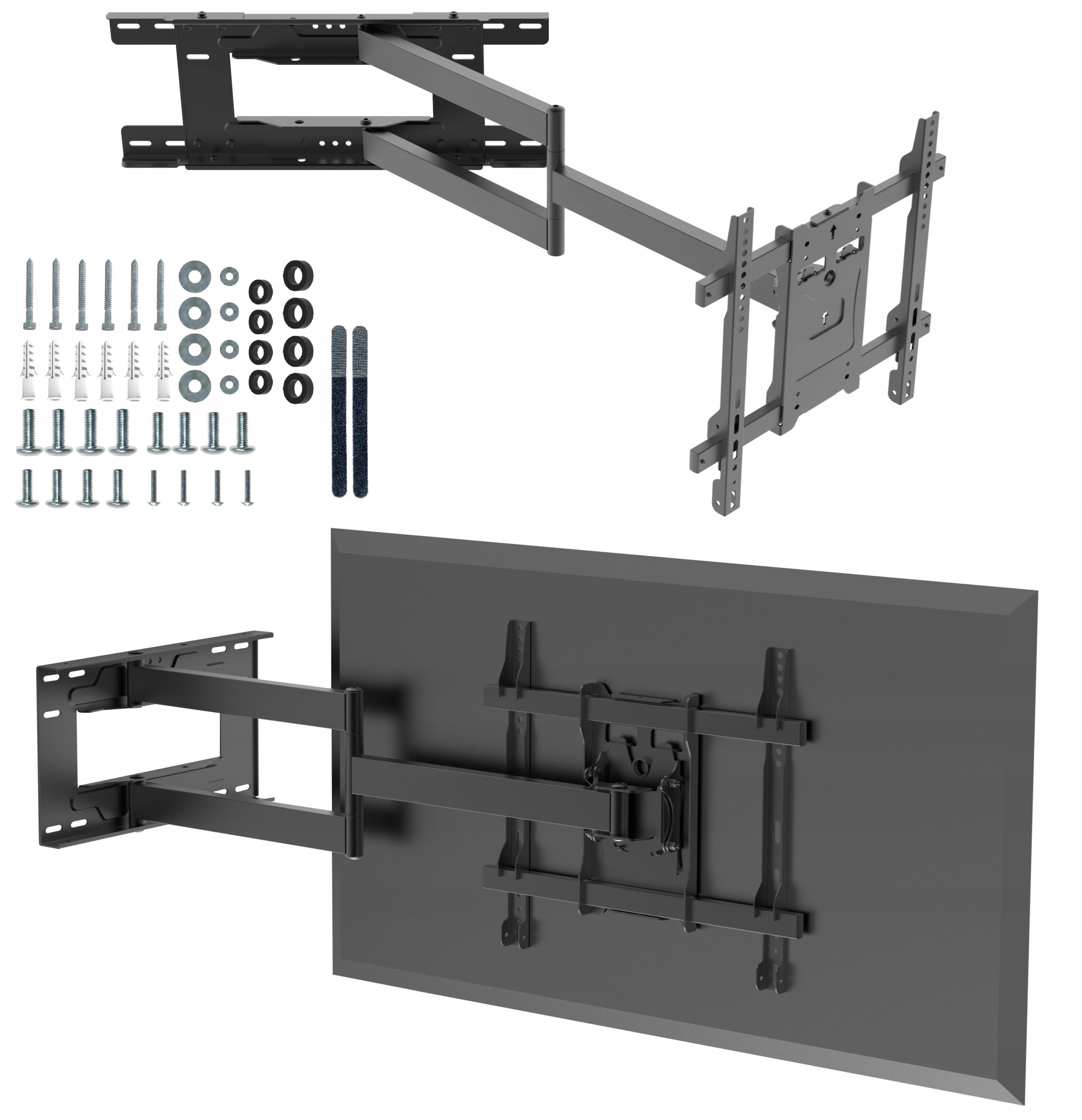

✅SET COMPOSITION

• ▶ ▶ ▶ Product presentation and assembly method is available in a short instructional video at the address (copy the link to the browser)
• https://www.youtube.com/watch?v=oKJlNvPURac

• ▶ handle with necessary mounting accessories
• ▶ simple and intuitive installation
• mounting accessories for wall mount:

• Screws M8X60 5 pcs
• Dowels M10X50 5 pcs
• TV mount mounting accessories:
• Screw for TV/monitor installation M4X14 4 pcs (choose the screw suitable for the holes in your TV)
• Screw for TV/monitor installation M6X14 4 pcs
• Screw for TV/monitor installation M6X30 4 pcs
• Screw for TV/monitor installation M8X20 4pcs
• Screw for TV/monitor installation M8X45 4pcs
• Washers for the above screws 4 pcs
• Plastic bushings 5 mm
• Plastic bushings 15 mm
• Screws for organizing wires 2pcs.
• Template for drawing holes on the wall
• Instruction in Polish, English and German

Attention. The mount includes a universal set of TV mounting screws that fits most TVs on the market. It may happen that your TV will need other screws, then you need to purchase them on your own.
