Aprašymas
Trumpai apie prekę
Prekė: Televizoriaus laikiklis Arcen, 32–55. Kategorija: Rankenos.
- Gamintojas: Ergosolid
- Modelis: Arcen

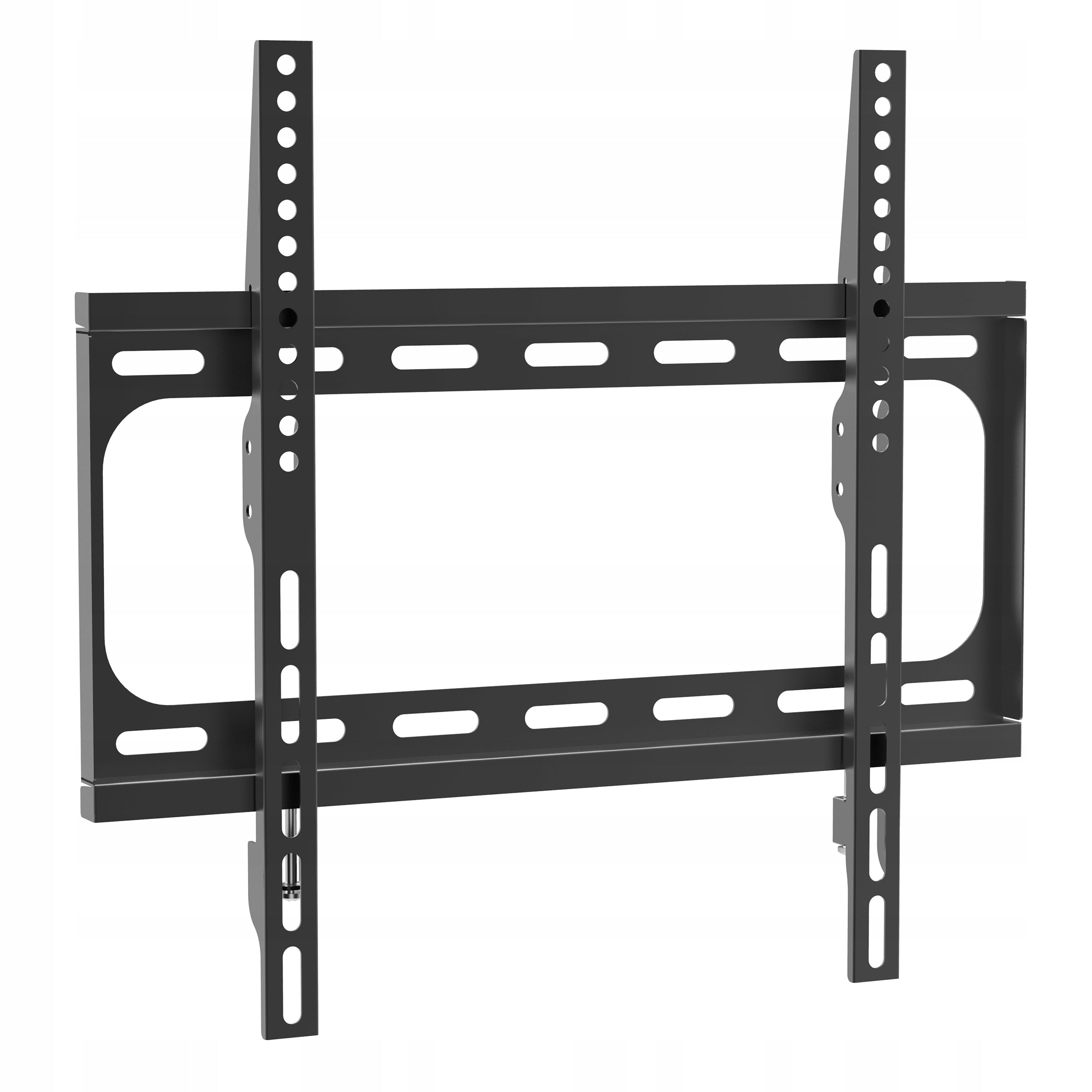

Flat Wall Mount for LCD LED Monitors and TVs
- TV size: 32"-55"
- maximum TV weight: 30 kg
- VESA: 75x750 ~ 400x400 mm
- distance from wall 27 mm
CHARACTERISTIC:
- universal TV mount weighing up to 30 kg
- for TVs 32-55 inches
- TV lock against accidental photo
- short distance from the wall
- solid execution
- colour black

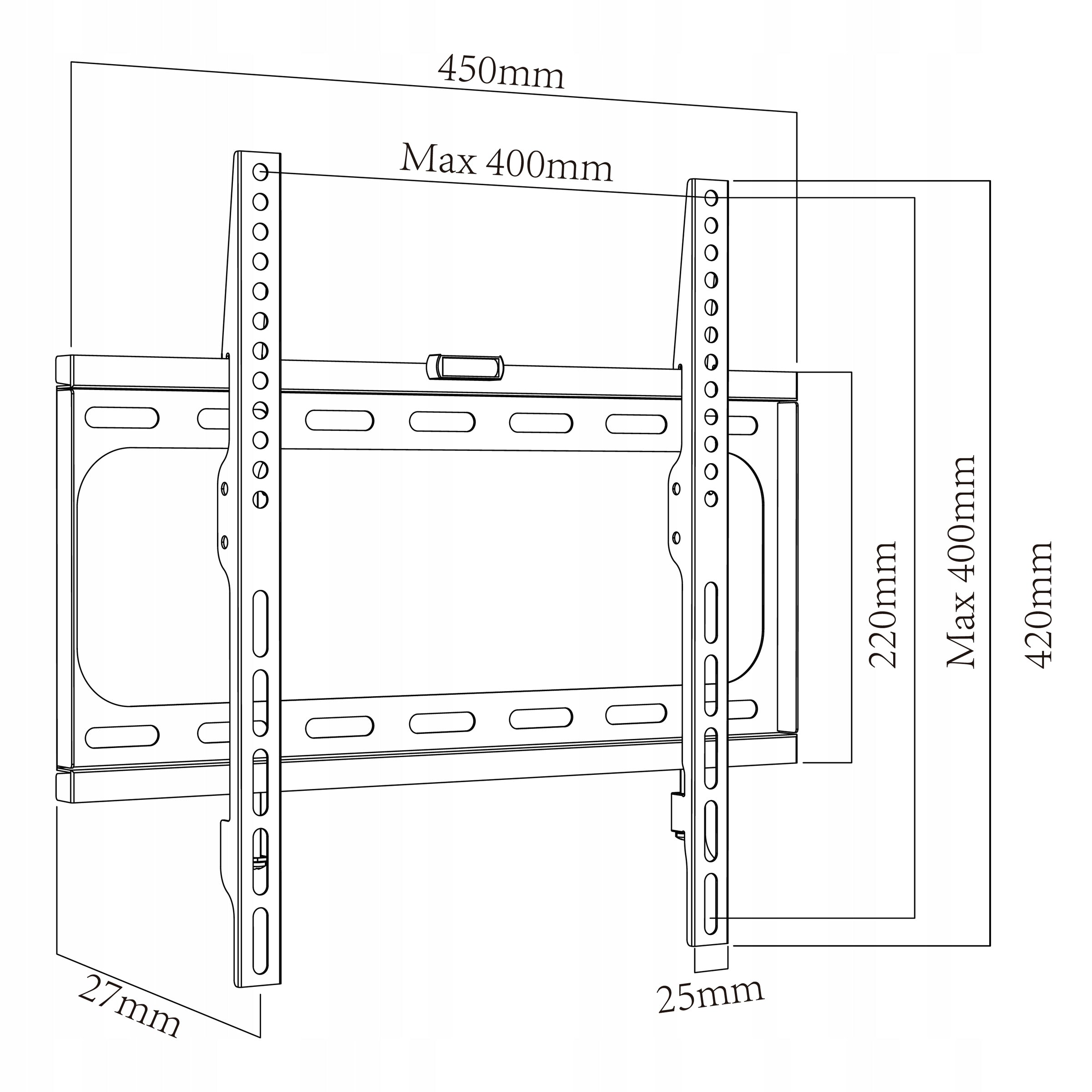

TECHNICAL PARAMETERS
- max. lifting capacity 30 kg
- Supported screen size 32"-55"
- maximum mounting width 410 mm
- distance from the wall 27 mm
- steel thickness: 1,3 mm
- powder coated
- colour: black
- VESA compatible (mounting hole spacing) standard:
- VESA 75 (hole spacing 75mm x 75 mm)
- VESA 100 (100mm x 100mm hole spacing)
- VESA 200x100 (200mm x 100mm hole spacing)
- VESA 200 (200mm x 200mm hole spacing)
- VESA 300 (300mm x 300mm hole spacing)
- VESA 400x200 (400mm x 200mm hole spacing)
- VESA 400x300 (400mm x 300mm hole spacing)
- VESA 400 (400mm x 400mm hole spacing)
- all combinations in the range 75x75 mm ~ 400x400 mm
MOUNTING KIT
- Screw M6×30mm – 4 pcs.
- Screw M8×30mm – 4 pcs.
- Washer Ø8x22 – 8 pcs.
- Distance 15mm - 4 pcs.
- Screw M8x50 – 4 pcs.
- Washer Ø6x16 – 4 pcs.
- Expansion pin 10x40 – 4 pcs.
SET COMPOSITION
- handle
- set of screws*
- installation instructions
* standard/universal screws are included to fit most TVs, if they don't fit, then you should buy the right screws on your own!
When choosing the right TV mount, you should first of all pay attention to the weight of the TV and the VESA mounting hole spacing, the screen size itself is given by the manufacturers indicatively. Information on the VESA compatibility of the TV can be found in the user manual or on the manufacturer’s website. You can also check and measure the spacing of the holes yourself.
The VESA standard specifies the locations of the four mounting holes from the back of the TV. The spacing of these holes depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter determines the distance between the holes horizontally (left - right), and the second parameter the distance between the mounting holes vertically (upper - lower).

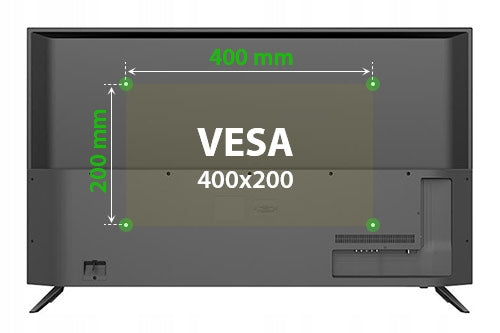

EXAMPLE
To better understand how to measure VESA mounting holes, we have prepared an example photo of a TV with a VESA 400x200 hole spacing. In this example, the distance between the horizontal holes is 400 mm, and the distance between the vertical holes is 200 mm.
Series and Product No.: ERGOSOLIDARCENBLK STLP
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | Arcen |
| Parametry | Model | Arcen |
| Parametry | Maximum TV size | 55" |
| Parametry | Brand | Ergosolid |
| Parametry | Maximum load | 30 kg |
| Parametry | Kind | solid |
| Parametry | Product weight with unit packaging | 4 kg |
| Parametry | EAN (GTIN) | 3760280391355 |
| Parametry | Packaging status | original |
| Parametry | VESA Standard | 100 x 100,150 x 100,200 x 100,200 x 200,200 x 300,200 x 150,300 x 200,300 x 300,300 x 400,400 x 200,400 x 400 |
