Aprašymas
Trumpai apie prekę

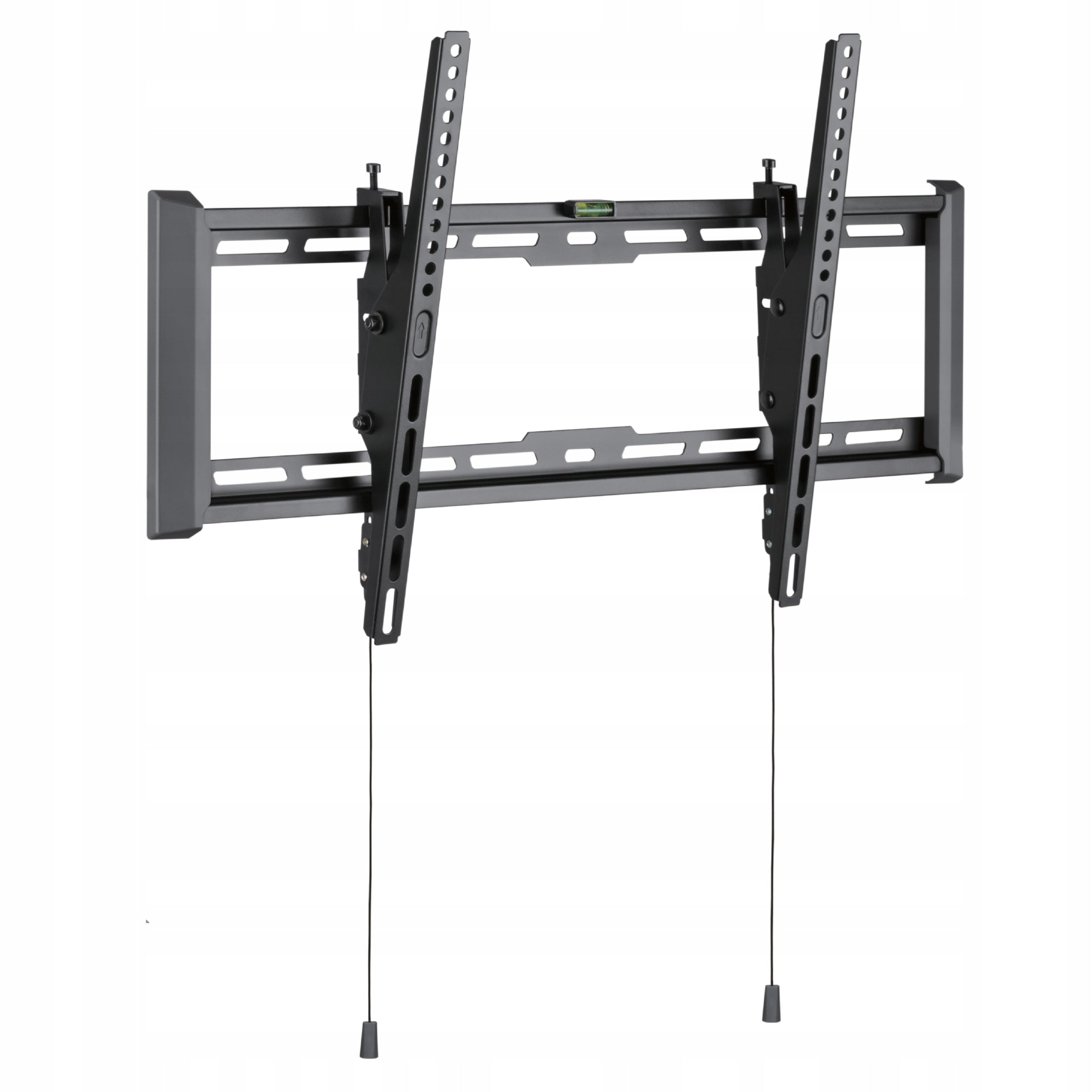

Prekė: Televizoriaus laikiklis FN75T, 37–80 colių. Kategorija: Rankenos.
- Gamintojas: Fiber Novelty
- Modelis: FN75T
Strong Wall Mount for Large LCD LED TVs

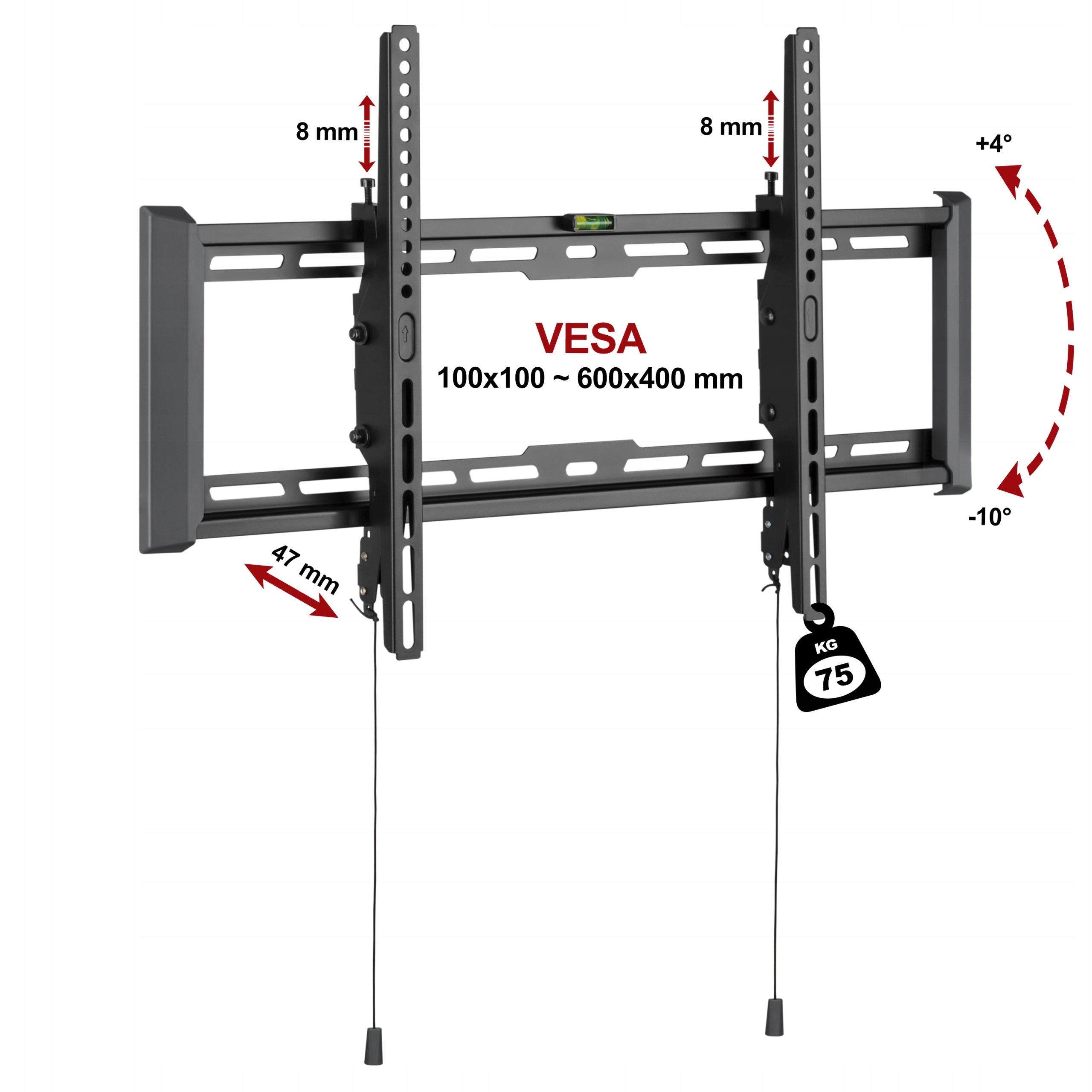

- TV size: 37"- 85"
- maximum TV weight: 75 kg
- VESA: 100x100 ~ 600x400 mm
- tilt adjustment: +4° / -10°
- short distance from the wall 47 mm
- levelling / height changeable in the range: 8 mm
- automatic locking system profiles on the board - quick assembly / disassembly without the use of tools.
Original product from the official Polish distribution.
Full service and post-warranty support.
Product of a reputable brand, new, originally packed.
CHARACTERISTIC:
- universal mount for large TVs
- Automatic TV lock against accidental photo
- simple installation and removal from the wall without the use of tools.
- short distance from the wall
- tilt adjustment
- possibility of leveling and height adjustment
- solid execution - test procedure up to 300 kg
- colour black
TECHNICAL PARAMETERS
- maximum lifting capacity 75 kg
- for TVs 37"- 80"
- tilt adjustment in the range of +4° / -10°
- short distance from the wall 47 mm
- levelling and height adjustment up to: 8 mm
- VESA compatible (mounting hole spacing) standard:
- VESA 100x100 mm
- VESA 200x100 mm
- VESA 200x200 mm
- VESA 300x200 mm
- VESA 300x300 mm
- VESA 400x200 mm
- VESA 400x300 mm
- VESA 400x400 mm
- VESA 600x400 mm
- and all other spacings in the range 100x100 mm ~ 600x400 mm
MOUNTING KIT
- Screw M6×14 mm – 4 pcs.
- Screw M6×30 mm – 4 pcs.
- Screw M8×16 mm – 4 pcs.
- Screw M8×35 mm – 4 pcs.
- Washer – 4 pcs.
- Distance 5 mm - 4 pcs.
- Distance 15 mm - 4 pcs.
- Screw ST6.3x55 – 4 pcs.
- Washer – 4 pcs.
- Expansion pin 10x45 – 4 pcs.
- Wrench 10 mm - 1 pcs.
- Imbus 5 mm - 1 pcs.
- Mini level - 1 pcs.
COMPOSITION OF THE SET
- handle
- set of screws*
- installation instructions
* standard/universal screws are included to fit most TVs, if they do not fit, then you should buy the appropriate screws on your own.
AUTOMATIC SAFETY LOCK
mechanism with straps at the bottom allows tool-free installation and disassembly of the TV
LEVELING SYSTEM / LEVELING OF ASSEMBLY ERRORS
the ability to adjust the height and adjust the level up to 8 mm.
When choosing the right TV mount, you should first of all pay attention to the weight of the TV and the VESA mounting hole spacing, the screen size itself is given by the manufacturers indicatively. Information on the VESA compatibility of the TV can be found in the user manual or on the manufacturer’s website. You can also check and measure the hole spacing yourself.
The VESA standard specifies the locations of the four mounting holes from the back of the TV. The spacing of these holes depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter determines the distance between the holes horizontally (left - right), and the second parameter the distance between the mounting holes vertically (upper - lower).
EXAMPLE
To better understand how to measure VESA mounting holes, we have prepared an example photo of a TV with a hole spacing of VESA 400x200. In this example, the distance between the horizontal holes is 400 mm, and the distance between the vertical holes is 200 mm.
Product Series and No.: NBDF80TBLK CHLN
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | FN75T |
| Parametry | Model | FN75T |
| Parametry | Maximum TV size | 80" |
| Parametry | Brand | Fiber Novelty |
| Parametry | Maximum load | 75 kg |
| Parametry | Kind | retractable |
| Parametry | Product weight with unit packaging | 3 kg |
| Parametry | EAN (GTIN) | 5901597301042 |
| Parametry | Packaging status | original |
| Parametry | VESA Standard | 100 x 100,150 x 100,200 x 100,200 x 150,200 x 200,200 x 300,300 x 200,300 x 300,300 x 400,400 x 200,400 x 400,600 x 300,600 x 400,400 x 300 |
