Televizoriaus laikiklis, ilgis 85 cm, 32–64 colių, kampinis

Trumpai apie prekę

Prekė: Televizoriaus laikiklis, ilgis 85 cm, 32–64 colių, kampinis. Kategorija: Rankenos.

• Gamintojas: Vetouson
• Modelis: VX-801 Dlugie ramie 85cm

• ➡ Extra long 85cm arm - will allow you to rotate the TV to any angle, e.g. perpendicular to the wall
• ➡ TV mount with corner installation option. It also allows installation on direct walls
• ✅Adjustable inclination 13° (up/down), rotation 180° (right/left) and distance from the wall 85-850 mm
• ➡ Installation on 6 pins
• ➡ Wide wall plate for even distribution of TV weight
• ➡ It is possible to install both on the right and left side
• ✅The mount is UNIVERSAL and fits all TV models that have VESA mounting hole spacing in the range : from 200 x 100 to 600 x 400 mm and weigh up to 30 kg
• ✅The mount also fits TVs with a curved housing
• ✅The package includes a full set of mounting accessories (including pegs, screws, washers needed to screw the mount to the wall and screws and washers needed to screw the TV to the mount as well as a level)

✅Rotating, adjustable on extra long arm - LCD/LED TV mount

SPECIFICATION:

• Model: VX-801
• ✅TV size: 32- 64 inches
• ✅maximum TV weight: up to 30 kg
• VESA : 200x100, 200x200, 200x300, 300x200, 300x300, 400x200, 400x300, 400x400, 200x400, 300x400, 400x400, 600x400 mm and all in between

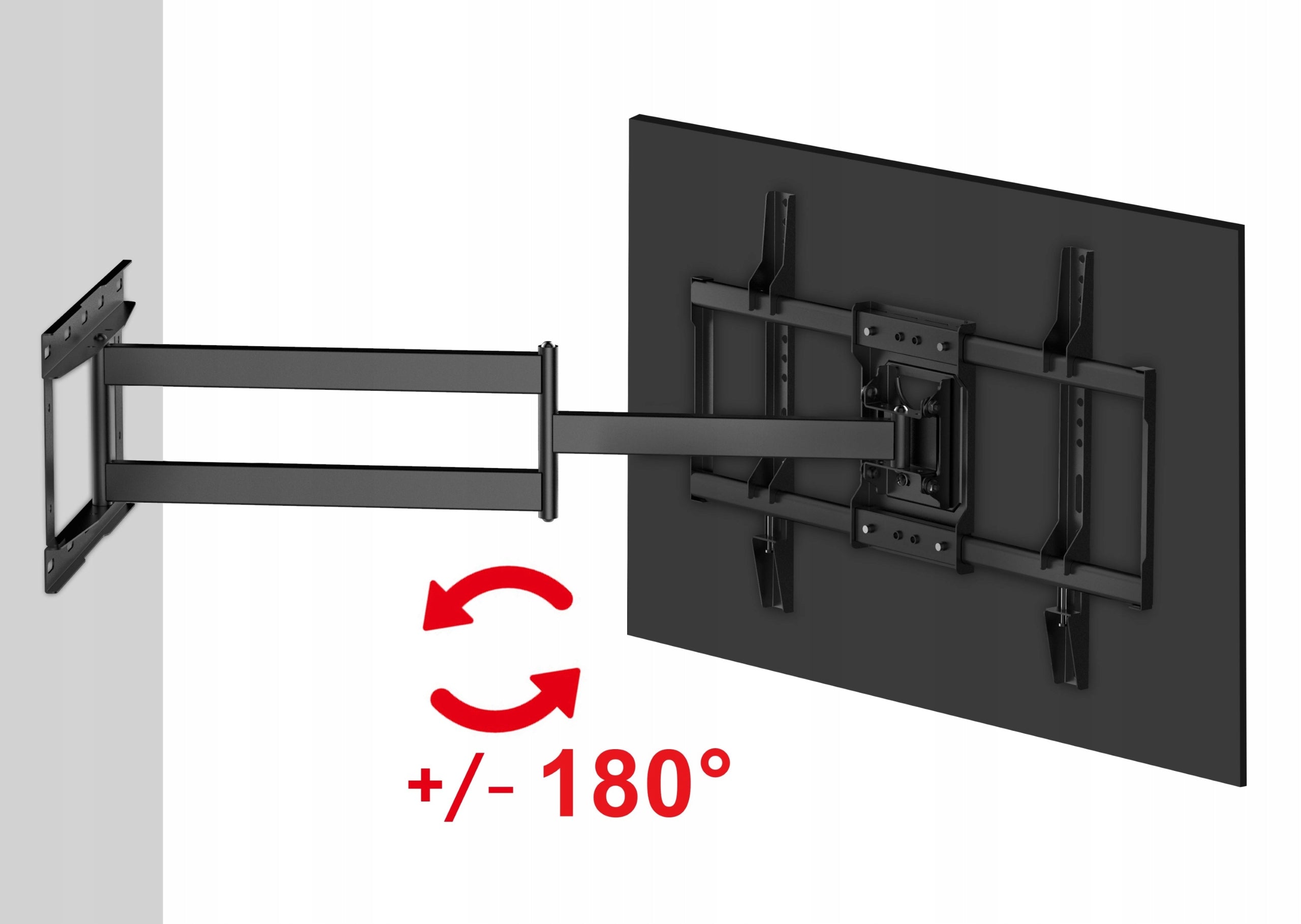

• ➡ right/left rotation adjustment: +/-180° at 3 bending points
• ➡ handle with corner installation option
• up/down tilt adjustment: -5° / + 8°
• ➡ adjustable distance from the wall: 85 - 850mm
• correction of assembly errors -5° / + 5°
• strong and robust construction
• Full set of mounting accessories
• handle made with attention to detail
• colour: black

✅Full range of rotary adjustment

• enables corner installation and from any other angle as well as in front of the wall
• adjustment of distance from the wall in the range of 85-850 mm
• the ability to rotate the handle in the range of +/-180°
• the ability to set any position of the TV both very close and far from the wall

✅Up/down and right/left adjustment

• up/down tilt adjustment: -5° / +8°
• the ability to rotate the handle in the range of +/-180°

✅Set any TV position

• Close or very far from the wall
• Very long 85cm arm - will allow you to rotate the TV to any angle. The rotation of the TV will no longer be blocked by too short an arm.

✅DESTINATION

• Rooms where it is necessary to rotate the TV by a significant angle, e.g. 90 degrees or the need for a significant distance of the TV
• The holder allows you to achieve a large angle of rotation, and for TVs narrower than ➡ 158 cm even a full 90 degree rotation relative to the wall (perpendicular to the wall)
• The mount allows you to significantly distance the TV from the wall up to 85cm, e.g. to set a better TV position
• The handle can be installed both in front of the wall and in the corner (thanks to the long arm)

✅Reliability and safety

• Made of thick hardened steel
• Elegant powder coating
• Mounting on 6 studs
• Wide wall plate for even distribution of TV weight
• Strong joints and perfect powder coating

✅Assembly on two sides to choose from

• The handle can be installed both so that the arm comes out on the right or left side - to choose from

✅Handle leveling

• The handle allows you to adjust the level in the range of -5° / +5° needed e.g. when not very accurate drilling holes in the wall or if under the influence of weight the handle will hang.

➡ Important!!! The mount is designed for users who use only one TV setting. If we use several settings at the same time, e.g. Once the TV is at the wall itself and other times the TV perpendicular to the wall, we are not able to level the TV for both settings at the same time. The handle has adjustment of leveling through screws but every time you change the setting, a new level adjustment is necessary. Therefore, we offer this mount for people who once set the TV and later do not change its position.

✅DESTINATION

• The handle is universal and can be installed on all the most popular TV brands, which have VESA mounting hole spacing in the range : 200x 100 to 600x 400 mm and weigh up to 30 kg
• VESA standard - universal
• ➡ The holder also fits TVs with a curved housing

The VESA standard specifies the spacing of the four mounting holes on the back of the TV. The location of these holes depends on the make, model and size of the screen. Dimensions are given in millimeters: the first dimension determines the distance between the holes horizontally (left - right), and the second dimension is the distance between the holes vertically (upper - lower).

Information on the VESA compatibility of the TV can be found in the user manual or on the manufacturer’s website. You can also check and measure the hole spacing yourself.

EXAMPLE

Next to it is an example photo of a TV with a hole spacing VESA 300x300. The distance between horizontal and vertical holes is 300mm.

✅Additional blockage

• The holder includes an additional mechanical lock to protect the TV from accidental knocking down

✅Wide wall plate that evenly distributes the weight of the TV

• If you already have your new TV, you know that it is really large, which is why a wide wall plate is so important that it will allow you to install the holder on up to 6 studs if necessary, ensuring even distribution of its weight on the wall - this is especially important for not too massive and strong walls

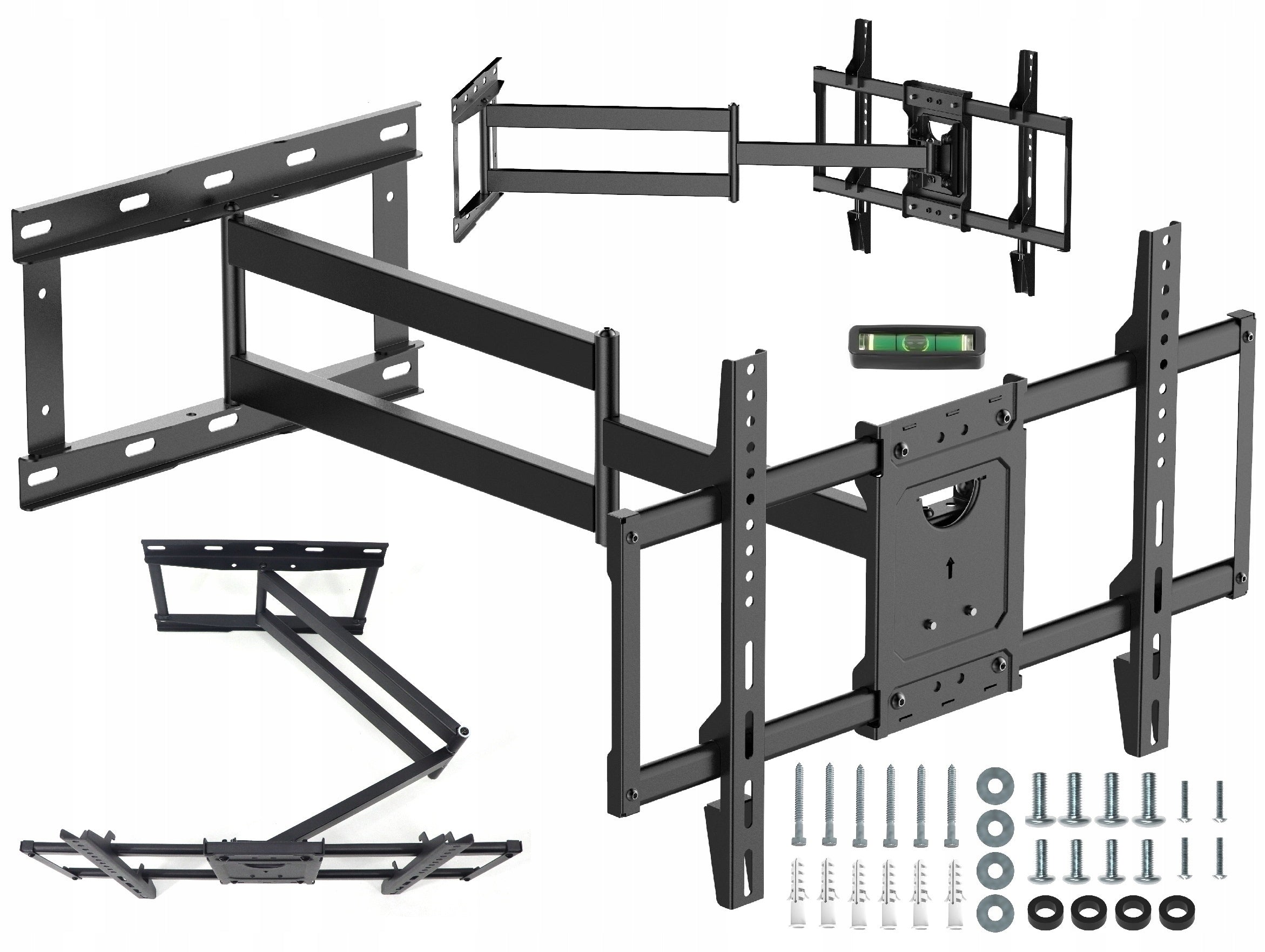

✅SET COMPOSITION

• ➡ handle with necessary mounting accessories
• ➡ simple and intuitive installation
• mounting accessories for wall mount:

• Screws M8X60 6 pcs
• Dowels M12X58 6 pcs
• Washers for studs/screws 10pcs
• TV mount mounting accessories:
• Screw for TV/monitor installation M5X25 4 pcs (choose the screw suitable for the holes in your TV)
• Screw for TV/monitor installation M6X25 4 pcs
• Screw for TV/monitor installation M8X35 4 pcs
• Screw washers M5/M6/M8 for the above screws 4 pcs
• Bushing/distance 10mm 4 pcs - for TVs with recessed mounting holes
• instruction in Polish

The mount includes a universal set of TV mounting screws that fits most TVs on the market. It may happen that your TV will need other screws, then you need to purchase them on your own.
