Aprašymas
Trumpai apie prekę

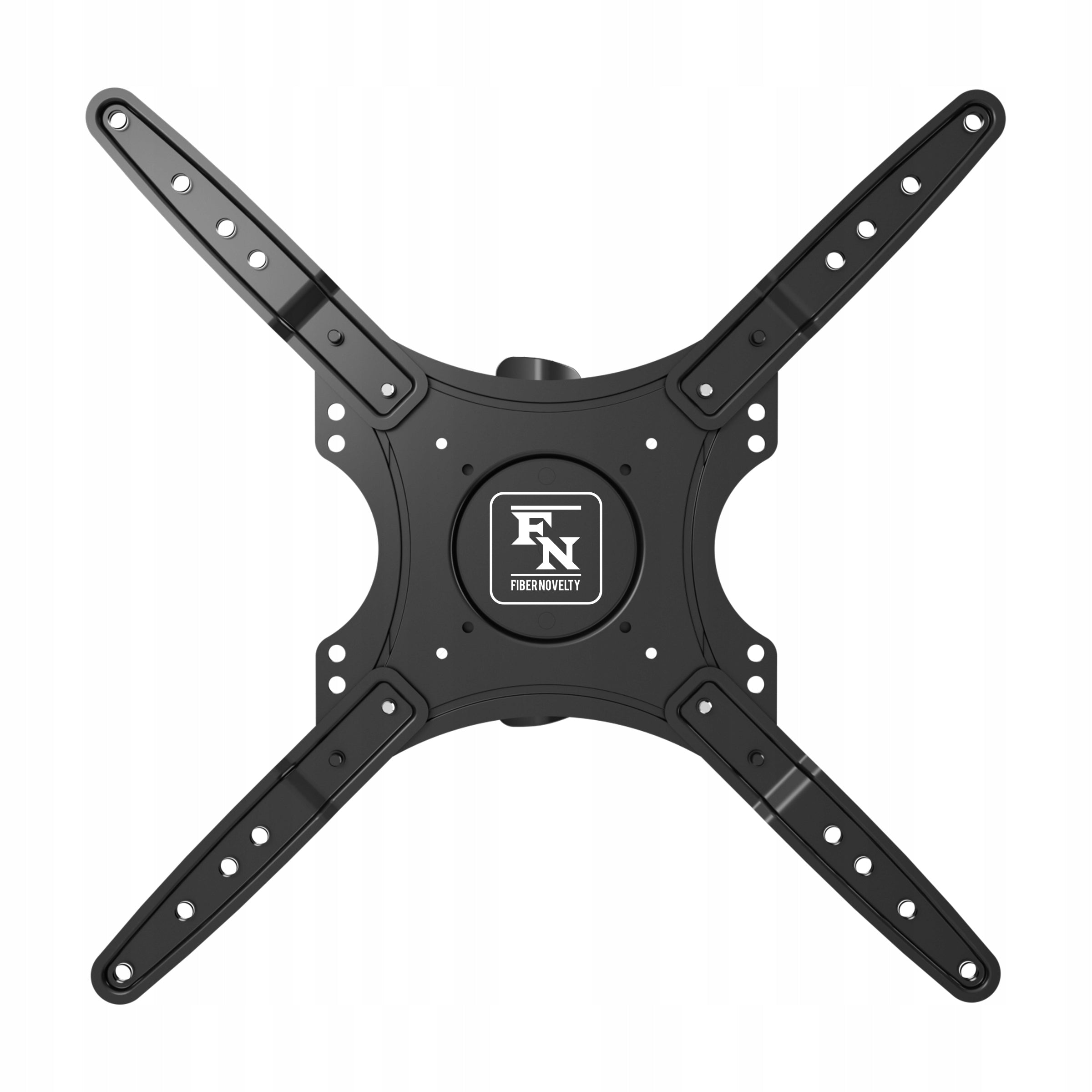

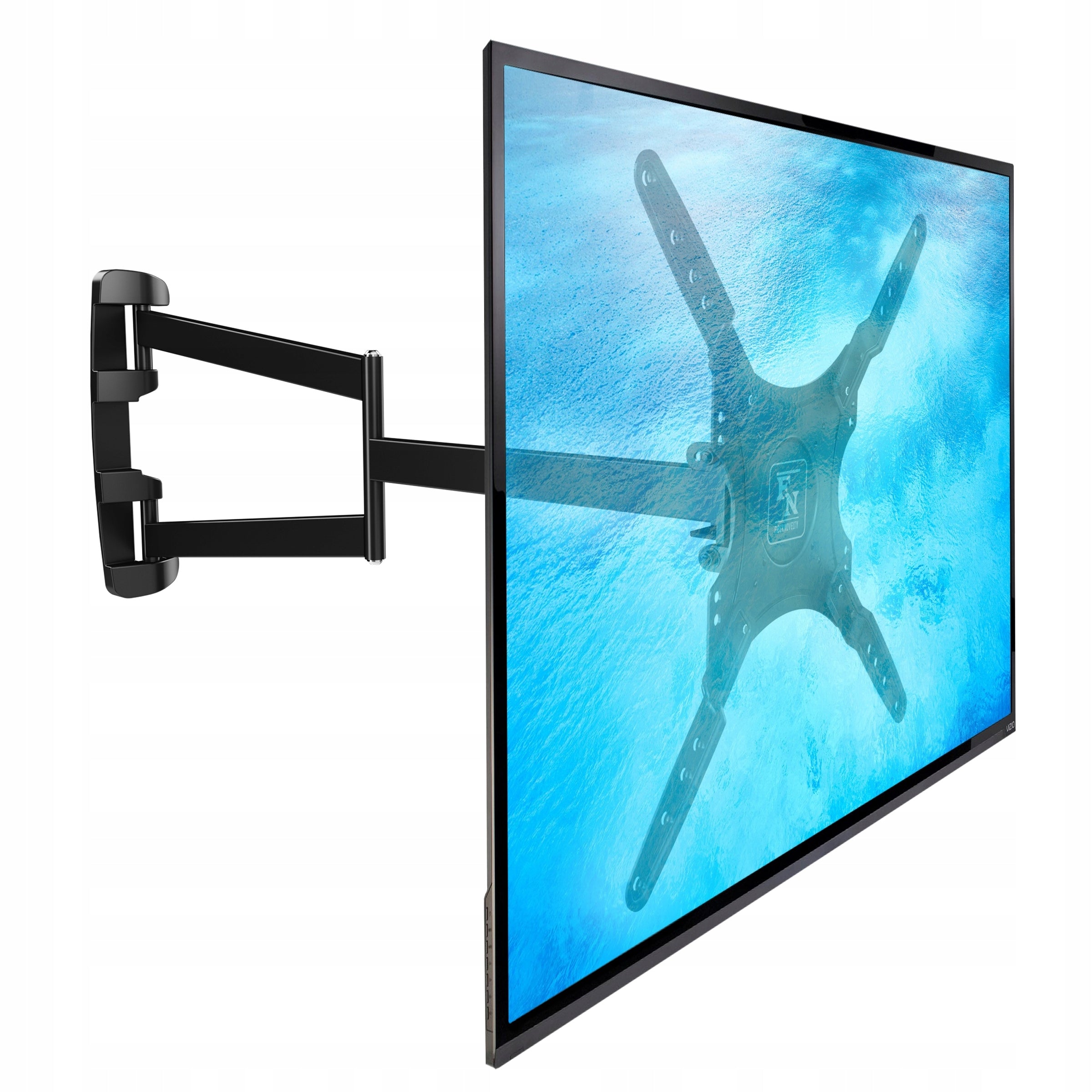

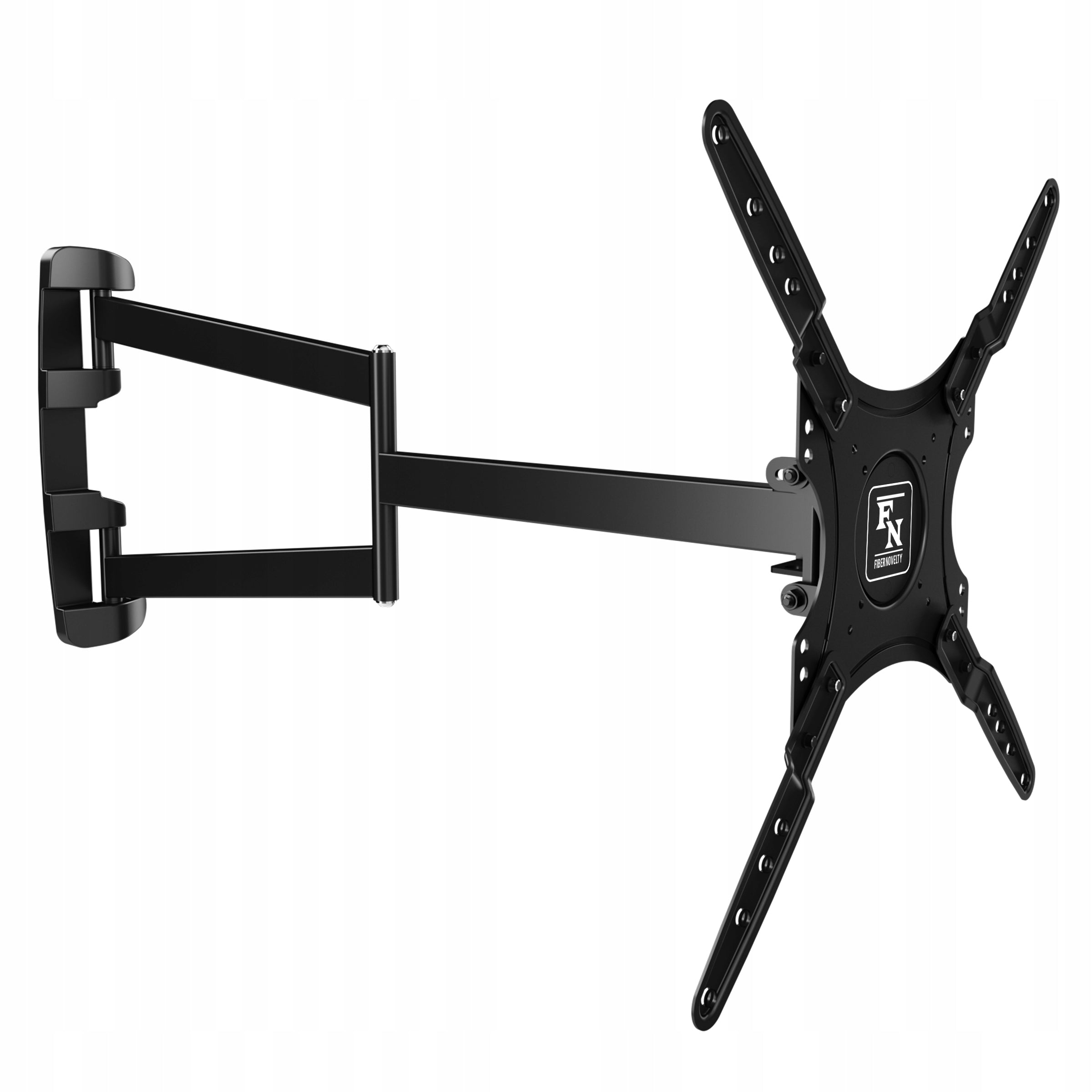

Prekė: Televizoriaus laikiklis LONGO-85, 26–55", pasukamas, ilgas. Kategorija: Rankenos.
- Gamintojas: Fiber Novelty
- Modelis: Longo 85
Solid rotating wall mount with long arm and PIVOT function for LCD LED TV
- screen size: 26"-55"
- lifting capacity: 30 kg
- VESA: 75x75 ~ 400x400 mm
- screen tilt adjustment: +5° / -12°
- right/left rotation adjustment: ±90°
- adjustment of distance from the wall: 75 ~ 850 mm!
- PIVOT: ±98°
- brand: Fiber Novelty
CHARACTERISTIC
- holder designed for large LCD LED TVs
- universal TV mount suitable for most TVs on the market
- high quality of workmanship
- tilt adjustment
- Rotating arm
- very large arm reach!
- VESA compliant
- cable management system
- powder coated
- available in black
TECHNICAL PARAMETERS
- Maximum lifting capacity 30 kg
- For TVs: 26"- 55"
- Rotation adjustment right left: ±90°
- Tilt adjustment in the range: +5° / -12°
- PIVOT: ±98°
- Adjustable distance from wall in the range: 75 ~ 850 mm
Compatible with VESA (mounting hole spacing) standard:
- VESA 75 (hole spacing 75 mm x 75 mm),
- VESA 100 (hole spacing 100 mm x 100 mm),
- VESA 150 (hole spacing 150 mm x 150 mm),
- VESA 100×200 (hole spacing 100 mm x 200 mm),
- VESA 200×100 (hole spacing 200 mm x 100 mm),
- VESA 200 (hole spacing 200 mm x 200 mm),
- VESA 200×300 (hole spacing 200 mm x 300 mm),
- VESA 200×400 (hole spacing 200 mm x 400 mm),
- VESA 300 (hole spacing 300 mm x 300 mm),
- VESA 300×200 (hole spacing 300 mm x 200 mm),
- VESA 400×200 (hole spacing 400 mm x 200 mm),
- VESA 400 (hole spacing 400 mm x 400 mm),
MOUNTING KIT
- M4×25mm screw – 4 pcs.
- M6×25mm screw – 4 pcs.
- M8×15mm screw – 4 pcs.
- M8×30mm screw – 4 pcs.
- Distance 10mm – 4 pcs.
- M4-6 pad – 4 pcs.
- M8 pad – 4 pcs.
- Screw ST8×70mm – 4 pcs.
- Pin Ø10 – 4 pcs.
SET COMPOSITION
- brand new TV mount
- set of screws*
- installation instructions
* A universal set of screws suitable for most TVs is included, if they do not fit, then you should buy the appropriate screws on your own.
When choosing the right TV mount, you should first of all pay attention to the weight of the TV and the VESA mounting hole spacing, the screen size itself is given by the manufacturers indicatively. Information on the VESA compatibility of the TV can be found in the user manual or on the manufacturer’s website. You can also check and measure the spacing of the holes yourself.
The VESA standard specifies the locations of the four mounting holes from the back of the TV. The spacing of these holes depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter determines the distance between the holes horizontally (left - right), and the second parameter the distance between the mounting holes vertically (upper - lower).
EXAMPLE
To better understand how to measure VESA mounting holes, we have prepared an example photo of a TV with a VESA 400x200 hole spacing. In this example, the distance between the horizontal holes is 400 mm, and the distance between the vertical holes is 200 mm.
GALLERY
Product code: FNLONGO85BLK BRTW
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | LONGO-85 |
| Parametry | Model | Longo 85 |
| Parametry | Maximum TV size | 55" |
| Parametry | Brand | Fiber Novelty |
| Parametry | Maximum load | 30 kg |
| Parametry | Product weight with unit packaging | 6 kg |
| Parametry | EAN (GTIN) | 5901597300717 |
| Parametry | Packaging status | original |
| Parametry | Kind | rotating,retractable |
| Parametry | VESA Standard | 75 x 75,100 x 100,200 x 100,200 x 200,200 x 300,300 x 200,300 x 300,300 x 400,400 x 200,400 x 400,400 x 300 |
