Televizoriaus laikiklis, pasukamas, 40–80", VESA, 68 kg

Trumpai apie prekę

Prekė: Televizoriaus laikiklis, pasukamas, 40–80", VESA, 68 kg. Kategorija: Rankenos.

• Gamintojas: no brand
• Modelis: KAPPA

✅Designed for screens: 32"–85"

✅Max. lift: 68 kg

✅Adjustment of distance from the wall: 60 – 500 mm

✅Rotation (right-left): up to 120° (depending on TV size)

✅Tilt adjustment: -8° / +5°

✅Level correction (leveling assembly errors): ±4°

✅ VESA compatibility: 200×100 → 600×400 mm

✅Color: black

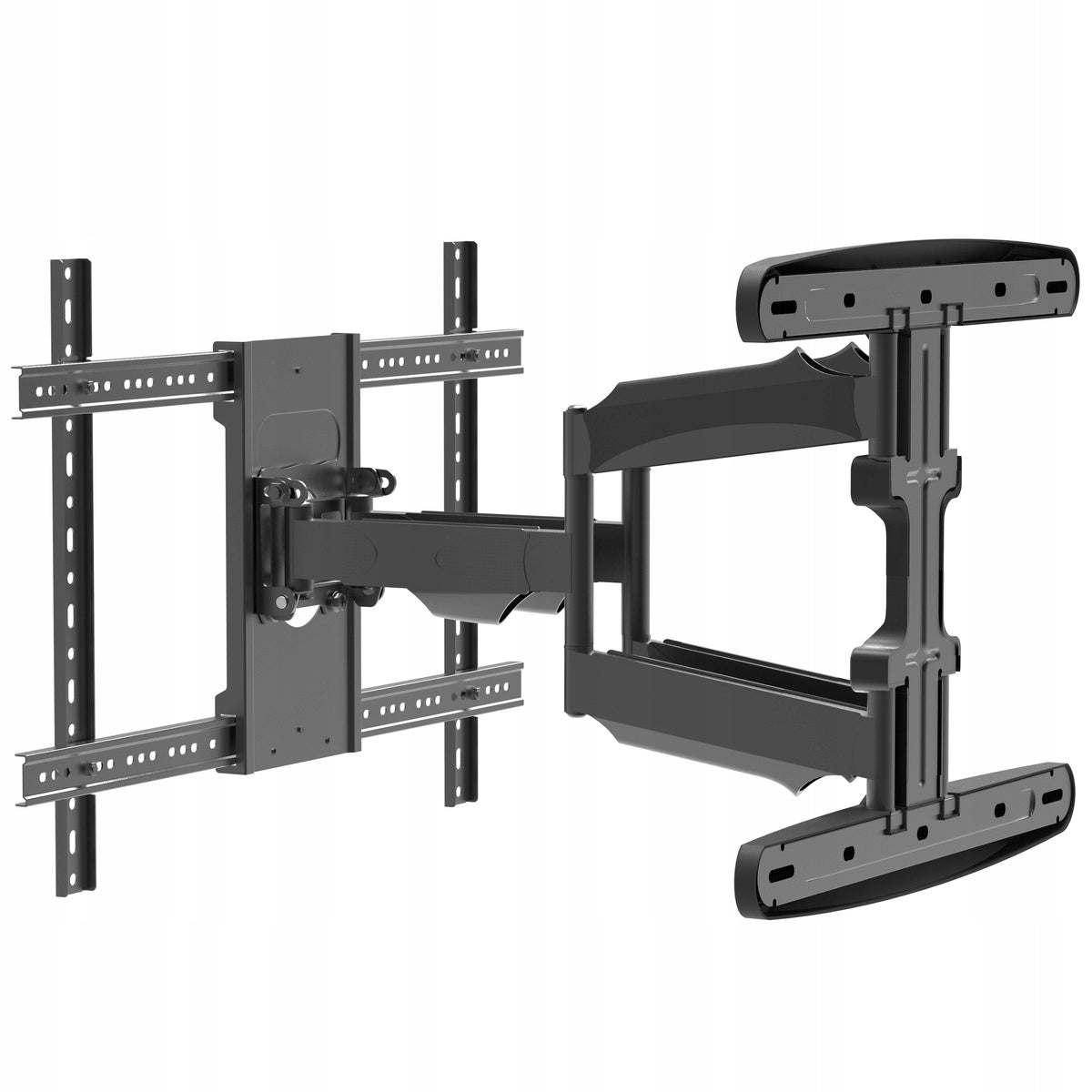

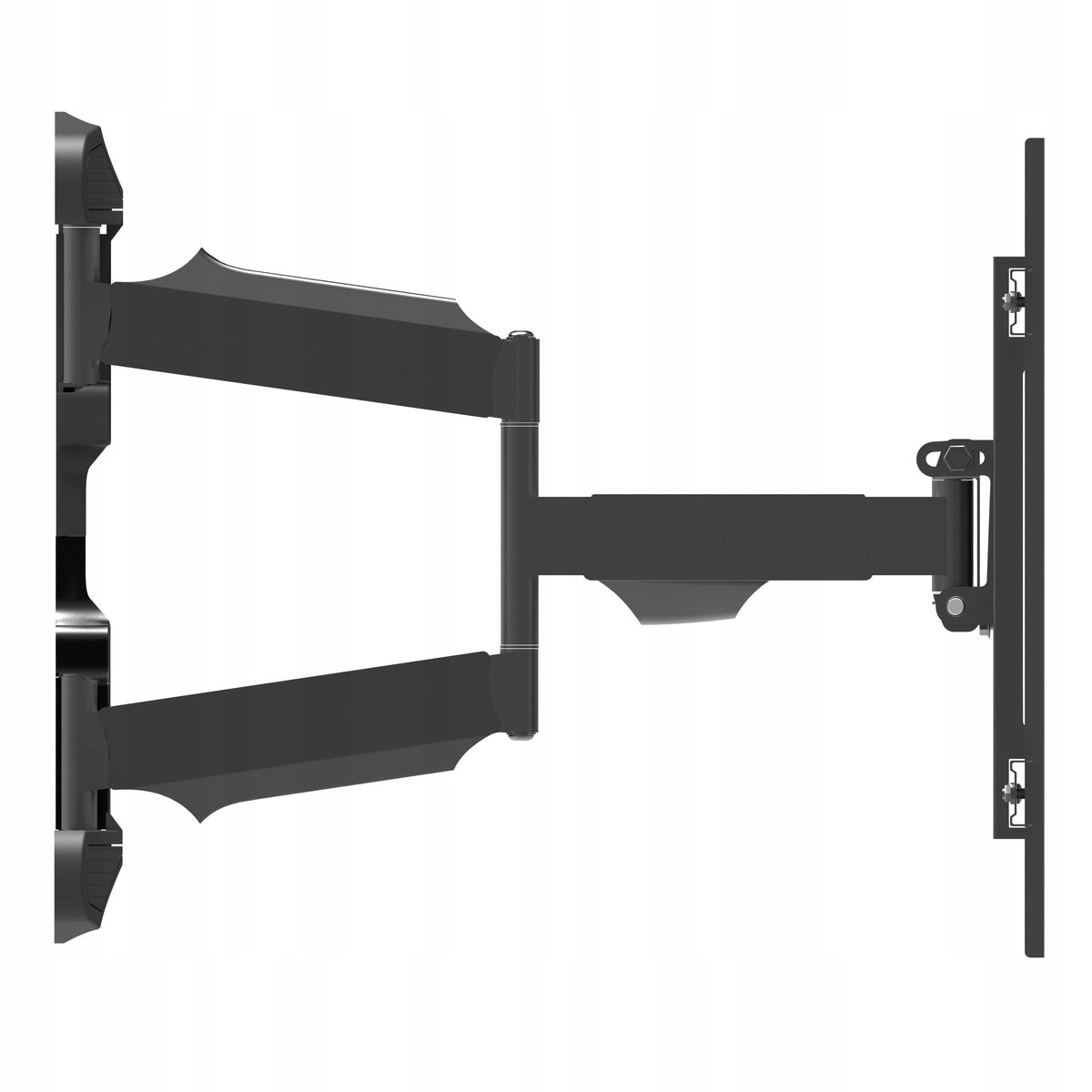

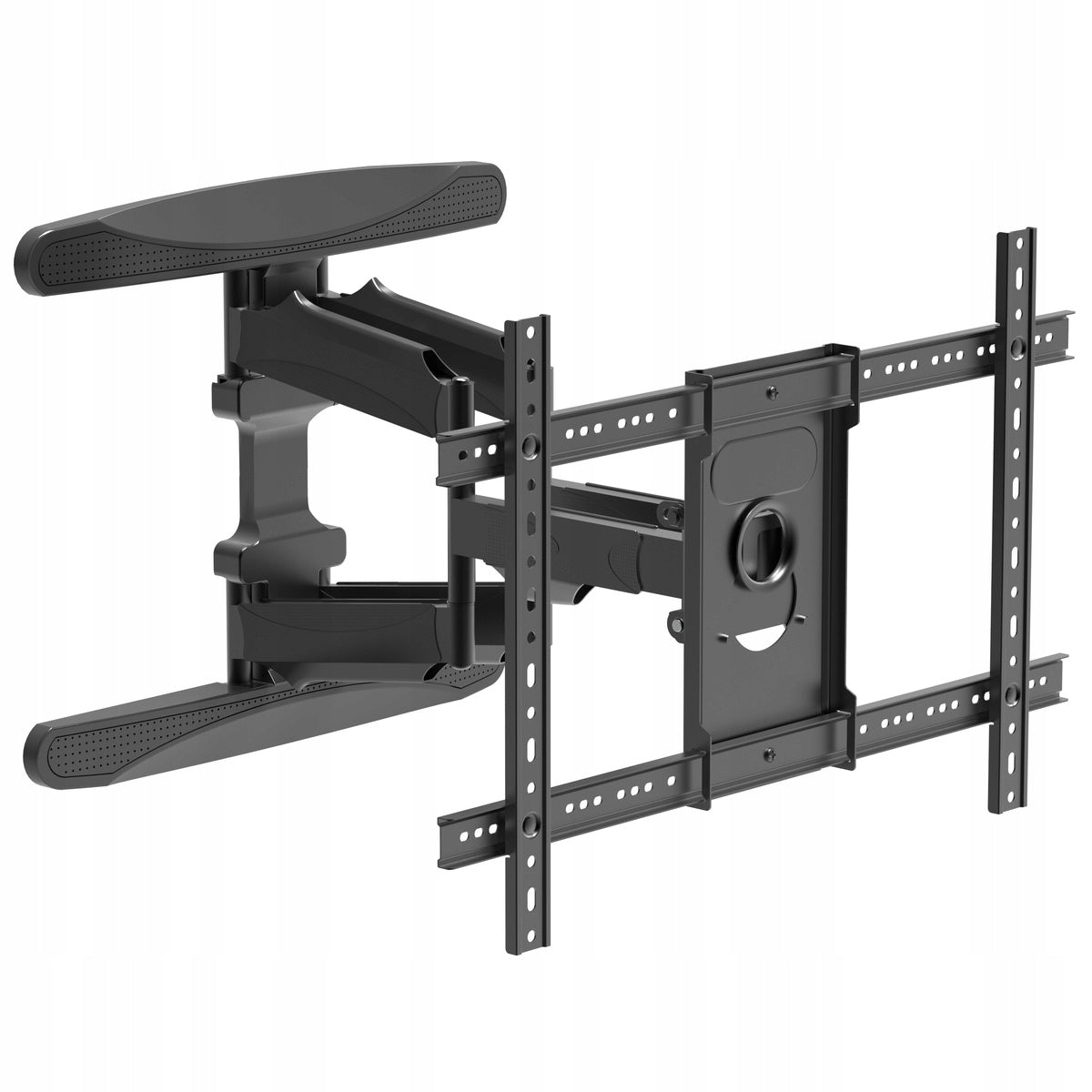

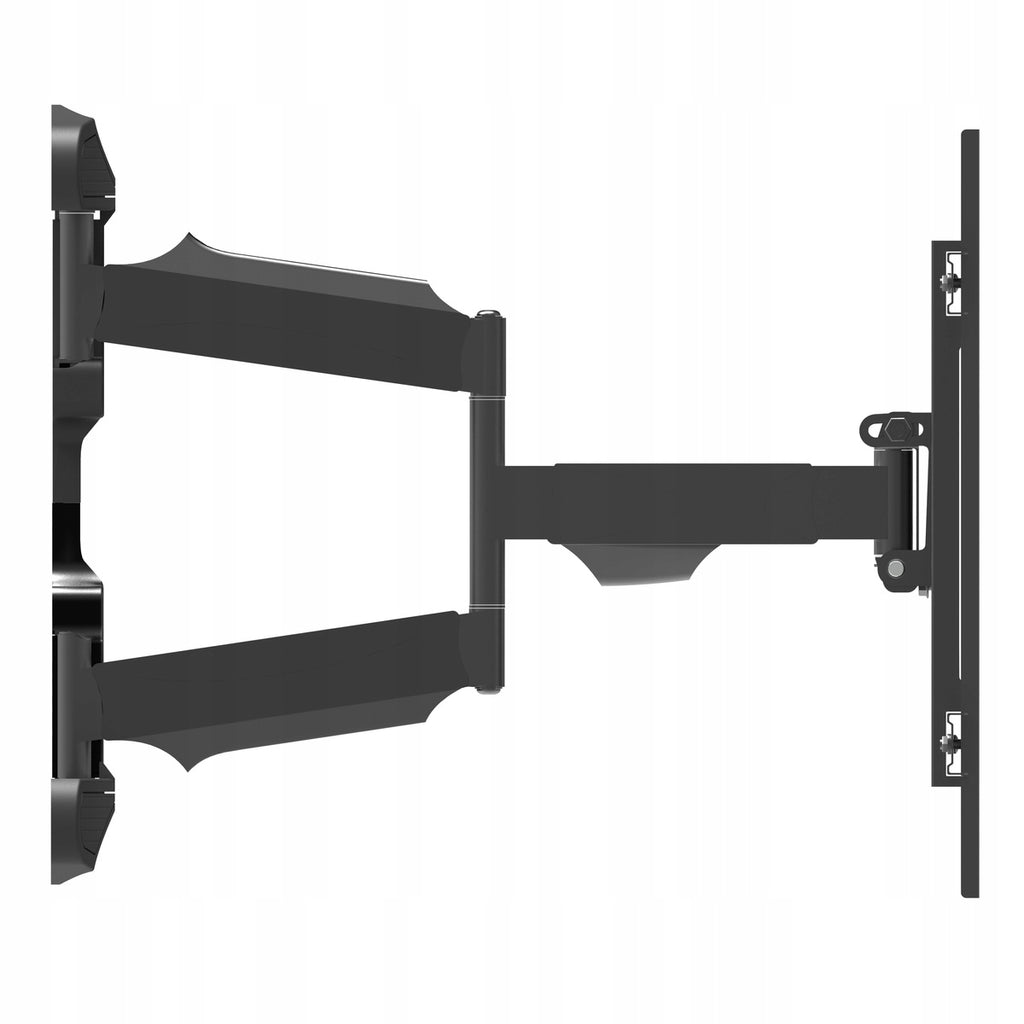

The KAPPA wall mount (ZYONIX) is a solution designed for large screens - a strong construction with a double rotating arm allows you to conveniently extend the TV up to 500 mm from the wall and rotate up to 120°, thanks to which you can position the screen at the optimal angle in the living room, bedroom or conference room.

The wide mounting plate evenly distributes the load on the wall, which is beneficial especially with weaker substrates. The grille system organizes cables, and the tilt adjustment and level correction (±4°) make it easy to adjust the screen even with minimal mounting inaccuracies.

The holder is universal - it fits VESA standards from 200×100 to 600×400 mm, and the set includes a set of standard mounting screws. If necessary - you can buy special screws tailored to unusual TVs.

Technical Specifications

• Model: KAPPA
• Brand: ZYONIX
• Recommended Screen Sizes: 32"–85" (approximate)
• Maximum Load Capacity: 68 kg (150 lbs)
• Distance from Wall Adjustment: 60–500 mm (2.4"–19.7")
• Swivel Range: Up to 120° (depending on screen size)
• Tilt Adjustment: -8° / +5°
• Level Adjustment / Mounting Error Correction: ±4°
• VESA Compatibility: 200×100, 200×200, 300×200, 300×300, 400×200, 400×400, 600×400 (and all VESA patterns within the range of 200×100 → 600×400 mm)
• Color: Black

Contents of the mounting kit

• Screws M5 × 25 mm - 04 pcs.
• Screws M6 × 25 mm - 4 pcs.
• Screws M8 × 30 mm - 4 pcs.
• Screws M8 × 50 mm - 4 pcs.
• Distance 10 mm - 4 pcs.
• Key 10 mm - 1 pcs.
• Screws 7 × 70 mm - 6 pcs.
• Pegs Ø10 × Ø7 × 66 mm - 6 pcs.
• Factory new TV mount KAPPA (ZYONIX)
• Instructions for assembly

Note: The included screws are universal and fit most walls and TVs. If necessary (unusual threads/holes/substrate material), please purchase the appropriate screws.

Some practical tips before assembly

1. Check the TV manual or measure the VESA hole spacing yourself (in mm - width × height).
2. Make sure that the weight of the TV does not exceed 68 kg.
3. When installing in plasterboard/light-bearing walls, use appropriate anchors or additional reinforcement.
4. After installation, use the ±4° correction to perfectly level the screen.
5. Maskers will make it easier to organize cables and improve aesthetics.

Why choose KAPPA (ZYONIX)?

• Strong, proven design with double arm - stable even with large screens.
• Large extension range (60 to 500 mm) and the ability to rotate up to 120° for maximum flexibility of setting.
• VESA versatility - fits most TV models available.
• Aesthetic cable grilles and wide mounting plate for better weight distribution.

How to check if the mount will fit the TV?

When choosing a TV mount, two parameters are crucial:

TV weight and VESA mounting hole spacing. The diagonal of the screen (in inches) is only indicative and should not be the only criterion for selection.

Information about VESA standard can be found in:

• instructions for operating the TV,
• specifications on the manufacturer's website,
• or check yourself by measuring the hole spacing on the back of the case.

Example

For TV with VESA 400 standard × 200:

• the distance between the horizontal holes is 400 mm,
• The distance between vertical holes is 200 mm.

If the hole spacing of your TV is within the range supported by the mount and its weight does not exceed the maximum lifting capacity, the mount will be fully compatible.
