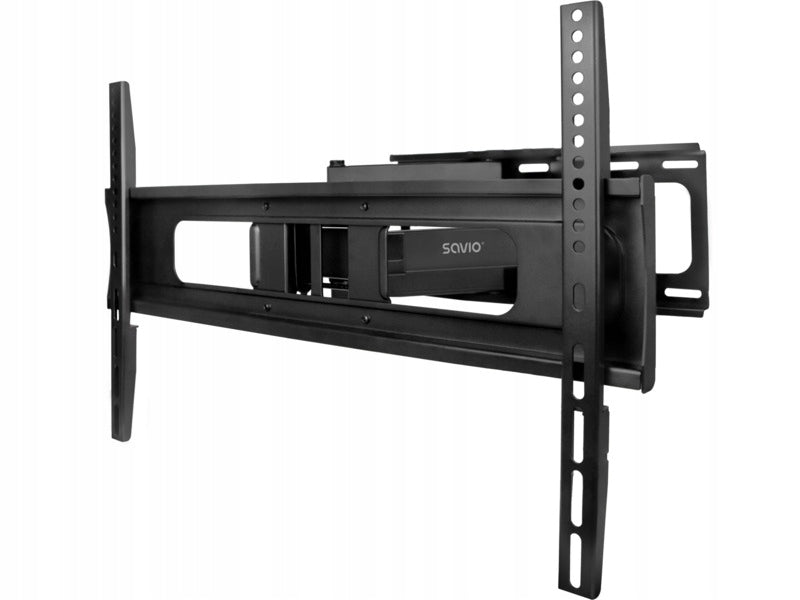

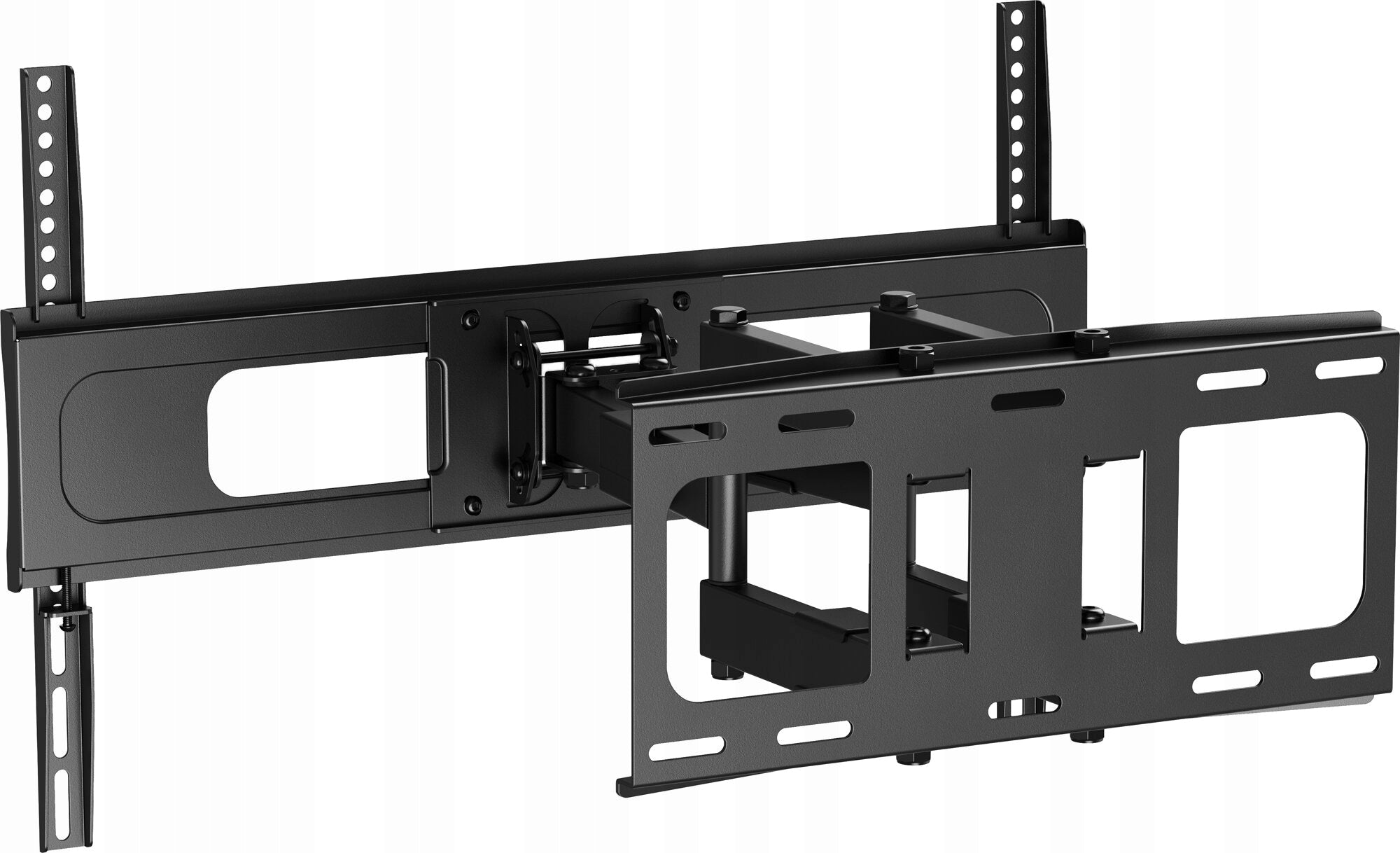

Televizoriaus laikiklis SAVIO UTV-04, 37–86", juodas

Trumpai apie prekę

Prekė: Televizoriaus laikiklis SAVIO UTV-04, 37–86", juodas. Kategorija: Rankenos.

• Gamintojas: Savio
• Modelis: UTV-04

TV Mount SAVIO UTV-04 37-86 inches Black

• Minimum Distance from Wall/Ceiling [mm]: 100
• Mounting Type: Wall Mount
• Maximum Load Capacity [kg]: 60
• VESA Standard: 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, 600 x 400
• Vertical Adjustment: +5 / -15 degrees
• Screen Size [inch]: 37 - 86
• Mount Type: Swivel, Wall Mount, Tilt

• Index: 2109293

Screen diagonal 37″ – 86″

This holder is a solution dedicated to displays of considerable size. Its design has been optimized to stably maintain a wide range of matrices – from medium-sized 37-inch screens to powerful 86-inch panels.

Whether you're mounting a flagship TV in your living room or a presentation monitor in your office room, the UTV-04 will keep it stable. This is a long-term investment that will work even after upgrading the equipment to a newer and even larger model.

Compatibility

The UTV-04 is distinguished by its wide compliance with the VESA (Video Electronics Standards Association) standard. This is an international standard that specifies the spacing of the mounting holes on the back of the TV case.

Thanks to the intelligent design of the mounting panel, the product fits most large-size receivers, supporting spacing from 200 × 200 mm up to 600 × 400 mm (a standard often used in screens with the largest diagonals).

Maximum lifting capacity 60 kg

For heavy-weight devices, the safety of the structure is a key aspect. UTV-04 is a handle with a reinforced structure – its permissible load is up to 60 kilograms.

For such high strength is responsible the use of steel with increased thickness:

• 5 mm for the wall base (certainty of stable placement of the holder in the wall),

• 8 mm for VESA panel and arms (for comparison, standard handles often have arms with a thickness of 1.2 mm).

The whole has been covered with a resistant layer of powder coating, which ensures a sleek black finish and high resistance to mechanical damage.

Tilt range +5° ~ -15°

Despite its massiveness, the UTV-04 offers an impressive range of adjustment, allowing for surgical even precision of screen positioning.

• Tilt: Vertical adjustment from +5° to -15° allows you to eliminate light reflections and achieve an optimal viewing angle, which is especially important when the device is mounted above the line of sight.

• Rotation: The durable retractable arm allows you to change the distance from the wall in the range from 100 mm to 500 mm and rotate the screen horizontally by ±60 degrees. This is ideal functionality for open rooms, allowing you to watch TV from different zones (e.g. from the seating and kitchen area).

Level correction: The handle is equipped with a level adjustment function in the range of ±2°. This extremely practical solution allows for perfect leveling of the TV after installation, correcting any imperfections caused when drilling holes.

Content of the package

Inside the box there is complete installation equipment:

• Reinforced TV mount UTV-04.

• A package of screws and mounting pins to fit different types of walls and TV models.

• A level that will facilitate precise determination of the mounting axis.

• An instruction manual that will walk you through the process of hanging the screen step by step.

• Minimum Distance from Wall/Ceiling [mm]: 100
• Depth [mm]: 500
• Mounting Type: Wall Mount
• Width [mm]: 660
• Height [mm]: 420
• Maximum Load Capacity [kg]: 60
• Horizontal Adjustment: + / -90 degrees
• VESA Standard: 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, 600 x 400
• Other Features: Powder-coated, Adjustable, Swivel: ± 90°, Universal
• Vertical Adjustment: +5 / -15 degrees
• Screen Size [inch]: 37 - 86
• Suitable for: Monitor, Television
• Color: Black
• Mount Type: Swivel, Wall Mount, Tilt
• Included Documentation: User manual in Polish
• Included Accessories: Mounting hardware, Installation guide

Specifications
