Televizoriaus laikiklis sienai, 13–32 colių, universalus

Trumpai apie prekę

Prekė: Televizoriaus laikiklis sienai, 13–32 colių, universalus. Kategorija: Rankenos.

• Gamintojas: Vetouson
• Modelis: VX-047

• ➡ Technology supporting height adjustment with gas spring in the range of 29 cm !
• ➡ The handle has been tested and verified by our technicians!
• ✅Tilt adjustment -45° / +45°, rotation +/-180° and distance from the wall up to 530 mm
• ✅The mount is universal and fits all models of monitors and TVs that have VESA mounting hole spacing in the 75 x 75 or 100 x 100 mm range and weigh in the 1.5-9 kg range.
• ✅The mount also fits TVs and monitors with curved housing
• ✅Strong joints and perfect varnishing
• ➡ The package includes a full set of mounting accessories (including pegs, screws, washers needed to screw the mount to the wall, and screws and washers needed to screw the TV to the mount)

✅Rotating adjustable mount for monitor or LCD/LED TV -

SPECIFICATION:

• Model: VX-047
• monitor/TV size: 10"- 32"
• maximum lifting capacity in the range of 1.5-9 kg -➡ please make sure that the weight of the monitor or TV does not exceed this value
• VESA : 75x75, 100x100,mm - ➡ please make sure that the monitor or TV has just such mounting holes on the back of the case
• ✅height adjustment in the range of 145 to 435mm
• ✅rotation adjustment: +/-180°
• ✅ tilt adjustment: -45° / +45°
• ✅adjustable distance from the wall up to 530mm
• PIVOT function or rotation of the screen from horizontal to vertical position
• Easy monitor installation thanks to easy&mount system
• strong and robust construction
• cable management system
• Full set of mounting accessories
• handle made with attention to detail
• colour: black

✅Full range of rotational adjustment and distance from the wall

• ➡ full range of rotational adjustment 360°
• ➡ enables corner installation
• ➡ adjustable distance from the wall up to 530mm for the middle position (in the lowest position this distance is 490mm and in the highest 455mm. Distance counted from wall to VESA plate. )
• ➡ possibility of trading in three points in the range
• possibility of setting ➡ any position of the monitor or TV both very close and far from the wall

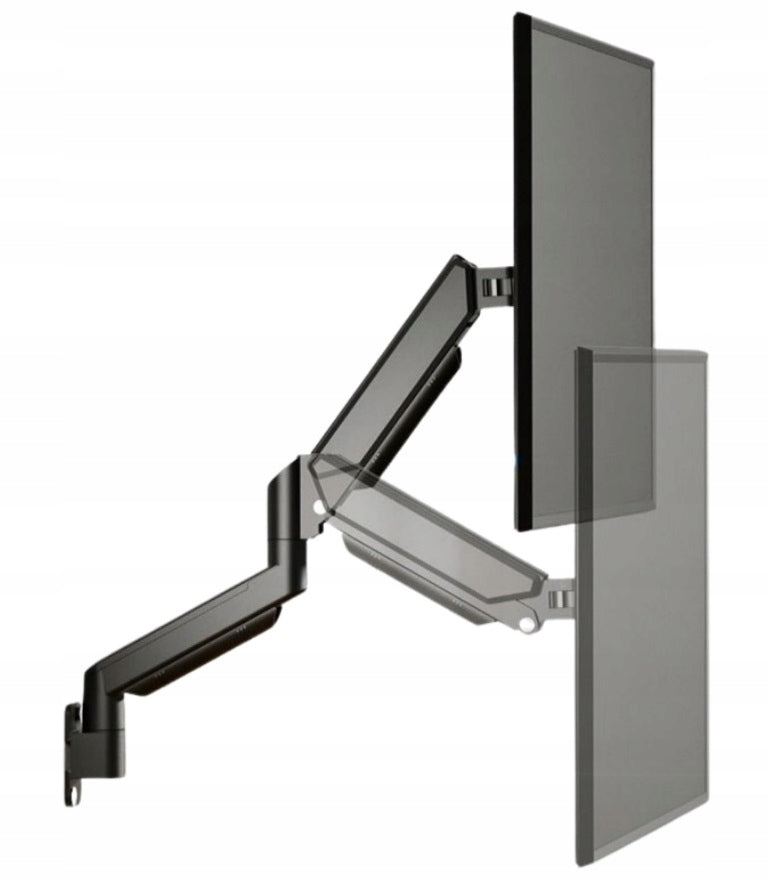

✅Set any monitor/TV height

• ➡ With Gas Spring Height Adjustment Assist Technology, you can position the monitor at the desired height

✅Gas spring height adjustment technology

• ➡ handle has monitor/TV height adjustment in the range of 29 cm
• ➡ installed gas spring allows for easy and smooth adjustment of monitor/TV height with one finger
• handle has an adjustment of the resistance of the gas spring which we set only once at the first installation

✅Cable management system

The holder has special guides through which you can guide cables

✅Reliability and safety

• Made of strong hardened steel and aesthetic material
• Elegant even perfect powder coating
• The force-adjustable spring mechanism ensures that the monitor is held securely in position, without the risk of accidental displacement.

✅DESTINATION

• ✅the handle is universal and fits most monitors and TVs 13-32" and a maximum weight in the range of 1.5-9 kg and a mounting hole spacing of 75x75 mm or 100x100 mm
• Set the most ergonomic monitor/TV
• You will save a lot of space on your desk

✅Aesthetics and elegance

• The handle is made of the highest quality materials
• very nicely presented main structure as well as additional finishing elements

✅SET COMPOSITION

• ✅handle with necessary accessories for assembly
• ✅mounting accessories for wall mount:
• ➡ Screws 4pcs.
• ➡ Expansion pins 4pcs.
• ➡ Dowel/screw pads
• TV mount mounting accessories:
• Screw for TV/monitor installation M4X8 4 pcs (choose the screw suitable for the holes in your TV)
• Screw for TV/monitor installation M4X12 4 pcs
• Screw for TV/monitor installation M4X30 4 pcs
• Bushing/distance 11 mm 4 pcs - for monitors with recessed mounting holes
• washers
• ✅instruction in Polish/English/German

➡ The mount includes a universal set of monitor/TV mounting screws that fits most monitors/TVs on the market. It may happen that your monitor/TV will need other screws, then they must be purchased on their own.

✅ FAQ – Frequently Asked Questions about the VX-047

1. Does the VX-047 mount fit all monitors?

The VX-047 mount fits monitors with a screen size of 13 to 32 inches that support VESA 75x75 or 100x100. Additionally, it also supports curved monitors, making it a versatile solution.

2. What is the maximum load on the handle?

The VX-047 has a lifting capacity of 1,5 kg to 9 kg, which allows for safe mounting of most monitors in this weight range.

3. Can I adjust the angle of inclination and rotation of the monitor?

Yes, the mount allows you to adjust the angle of the monitor from +45° to -45° and a full 180° rotation, allowing you to position the screen vertically or horizontally.

4. Is the installation of the handle complicated?

No, the VX-047 is designed for easy installation. Thanks to the mounting holes in the form of a "key" and VESA plate, installation is quick and intuitive.

5. Does the handle have a cable management system?

Yes, the VX-047 is equipped with a built-in cable management system. Thanks to this, the monitor wires are invisible and this improves the aesthetics of the station.

6. Can I mount the mount on any wall?

The bracket can be mounted on most walls, however, it is recommended to make sure that the mounting surface is stable and durable. For gypsum walls or drywall, it may be necessary to use special mounting pins.
