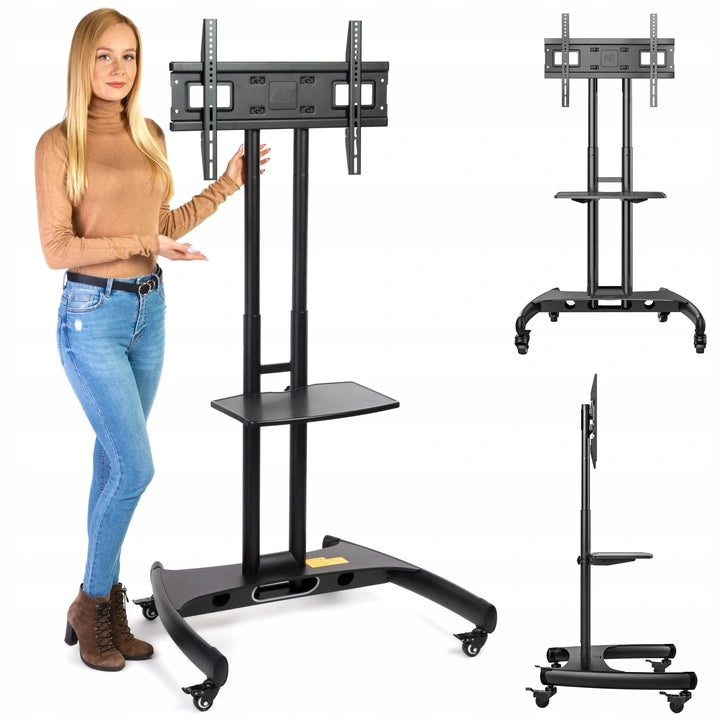

Televizoriaus stovas su ratukais, 32–65

Trumpai apie prekę

Prekė: Televizoriaus stovas su ratukais, 32–65. Kategorija: Šoniniai staliukai.

• Gamintojas: North Bayou
• Modelis: AVA1500B

Mobile Stand for LCD LED Plasma TVs 32" - 70"

• TV size: 32"- 70"
• maximum TV weight: 45,5 kg
• VESA : 100x100 ~ 600x400 mm
• height adjustment in the range of 112 ~152 cm (every 5 cm)
• adjustable shelf for AV equipment - lift up to 4,5 kg
• 4 x swivel casters 2-inch with lock function

Original product from the official polish distribution:

A product of a reputable brand for 12 years on the market

CHARACTERISTICS

• Universal Trolley / Mobile Stand for LCD LED TVs Plasma 32"-70"
• maximum weight of the TV 45,5 kg
• TV height adjustment
• high quality materials affect a very solid and durable construction
• Height Adjustable Audio Video Hardware Shelf Included with Stand
• Compliance with the VESA standard
• cable management system

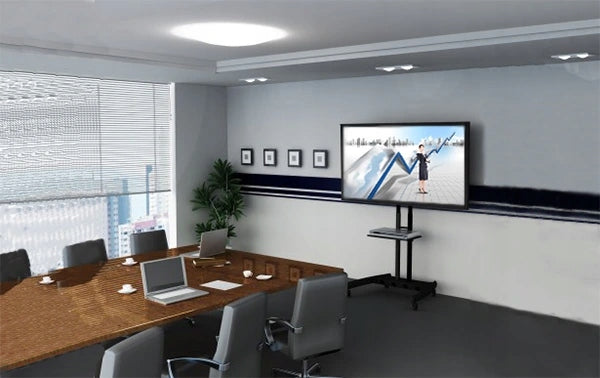

• perfect for conference rooms, schools, exhibitions as well as for private use
• has four wheels with lock function
• available in black (white - other auction)

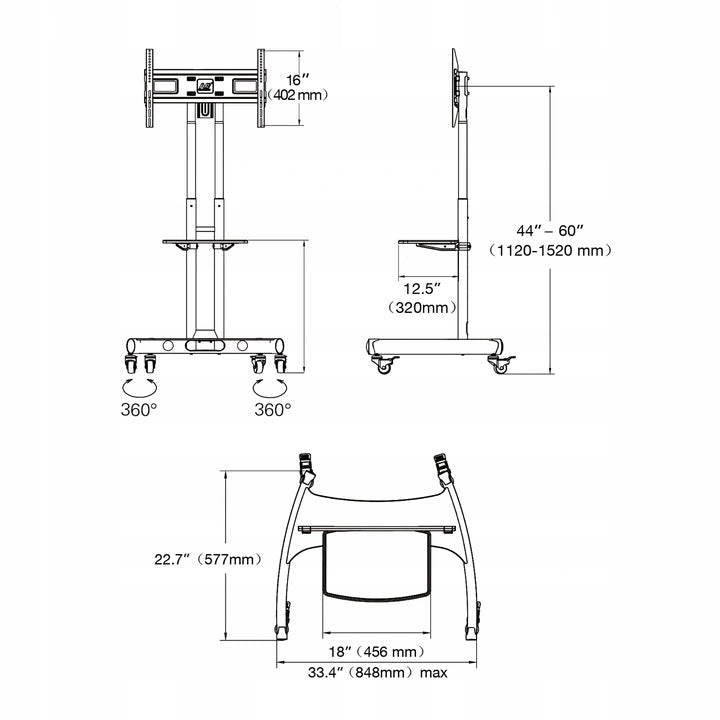

TECHNICAL PARAMETERS

• max. lifting capacity 45,5 kg
• for TVs 32"- 70"
• height adjustment in the range of 112 ~152 cm (every 5 cm)
• 4 x 2-inch swivel wheela with lock function
• double steel load-bearing columns
• solid steel base: 848x577 mm
• AV shelf size: 456x320 mm
• adjustable shelf for AV equipment - lift up to 4,5 kg
• masking of wires in the stand column
• compatible with VESA (mounting hole spacing) standard:
• VESA 100 (hole spacing 100 x 100 mm)
• VESA 200 (hole spacing 200 x 200 mm)
• VESA 300x200 (hole spacing 300 x 200 mm)
• VESA 300 (hole spacing 300 x 300 mm)
• VESA 400x200 (hole spacing 400 x 200 mm)
• VESA 400 (hole spacing 400 x 400 mm)
• VESA 600x400 (hole spacing 600 x 400 mm)
• VESA 100x100 ~ 600x400 mm (all hole combinations in this range)

SET COMPOSITION

• stand
• set of screws
• installation instructions

When choosing the right TV mount, you should first of all pay attention to the weight of the TV and the VESA mounting hole spacing, the screen size itself is given by the manufacturers indicatively. Information on the VESA compatibility of the TV can be found in the user manual or on the manufacturer’s website. You can also check and measure the hole spacing yourself.

The VESA standard specifies the locations of the four mounting holes from the back of the TV. The spacing of these holes depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter determines the distance between the holes horizontally (left - right), and the second parameter the distance between the mounting holes vertically (upper - lower).

EXAMPLE

To better understand how to measure VESA mounting holes, we have prepared an example photo of a TV with a VESA 400x200 hole spacing. In this example, the distance between the horizontal holes is 400 mm, and the distance between the vertical holes is 200 mm.
