Televizoriaus stovas, universalus, tinkantis monitoriams

Trumpai apie prekę

Prekė: Televizoriaus stovas, universalus, tinkantis monitoriams. Kategorija: Pagrindai.

• Gamintojas: Qumak-Sekom
• Modelis: PWHP003

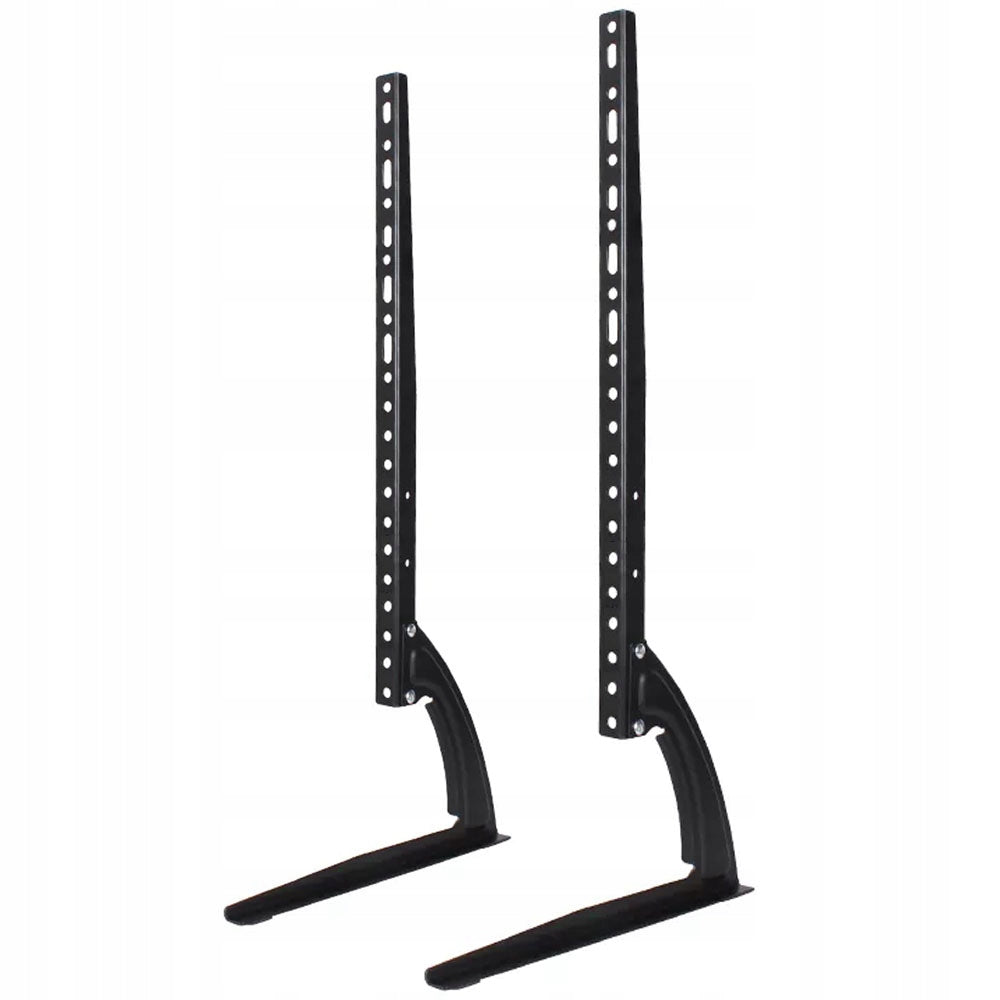

Universal stand for LCD/LED TV 36-75". The handles are precisely made of steel, which ensures their high quality and solid and reliable installation of screens with a lifting capacity of up to. 50 kg. The black color of the handles will make them suitable for any environment.

The brackets fit virtually any screen with the ability to use a VESA mount on the back (4 screw slots in a square). VESA supports most monitors and TVs.

✅ Screen height adjustment

Depending on the size of the screen and your preferences, it is possible to adjust the height of the screen and the handle. Holes for adjusting the height of the entire handle are spaced at a distance of 6 cm.

✅ Solid execution

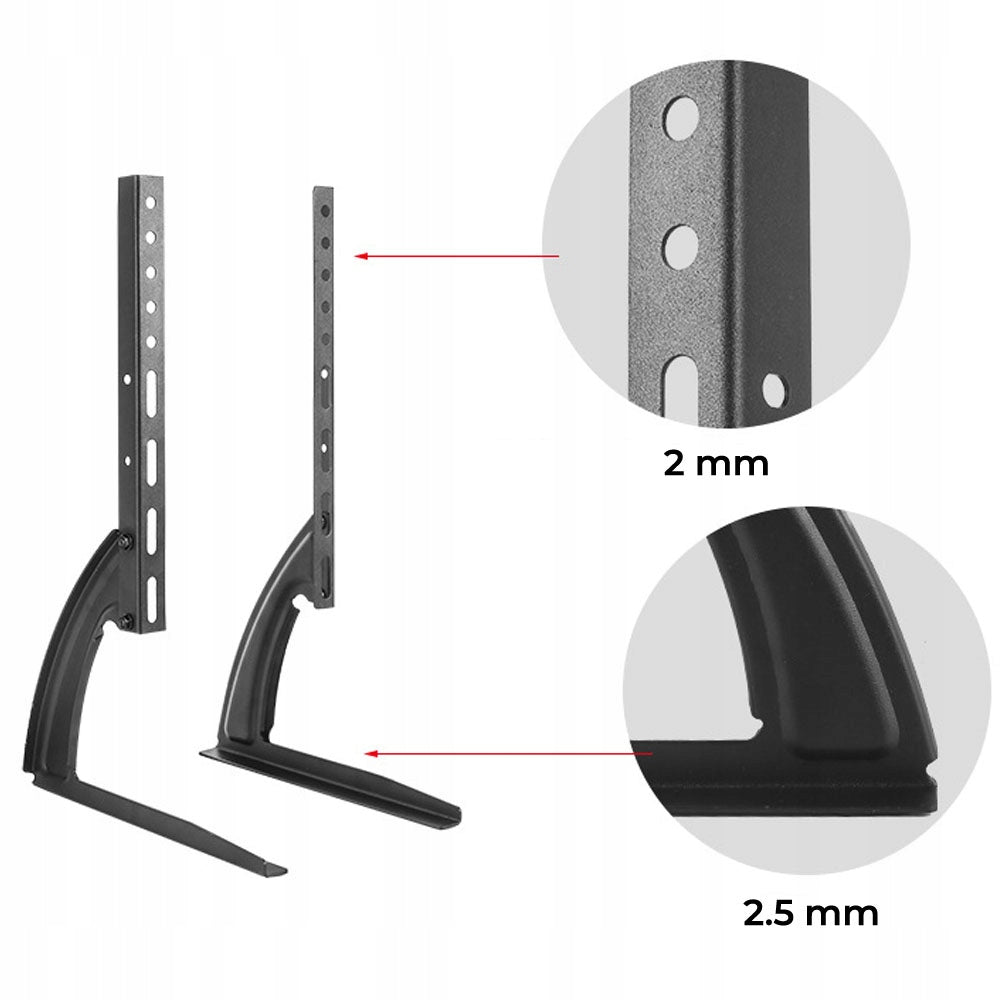

The entire handle is made of black powder coated steel. The thickness of the screen retaining strip is 2 mm, while the base is 2,5 mm.

⚙ Specification:

• Supported screen size: 36-75 inches,
• Max. lift: 50 kg,
• Length of the strip for fixing: 55 cm,
• Total handle height: 69 cm,
• Strip thickness: 2 mm,
• Leg thickness: 2,5 mm,
• Leg dimensions (H x W): 22 cm x 35 cm,
• VESA: 300x300, 400x400, 600x400, 500x500, 600x500 mm,
• Material: powder coated steel,
• Stock Code: PWHP003

✅ Universal size

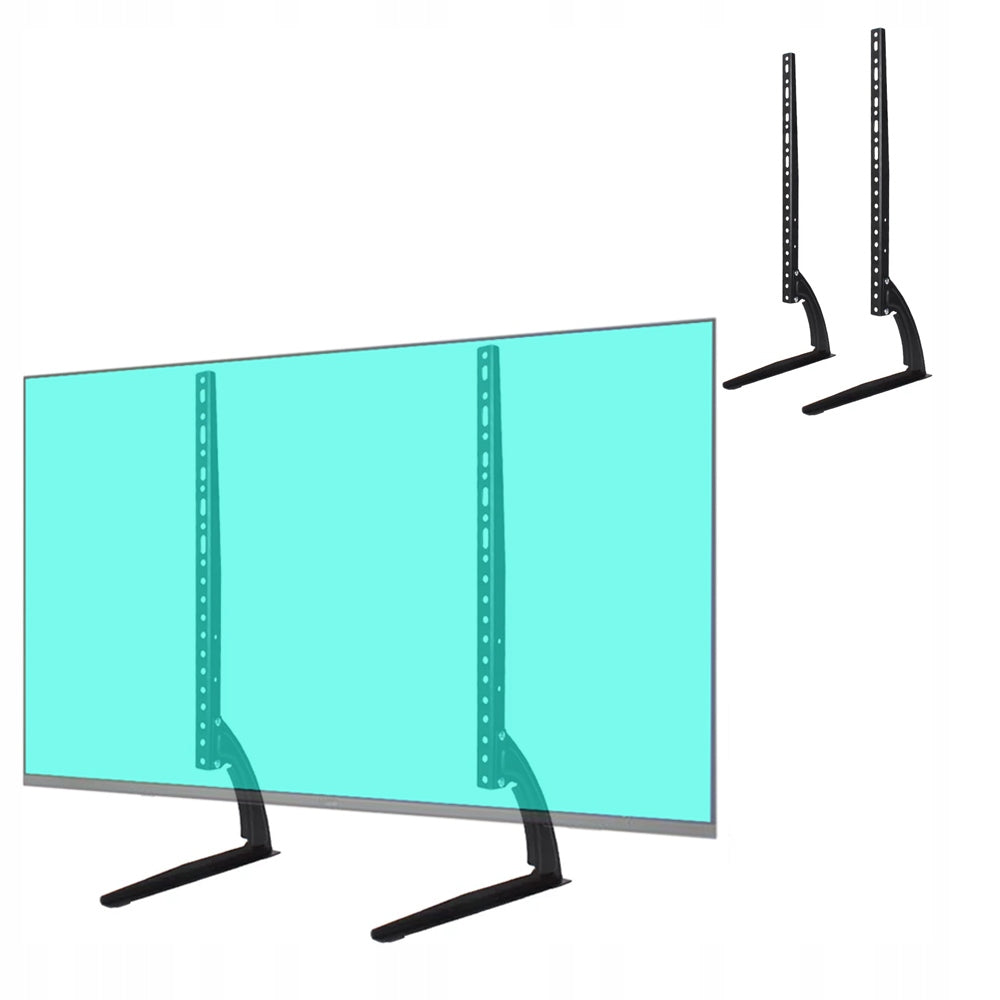

The mount supports screens from 36 to 75 inches, max. weight 50kg and with VESA mounting standard.

➡ Matching VESA dimensions:

• 300x300 mm
• 400x400 mm
• 500x500 mm
• 600x400 mm
• 600x500 mm

➡ How to check VESA mounting hole spacing

The VESA standard specifies the spacing of the four mounting holes located on the back of the TV. The spacing depends on the make, model and screen size. Dimensions are given in millimeters: the first parameter determines the distance between the holes in level, and the second parameter the distance between the holes in pion. Information about the compatibility of the TV with the VESA standard can be checked in the instructions, specifications on the manufacturer's website or measured yourself using a measuring cup. When choosing a mount, pay attention to the weight of the TV.

The picture next to it shows examples of available spacing of mounting holes (compatible dimensions for this handle should be checked in the technical specification above).

✅ Easy installation and simple operation

The handle is ready to install immediately after unpacking. With the included set of mounting parts, wrench, and instructions, it can be mounted without having to spend money on additional components.

The included set of screws fits most TVs on the market, although in the case of mounting some models (m.in: Samsung, TCL, etc.) you may need to use longer screws or additional distances to level the rear surface of the housing (not included in the set and must be purchased on your own).

➡ Set contains:

• Elements of the base ready to be assembled,
• Mounting screws for screwing the screen,
• Assembly instructions

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	PWHP003
Parametry	Model	PWHP003
Parametry	Brand	Qumak-Sekom
Parametry	Product weight with unit packaging	3.1 kg
Parametry	EAN (GTIN)	5906728466904
Parametry	Packaging status	original
