Temperatūros ir drėgmės jutiklis SUPLA THW-01 su USB maitinimu, Zamel

Trumpai apie prekę

Prekė: Temperatūros ir drėgmės jutiklis SUPLA THW-01 su USB maitinimu, Zamel. Kategorija: Rinkiniai.

• Gamintojas: Zamel
• Modelis: THW-01 / CE12

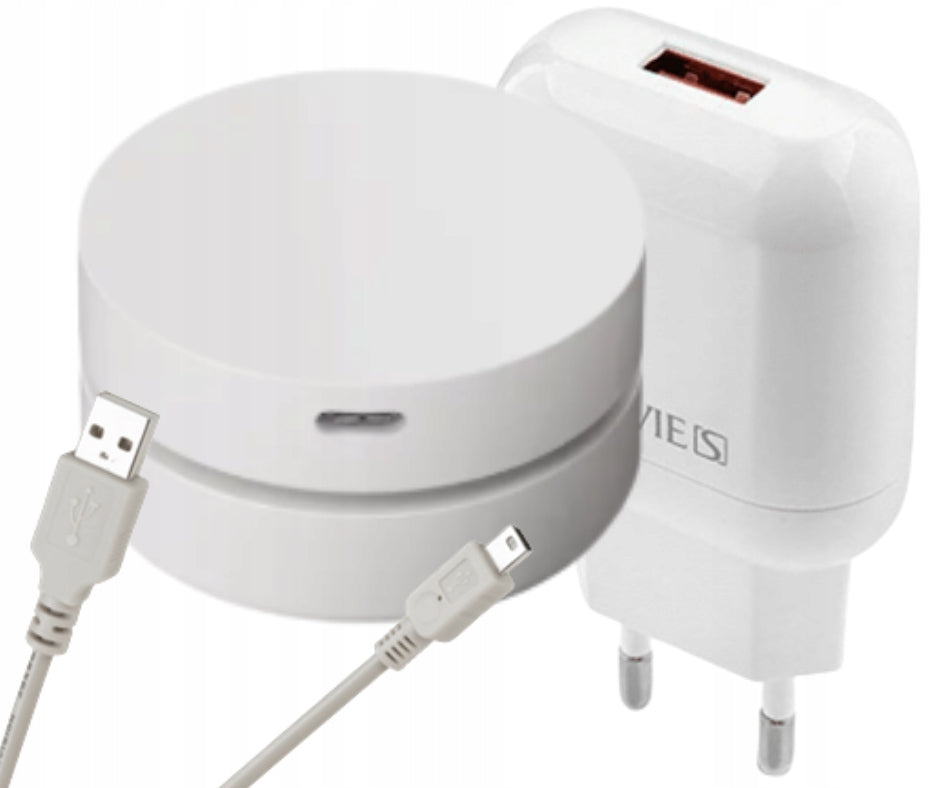

SUPLA Temperature and Humidity Sensor Kit with USB-USB mini power adapter!!!

In short, what is THW-01 / EC12

SPL10000041

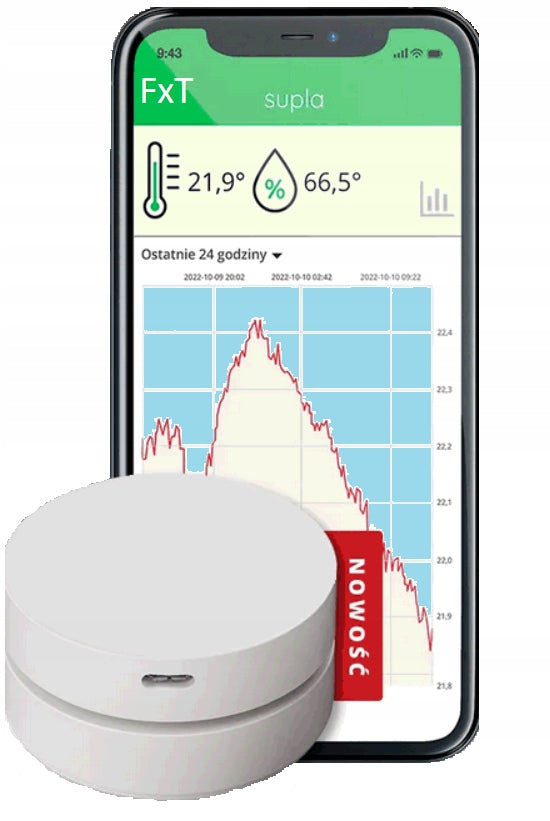

Modern, easy to install and operate temperature and humidity sensor. THW-01 is a small device that you can place in almost any place whose temperature and humidity you want to read. All you need is Wi-Fi coverage and power supplied with a Micro USB cable to be able to add THW-01 to your Supla account and analyze measurements on your phone screen. The sensor operates in temperature ranges -25°C ÷ +55°C and humidity 0 ÷ 99%. The THW-01 temperature and humidity sensor can be placed, mounted on a wall or attached to a metal surface using a magnet built into the housing.

Features:

Rated voltage: 5 V DC (external power source)

Voltage tolerance: -20 % to 15 %

Rated power consumption: 0,45 W

Frequency: 50 / 60 Hz

Working temperature range: -25°C ÷ +55°C

Power supply optical signaling: LED

Transmission: Wi-Fi 2.4GH 802.11 b/g/n

Range of operation: Wi-Fi coverage

Measured physical quantities: Temperature, humidity

Measuring sensors used: Digital – built-in sensor

Temperature measurement range: - 20°C ÷ +55°C

Humidity measurement range: 0 ÷ 99%

Measuring accuracy: Temperature: +/- 0,5°C, Humidity: +/- 5%

Environmental resistance: IP20

Number of connection terminals: 1 – micro USB port

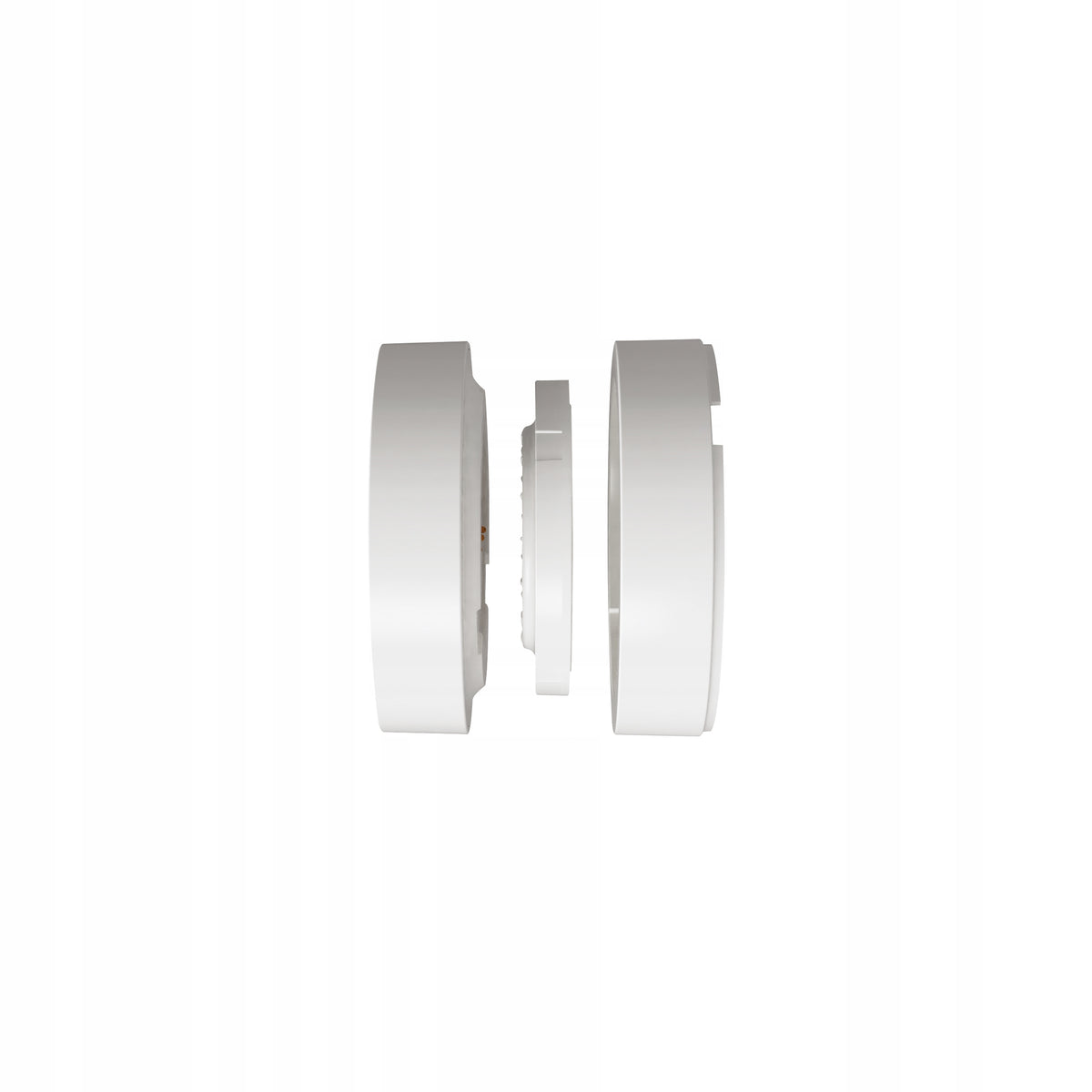

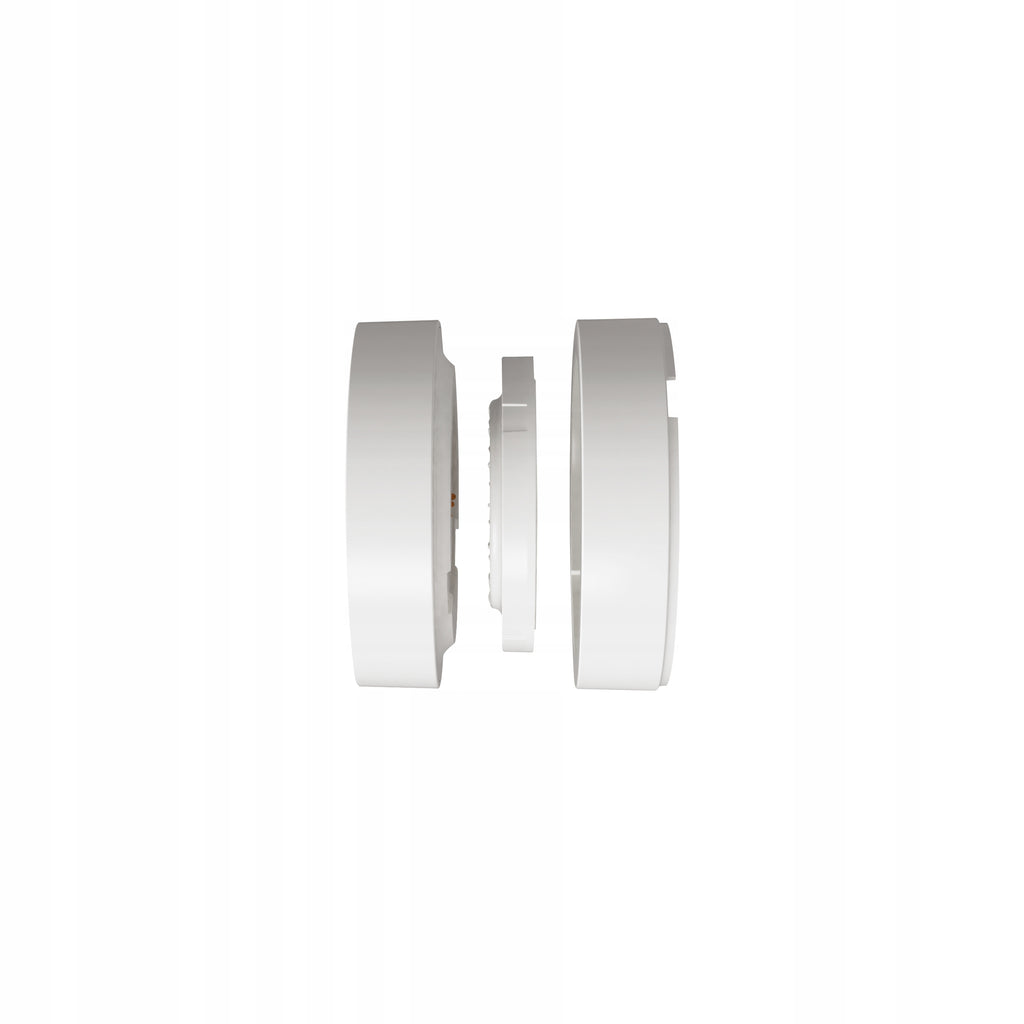

Housing mounting: Stand – fixed with screws Built-in magnet – can be mounted on a magnetic substrate

Dimensions: Ø 50 mm, height:13 mm (26 mm with stand)

Weight: Without stand: 0,02kg, with stand: 0,04kg

Weight Set : 0,1kg

Network Charger

Type of connection: single USB port

Input voltage: AC 100-240 V / 50-60 Hz

Output voltage: 5 V

Output current: 2400 mA

Security: Against overcharging and overvoltage

Safety certificates: CE, ROHS

Note!!!

It is carried out depending on the time of purchase, usually on the same day, but for various reasons, independent of us, it can be sent the next day. If it is given for a longer time than the stated (2 days), i.e.

In urgent matters, please let us know.

Pictures of products in our offers are illustrative, do not suggest the parameters placed on them. The offer description includes the full specification.

RETURNS!!!

Returned products should be undamaged, without signs of assembly/use, i.e. scratches and no other traces indicating the use of the product, and with unprogrammed functions. In any case, the refund amount will be reduced!!!

The electrical appliance, mounting and connection should be handled by a qualified person with SEP privileges.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Zamel
Parametry	Communication	WiFi
Parametry	Product weight with unit packaging	0.2 kg
Parametry	Manufacturer code	THW-01 / CE12
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE
