Temperatūros jutiklis su LCD ekranu Zigbee Tuya

Trumpai apie prekę

Prekė: Temperatūros jutiklis su LCD ekranu Zigbee Tuya. Kategorija: Jutikliai.

• Gamintojas: RTX
• Modelis: ZTHS7

Wireless temperature and humidity sensor compatible with ZigBee 3.0 and Tuya Smart Life

• Temperature measurement ranging from -10°C to 55°C
• Measurement of humidity in the range from 0 to 100%
• Readable LCD

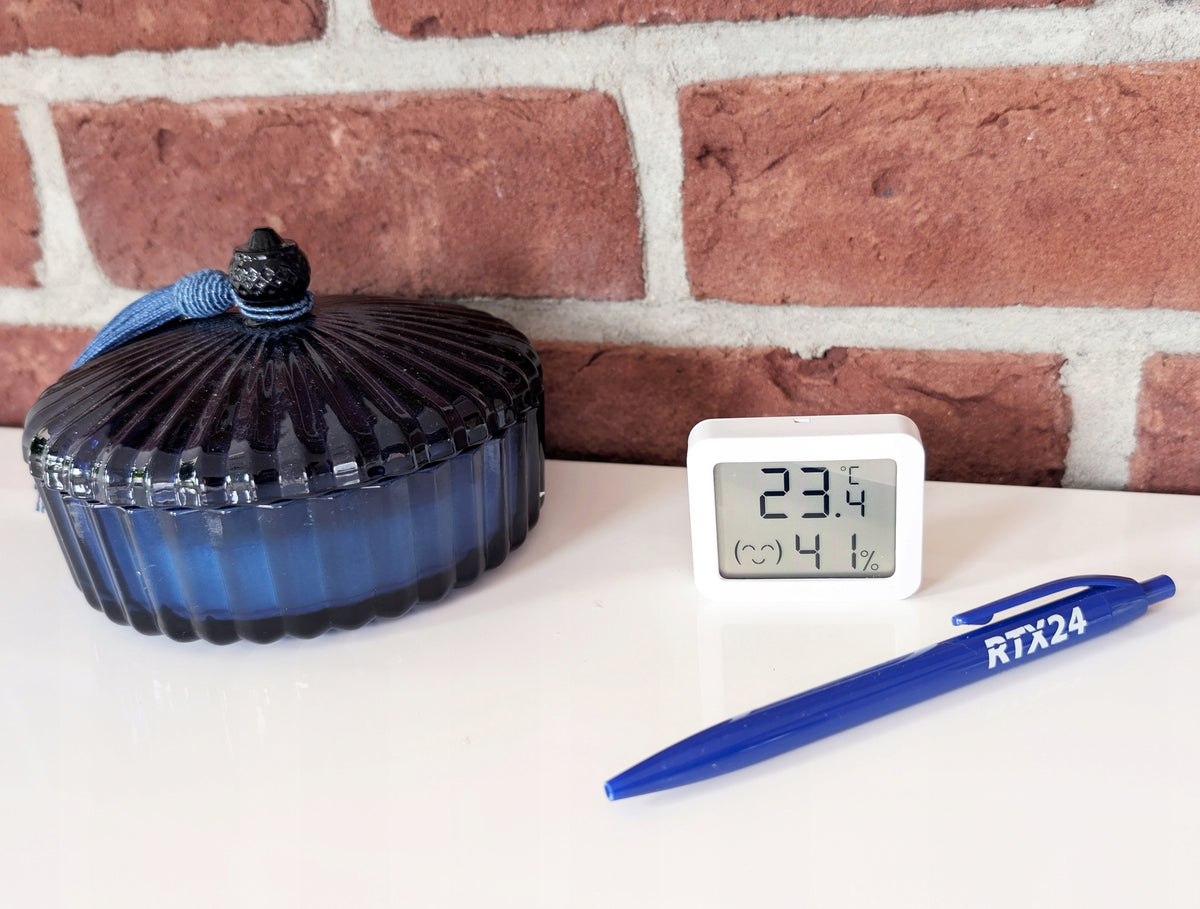

• Very small dimensions-only 52x42x12mm
• Alarm exceeding the range of temperature / humidity
• Automation from temperature / humidity levels
• Notification of alarms in the application
• Displaying ambient comfort level
• Calibration function temperature and humidity
• Measurement history in the range up to 1 year with export to Excel
• Information about low battery level ≤2,4 V

To operate the device, it is necessary to have a ZigBee gateway control panel, which is a "node" between the system elements and the Tuya Smart cloud server.

We offer gates in separate offers:

• WiFi gateway, offer number 9054486387
• LAN gateway, offer number 9291747069

You can easily set process automation (e.g. switching on air conditioning or heating) based on measurements from the sensor

• The sensor allows measurement of temperature and humidity.
• Temperature measurement range: -10 + 55 degrees C (+/- 0,3 degrees C)
• Humidity detection range: 0 - 100% relative humidity (+/- 0,3%)

The LCD display shows the level of comfort depending on the humidity of the environment:

• dry: 0-40%
• Comfort: 40-70%
• Wet: 70-100%

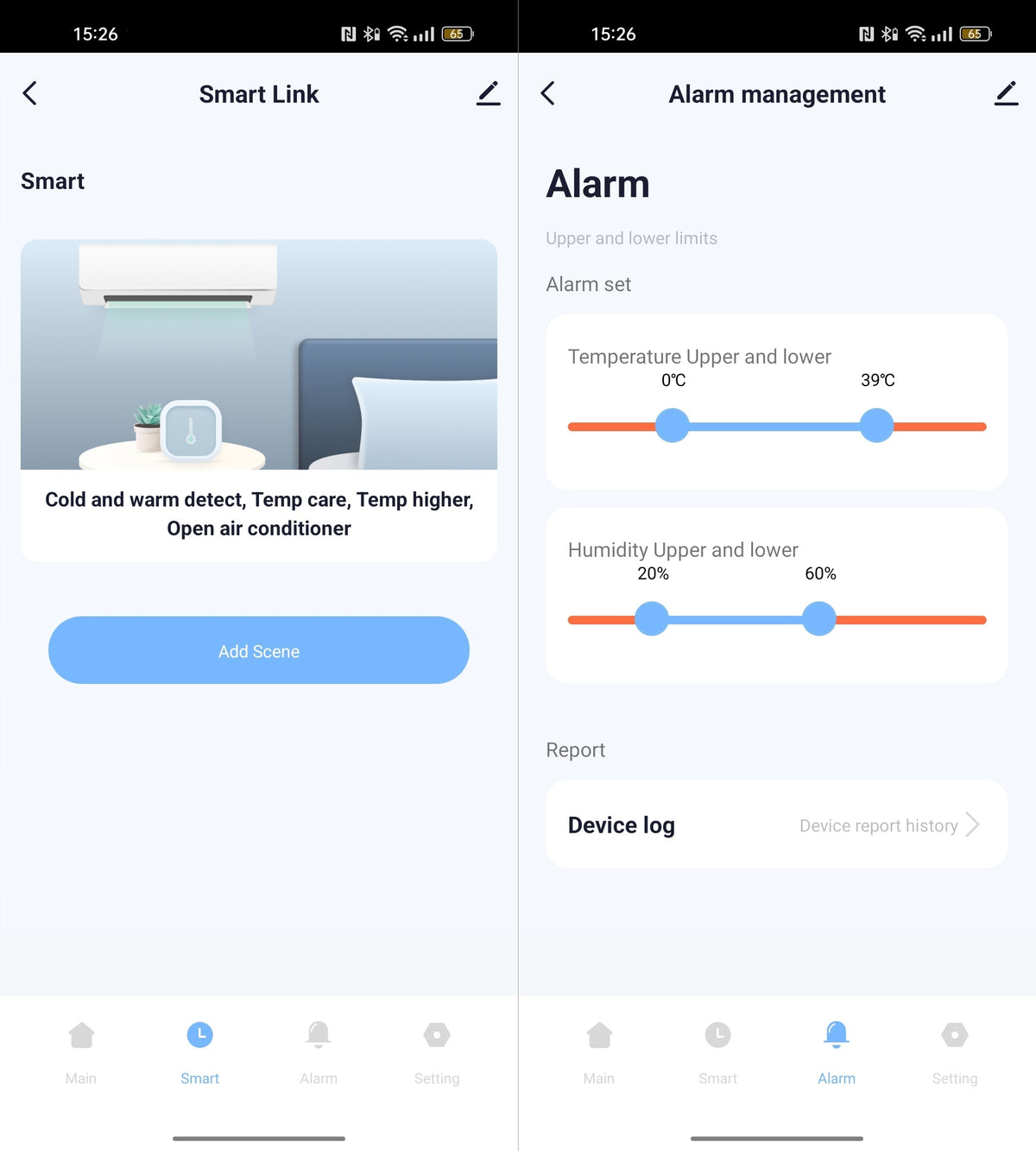

Possibility to set the range of alarms and notifications

The user can be notified in the application about exceeding the previously set temperature or humidity ranges

• The setting range for the temperature is -10°C to 50°C
• Humidity setting range is 0-100%

Exceeding the ranges is indicated by an in-app notification (free), SMS or email option requires a paid subscription

The device has the ability to integrate with Alexa and Google Home

Calibration function

If necessary, the user has the ability to adjust the displayed values:

• temperature (with precision 0,1°C)
• Humidity (with 1% precision)

You can check historical data at any time .

The sensor has a unique function of exporting data to a file. csv, so you can precisely check what temperature or humidity has been measured on a given day or hour in the past.

Format . csv also allows you to process data in a spreadsheet, which definitely increases the functionality of this device.

Speed of operation, stable and safe communication and low power consumption are the main advantages of ZigBee

ZigBee is an open standard of radio communication supported by leading manufacturers of consumer electronics associated within the Zigbee Alliance.

The current version – ZigBee 3.0 – was developed for Internet of Things systems and smart home systems.

Process automation between system elements is carried out in the control panel, not in the cloud, thanks to which individual actions are performed much faster.

The lattice topology (mesh) provides stable communication between the gate and individual elements of the system, because each receiver is a transmitter. Damage to a single device does not stop the entire network.

Low power consumption needed for the system components to operate, so ZigBee devices (nodes) can usually run for many years on a single battery.

Tuya Smart Life joined ZigBee Alliance thanks to which huge possibilities of expanding the system with new elements were opened.

• integration of more than 11000 different devices
• 30 categories (control, air conditioning, monitoring, etc.)
• 10000 manufacturers of smart devices
• develops new features and supported devices every day
• available for free for Android and iOS

Dedicated Tuya Smart Life app - easy installation and hassle-free operation.

Wherever you are, you can control the safety of your property!

Technical specification:

• ZigBee protocol: version 3.0 according to the standard: 802.15.4
• App name: Tuya Smart or Smart Life
• Battery type: CR2032 (included)
• Resting current: ≤30uA
• Working temperature: -10 ℃ ~ 55 ℃
• Working humidity: 10%~90%RH
• Choose temperature format:°C/°F
• Adjustable report cycle from temperature/humidity/time
• Format time: 12/24H
• Display: temperature / humidity
• Dimensions: 52*42*12mm

Set Contents:

• Sensor ZTHS7
• Instruction for use

Note: a ZigBee gateway is required to work

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Sensor type	temperature, humidity
Parametry	Series	ZigBee
Parametry	Brand	RTX
Parametry	Power supply	batteries
Parametry	Additional features	display
Parametry	Batteries included	no
Parametry	Manufacturer code	ZTHS7
