Pristatymo terminas visoje Lietuvoje: 5-7 d.d.
Pristatymo kaina nurodytu adresu: 3 eur
Aprašymas
Trumpai apie prekę

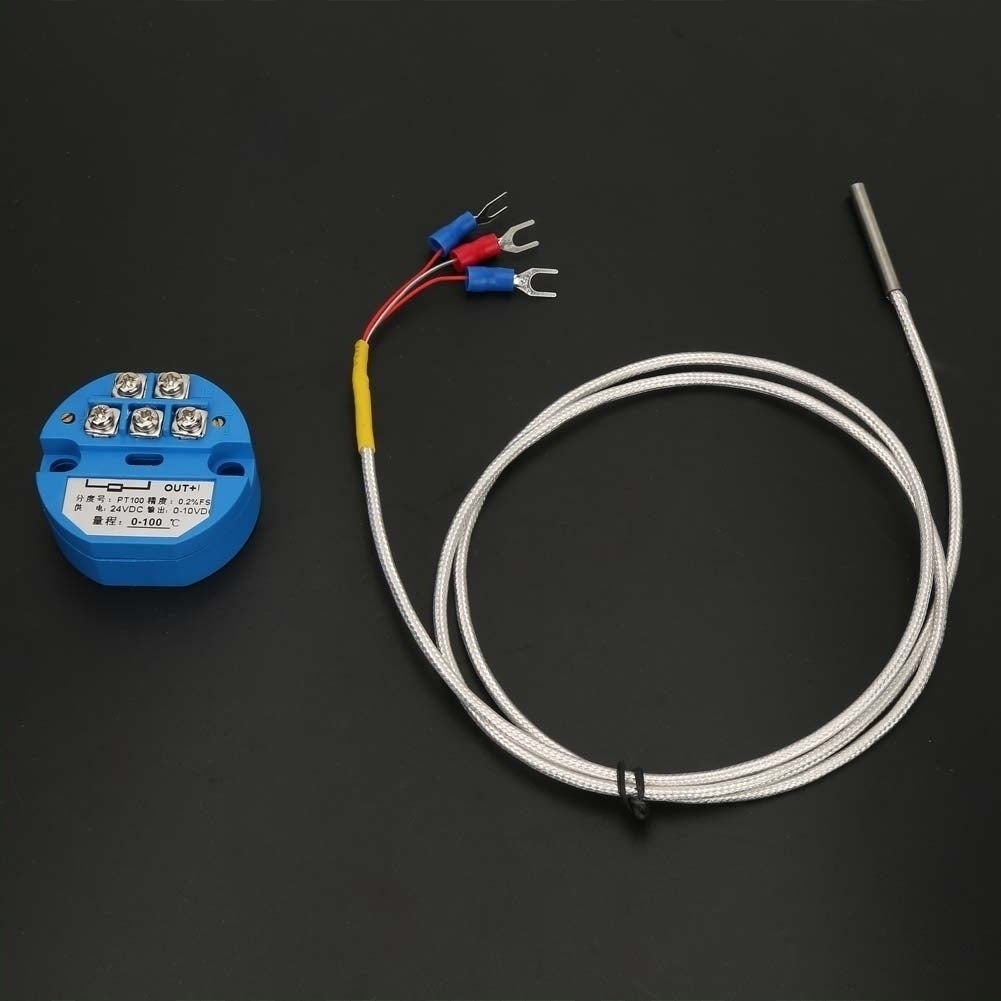

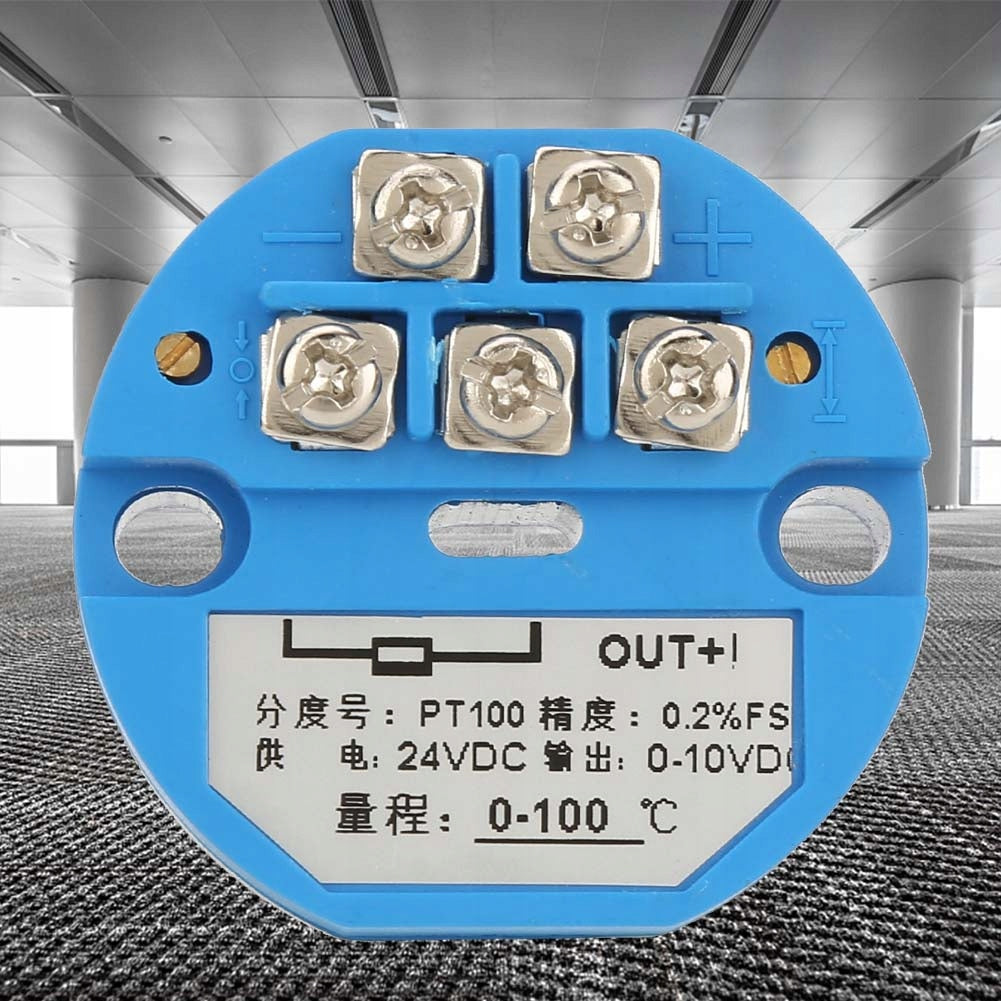

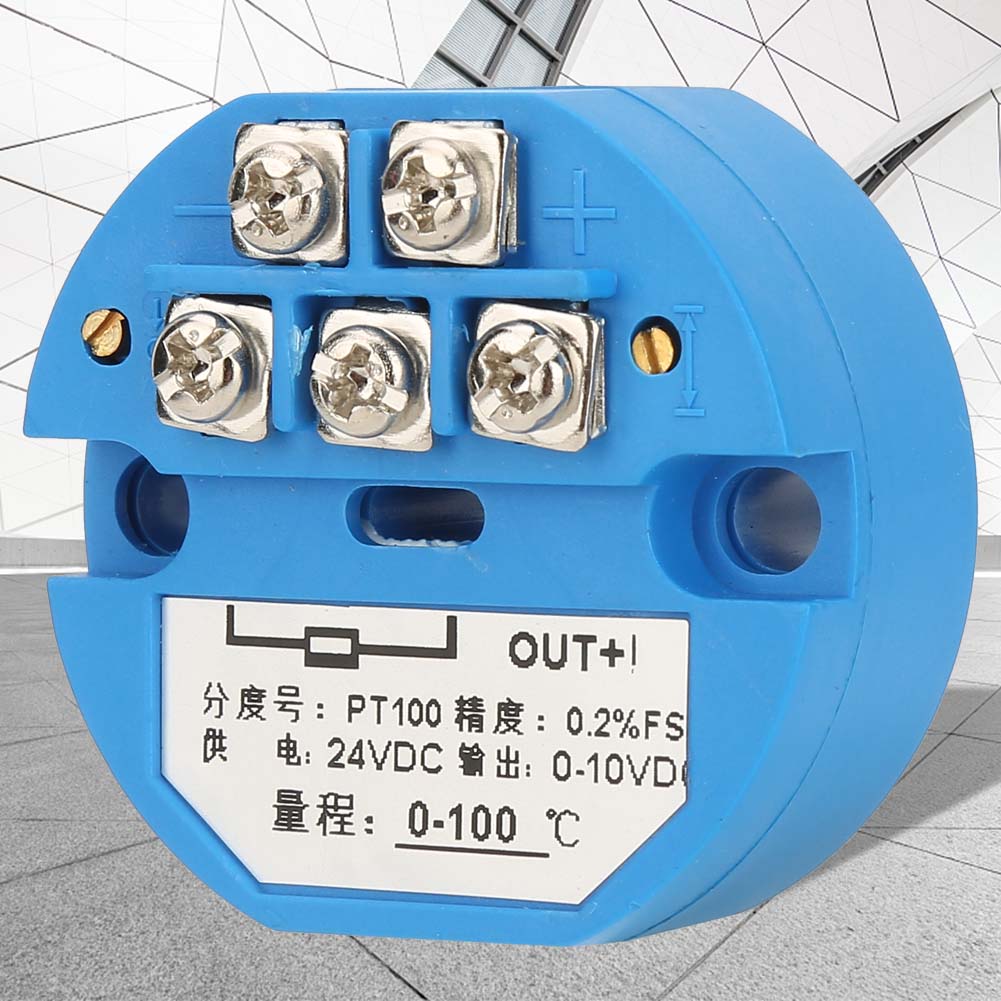

Prekė: Temperatūros keitiklis SBWZ PT100, 24V DC, su 1 m jutikliu. Kategorija: Siųstuvai.
- Gamintojas: no brand
- Modelis: GS14
⭐Functions:
Through the transmitter, the thermal resistance signal can convert into a 0-10V current signal, convenient to use with the computer.
Converts industrial thermal resistance thermocouple signal to 0-10V output signal, in linear dependence on input signal or temperature signal.
The current temperature is calculated by confirming that the resistance is different
Made of the highest quality electronic components with excellent working performance
Sensor has good sensitivity and fast response
⭐ Specification:
- Model: SBWZ
- Division Number: PT100
- Power Supply: DC24V
- Output: 0-10 V
- Range: -50 ~+50℃, 0-50℃, 0-100℃, 0-150℃, 0-200℃, 0-250℃, 0-300℃, 0-400℃
- Accuracy: 0,2%
- Cold Connector Compensation: 0~50 ℃ ± 1 ℃
- Adjustment mode: potentiometer
- Load capacity: 0 ~ 250Ω
- Ambient temperature: - 20 ~ 80 ℃
Temperature relay:
1. Calculate the current temperature, confirming that the resistance is different
2.
Namely: temperature change - thermal resistance - resistance change - temperature transducer - signal 0-10V
Weight: 75 g / 2,6 oz (approximately)
List of packages:
- 1 x Temperature Transducer Module
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Product weight with unit packaging | 0.08 kg |
| Parametry | EAN (GTIN) | 5704840835338 |
| Parametry | Model | GS14 |
| Parametry | Manufacturer code | GS14838 |
| Parametry | Customs tariff code | 85437090 |
