Aprašymas
Trumpai apie prekę
Prekė: Termoelektrinis laidinis pavaros vožtuvas grindų kolektoriui, NC. Kategorija: Rinkiniai.
- Gamintojas: no brand
- Modelis: TER3P

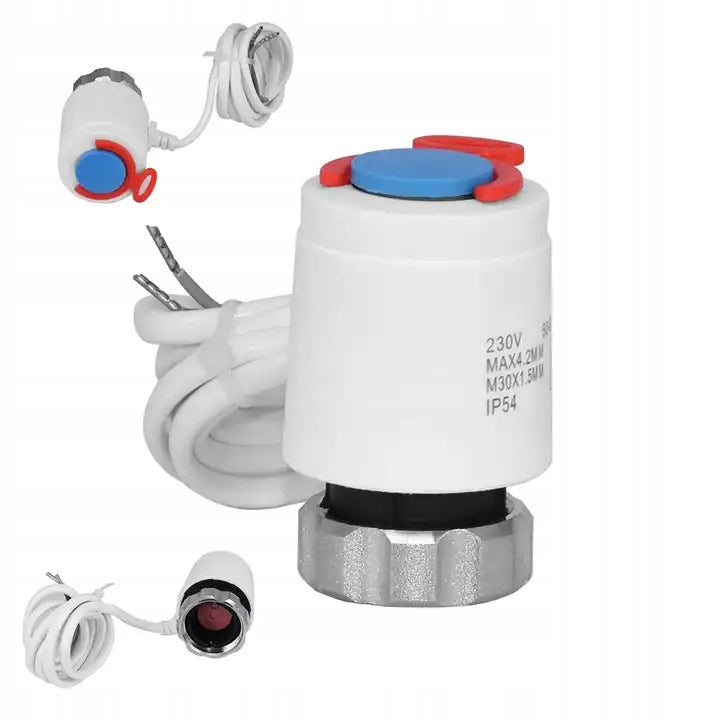

THERMOELECTRIC ACTUATOR 30x1,5mm TER3P NC normally closed
Application:

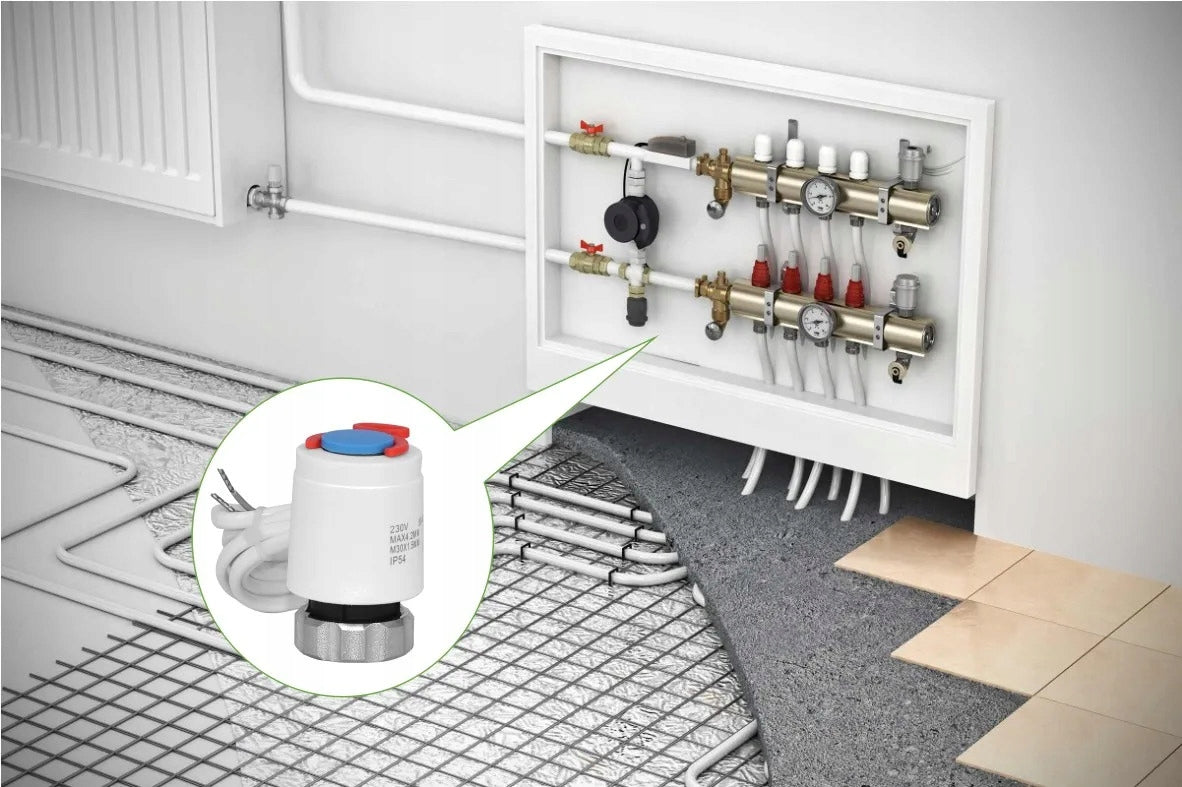

Thermoelectric actuator TER3P is designed for automatic closing and opening of valves mounted on heating distributors or opening and closing radiator valves. They can be controlled by slats - controllers (available on our other auctions) or room thermostats (available on our other auctions).
The TER3P thermoelectric actuator is equipped with a valve stem position indicator.

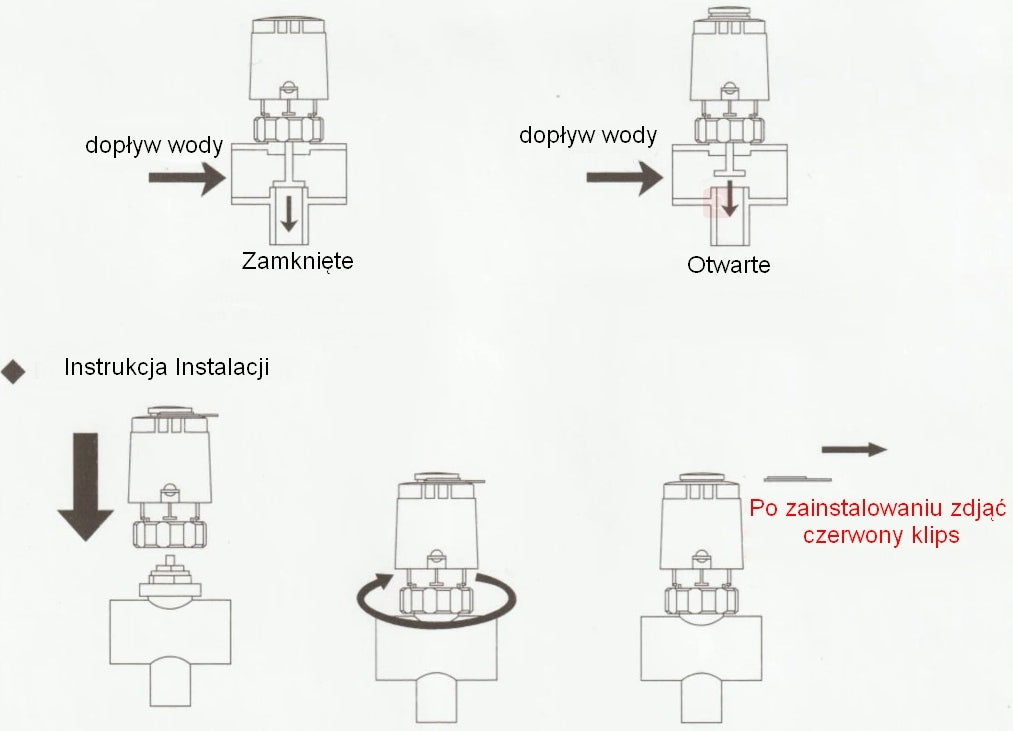

They are equipped with an electric cable and nut with M30x1,5mm thread for mounting directly on the distributor or radiator valve. Actuators are electrically closed. In case of failure, they close automatically.
To create a set operating in one ecosystem app TUYA you need to choose devices from our other auctions such as TERSCP thermostat + TER3P actuator + control panel CEN2P/CEN2/CEN3
Technical data:
- Actuators are electrically closed (NC).
- Cable length - 1 meter
- Connection - nut with thread M30x1,5mm
- Class - IP54
- Double insulation
- Opening/closing time 180 sec.
- Stroke - 4,50 mm
- Maximum operating temperature - ambient temperature 70°C
- power supply: 230V 50Hz,
- Continuous power 2W
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Set contents | driver |
| Parametry | Brand | no brand |
| Parametry | Manufacturer code | TER3P |
| Parametry | Packaging status | original |
| Parametry | Batteries included | no |
