Termovizinė kamera SONEL su automatiniu fokusavimu, 256 x 192 px, 2,4" LCD, itin jautri

Trumpai apie prekę

Prekė: Termovizinė kamera SONEL su automatiniu fokusavimu, 256 x 192 px, 2,4" LCD, itin jautri. Kategorija: Detektoriai.

• Gamintojas: Sonel
• Modelis: WMGBKT256FPRO

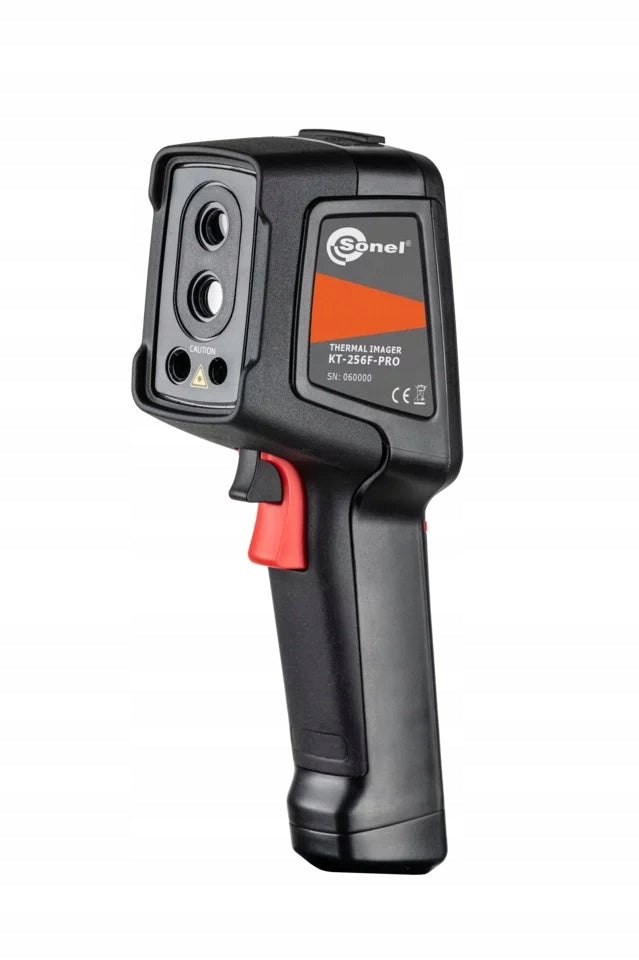

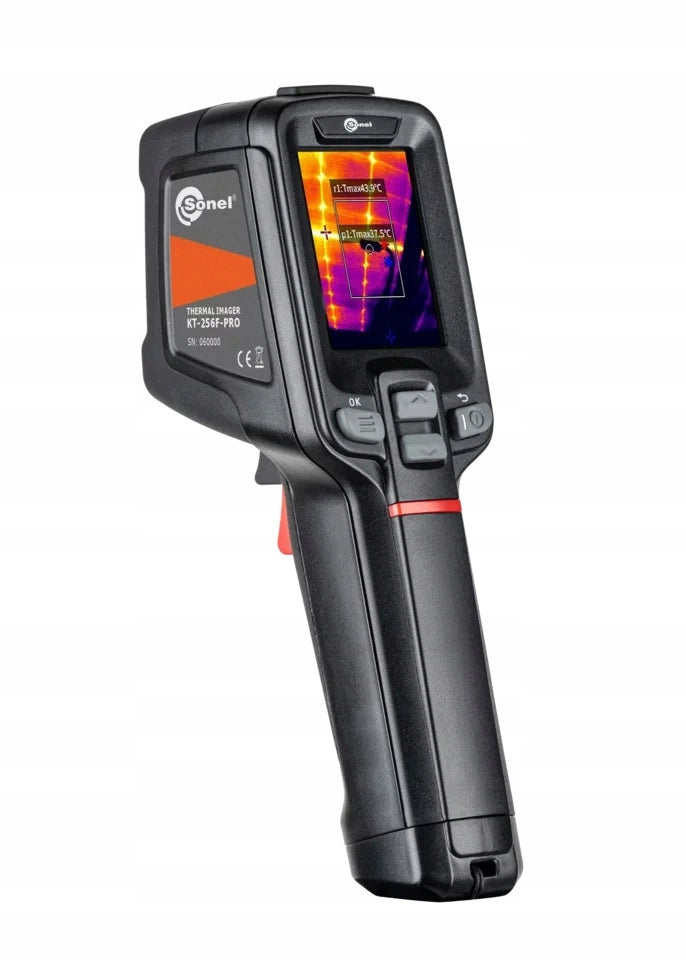

KT-256F-PRO thermal imaging camera with two lenses and autofocus

SONEL WMGBKT256FPRO

✔ Multitasking and convenience: The camera combines the features of an economical, practical and handy device, providing irreplaceable support in everyday work.

✔ Precise detection: equipped with a matrix with a resolution of 256x192 pixels, which ensures optimal image quality in the segment of basic devices.

✔ Advanced visual support: integrated visible light camera and laser pointer allow for flawless location of measuring points.

✔ Full safety: non-contact temperature measurement allows you to remotely assess the condition of devices that are live or in motion.

✔ Ready to work in all conditions: very high thermal sensitivity of 45 mK and protection rating IP54 guarantee reliability in harsh industrial environments.

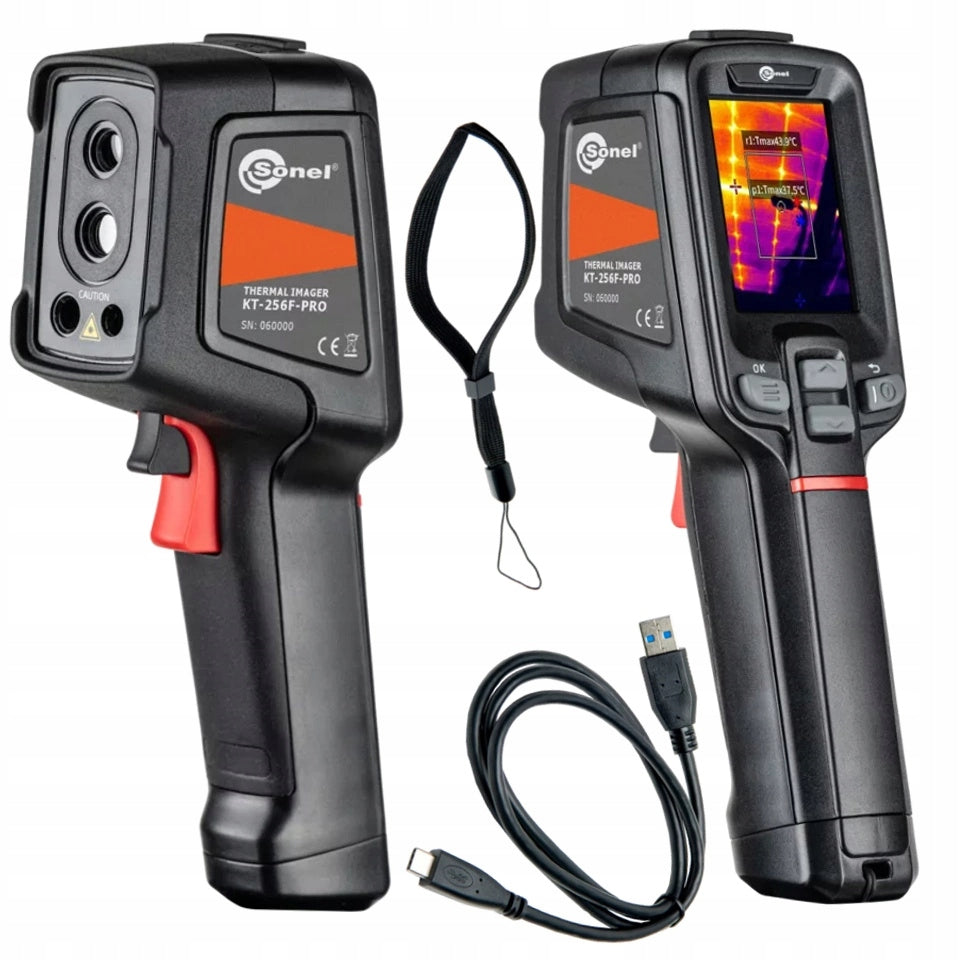

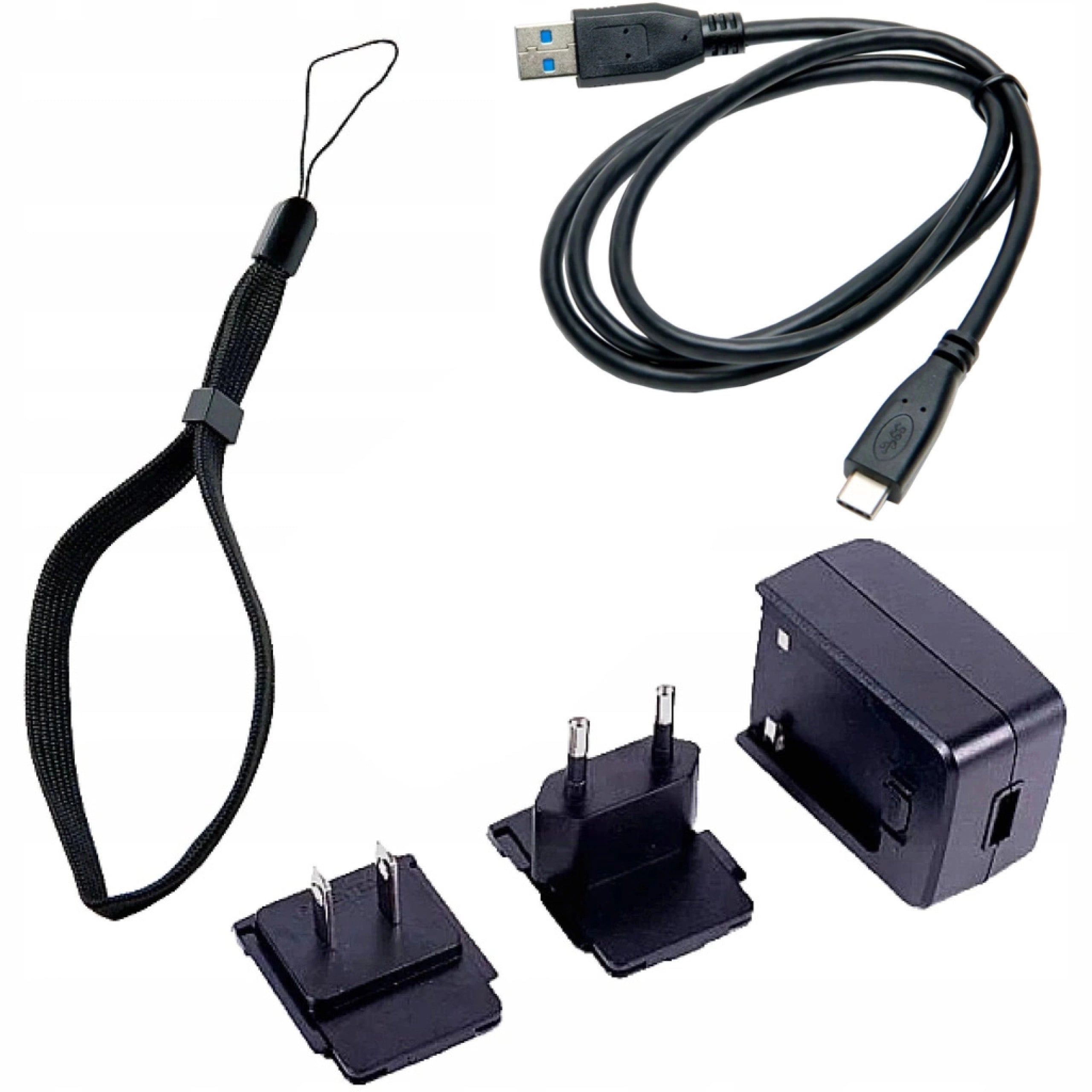

The set includes:

• 1 pc. Thermal imaging camera Sonel KT-256F-PRO

• 1 pc. Hand strap (WAPOZPAS1)

• 1 pc. USB Type-C power cable (WAPRZUSBC)

• 1 pc. AC adapter (WAZASZ20)

• Declaration of verification of the manufacturer

• Operating instructions

Applications

KT-256F-PRO is used wherever the temperature of objects matters and can affect the operation of devices. It is particularly useful in:

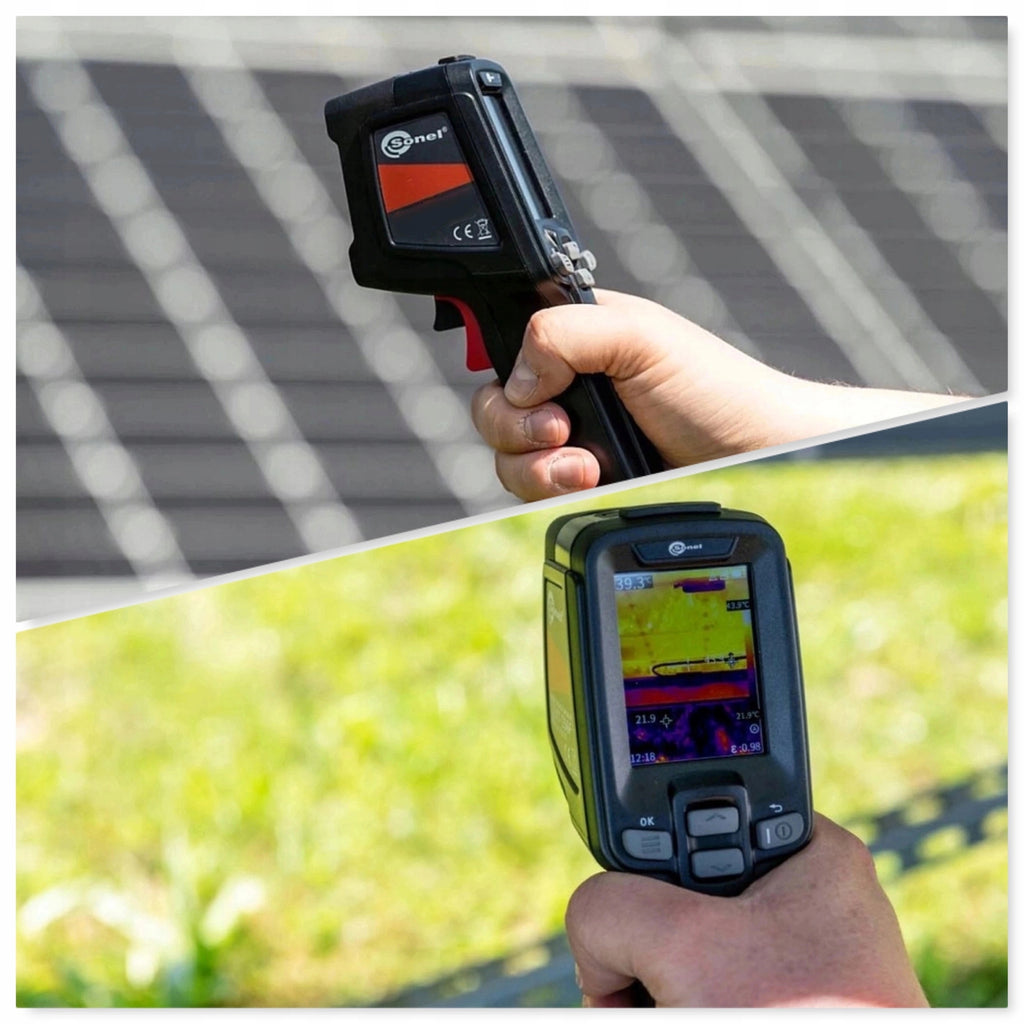

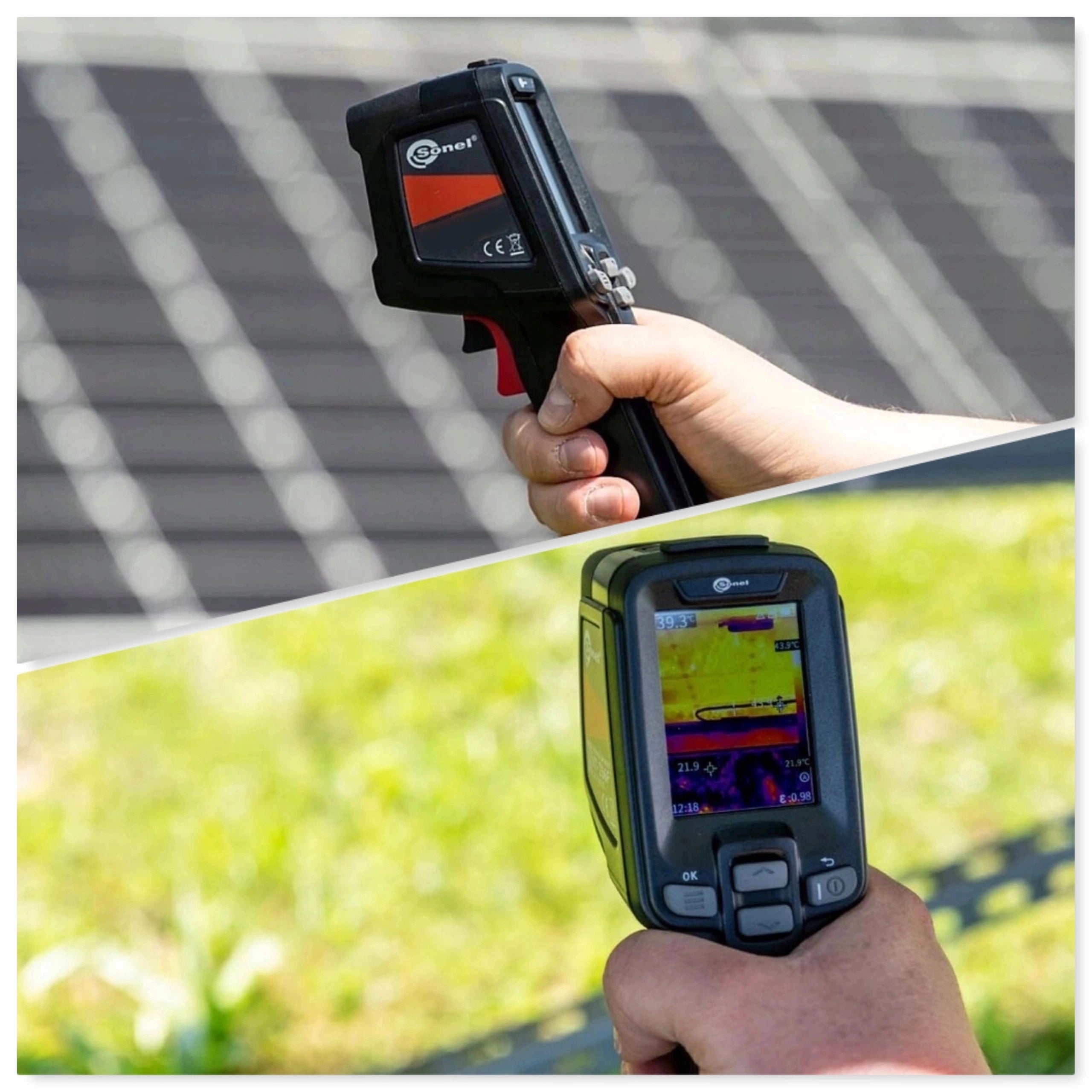

• energy (including during PV installation tests),
• construction,
• industry,
• HVAC.

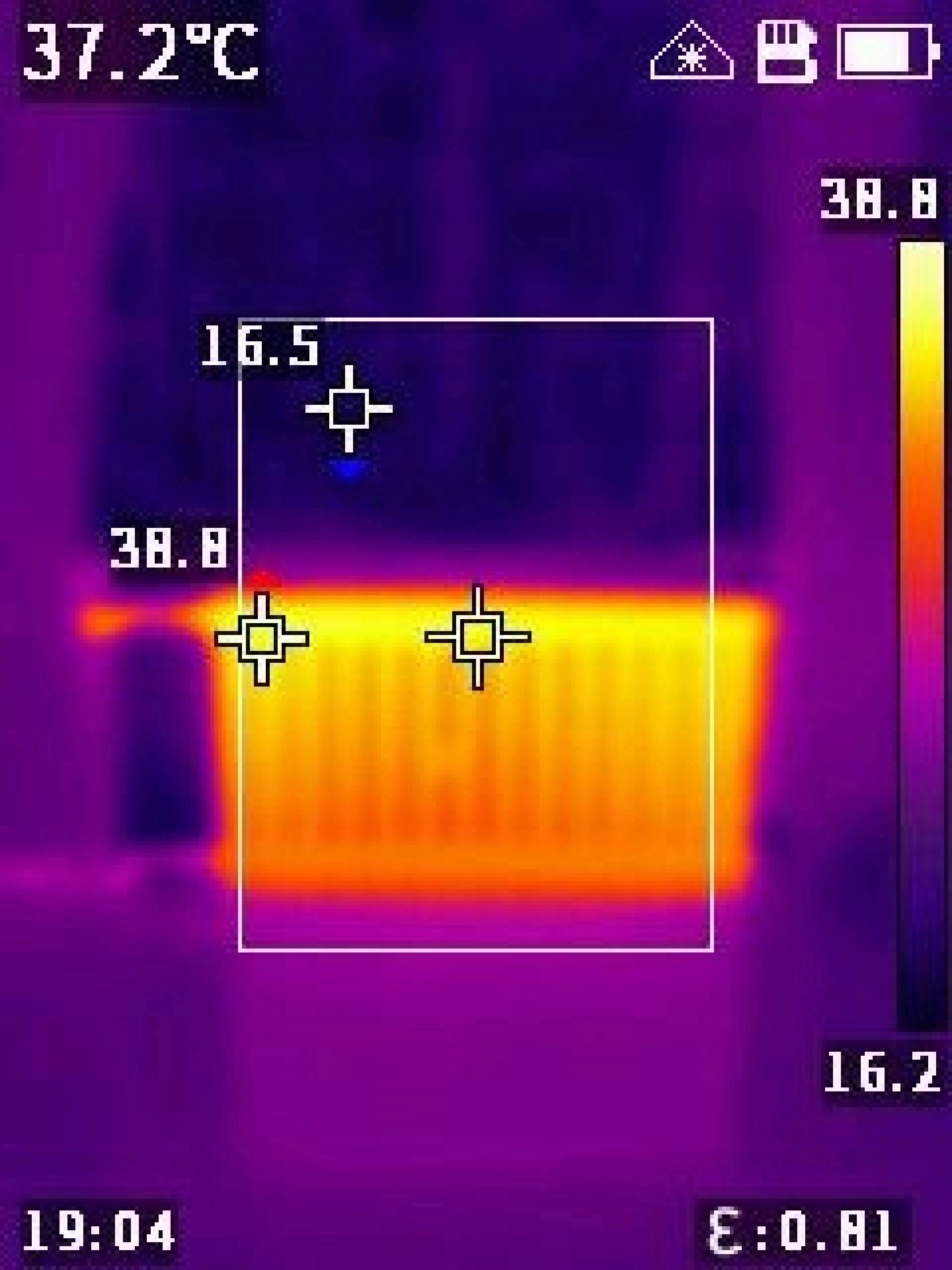

Camera screen

When the camera is turned on, an infrared image is displayed on the screen in real time.

✔ The temperature of the object is displayed at all times (top left corner).

✔ Depending on the selected settings, the screen may also have a focal point or measurement area with temperatures: maximum and minimum.

✔ If the laser pointer is turned on, the indicator light will be displayed next to the battery symbol.

✔ There are the following image modes:

• IR – infrared image
• VL – image from the visual camera
• MIF – thermal image superimposed on the visible image
• PIP – a visual image with an applied IR image with a focal point or measuring area.

Key Features

• Wide measuring range: from -20°C to 550°C
• Instant operation: quick start of the device and immediate temperature measurement
• Intelligent analysis: automatic signaling of exceeding the set alarm limits.
• Storage of photos in internal memory
• Long run time: built-in Li-Ion battery provides up to 11hours of continuous operation.
• Easy communication: USB Type-C interface and Wi-Fi connectivity.
• Stability: can be mounted on a standard tripod

Technical parameters

• Detector resolution: 256 x 192 px
• Detector spectral range: 7,5~14 μm
• Frame rate: 25 Hz
• Thermal sensitivity (NETD): 60 mK
• Spatial resolution IFOV: 1,71 mrad
• Lens (field of view / focal length): 25° x 19° / 7 mm
• Sharpness: automatic
• Display: 2,4" 240 x 320 px LCD
• Image mode: IR / Visual / MIF / PiP infrafusion
• Temperature range (note: two ranges): from -20°C to +150°C and from 0°C to +550°C.
• Accuracy: +-2°C or +-2% read.
• Image analysis mode: Point, 3 areas, temp. min/max, alarm.
• Color palettes: 6
• Super-resolution: 2x (512 x 384 px)
• Emissivity factor: adjustable from 0,01 to 1,00 or from the list
• Measurement correction: distance, ambient temperature
• Photo save format: JPG
• Video file format: IRGD (with temperature information)
• Built-in functions: 2 MPix visual camera, LED flashlight, laser pointer
• Memory: built-in 16 GB internal memory
• Interfaces: USB type C,
• Power supply: Li-Ion battery (>11h working time)
• Housing protection rating: IP54
• Certificates: CE, ROHS, FCC,KC, UN38.3, MSDS
• Additional options: tripod mount option (not included)

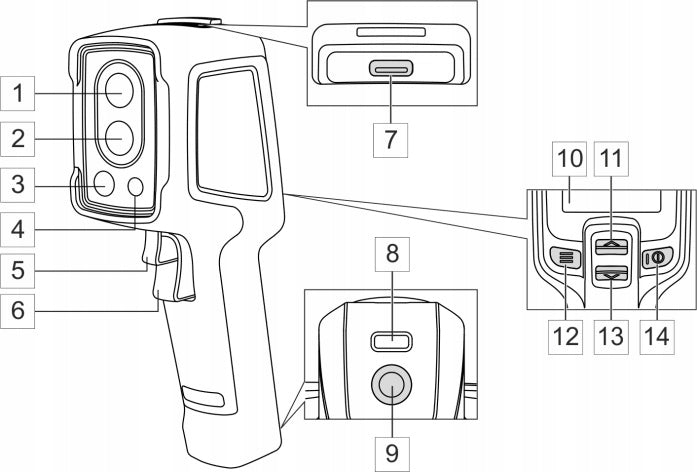

Construction of the camera

The camera is designed for ergonomics and ease of use with one hand.

1. Visible light camera lens
2. Infrared camera lens
3. Laser pointer
4. LED Flashlight
5. Automatic focus button - autofocus
6. Drain button
7. USB port
8. Strap ear
9. Tripod thread
10. LCD screen
11. Button TOP
12. Menu button
13. Button DOWN
14. Power button

The KT-256F-PRO model is distinguished by the fact that has an automatic focus button (autofocus), which allows you to quickly get a perfectly sharp image without the need for manual adjustment, which is crucial for quick inspections of many objects

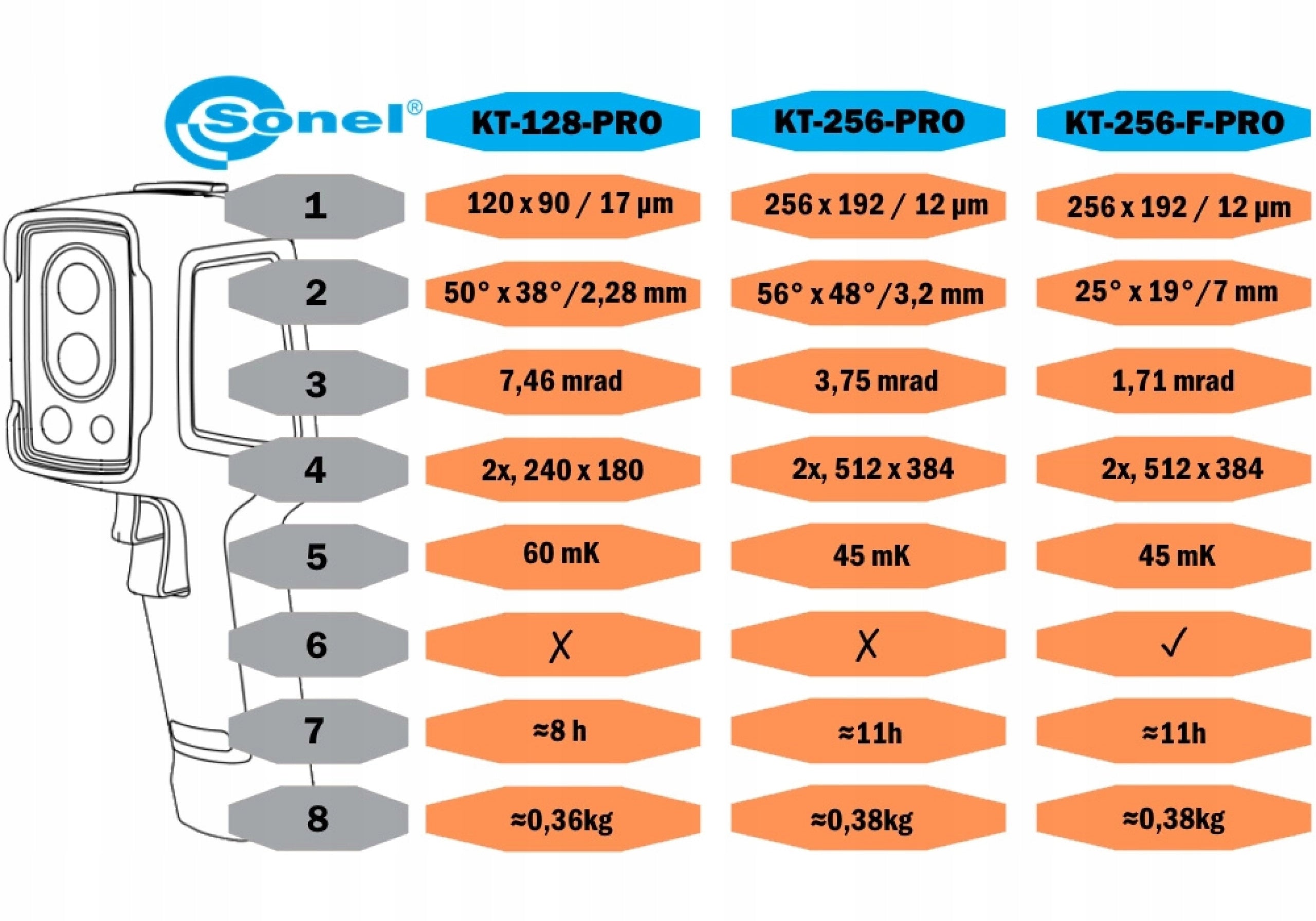

Comparison of differences between thermal imaging cameras 128-PRO / 256-PRO / KT-256F-PRO

Importance of the markings in the table:

1. Resolution
2. Lens (field of view / focal length)
3. Spatial resolution IFOV
4. Super-resolution
5. Thermal sensitivity
6. Autofocus - automatic focusing
7. Working time
8. Weight

Specifications
