Termovizinė kamera YATO VOx, 96x96/240x240, -20–550°C, 18 Hz, NETD <60 mK

Trumpai apie prekę

Prekė: Termovizinė kamera YATO VOx, 96x96/240x240, -20–550°C, 18 Hz, NETD <60 mK. Kategorija: Universalūs įrankiai.

• Gamintojas: no brand
• Modelis: YT-72920

YT-72920

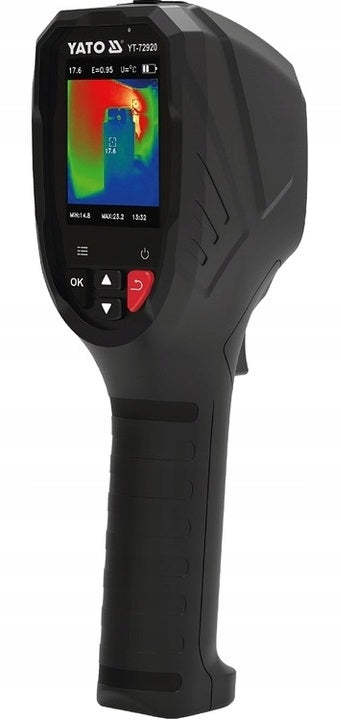

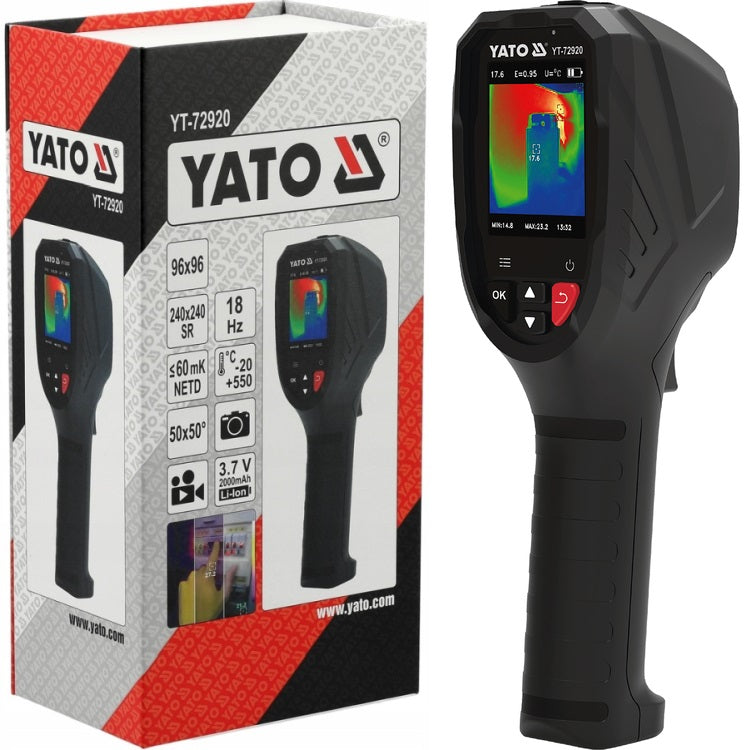

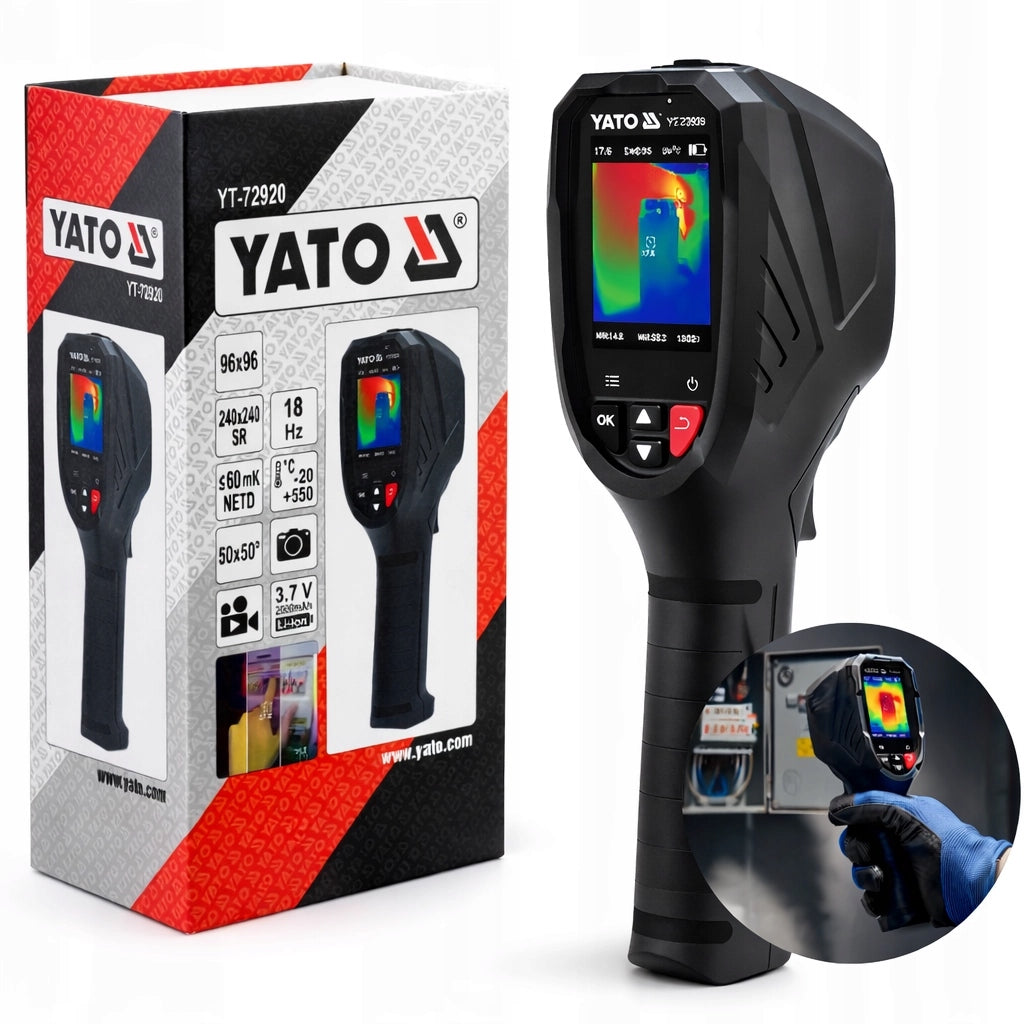

Thermal imaging camera YT-72920 is a compact diagnostic tool with great capabilities. Equipped with a VOx microbolometer (based on vanadium oxide) with a native resolution of 96 x 96 px, which thanks to the Super Resolution technology generates thermal images with an effective resolution of 240 x 240 px. Combined with a relatively fast image refresh rate of 18 Hz, it allows you to detect temperature differences and convert them into a smooth and fairly clear image. The higher the resolution and faster the refresh rate, the smoother and clearer the image.

Thanks to it, we can detect thermal bridges in a few seconds, i.e. places from which heat escapes from the house / apartment. Their location is the first step to reduce heating bills, as well as remove fungal growth sites. After preparing the underfloor heating system, the camera will help check its effectiveness (if it is not aired), as well as detect possible leaks.

It is a compact, lightweight device designed for fast thermal diagnostics in the field – both for professionals and for home needs.

Main technical features:

• thermal detector: VOx microbolometer, without cooling, with a resolution of 96 x 96 px
• effective thermal image resolution: 240 x 240 px (Super Resolution)
• spectral range: 8-14 µm
• NETD: ≤ 60 mK @ 25°C – high thermal sensitivity to detect minor temperature differences
• pixel size: 12 µm
• focal lens: 1,35 mm
• field of view (FOV): 50° x 50°
• sharpness: constant – brak need to adjust

Temperature measurement:

• measuring ranges:

  mode 1: -20°C ~ +150°C

  mode 2: 100°C ~ 550°C

• accuracy: ±2°C or ±2% (depending on the higher value)
• measurement sensitivity: 0,1°C
• measurement modes: point measurement (center), maximum and minimum temperature detection
• emissivity: manually set in the range of 0,01-1,00

Imaging and recording:

• display: 2,4" color LCD screen with a resolution of 240 x 320 px
• three image modes: thermal imaging only, image from ordinary camera with simultaneous temperature measurement, mixed image (you can adjust the overlap of images in the camera settings)
• visible light camera: 640 x 480 px resolution
• color palettes: rainbow, red iron, red warm, white warm, black warm
• write format: JPG (images), MP4 (video)
• Internal memory: 8 GB eMMC, of which approx. 6,5 GB available for the user
• data export: USB (computer connection)

Power supply and use:

• battery: built-in Li-Ion 18650, 2000 mAh
• working time: ≥4 hours of continuous operation
• charging: USB Type-C connector
• automatic shutdown: 5 min / 20 min / the ability to turn off the function

Working conditions and housing:

• ambient temperature at work: -5°C ~ +40°C
• ambient temperature during storage: -10°C ~ +50°C
• ambient humidity: 10%-85% RH
• dimensions: 208 x 60,9 x 75,9 mm
• weight: 249,5 g
• menu languages: Polish, English, Ukrainian, German, Italian, Chinese

Detailed information:

• Temperature measurement range: -20 ~ +150 / -4 ~ +302, 100-550 / 212-1022 ˚C/˚F
• Operating relative humidity Rh: 10-85 %
• NETD (thermal sensitivity): ≤60 @ 25°C, F/1.0 mK
• Temperature measurement accuracy: ±2°C / ±2%
• Battery Type: Li-Ion
• Battery voltage: 3.7 V d.c.
• Battery capacity: 2000 mAh
• Charger Type: USB Type-C
• Charging Current: 1 A
• Max. working time: 4 hours
• Dimensions: 208x60x9x75x9 mm
• Viewing angle: 50x50 ˚
• Internal memory: 8 GB eMMC, of which approx. 6.5 GB available for the user
• Recording format: JPG (images), MP4 (video)
• Image modes: thermal image, thermal image with applied contours from the visible camera, visible camera image with applied temperatures
• Color Modes: Rainbow, Red Iron, Red Warm, White Warm, Black Warm
• Effective resolution: 240x240 px
• Visible light image resolution: 640x480 px
• Infrared detector resolution: 96x96 px
• Screen refresh rate: ≤18 Hz
• Menu languages: Polish, English, Ukrainian, German, Italian, Chinese
• Automatic shutdown: 5 min, 20 min, the ability to turn off the function
• Data Export: USB (Computer Connection)
• Input voltage: 5 V d.c.
• Operating temperature range: -5 ~ +45 ˚C
• Storage temperature: -10 ~ +50 ˚C
• Weight: 249.5 g
