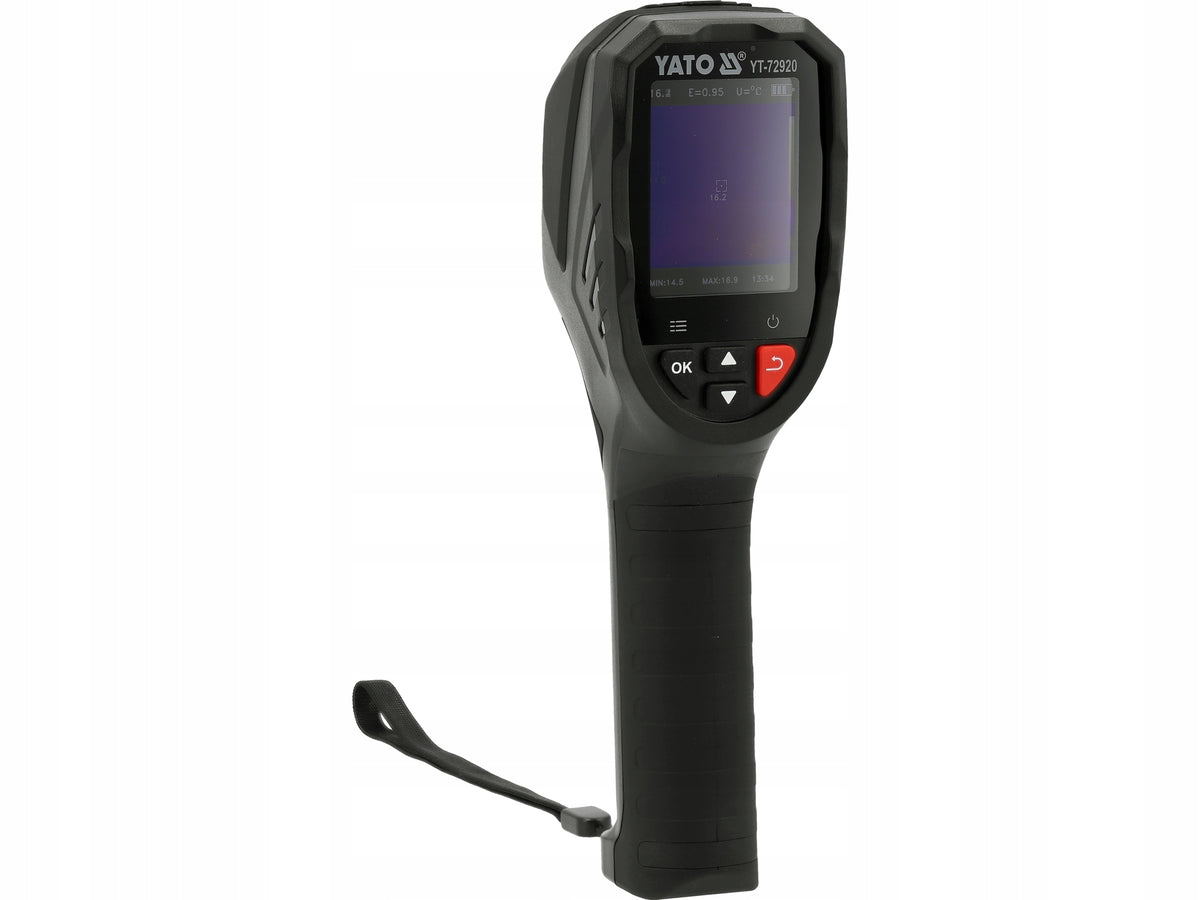

Termovizinė kamera Yato YT-72920

Trumpai apie prekę

Prekė: Termovizinė kamera Yato YT-72920. Kategorija: Detektoriai.

• Gamintojas: Yato
• Modelis: YT-72920

⭐The Yato YT-72920 thermal imaging camera is a modern diagnostic tool that, despite its compact dimensions, offers a high-detail image.

⭐ Thanks to Super Resolution technology, the device programmatically raises the native resolution of the sensor (96x96 px) to effective 240x240 px, which allows you to see details invisible to cheaper cameras.

This model is irreplaceable for location of thermal bridges, leaks from water installations or overheating elements in electrical cabinets. Lightweight, pistol-like construction (only approx. 250 g) makes working with the device does not tire your hands, and the intuitive interface allows for quick diagnostics without complicated configuration.

✳ Key features and benefits:

⭐Super Resolution Technology (240x240 px) ➡ provides a much clearer picture than standard cameras in this price class, making it easier to identify the fault.

⭐Wide range (-20°C to +550°C) ➡ versatility of application: from checking the tightness of windows and cold rooms, to diagnostics of engines and heating systems.

⭐Refreshing 18 Hz ➡ smooth image when moving the camera (as opposed to 9 Hz framed cameras), which speeds up inspection work.

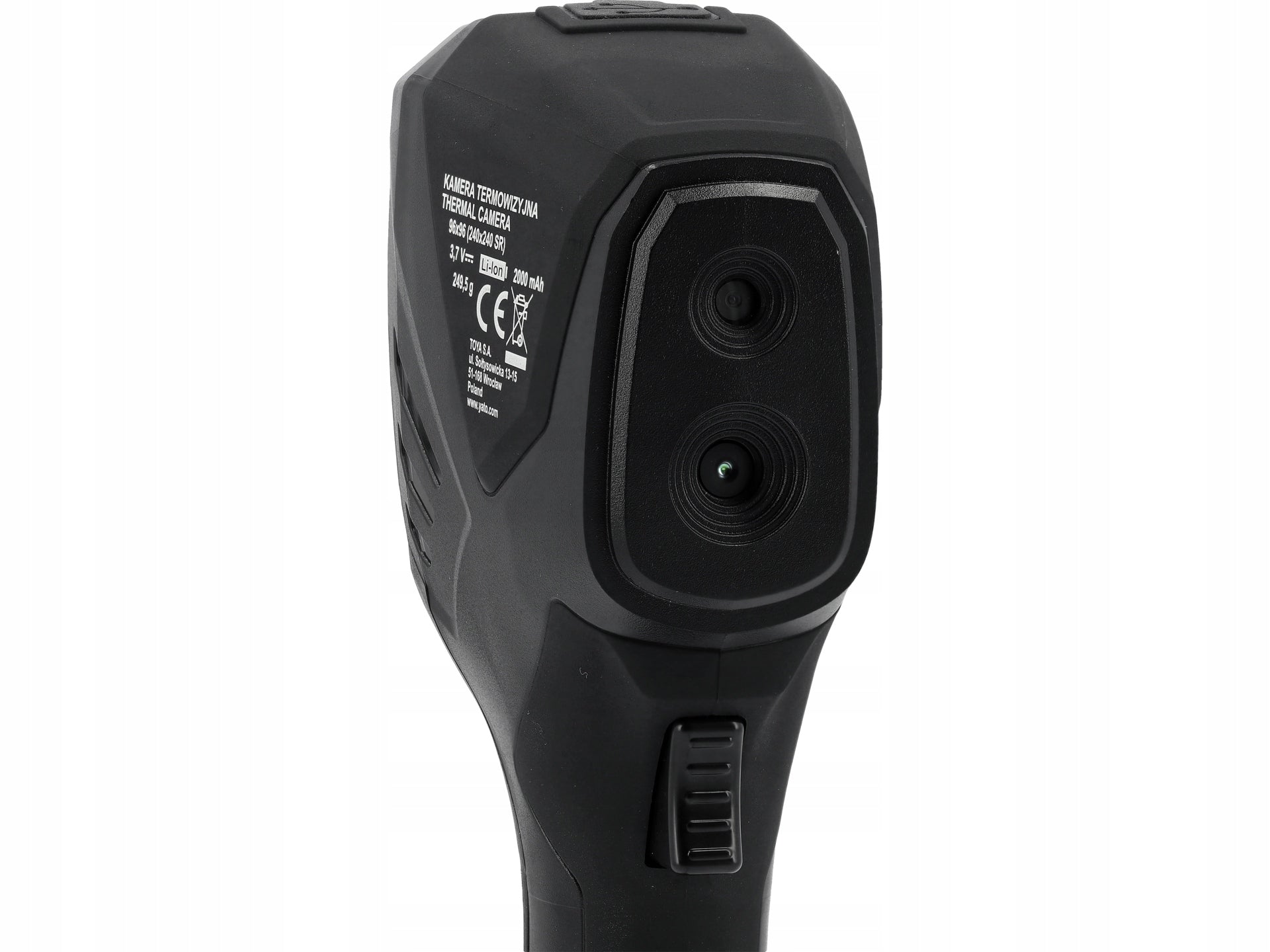

⭐Image fusion (Mixed image) ➡ applying a thermal map to real contours (from the second camera) allows you to immediately recognize which element in the photo is hot/cold.

⭐The built-in 8 GB ➡ memory is enough to save thousands of photos (JPG) and videos (MP4) from the inspections carried out.

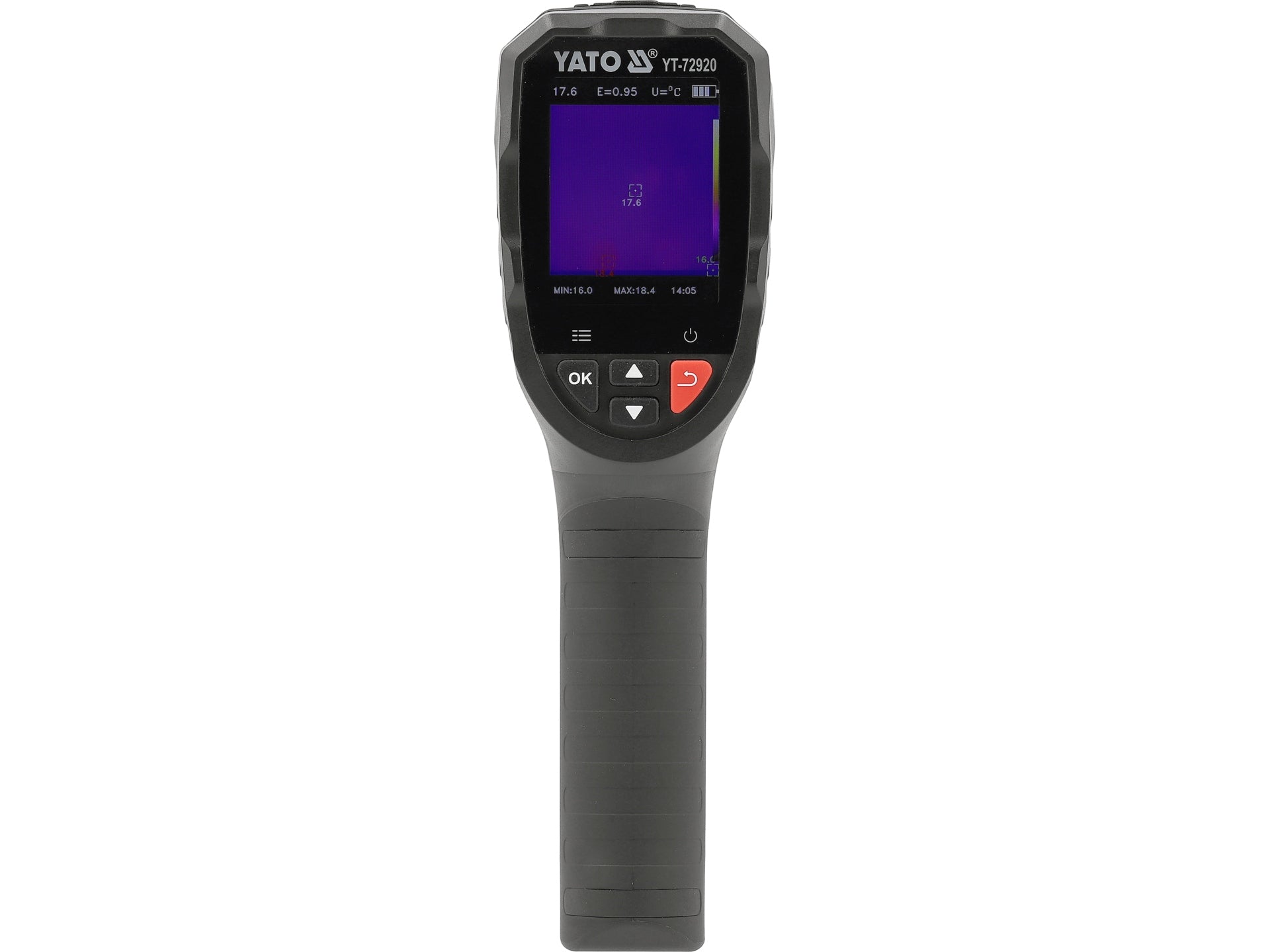

⚙ Precise diagnostics and easy-to-read screen

The camera is equipped with a sensitive VOx microbolometer (NETD ≤ 60 mK), which detects minimal temperature differences. The results are presented on a color LCD display 2,4". Thanks to the high refresh rate (18 Hz), the image is stable and does not smudge, which is crucial for a quick overview of large areas, e.g. walls or floors.

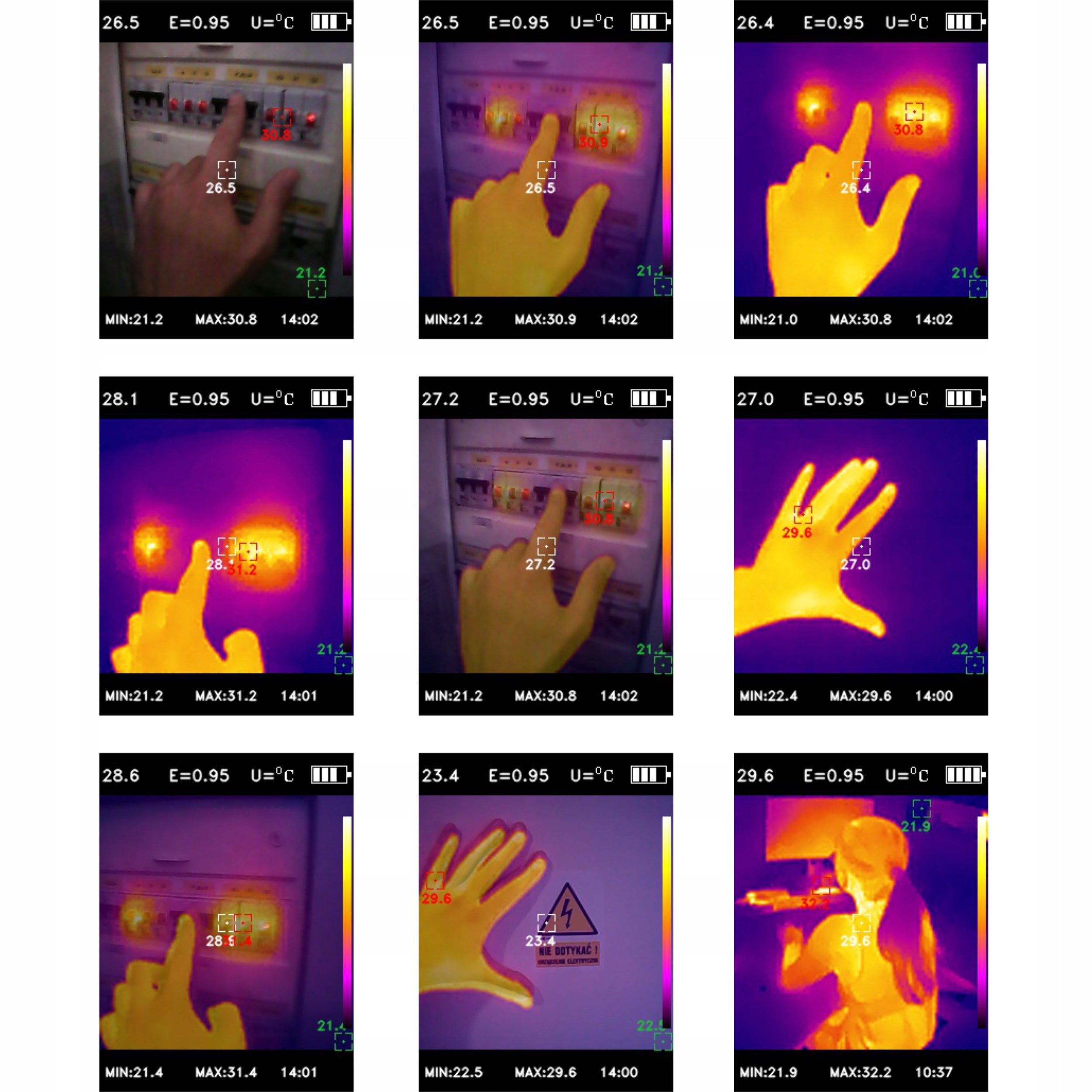

The Hot/Cold Spot function automatically marks the warmest and coldest point in the frame on the screen, allowing you to quickly find e.g. a heater fragment or an overheated fuse.

👁 3 Imaging modes for a complete picture of the situation

To facilitate the interpretation of the results, the user has three display modes to choose from:

1. Thermovision – a classic heat map.
2. Visible image – a preview like from an ordinary camera (thanks to an additional camera 640x480 px).
3. Mixed image (Fusion) – a combination of both views. This allows you to see the physical contours of objects with superimposed temperature colors.

In addition, 5 color palettes (m.in) are available. Rainbow, Iron, Black-White), which help to expose the problem depending on the environment.

⚡ Mobility and ease of use

The device is powered by a built-in Li-Ion battery with a capacity of 2000 mAh, charged by the popular USB-C connector. One charge is enough for more than 4 hours of continuous operation.

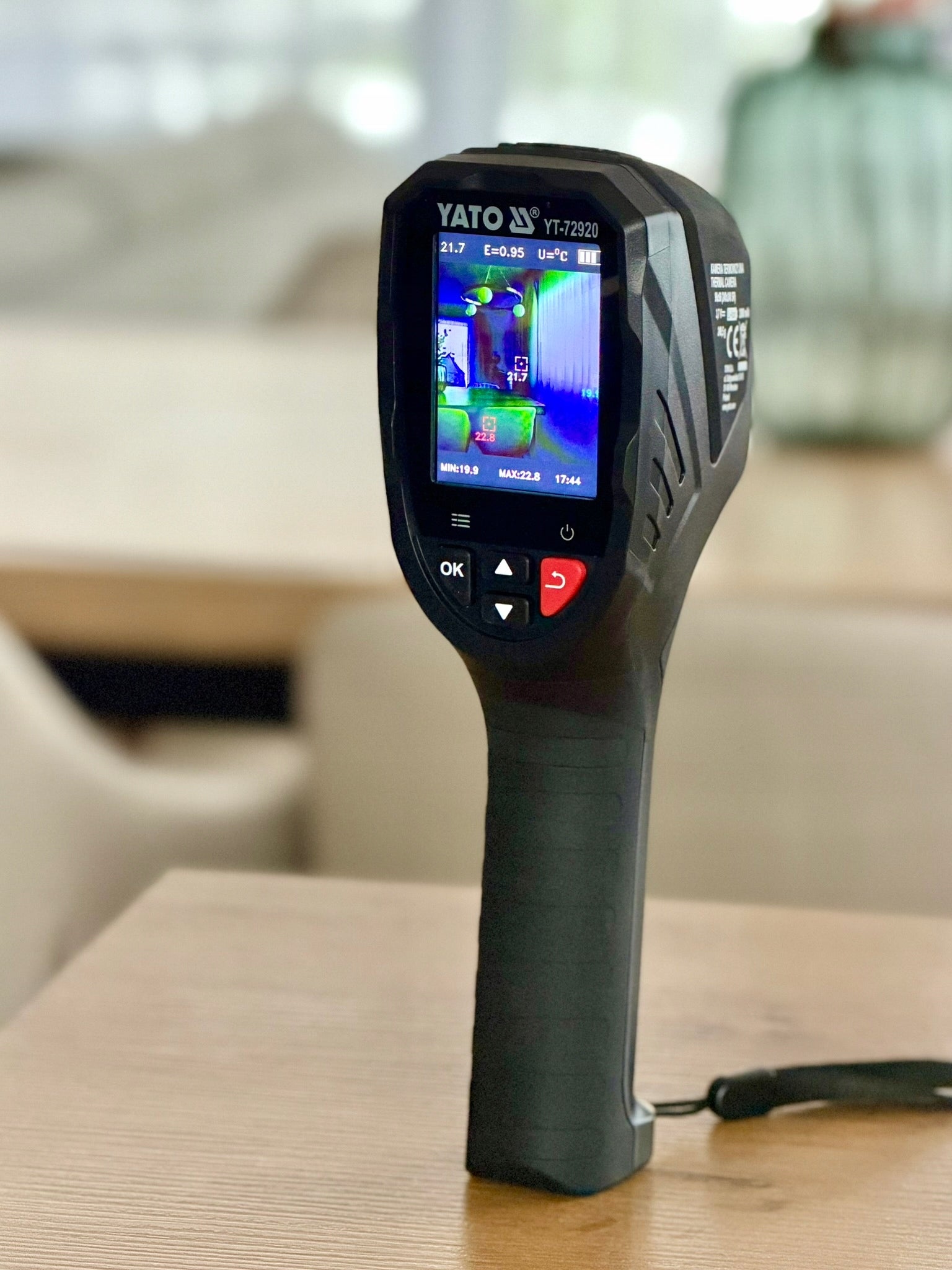

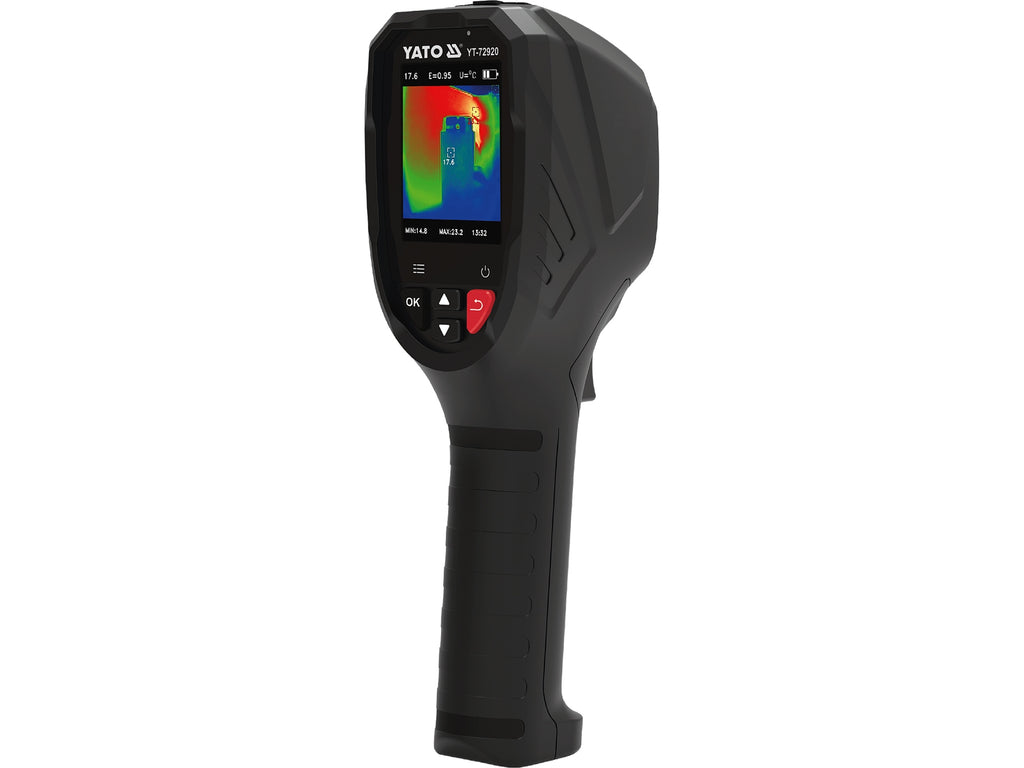

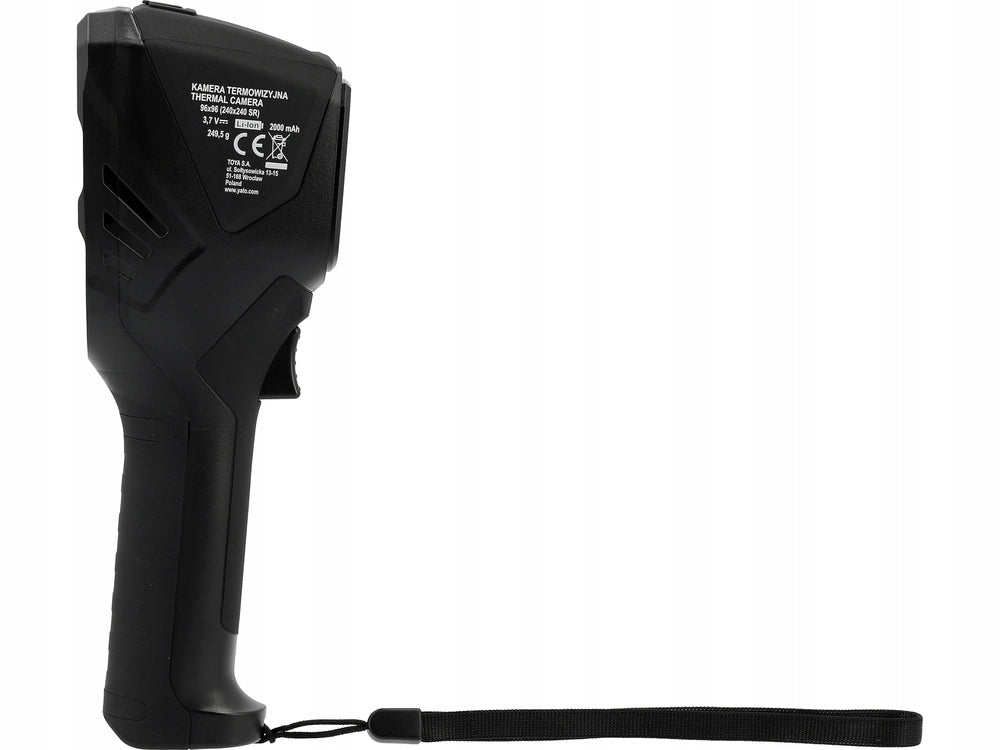

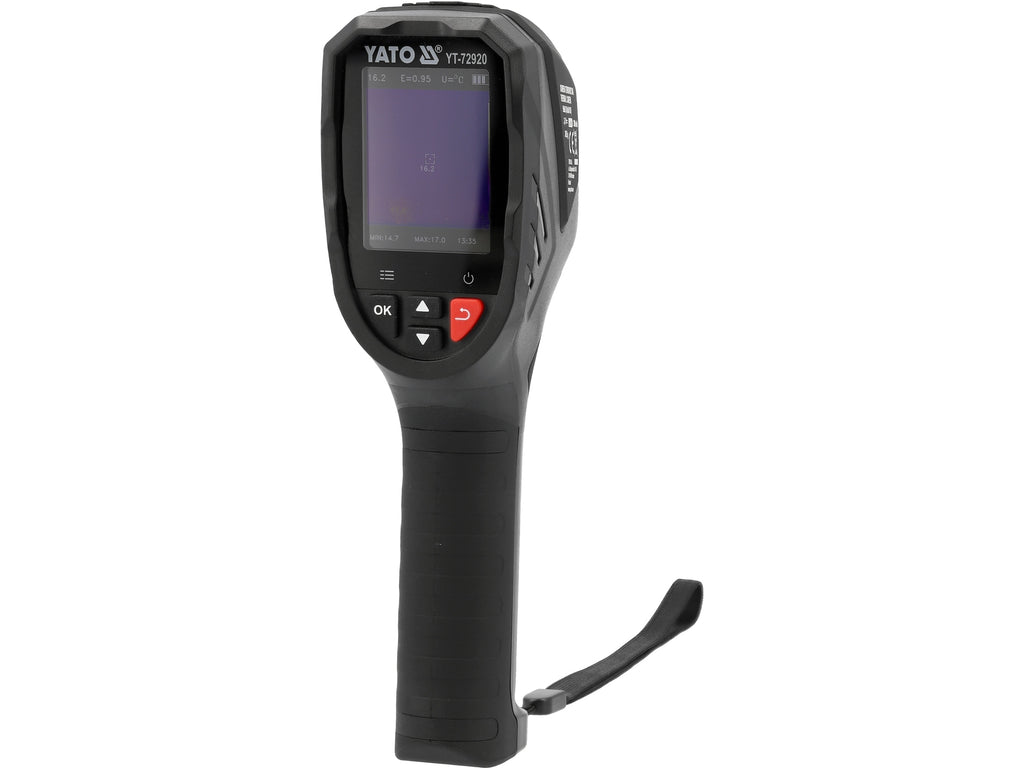

The "gun" type housing is ergonomic and covered with plastic for a secure grip. The control buttons are large and clearly marked, which allows you to operate the camera even with work gloves. The use of integrated memory eliminates the problem of losing SD cards.

🔋 Power and data

The built-in 2000 mAh Li-Ion battery provides over 4 hours of operation. Data is ripped via USB cable – the computer detects the camera as a disk, which makes it easier to copy reports in JPG or MP4 format.

Technical data

• Brand: Yato
• Symbol: YT-72920
• Responsible party in the EU: TOYA S.A.

Detector and imaging

• IR detector resolution: 96 × 96 px
• Effective image resolution: 240 × 240 px
• Thermal sensitivity (NETD): ≤ 60 mK @ 25°C
• Spectral range: 8 to 14 µm
• Refresh rate: ≤ 18 Hz
• Angle of view (FOV): 50° × 50°
• Sharpness: constant

Temperature measurement

• Temperature measurement range: -20°C ~ +150°C and 100°C ~ 550°C
• Measurement accuracy: ±2°C or ±2%
• Measurement resolution: 0,1°C
• Measuring modes: focal point, minimum temperature, maximum temperature
• Emissivity: adjustable from 0,01 to 1,00

Display and recording

• Screen: LCD 2,4", 240 resolution × 320 px
• Visible light camera: 640 × 480 px
• Image modes: thermal image, mixed image, visible image with temperatures
• Color palettes: rainbow, red iron, red warm, white warm, black warm
• Internal memory: 8 GB eMMC (approx. 6,5 GB available for the user)
• Storage format: JPG (photos), MP4 (video)
• Data export: USB

Power supply and housing

• Battery: Li-Ion 18650, 2000 mAh
• Voltage: 3,7 V d.c.
• Maximum working time: up to 4 hours
• Charging: USB Type-C, current 1 A
• Automatic shutdown: 5 min / 20 min / can be turned off

Working conditions

• Working temperature: -5 ~ +45°C
• Storage temperature: -10 ~ +50°C
• Ambient humidity: 10 to 85% RH

Dimensions and weight

• Dimensions: 208 × 60,9 × 75,9 mm
• Mass: 249,5 g

AR9GWEYT-72920MK3S

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Yato
Parametry	Kind	thermal imaging camera
Parametry	Power supply	rechargeable battery
Parametry	Manufacturer code	YT-72920
Parametry	EAN (GTIN)	5906083126505
Parametry	Product weight with unit packaging	0.9 kg
Parametry	Batteries included	yes
Parametry	Certificates of conformity	CE
