Termovizorius -20°C iki +450°C, 220x160, 3 GB, USB, su dėklu

Trumpai apie prekę

Prekė: Termovizorius -20°C iki +450°C, 220x160, 3 GB, USB, su dėklu. Kategorija: Detektoriai.

• Gamintojas: Wintact
• Modelis: WT3220

Advanced device designed for non-contact measurement of surface temperature.

✅ Resolution 220 x 160 pixels

The camera clearly and intuitively displays the temperature distribution of the area recorded by the infrared lens. Temperature differences are presented using a wide color palette on the built-in screen.

THE MOST IMPORTANT PARAMETERS:

• Infrared sensor resolution – 220 x 160 (35 200 points)
• Thermal sensitivity – less than 70 mK
• Field of view – 35 x 26 degrees
• Focus distance – above 0,50 m
• Surface temperature measurement range – from –20 to +450°C
• Measuring accuracy (typical) – +/– 2 C
• Display size and type – 2,8" TFT (wide-angle)
• Display resolution – 320 x 240
• Built-in memory: 3GB (enables writing over 20 thousand. photos in jpg format).
• Power supply – battery with a capacity of 2 000 mAh
• Integrated video camera

A traditional non-contact thermometer indicates the temperature of only individual elements, while a thermal imaging camera creates a spatial image of the surface temperature distribution.

The camera allows you to touchlessly check differences in surface and object temperatures or irregularities and detect defects in building materials and structural defects.

The focal point measurement cursor is used for fast and accurate localization to measure the temperature of the target object.

In order to increase the diversity, the product is equipped with a visible light camera. Thermal images and visible images are stored on the device and can be read via USB or saved to your computer, which is helpful when generating reports.

The thermal imaging camera is convenient and easy to use, and has a range of features to enhance your work. Compact design with ergonomic shape and light weight (323 g) are another advantages of the device.

THE MOST IMPORTANT ADVANTAGES AND FUNCTIONS:

• The integrated vision camera shows and saves the real image along with the measurements you take.
• The high measurement resolution of the infrared sensor 220 x 160 pixels (up to 35.200 points) provides highly detailed thermal images.
• The large 2,8” TFT colour display provides good visibility of measurement results.
• Micro USB connector facilitates data transfer to the computer, and built-in 3GB memory allows you to save from 20 to even 30 thousand photos.
• Emissivity adjustment - the radiation coefficient can be adjusted to increase the measurement accuracy of objects with a more or less reflective or matte surface.
• The cursor (indicator) of the highest and lowest temperature can indicate to the user the area with the highest and lowest temperature of thermal images.

• Choice of color palette: to choose from 5 different color palettes: Rainbow, Iron oxide red, Cold color, White heat, Black heat

DESCRIPTION OF THE DISPLAY ELEMENTS:

1. Set emissivity.
2. Battery level indicator.
3. Selected color palette.
4. The temperature cursor of the central point of the lens.
5. The lowest temperature cursor in the field of view.
6. time .
7. Maximum and minimum values in the field of view.
8. The highest temperature cursor in the field of view.
9. Temperature at the central point of the lens.

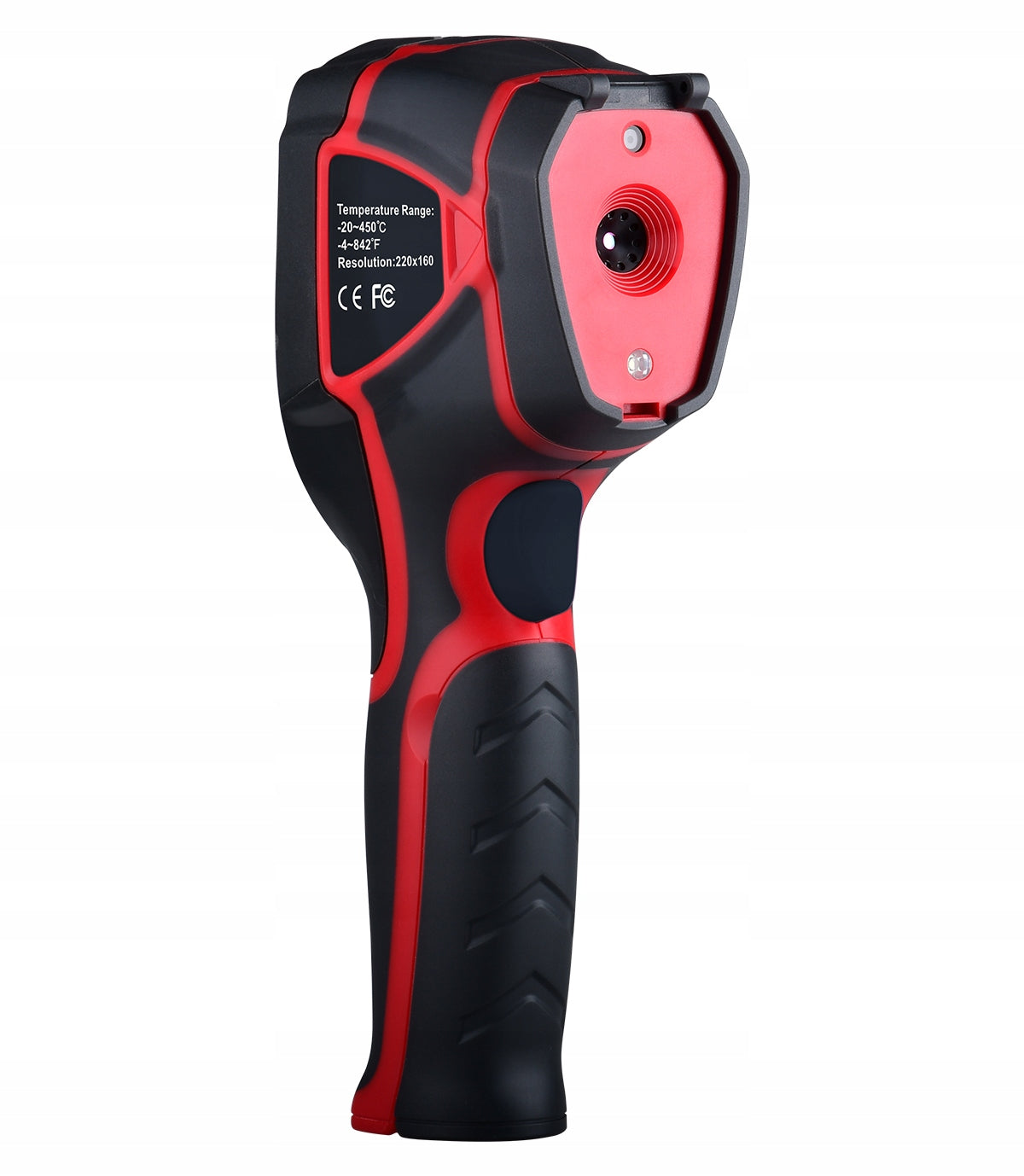

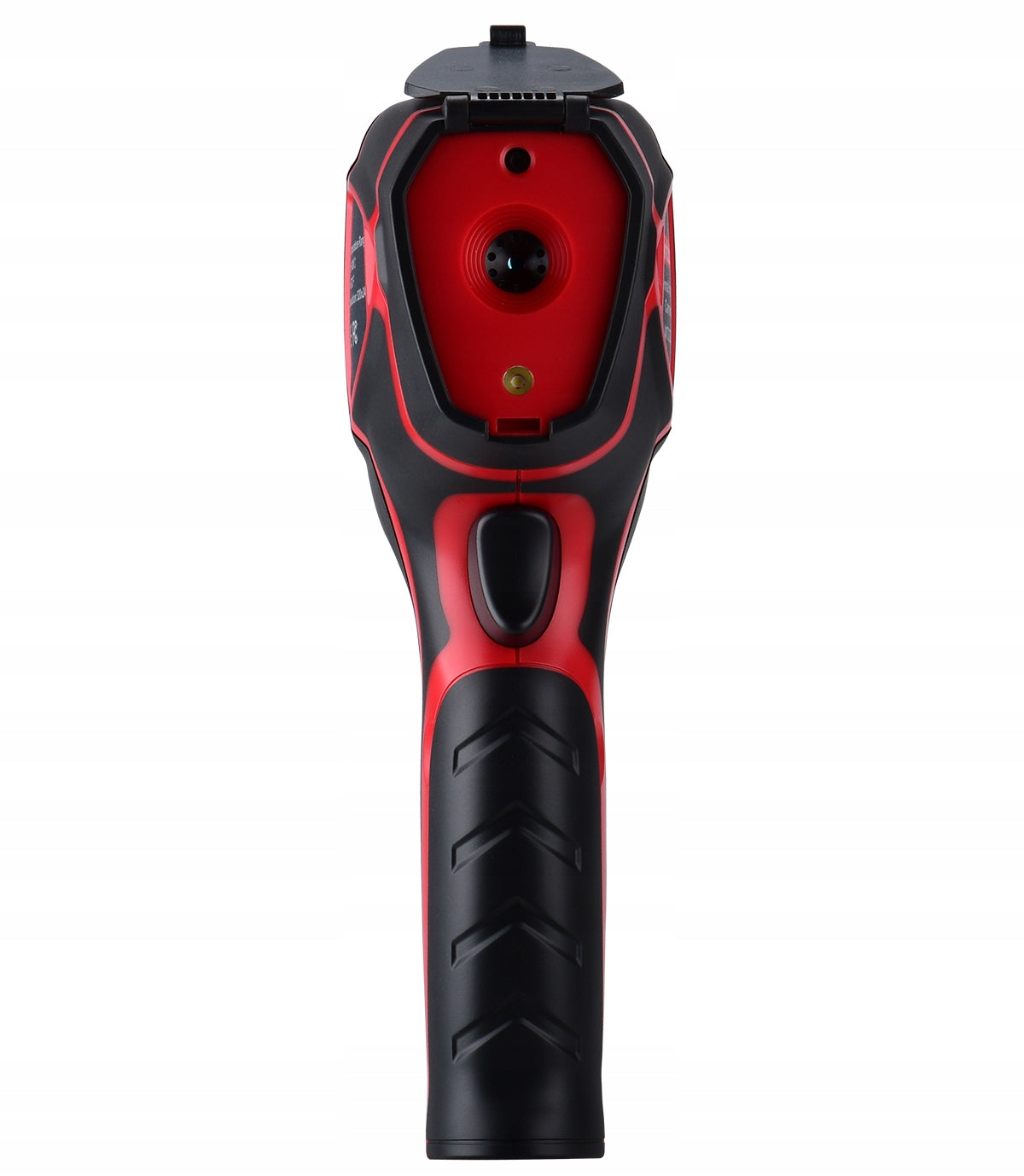

DESCRIPTION OF HOUSING COMPONENTS:

1. Lens hood.
2. Vision camera.
3. Infrared camera.
4. LED backlighting.
5. Trigger to capture the image (snapshot) and start the LED backlight (hold for a long time).
6. Battery compartment.

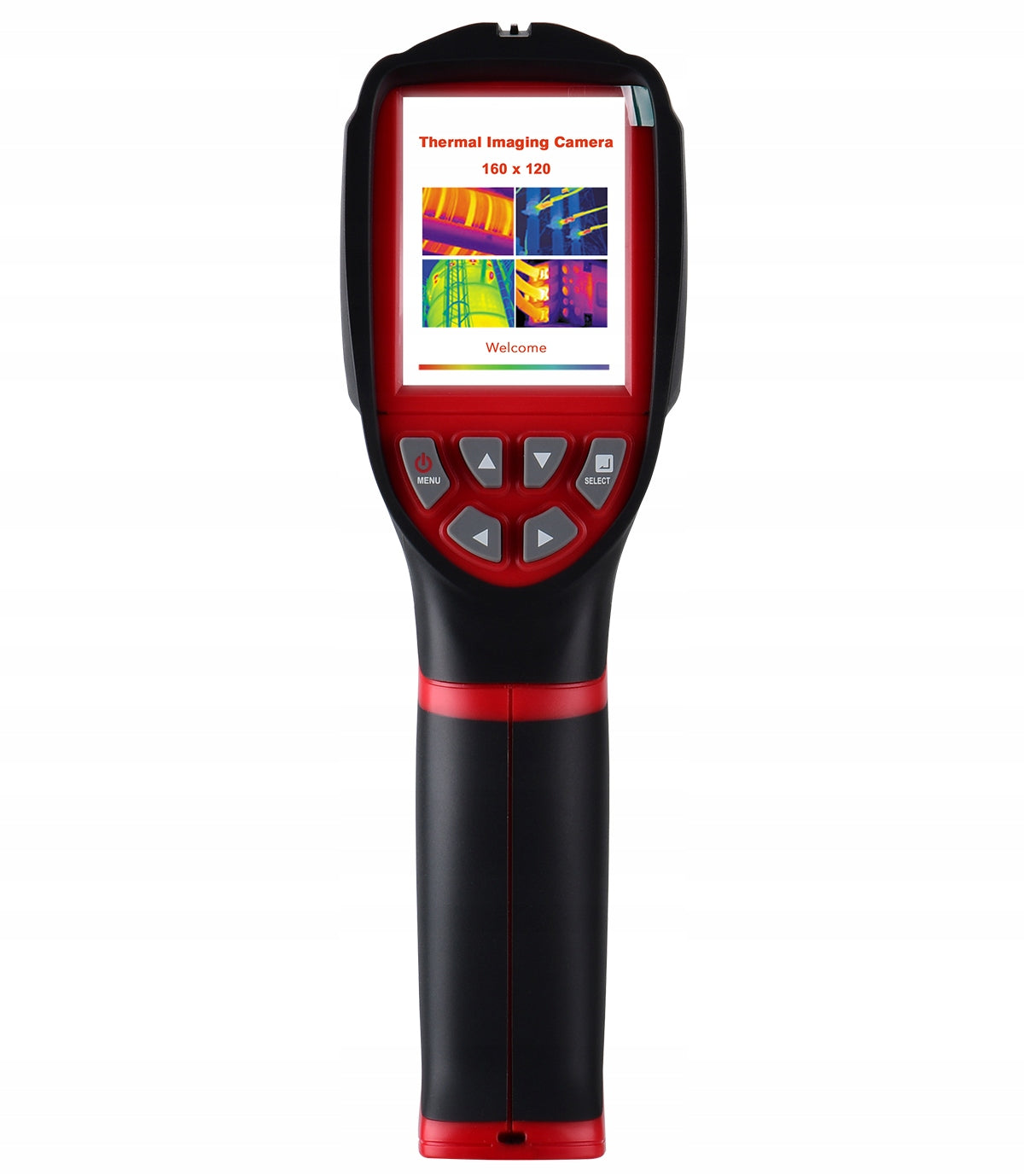

DESCRIPTION OF HOUSING COMPONENTS:

• A: Micro USB connector
• B: Screen
• C: Keyboard
• D: Handle

EXAMPLES OF APPLICATION:

• location of leaks,
• control of the course of heating pipes,
• control of the installation box, e.g. correct marking of pipes,
• detection of protection of the heating system,
• location of heating pipes in the floor or walls
• location of window leaks, detection of thermal bridges,
• detection of wet spots or leaks (moisture)
• avoiding errors during drilling, e.g. due to damage to heating pipes in the floor or wall,
• assessment of the state of isolation,
• detection of loose contacts in distribution cabinets,
• control of electrical system components, e.g. circuit boards of printed electrical equipment,
• control of fuses and contactors,
• control of electrical system load, detection of overheated wires,
• detection of draft sources,
• control of insulation of windows, doors and roller shutter cassettes.

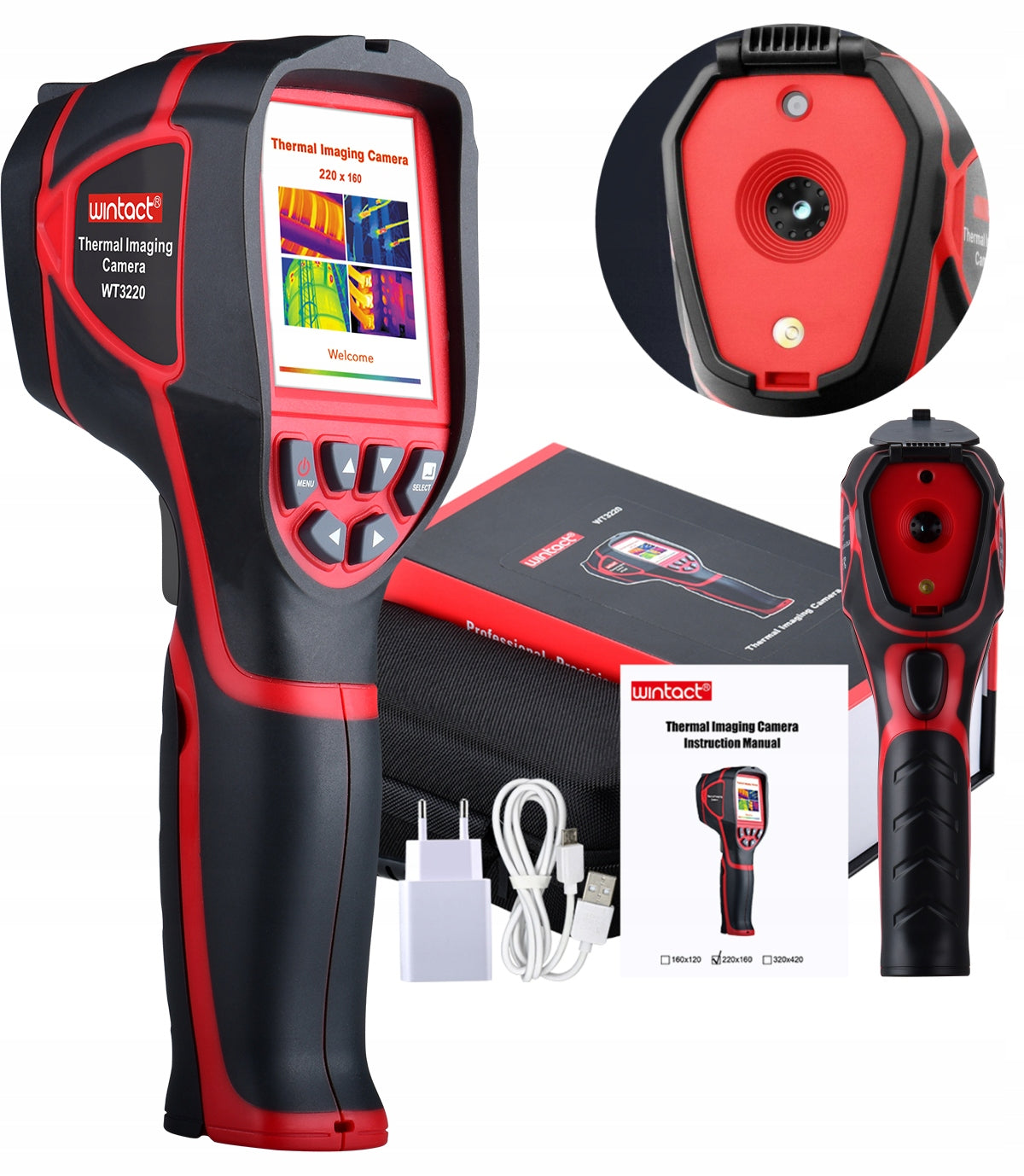

CONTENTS OF THE SET:

• thermal imaging camera Wintact WT3220,
• rigid and handy protective case,
• USB charger,
• built-in 2000 mAh battery,
• USB cable - Micro USB (for charging and data transfer),
• instruction manual in Polish,
• LEASH
• original outer packaging.

BENETECH is a manufacturer of advanced measuring and control equipment. A specialized supplier of professional digital measuring tools, as well as other electronic devices.

BENETECH POLAND is an authorized and direct distributor of this brand in Poland and Europe.

In the brand catalog you will find m.in:

• pyrometers and thermal imaging cameras,
• anemometers (wind meters),
• humidity meters and hygrometers,
• detectors and meters of gases and air quality,
• sonometers (decibel meters) and lux meters (light meters),
• laser rangefinders and tachometers,
• thermometers and pressure gauges,
• thickness and vibration meters (vibrometers),
• tools for electricians and cable detectors,
• electromagnetic radiation meter,
• home and industrial electronics equipment.

Directive EMC 2014/30/EU and RoHS 2011/65/EU

At the customer’s request, we attach a calibration report from the manufacturer translated into English. We receive the document electronically a few days later. In order to avoid delay in the execution of the order, we send the calibration report within about 7 working days to the e-mail provided in the order or assigned to the account.

The product meets European standards and directives, as evidenced by the CE certificate, at the customer's request this document is also attached.

The manufacturer’s calibration report and declaration of conformity (CE) is a free, optional document and therefore is not sold in this offer.
